Double-sided thickness planer MB206F
431 514 ₴incl. VAT
359 595 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Specifications | |
|---|---|
| Feed rate, m/min | 8; 11 |
| Cutterhead speed, rpm | 6500 |
| Max. planing thickness, mm | 200 |
| Number of knives | 4 |
| Weight (kg) | 850 |
| Voltage (V) | 380 |
| Min. planing thickness, mm | 12 |
| Machining sides | double-sided |
| Overall dimensions (mm) | 1180x960x1382 |
| Max. planing width, mm | 600 |
| Cutterhead diameter, mm | 105 |
| Power (kW) | 5.5/4 |
| Frequency (Hz) | 50 |
| Country of origin | China |
| Max. planing depth, mm | 4/3 |
| Min. planing length, mm | 300 |
Description

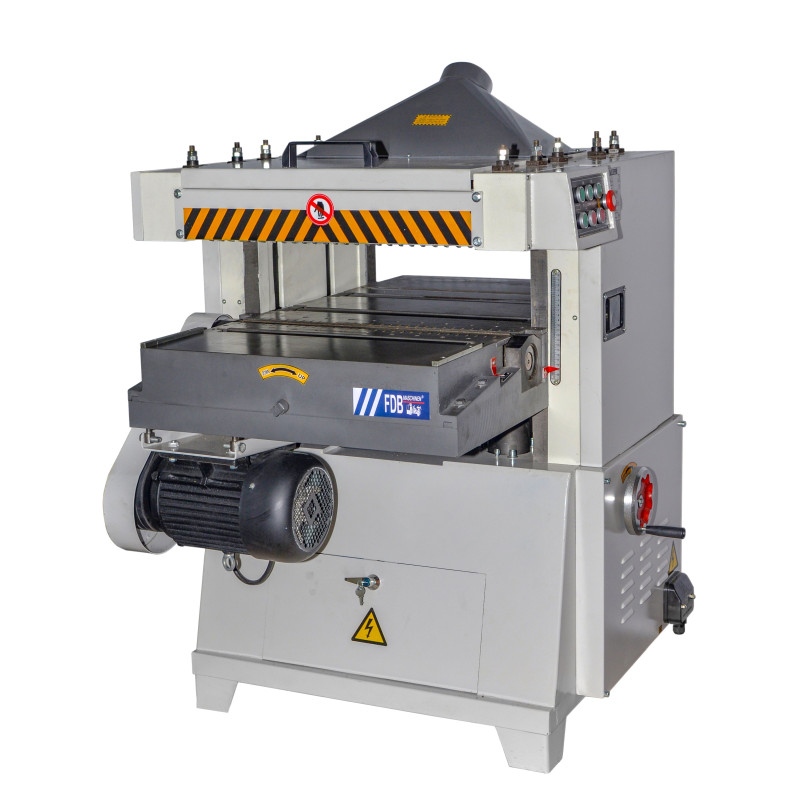

The FDB Maschinen MB206F double-sided thickness planer machines the stock from the top and bottom in one pass, so boards and beams get two parallel faces and an exact thickness at once. It is a heavy 850 kg machine for sizing boards and beams. The table is raised and lowered by a motorised drive, which speeds up resetting for a new thickness.
Planing width is 600 mm, stock height 12 to 200 mm, minimum length 300 mm. Cut depth is up to 4 mm on the top head and up to 3 mm on the bottom head. The 105 mm cutterheads with four knives run at 6500 rpm, feed is 8 or 11 m/min, and the motors are 5.5 and 4 kW at 380 V. Built for furniture factories and large woodworking plants.
FDB Maschinen MB 206 F thickness planers are designed for sizing boards and beams and offer high quality and reliability.
Features of the FDB Maschinen MB 206 F thickness planer:
- Motorised table raise/lower drive
- Four vertical guides ensure accuracy and stability when setting the planer table height.
- The four-knife cutterhead gives a high-quality surface finish.
Specifications:
|
