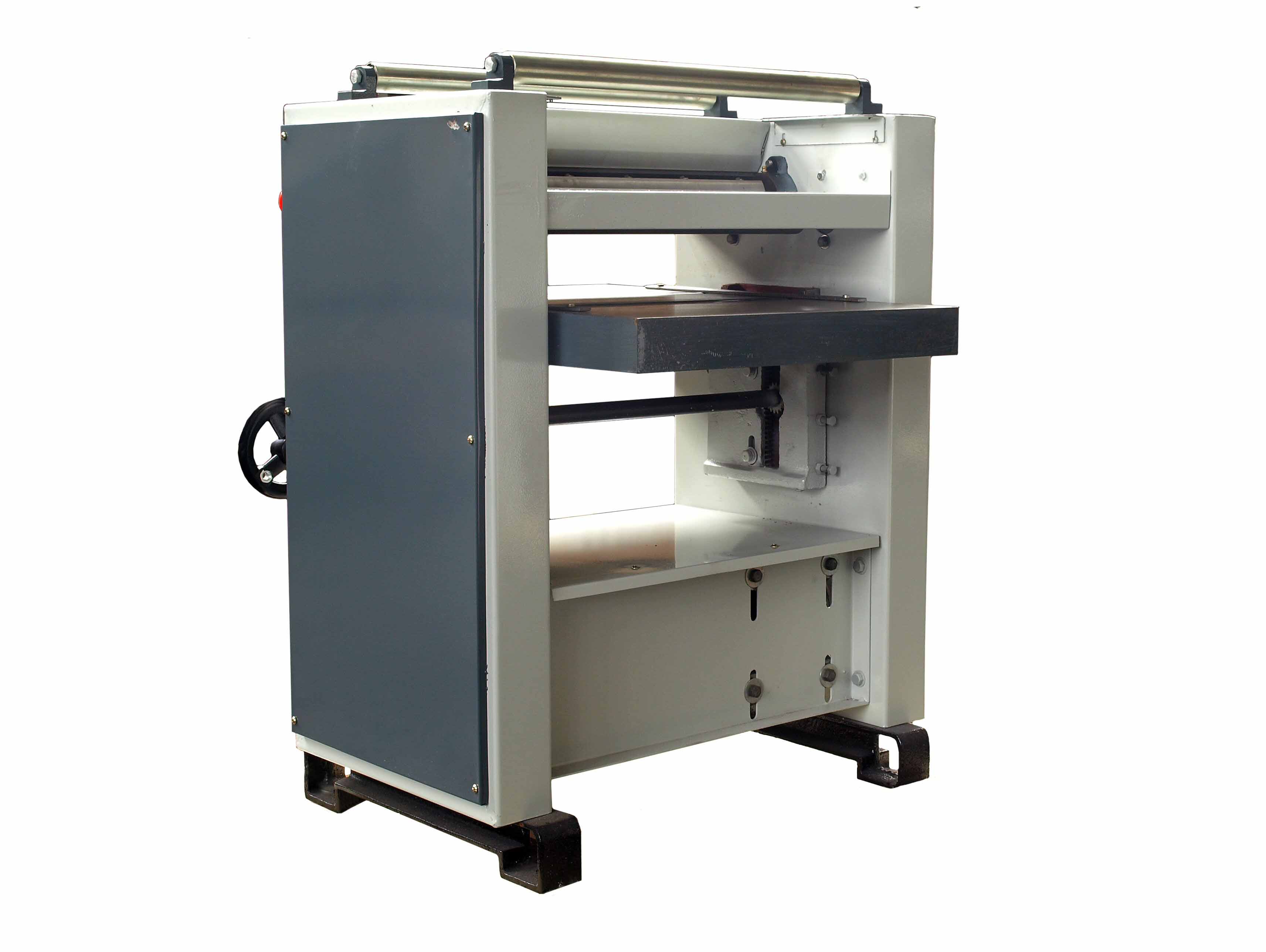

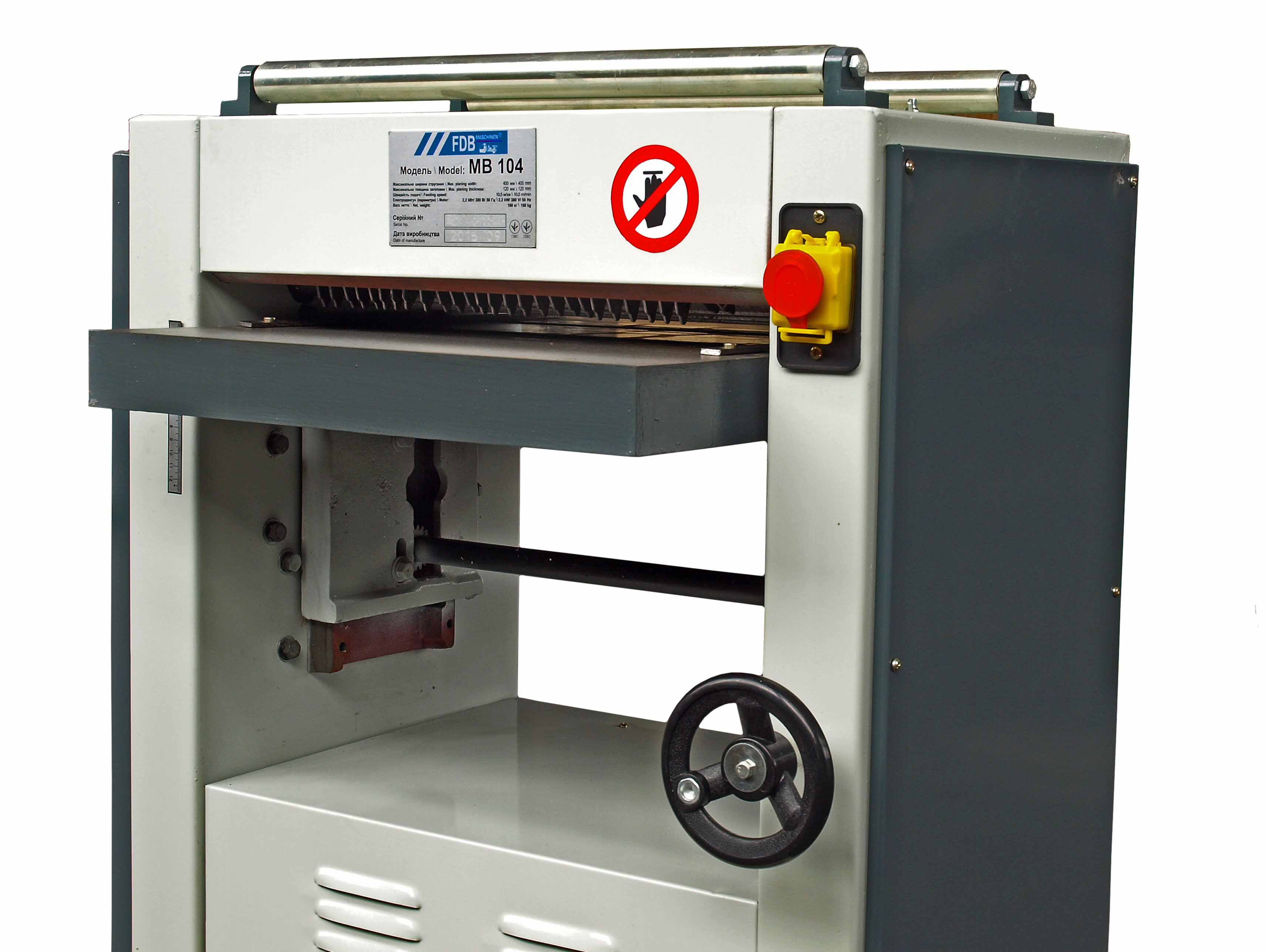

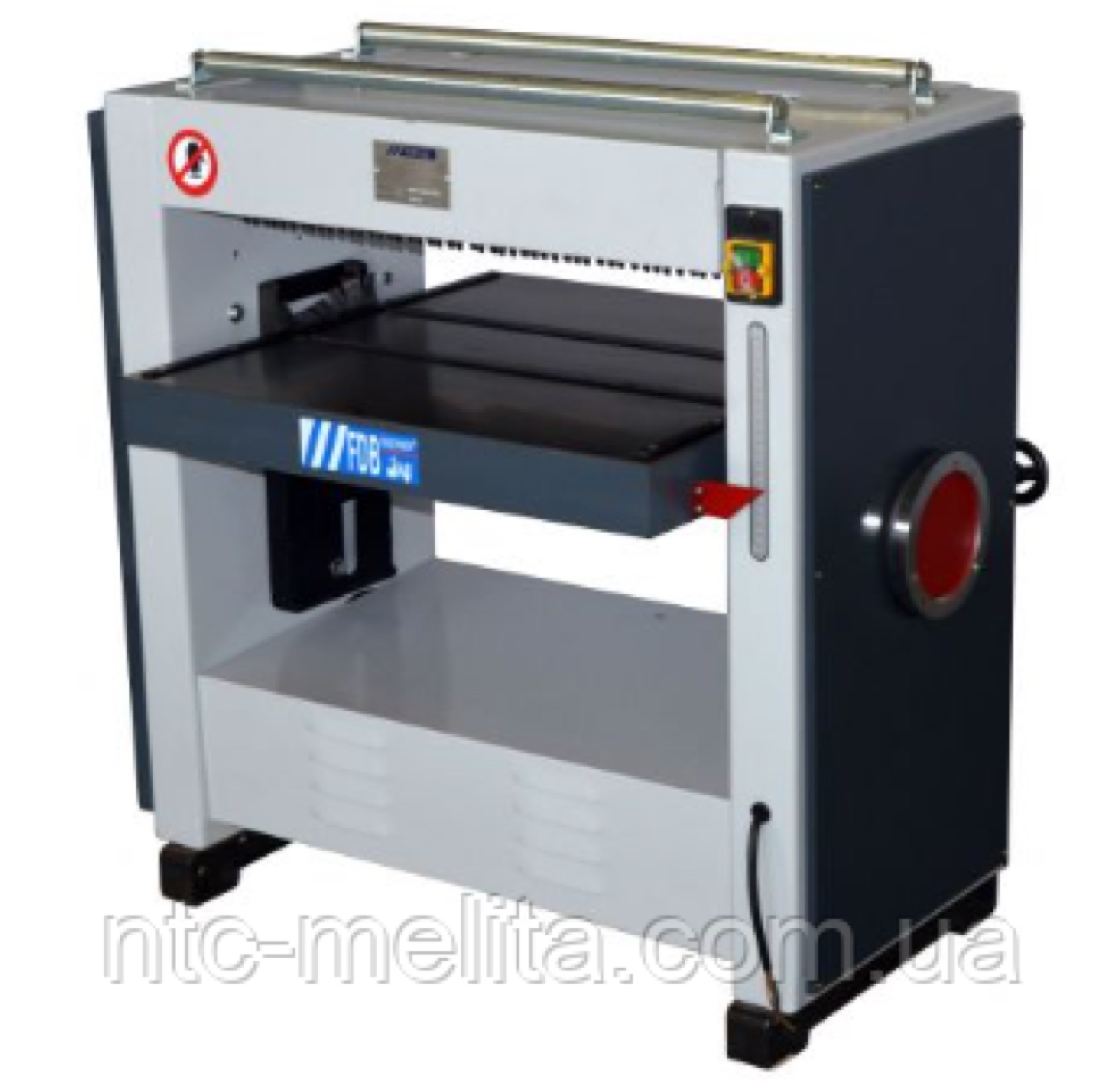

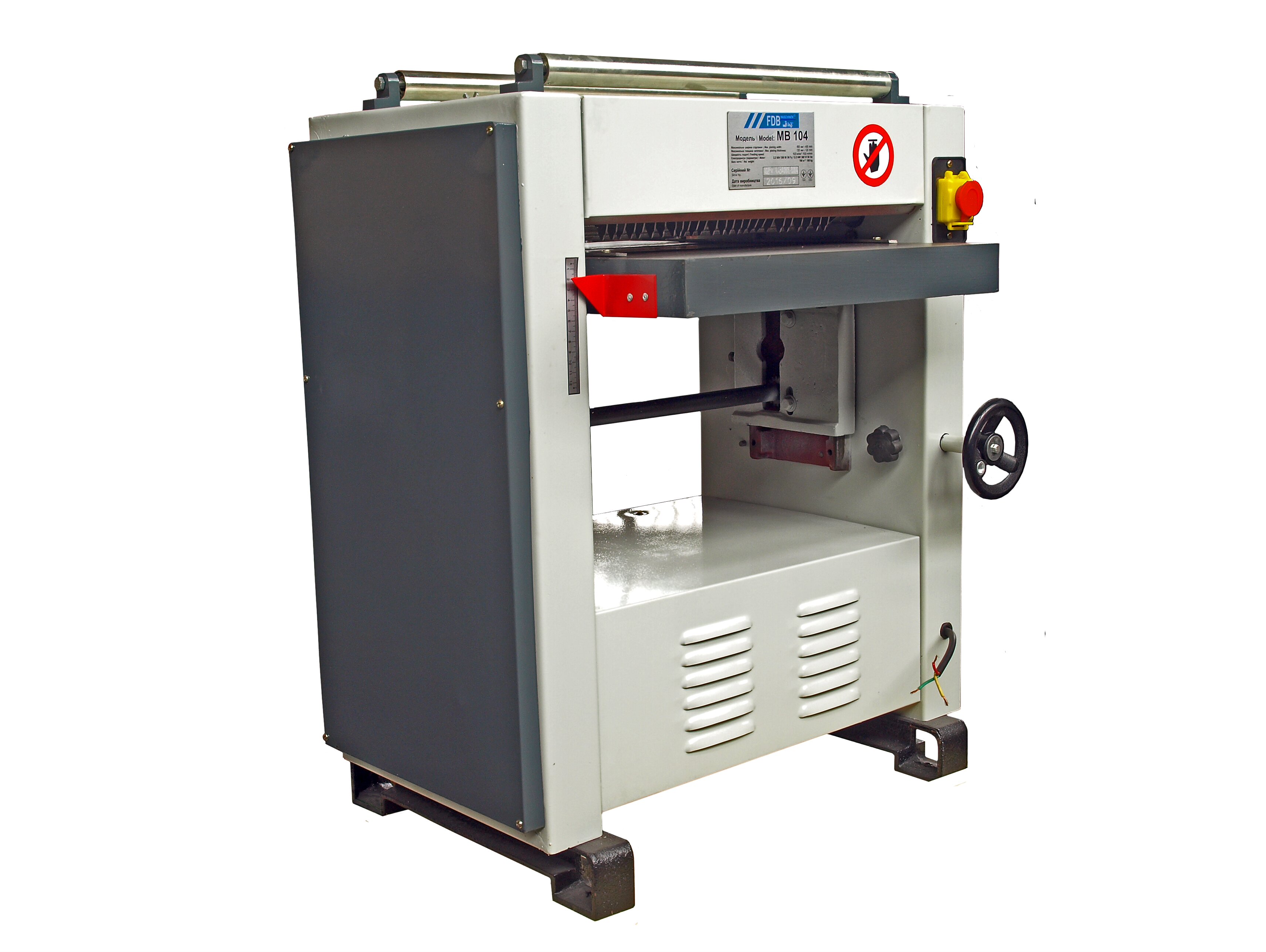

MB104 thickness planer
49 000 ₴incl. VAT
40 833,33 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Main | |
|---|---|
| Manufacturer | FDB Maschinen |
| Feed speed, m/min | 8/12,5 |
| Cutterhead speed, rpm | 4000 |
| Max. planing thickness, mm | 120 |
| Number of knives | 4 |
| Weight (kg) | 160 |
| Voltage (V) | 380 |
| Min. planing thickness, mm | 10 |
| Processing sides | single-sided |
| Overall dimensions (mm) | 700x650x800 |
| Max. planing width, mm | 400 |
| Power (kW) | 2.2 |
| Frequency (Hz) | 50 |
| Max. planing depth, mm | 4 |
| Min. planing length, mm | 200 |
Description
The FDB Maschinen MB104 thickness planer sizes boards and beams to thickness after jointing. It removes an even layer across the whole face, so blanks for furniture, joinery and building structures come out at the same thickness. The machine runs on a three-phase 380 V supply.
Maximum planing width is 400 mm, stock thickness 10 to 120 mm, cut depth up to 4 mm per pass. Feed rate is 8 or 12.5 m/min, the cutterhead runs at 4000 rpm, and the motor is 2.2 kW at 380 V. The table is raised by a worm drive on four columns, and it has a chain drive. Weight is 160 kg. Suited to joinery shops and small woodworking production.
FDB Maschinen MB 104 thickness planers are designed for planing boards and beams to size and offer high quality and reliability.
FDB Maschinen MB 104 features:
- Four vertical guides ensure accuracy and stability when setting the planer table height.
- The three-knife cutterblock gives a high surface quality.

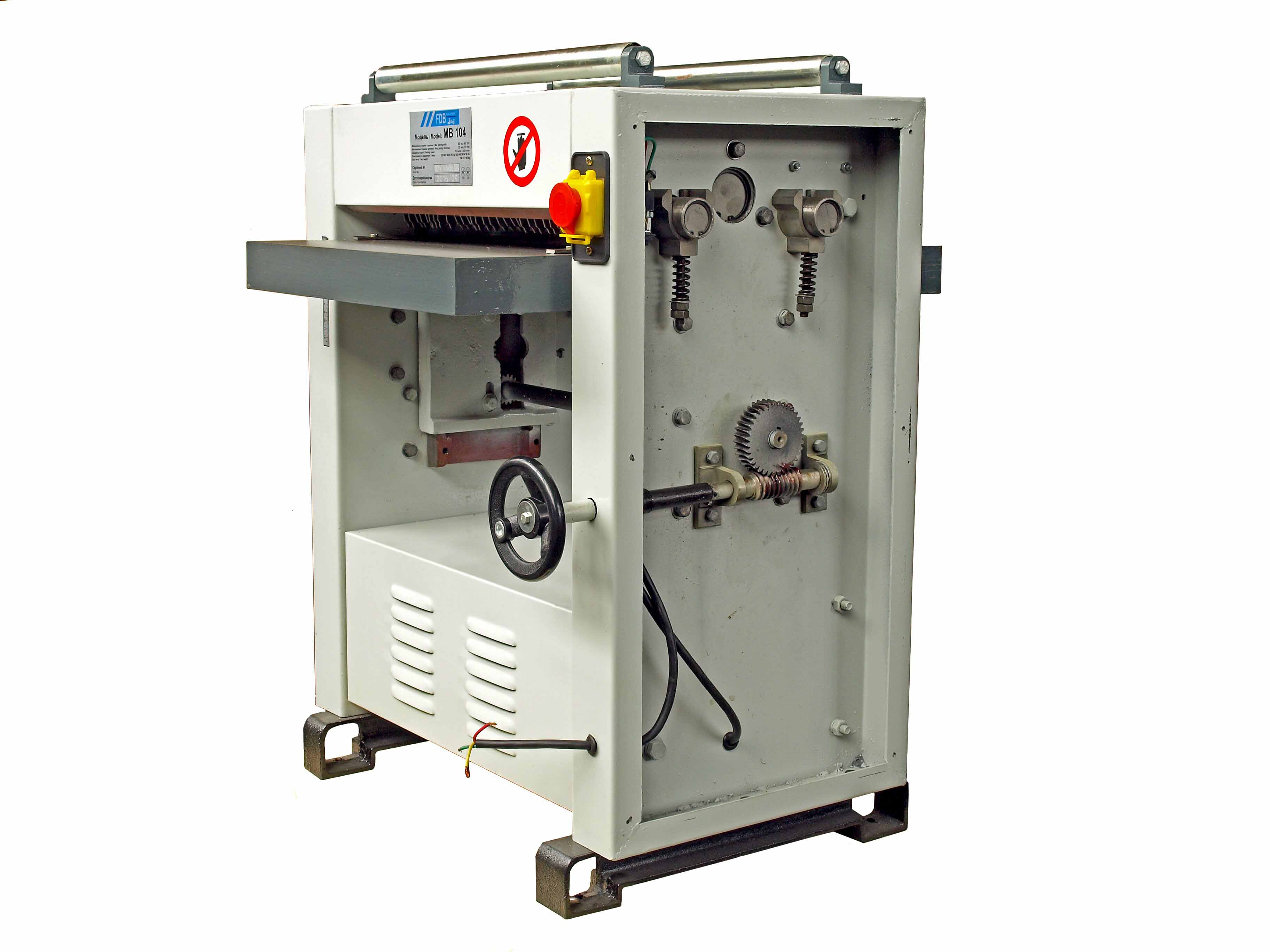

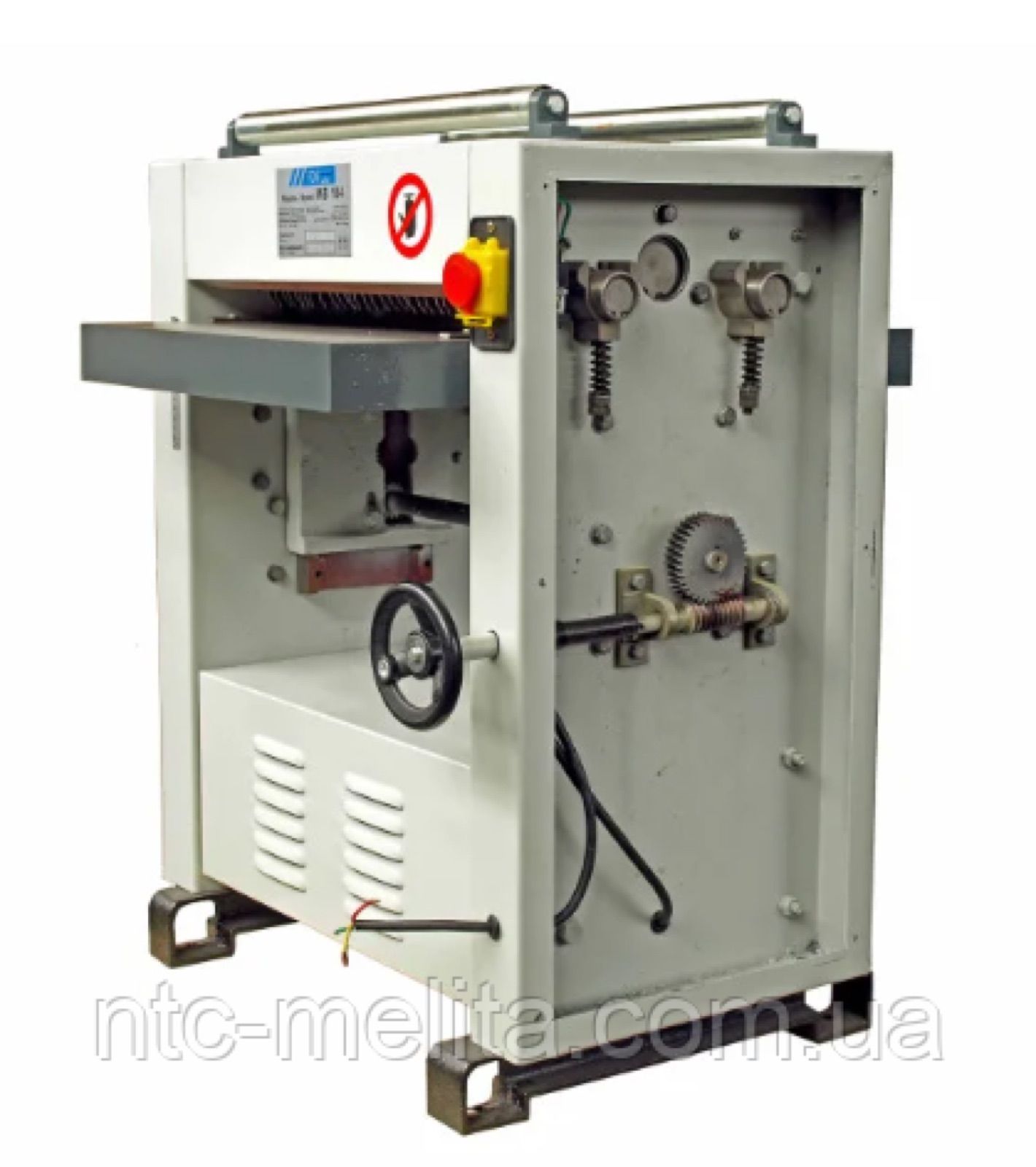

- A worm drive for table lifting ensures machining accuracy.

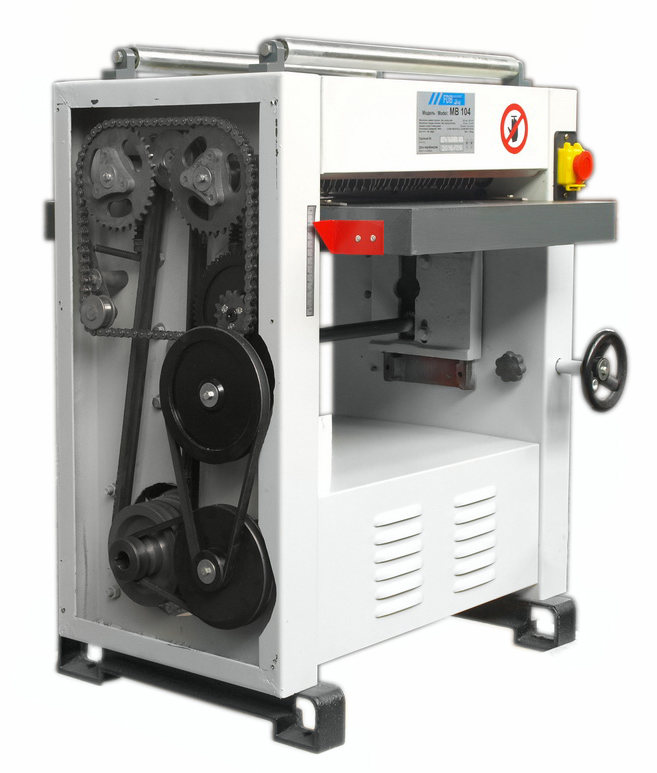

- Reliable chain drive.
Specifications:
| Model | MB 104 |
| Max. planing width, mm | 400 |
| Planing height, mm | 10-120 |
| Min. planing length, mm | 200 |
| Max. cutting depth, upper cutterblock, mm | 4 |
| Max. cutting depth, lower cutterblock, mm | -- |
| Feed rate, m/min | 8/12,5 |
| Cutterblock speed, rpm | 4000 |
| Number of planer knives, pcs | 4 |
| Cutterblock diameter, mm | TBC |
| Sides processed | single-sided |
| Motor power (380 V), kW | 2,2 |
| Chip extraction port diameter, mm | 100 |
| Weight, kg | 160 |
| Dimensions, mm | 700 x 650 x 800 |
General data:
Feed rate, m/min
8/12,5
Cutterblock speed, rpm
4000
Max. planing thickness, mm
120
Number of knives
4
Weight (kg)
160
Voltage (V)
380
Min. planing thickness, mm
10
Sides processed
single-sided
Overall dimensions (mm)
700x650x800
Max. planing width, mm
400
Cutterblock diameter, mm
TBC
Power (kW)
2.2
Frequency (Hz)
50
Country of origin
China
Max. planing depth, mm
4
Min. planing length, mm
200
