Manual lever press Optimum PD3
weight10 kg
8 760 ₴incl. VAT
7 300 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Main | |
|---|---|
| Country of origin | Germany |
| Manufacturer | Optimum |
| Pressing force | 3 kN |
| Ram stroke | 30 mm |
| Number of table T-slots | 1 |
| Table T-slot size | 16 x 7 mm |
| Press head travel range | 50 - 170 mm |
| Dimensions and weight | |
| Work table length | 110 mm |
| Worktable width | 100 mm |
| Throat depth | 80 mm |
| Ram diameter | 10 mm |
| Length | 180 mm |
| Width | 110 mm |
| Height | 300 mm |
| Weight | 10 kg |
Description

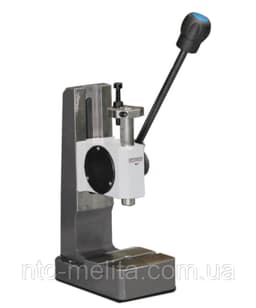

The Optimum PD3 is a benchtop lever-operated rack press for precise work on small parts: pressing in pins, bushes and small bearings, riveting and assembly. A hardened and ground spindle in a long guide gives high force at the end of the stroke, and the working height is reset quickly and safely.
Key data: 3 kN force, 30 mm ram stroke, 50-170 mm travel on the column, 80 mm throat, 100x110 mm table with a 16x7 mm T-slot, 10 mm ram diameter. The ground table gives repeatable tool positioning. Suits assembly lines, instrument making and repair workshops.
Technical description:
- The Optimum PD 3 manual rack press provides precise stroke adjustment.
- Hardened and ground spindle.
- Long spindle guide.
- press delivers high force at the end of the stroke.
- Quick changeover thanks to simple and safe working height adjustment.
- Ground press tables ensure repeatable positioning of your tools.
Specifications:
| Manual rack press | Optimum PD 3 |
| item | 3359030 |
| General specifications | |
| Pressing force | 3 kN |
| Piston stroke | 30 mm |
| Travel along the column | 50 — 170 mm |
| Work table T-slot size | 16 x 7 mm |
| Dimensions and weight | |
| Piston rod diameter | 10 mm |
| Throat depth | 80 mm |
| Work table width | 100 mm |
| Work table length | 110 mm |
Packaging dimensions:
- Length — 280 mm.
- Width — 150 mm.
- Height — 350 mm.
- Gross weight — 10 kg.
