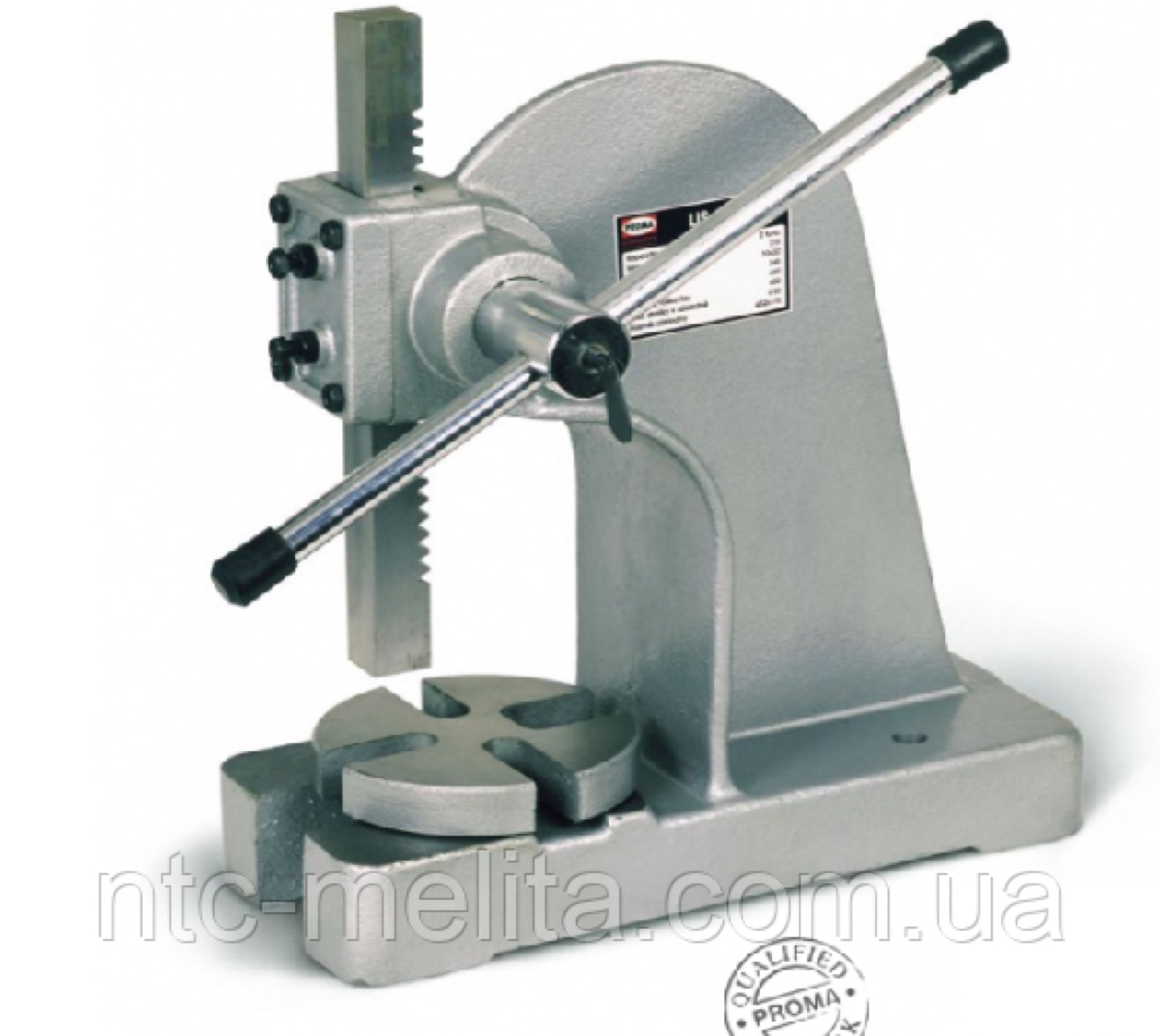

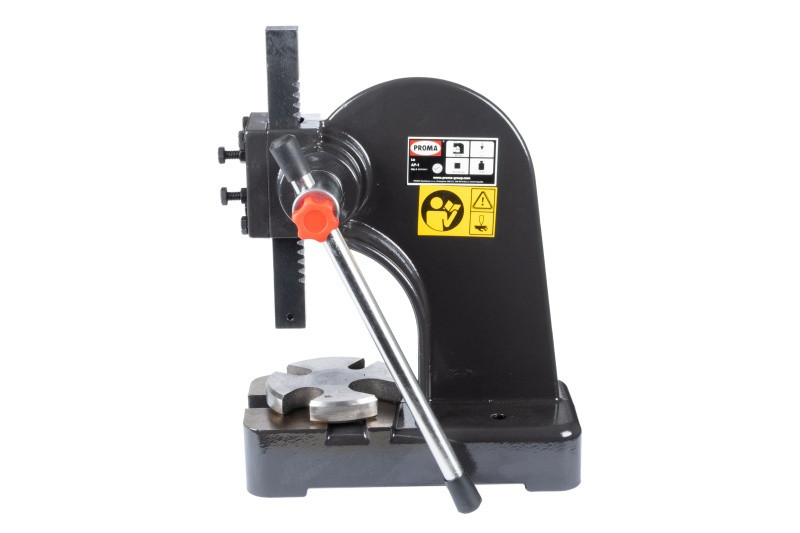

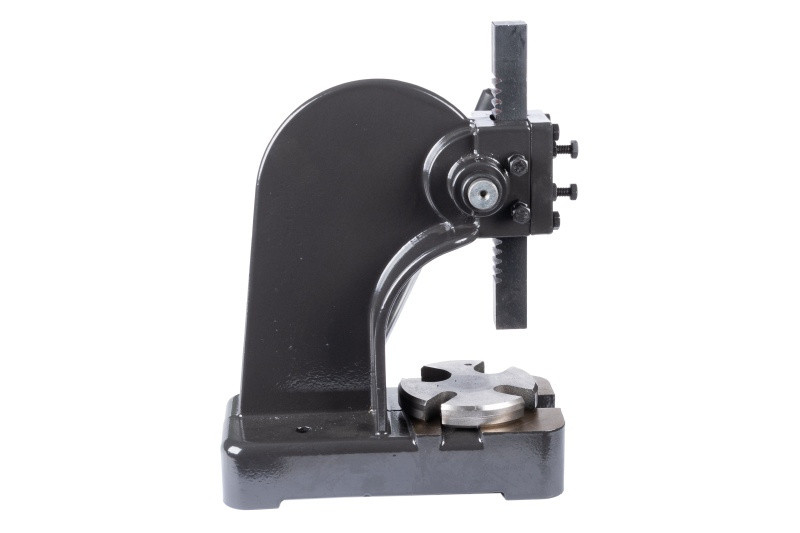

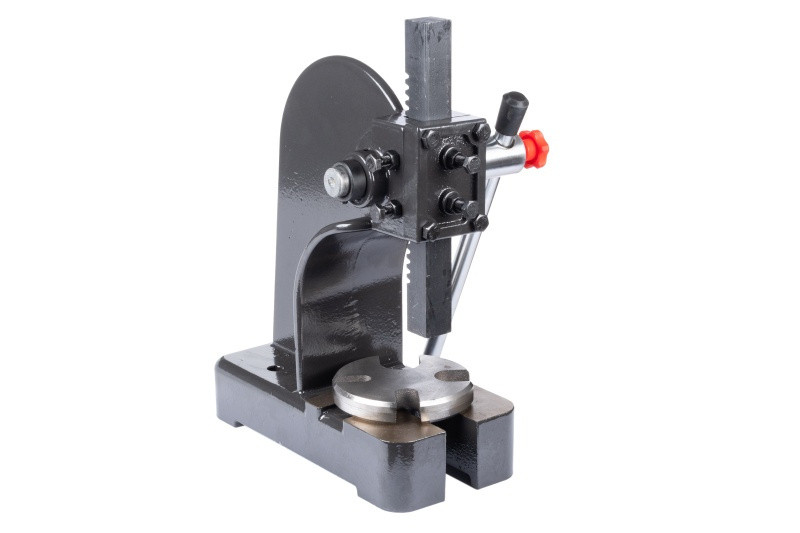

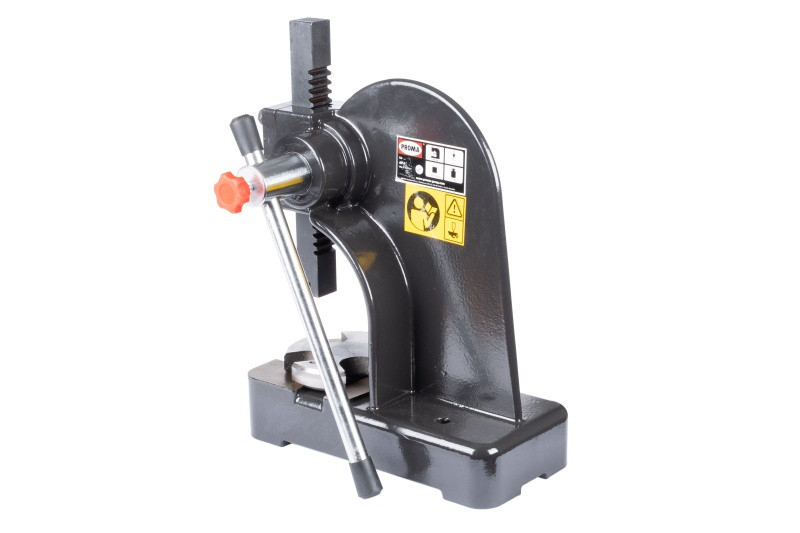

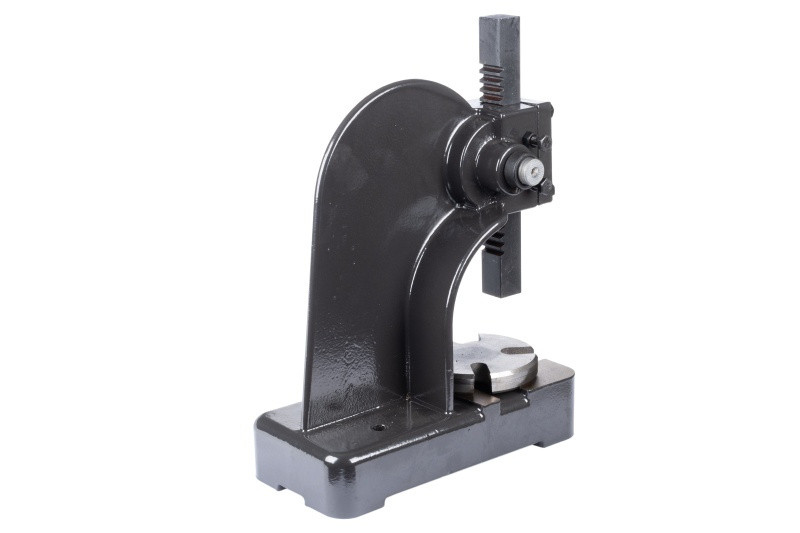

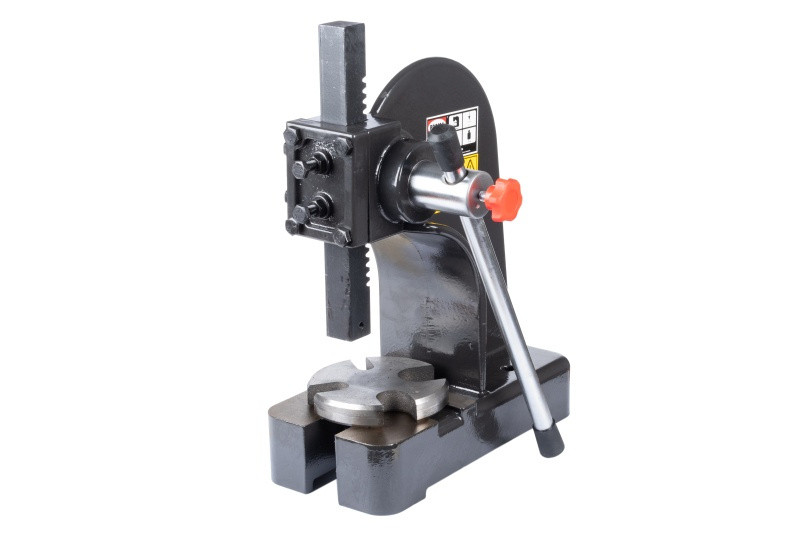

Manual press AP-1
5Reviews: 2weight14 kg
4 500 ₴incl. VAT
3 750 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Main | |
|---|---|
| Manufacturer | Proma |
| Country of origin | Czechia |
| Pressing force | 1 t |
| Max. workpiece height | 140 mm |
| Ram cross-section | 25 x 25 mm |
| Ram length | 245 mm |
| Lever length | 350 mm |
| Ram bore / depth | 10 / 20 mm |
| Press throat depth | 98 mm |
| Base size | 268 x 128 mm |
| Base slot width | 40 mm |
| Rotary table slot width | 15, 19, 26, 33 mm |
| Rotary table diameter | 112 mm |
| Dimensions and weight | |
| Overall press height | 320 mm |
| Weight with packaging | 15 kg |
| Weight | 14 kg |
Description
The Proma AP-1 manual arbor press presses parts in and out during repair and in production: bearings, bushes and pins. It can also stamp, rivet and blank small parts. Force is transmitted through a rack-and-pinion drive, and the accurately machined body keeps the ram square to the table.
Key data: 1 t force, workpiece height up to 140 mm, 25x25 mm ram 245 mm long, 350 mm lever, 98 mm throat, overall height 320 mm, base 268x128 mm with a 40 mm slot, weight 15 kg. A compact press for a workshop bench.
The AP-1 manual press is designed for pressing parts in or out during repair work and in production. Stamping, riveting or punching of small parts is also possible. Force is transmitted through a rack-and-pinion gear. The high geometric accuracy of the frame keeps angles square during operation.
Main assemblies and parts
1. Toothed ram
2.Mandrel clamping bolt
3.Rotary table
4.Shaft
5. Operating lever
6.Press frame
Main specifications:
Force 1 t
Max. part height (mm) 140
Ram size (mm) 25x25
Ram length (mm) 245
Lever length (mm) 350
Overall press height (mm) 320
Base slot width (mm) 40
Press throat (mm) 98
Base size (mm) 268x128
Weight (kg) 15
