Manual press AP-2
weight37.5 kg
10 236 ₴incl. VAT
8 530 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Main | |
|---|---|
| Manufacturer | Proma |
| Country of origin | Czechia |
| Pressing force | 2 t |
| Max. workpiece height | 195 mm |
| Ram cross-section | 32 x 32 mm |
| Ram length | 350 mm |
| Lever length | 450 mm |
| Base slot width | 53 mm |
| Press throat depth | 135 mm |
| Base size | 430 x 175 mm |
| Rotary table slot width | 20, 30, 40 , 50 mm |
| Rotary table diameter | 170 mm |
| Dimensions and weight | |
| Overall press height | 450 (750) mm |
| Weight with packaging | 39 kg |
| Weight | 37.5 kg |
Description

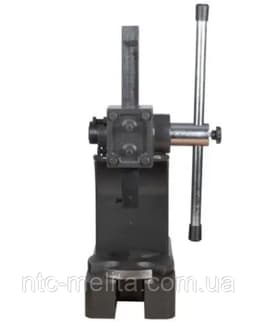

The Proma AP-2 manual arbor press presses parts in and out during repair and in production: bearings, bushes and pins. It can also stamp, rivet and blank small parts. Force is transmitted through a rack-and-pinion drive, and the accurately machined body keeps the ram square to the table.
Key data: 2 t force, workpiece height up to 215 mm, 32x32 mm ram 345 mm long, 460 mm lever, 145 mm throat, overall height 450 mm, base 432x170 mm with a 53 mm slot, weight 34 kg. The table rotates; suits repair shops and small production.
The AP-2 manual press is designed for pressing parts in or out during repair work and in production. Stamping, riveting or punching of small parts is also possible. Force is transmitted through a rack-and-pinion gear. The high geometric accuracy of the frame keeps angles square during operation.
Main assemblies and parts
1. Toothed ram
2.Mandrel clamping bolt
3.Rotary table
4.Shaft
5. Operating lever
6.Press frame
Force: 2 t
Max. part height: 215 mm
Ram size: 32x32 mm
Ram length: 345 mm
Lever length: 460 mm
Overall press height: 450 mm
Base slot width: 53 mm
Base size: 432x170 mm
Ram throat: 145 mm
Weight: 34 kg
