Manual press DDP20
weight33 kg
9 996 ₴incl. VAT
8 330 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Main | |
|---|---|
| Country of origin | Germany |
| Manufacturer | Optimum |
| Pressing force at 40 kg handle force | 8364 N |
| Pressing force at 60 kg handle force | 12555 N |
| Lever length | 450 mm |
| Dimensions and weight | |
| Max. working height | 195 mm |
| Throat depth | 120 mm |
| Ram height | 345 mm |
| Ram width | 32 mm |
| Ram length | 32 mm |
| Length | 430 mm |
| Width | 235 mm |
| Height | 680 mm |
| Weight | 33 kg |
Description

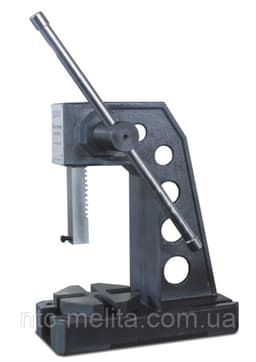

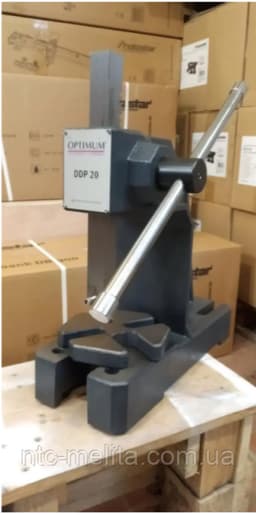

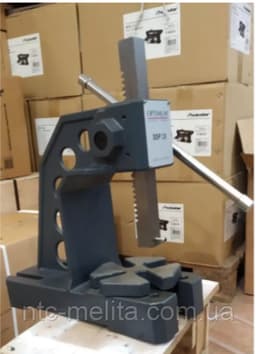

The Optimum DDP20 is a manual rack (arbor) press for machine shops and repair workshops. It presses bearings in and out, punches, straightens and bends small parts, and holds parts while glue sets. The body is grey cast iron, the rack teeth are precisely milled and the lever length is adjustable.
Key data: workpiece height up to 195 mm, 120 mm throat, 32x32x345 mm ram, overall size 430x235x680 mm, weight 33 kg. With 40-60 kg on the lever the ram delivers 853 to 1280 kg. The table has four slots of different widths, and the base has holes for bench mounting. A mid-size model for everyday workshop jobs.
Technical description:
- Strong and reliable manual rack press for machine shops and repair workshops.
For pressing bearings in and out, punching, straightening and bending, and gluing parts made of various materials.
The sturdy construction of high-quality grey cast iron ensures a long service life.
Flat work table surface with four slots of different widths.
Precisely milled rack teeth.
Adjustable working lever length.
Rack stroke DDP 10 – 100 mm, DDP 20 – 195 mm, DDP 30 – 260 mm, DDP 50 – 500 mm.
Holes for mounting on a workbench.
Specifications:
| Manual press Optimum | DDP10 | DDP20 | DDP30 | DDP50 |
| Item no. | 3359011 | 3359012 | 3359013 | 3359015 |
| Maximum workpiece height, mm | 100 | 195 | 260 | 500 |
| Throat depth, mm | 95 | 120 | 150 | 205 |
| Ram size, mm | 25 x 25 x 240 | 32 x 32 x 345 | 38 x 38 x 455 | 50 x 50 x 647 |
| Ram mounting hole, mm | Ø10, depth 18 | Ø13, depth 25 | Ø13, depth 25 | Ø16, depth 35 |
| Overall dimensions, mm | 270x180x410 | 430x235x680 | 455x260x850 | 650x350x785 |
| Machine weight, kg | 14 | 33 | 55 | 140 |
Force characteristics: |
||||||||
| Model | DDP 10 | DDP 20 | DDP 30 | DDP 50 | ||||
| Applied force F1 | 40 kg | 60 kg | 40 kg | 60 kg | 40 kg | 60 kg | 40 kg | 60 kg |
| (393N) | (589N) | (393N) | (589N) | (393N) | (589N) | (393N) | (589N) | |
| Working lever length S1 | 305 mm | 450 mm | 600 mm | 850 mm | ||||
| Force F2 | 763kg | 1143kg | 853kg | 1280kg | 786kg | 1179kg | 1045kg | 1567kg |
| (7480N) | (11220N) | (8364N) | (12555N) | (7705N) | (11566N) | (10251N) | (15372N) | |
