Universal milling machine UF100
653 000 ₴incl. VAT
544 166,67 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Specifications | |
|---|---|
| Distance between slots, mm | 63 |
| Spindle-to-table distance | 90 - 480 mm |
| Drawbar | M16 |
| Number of slots, pcs | 3 |
| Number of speed steps | 11 |
| Spindle nose | ISO 40 |
| Max. table load, kg | 250 kg |
| Max. end mill diameter | 16 |
| Max. reaming (counterboring) diameter in steel | 20 |
| Max. drilling diameter in steel | 18 |
| Max. face mill diameter | 85 |
| Coolant pump | 40 W |
| Swivel/tilt | 360 ° |
| Power, kW | 3.6 |
| Spindle drive | 2.2 |
| Arbor size for side and face cutters | Ø32 mm |
| Weight (kg) | 1350 |
| Table size (mm) | 1270 x 260 mm |
| Voltage (V) | 380 V ~50 Hz |
| Overall dimensions (mm) | 1660x1500x1730 mm |
| Spindle speed, rpm | 45 - 1660 rpm |
| T-slot size, mm | 14 |
Description

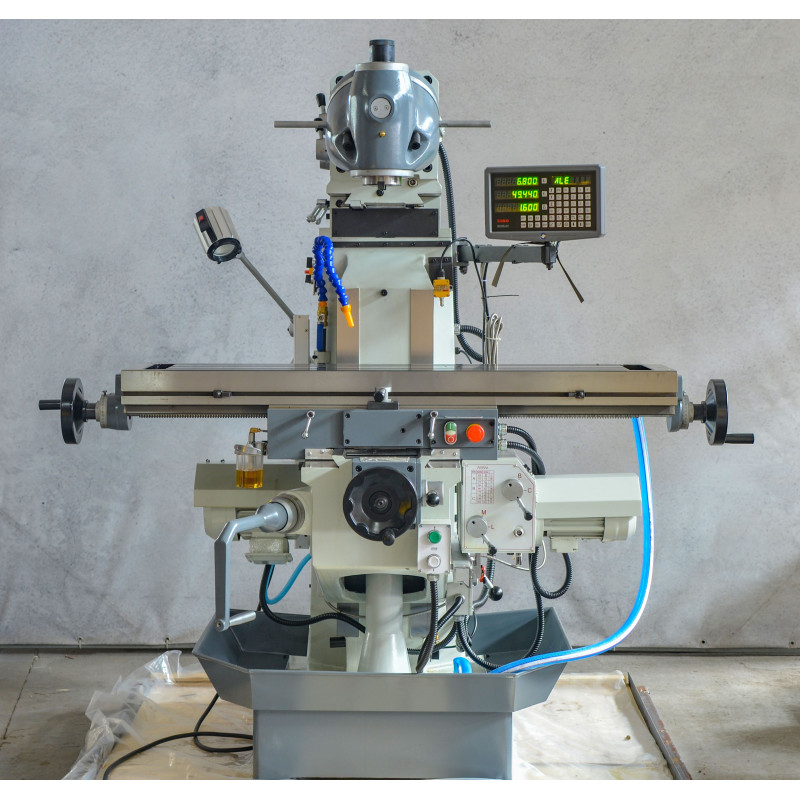

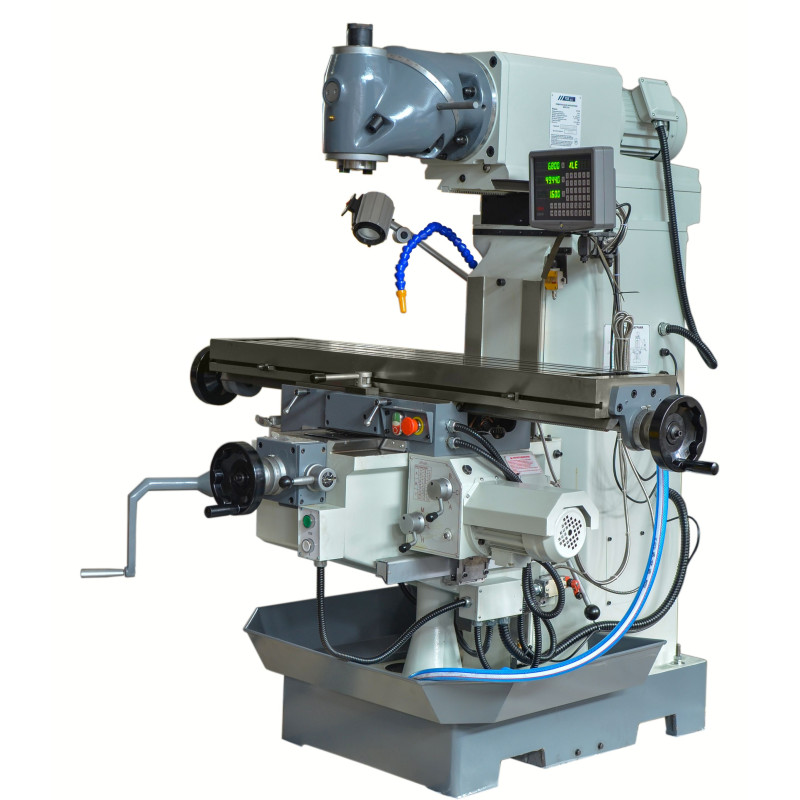

The FDB Maschinen UF100 universal milling machine handles milling and drilling of metal parts. This metal milling machine has a heavy-duty build: a rigid cast iron frame, hardened dovetail guides with gib adjustment and central lubrication, so it is made for regular shop work.
Key specs: 1270 x 260 mm table, ISO 40 spindle nose, 11 speeds from 45 to 1660 rpm, 3.6 kW total power, 380 V supply, 1350 kg. Drilling in steel up to 18 mm, face mill up to 85 mm. Delivered with X/Y/Z power feed and a coolant system. Suited to machine shops and repair workshops.
The FDB Maschinen UF100 universal milling machine is designed for a wide range of milling and drilling operations. The wide model range makes it possible to choose the best option for current and future tasks with a high degree of production mechanisation. The FDB Maschinen UF100 milling machine offers high quality, accuracy and productivity.
Scope of delivery:
- Control unit.
- X/Y/Z axis feed system.
- Coolant system.
- Hand pump for the central lubrication system.
- Halogen lamps.
- Service tool kit.
- Tool box.
- Operating manual.
Features of the FDB Maschinen UF100 milling machine:
- Wide range of applications
- Heavy-duty design
- Rigid massive structure of high-quality cast iron
- Hardened dovetail guideways adjustable with gibs

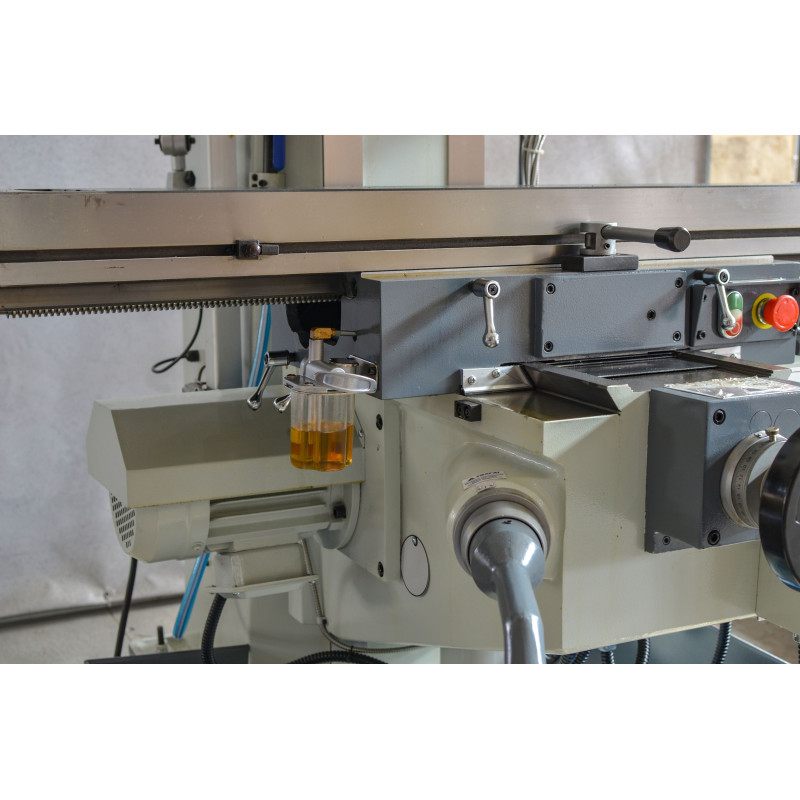

- Central lubrication system

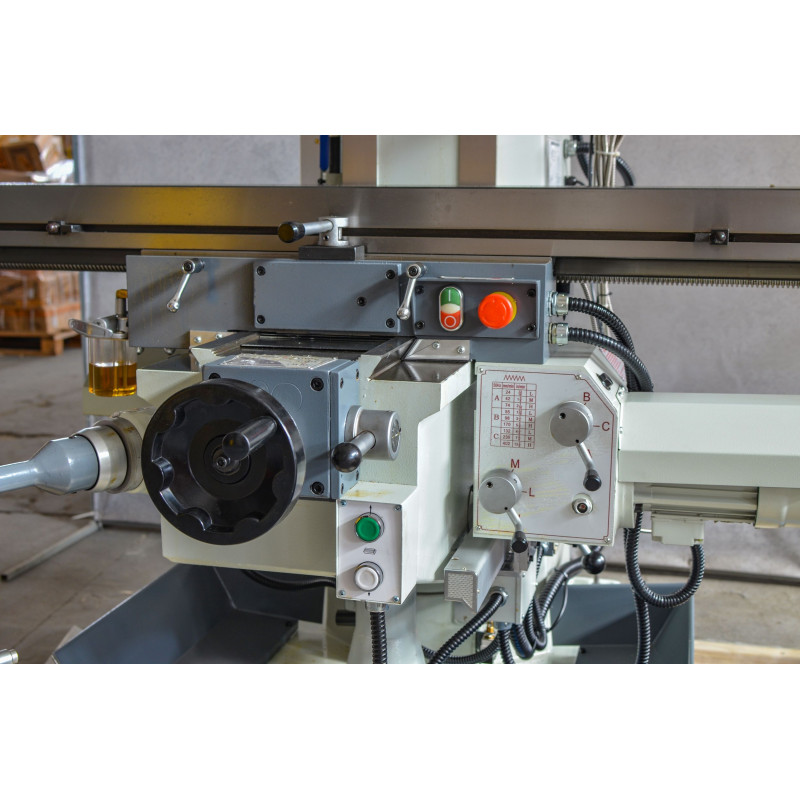

- Large handwheels with easy-to-read dials.
- Powerful machine lamp
- Coolant system with built-in tank
- Great capability at a good price
Specifications:
| Model | UF100 |
| Power supply | 380 V ~50 Hz |
| Total power consumption | 3.6 kW |
| Spindle drive | 2.2 kW |
| Coolant pump | 40 W |
| Tool parameters | |
| Maximum counterboring diameter in steel | 20 mm |
| Maximum drilling diameter in steel | 18 |
| Maximum face mill diameter | 85 mm |
| Maximum end mill diameter | 25 mm |
| Spindle | |
| Spindle nose | ISO 40 |
| Arbor size for side and face cutters | Ø32 mm |

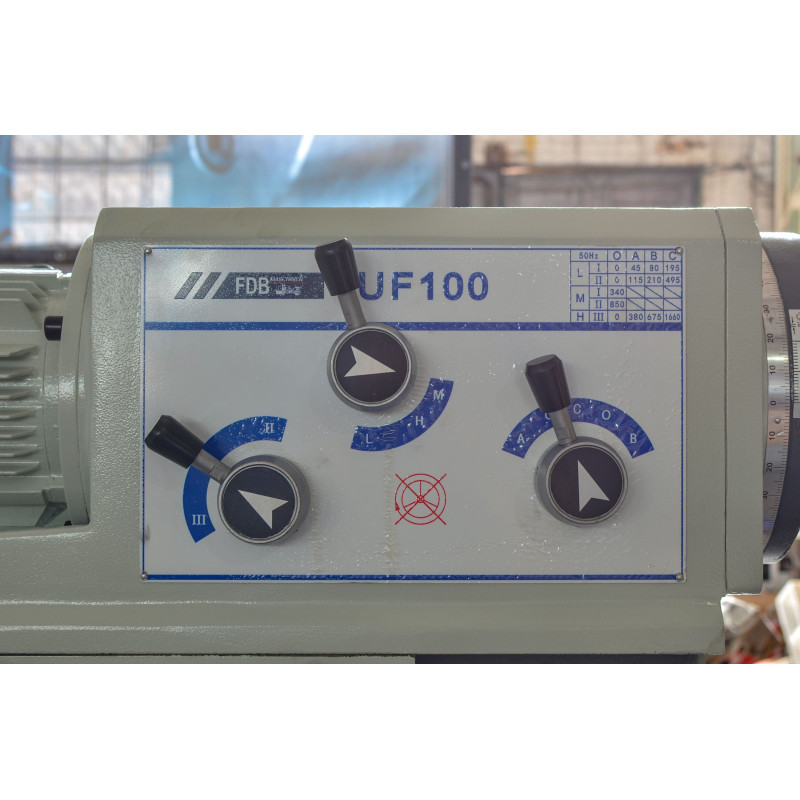

| Spindle speed | 45 - 1660 rpm |
| Number of steps | 11 |
| Drawbar | M16 |
| Spindle to table distance | 90 - 480 mm |

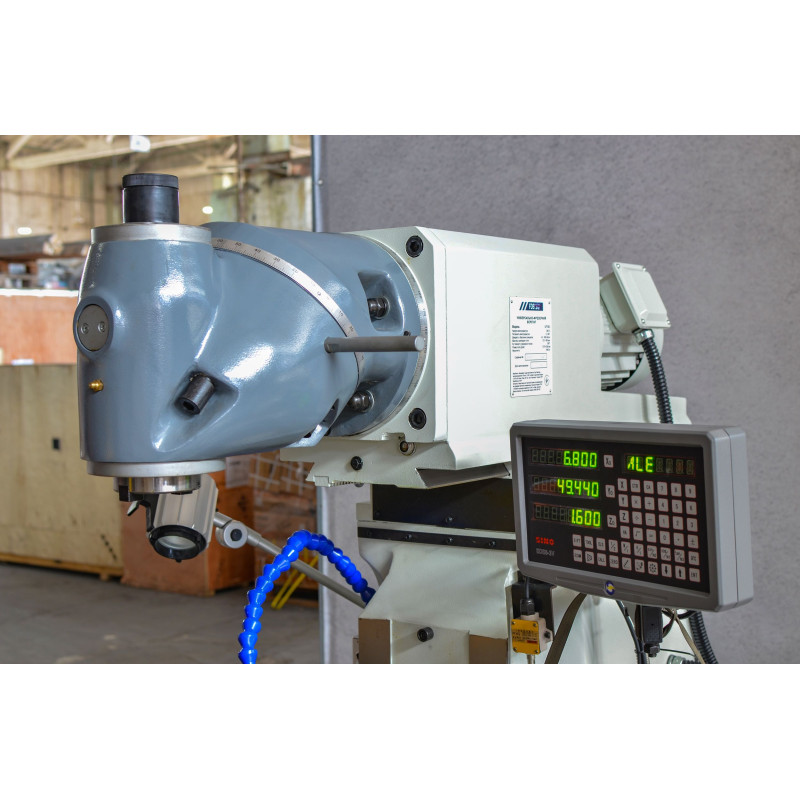

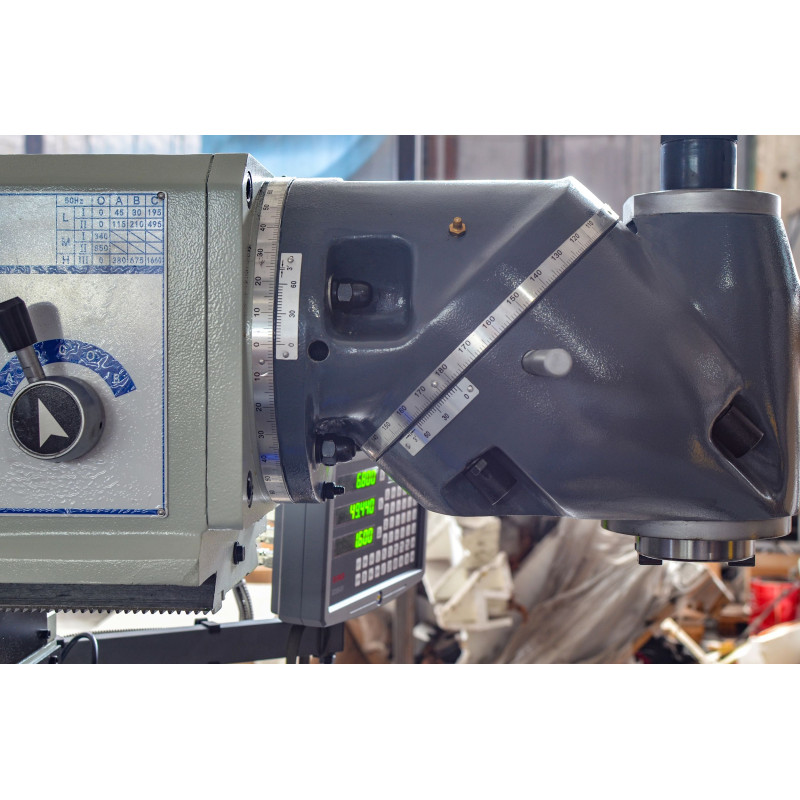

| Milling head swivel / tilt | 360 ° |
| Cross table | |
| Table size | 1270x260 mm |
| Maximum table load | 250 kg |
| T-slot size | 14 mm |
| Slot spacing | 63 mm |
| Number of slots | 3 |
| X axis | |
| Travel (manual) | 800 mm |
| Working feed | 24 - 402 mm/min |
| Axis drive power | 370 W |
| Y axis | |
| Travel (manual) | 260 mm |
| Working feed | 24 - 402 mm/min |
| Axis drive power | 370 W |
| Z axis | |
| Travel | 400 mm |
| Rapid traverse | 422 mm/min |
| Axis drive power | 750 W |
| Overall dimensions | |
| Length | 1660 mm |
| Width | 1500 mm |
| Height | 1730 mm |
| Machine weight | 1350 kg |
