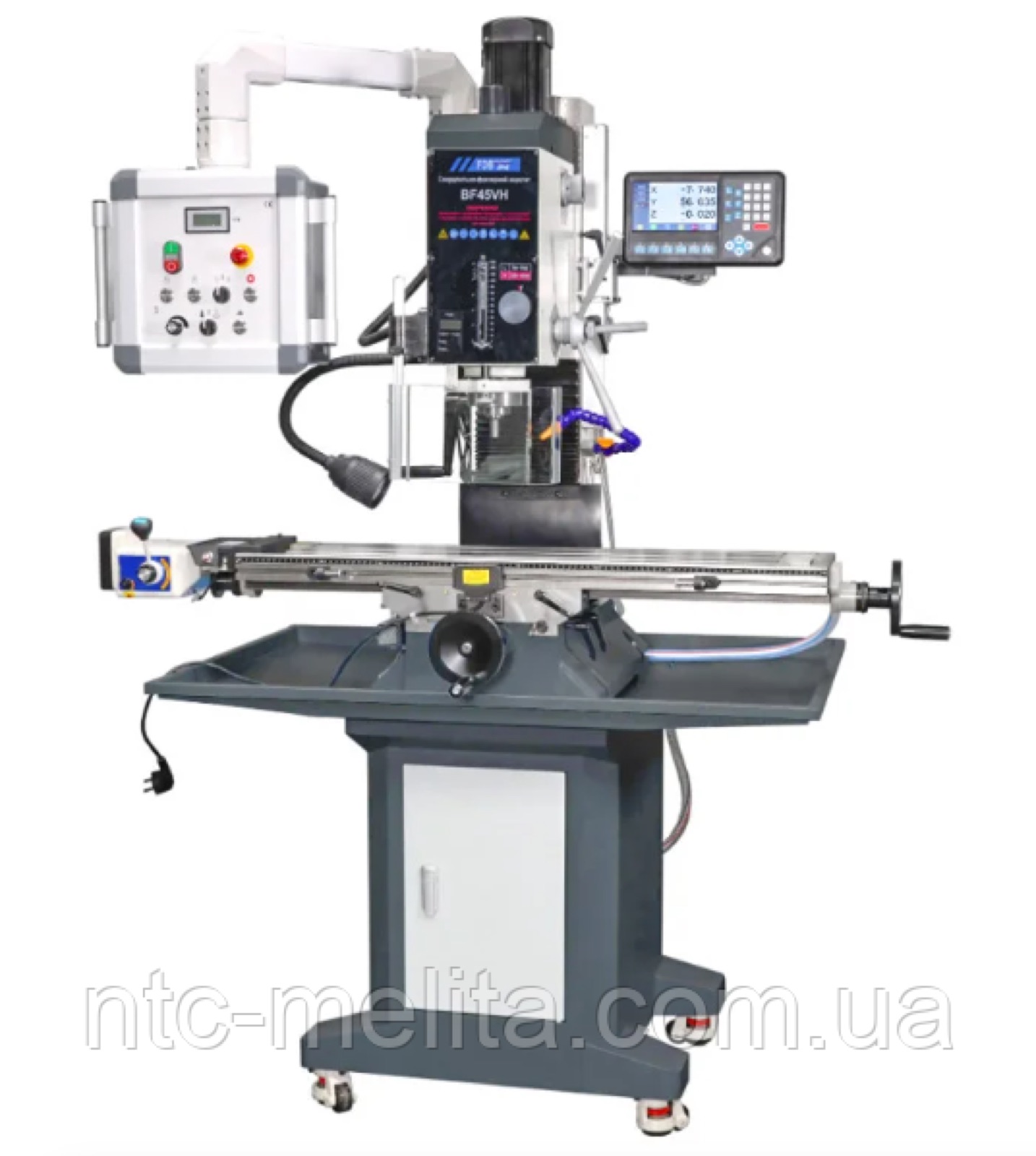

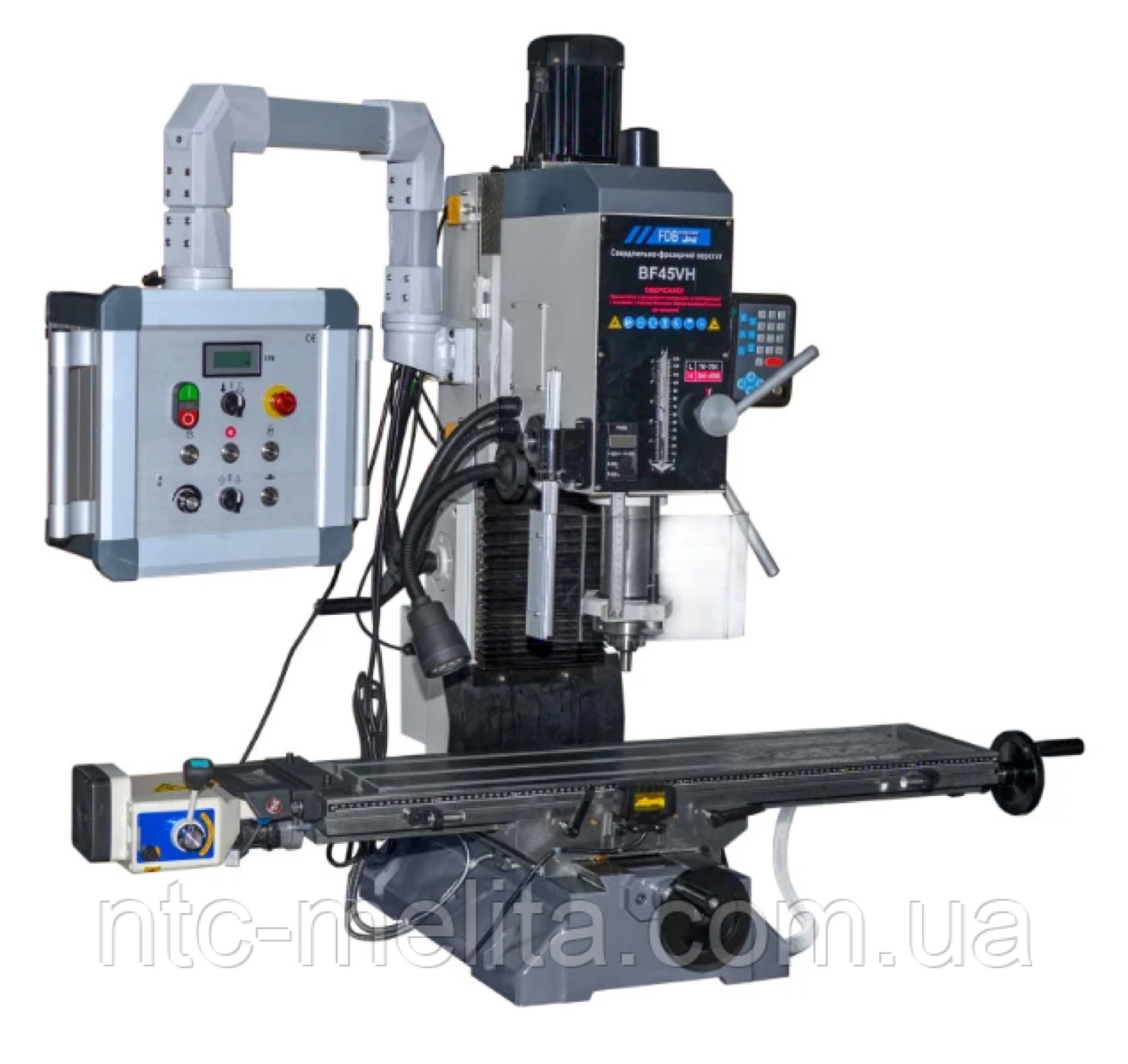

FDB Maschinen BF45VH drilling and milling machine

The high-speed FDB Maschinen BF45VH drilling and milling machine is a new innovative machine with patented High/Low Speed Belt Drive Change technology (switching between high-speed and low-speed belt drive);

BF45VH is a drilling and milling machine with a brushless motor and belt drive and two spindle speed ranges: low range - 70-700 rpm (low-speed belt drive), high range - 300-4500 rpm (high-speed belt drive);

a spindle speed of up to 4500 rpm and a powerful 2200 W (220V) brushless motor allow thermal (flow) drilling;

the BF45VH uses a patented belt drive change system with a selector dial, as on a geared machine: a quick, simple turn of the dial changes the speed range, with no need to remove the milling head cover, move the belt from one pulley to another or replace the belt;

• stepless spindle speed adjustment within each range by a potentiometer;

• toothed belt drive for reliable, quiet operation;

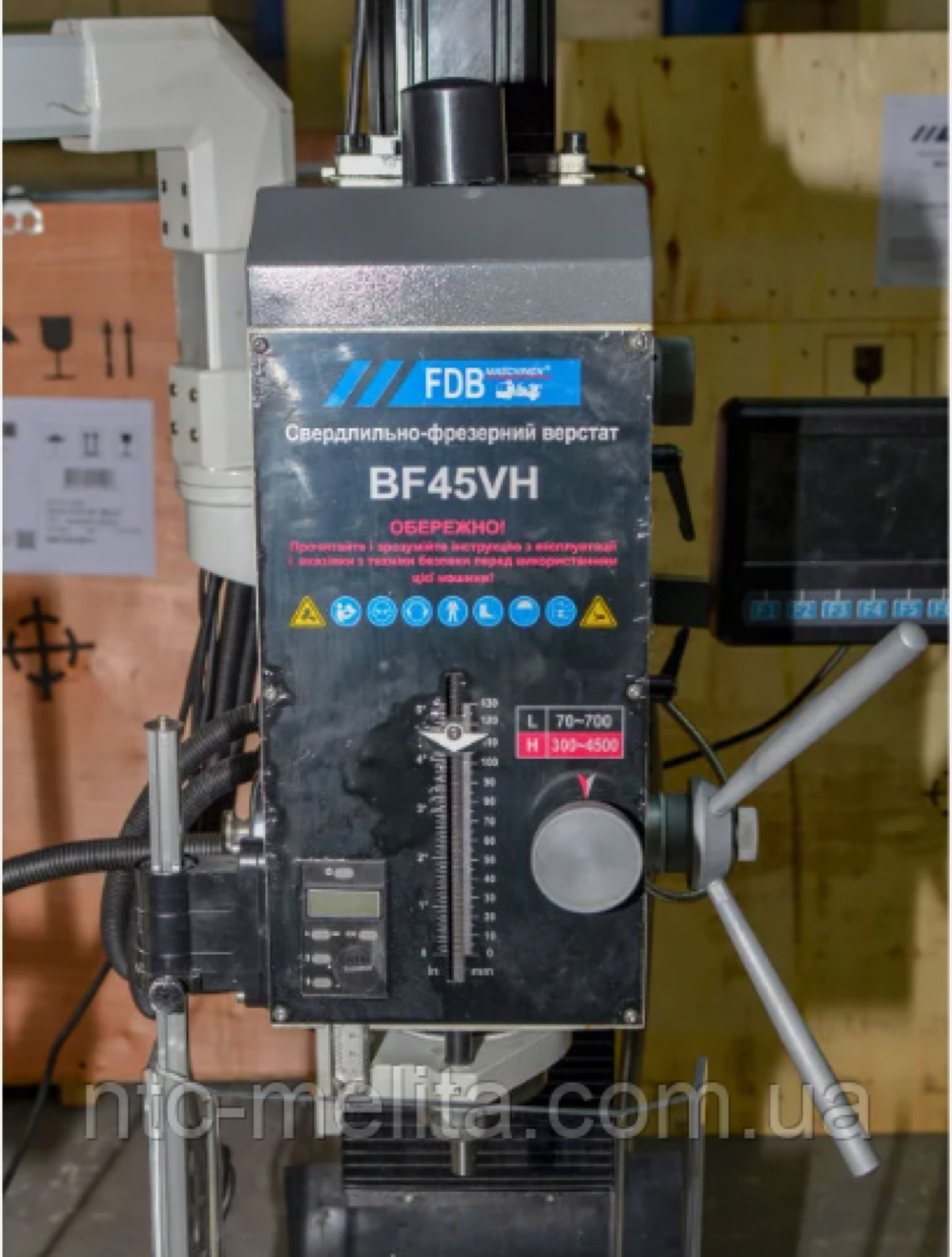

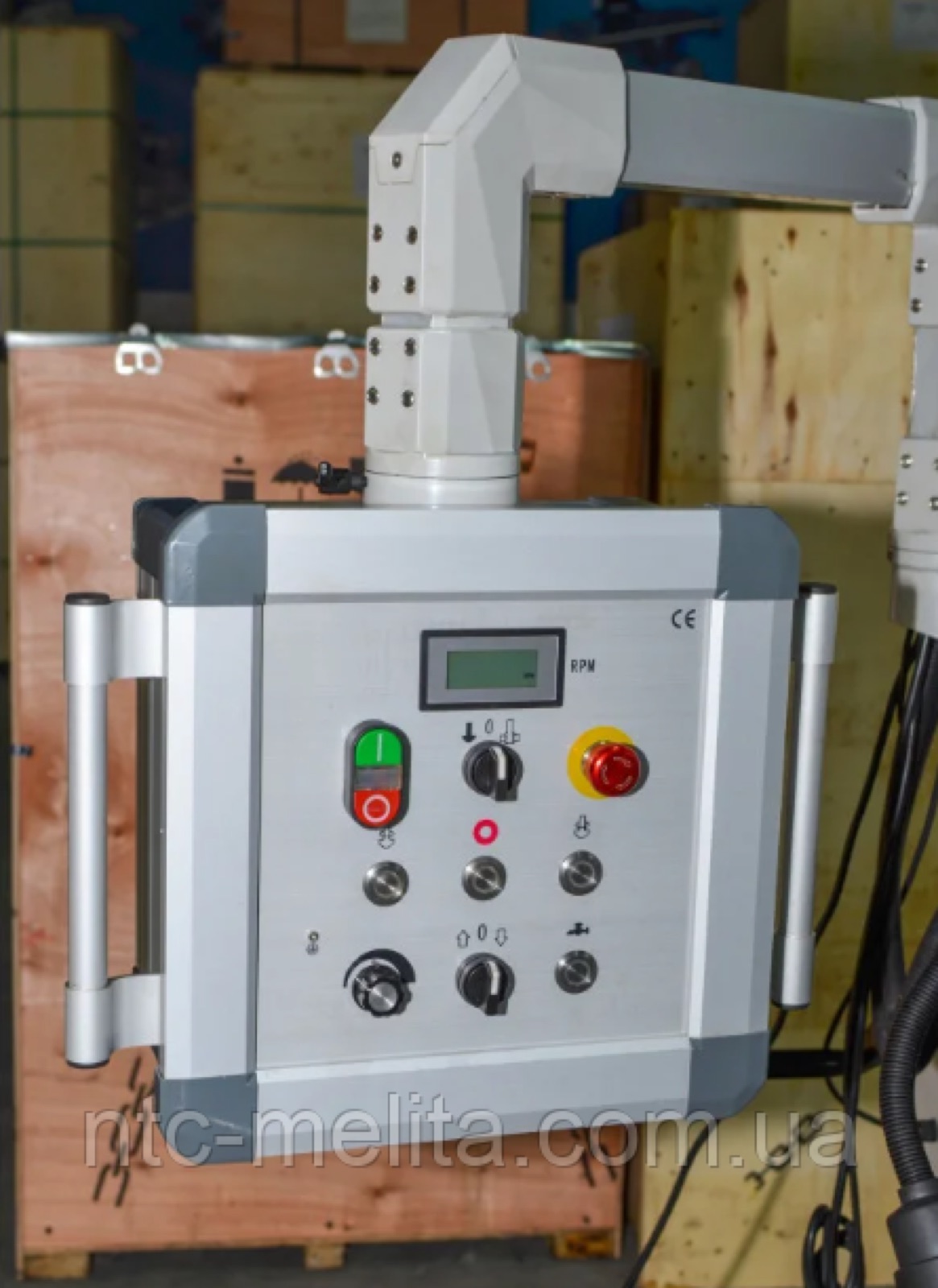

• central control panel with digital spindle speed display;

• tapping function with automatic reverse;

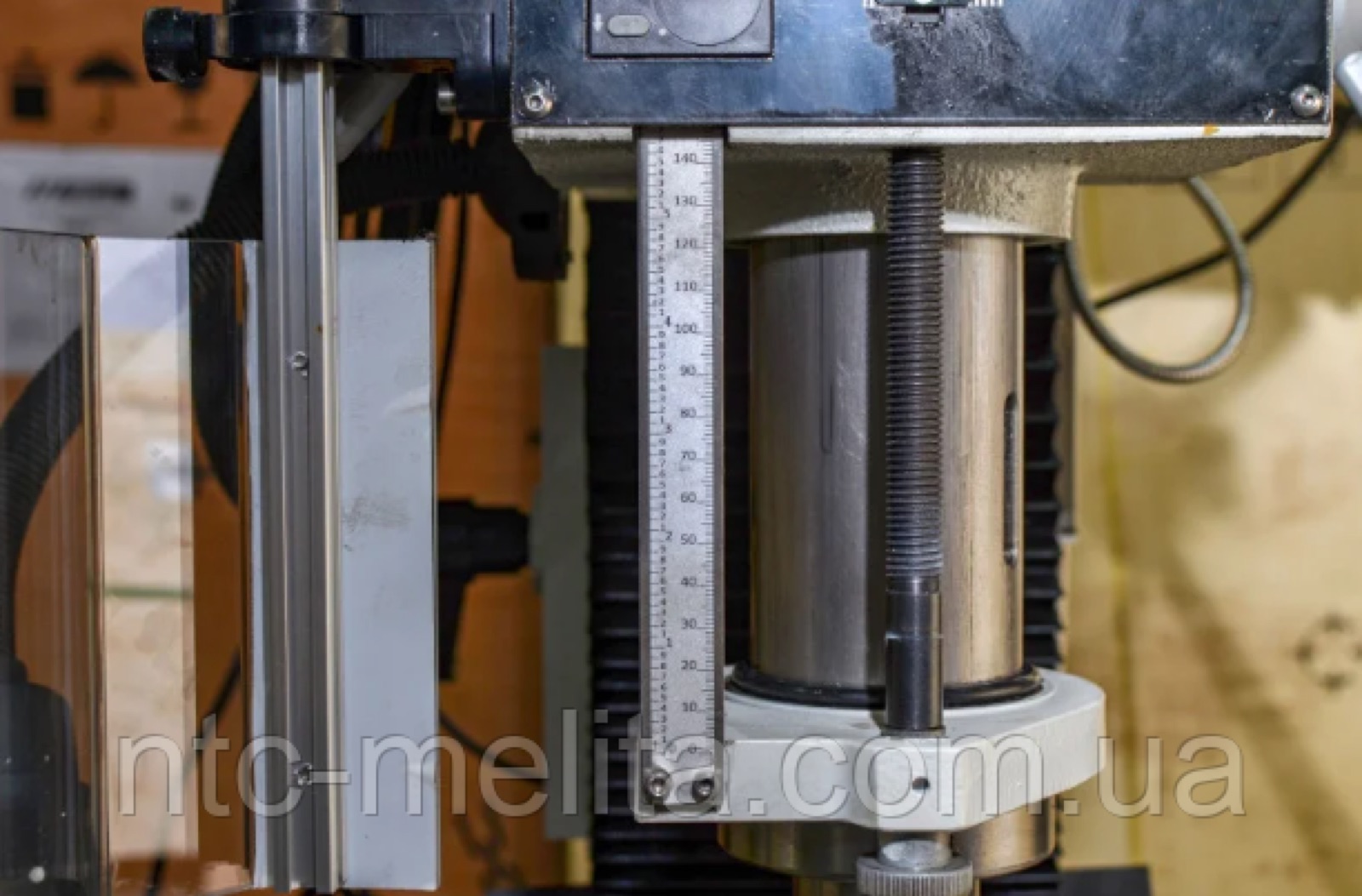

• drilling depth stop with scale and precise manual quill fine feed with digital readout;

• powered Z axis (raising/lowering the milling head along Z) makes operation easier;

• milling head swivel angle ±90˚;

• large ground and hardened work table 1000x240 mm;

• ground and scraped dovetail guideways adjustable by gib strips;

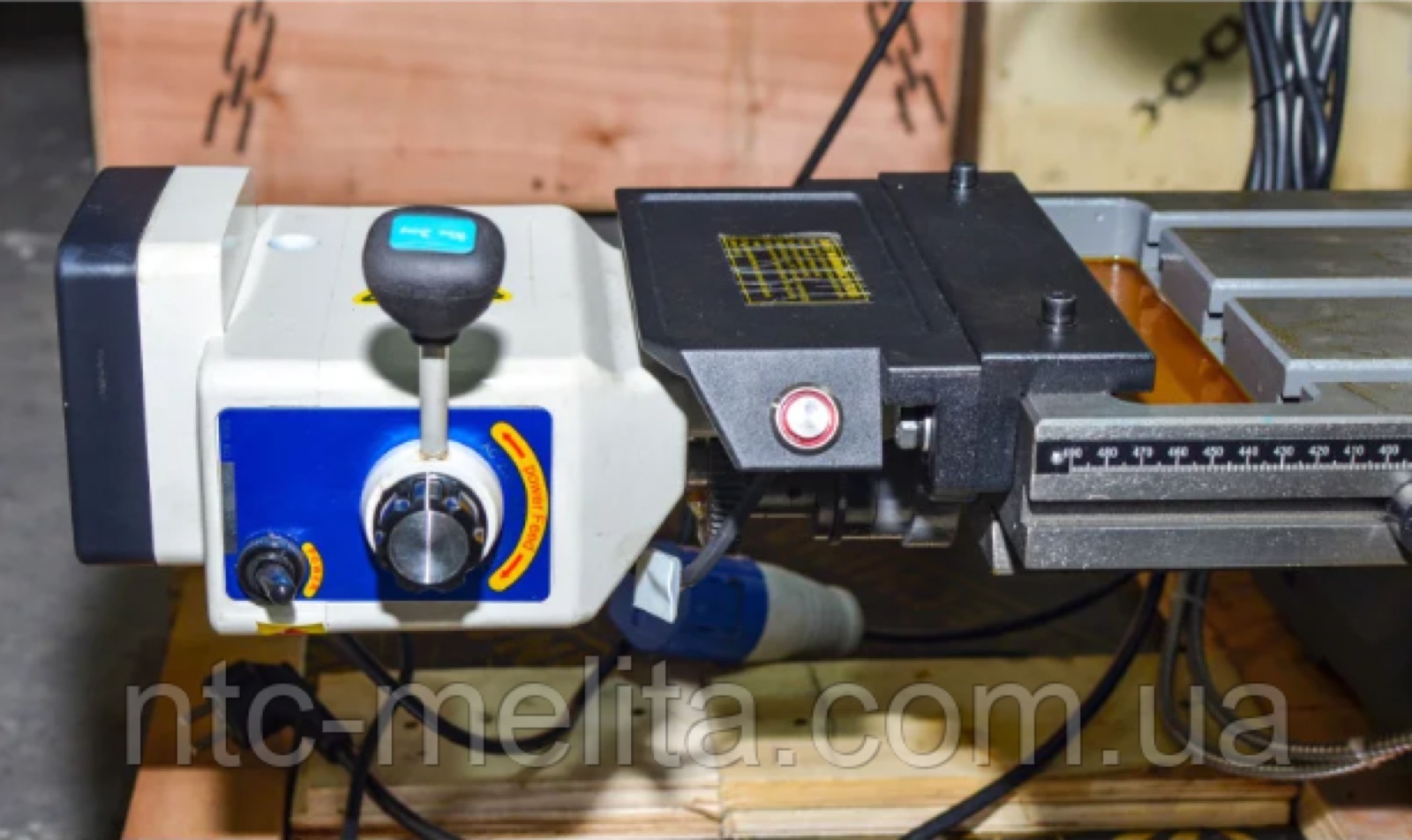

• automatic X-axis table power feed increases productivity and improves surface finish;

• flexible LED work light;

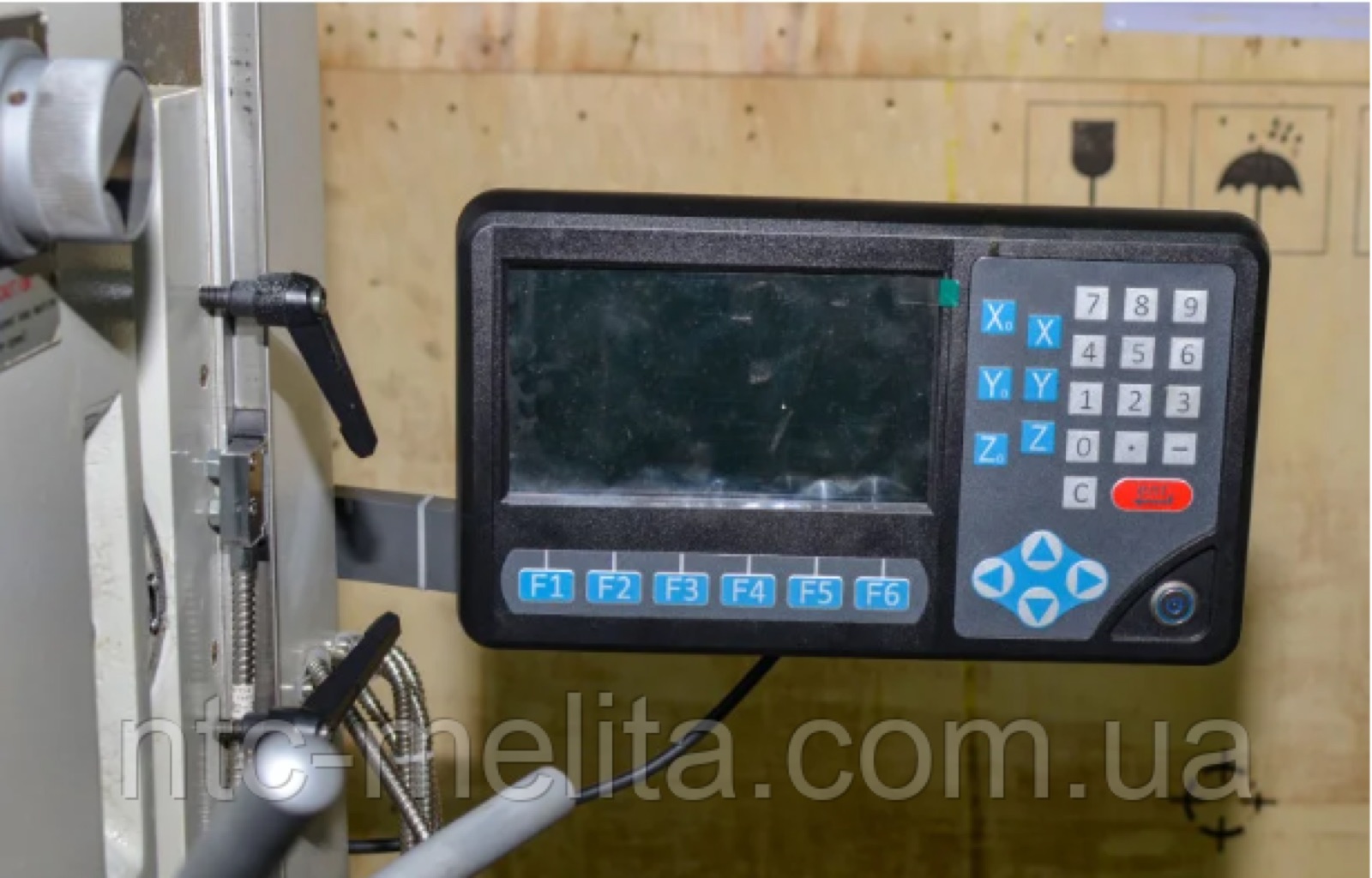

• the digital readout (DRO) improves productivity and machining accuracy;

• a reinforced steel mobile single-cabinet stand with a wide tray on height-adjustable lockable feet (to compensate for uneven floors) forms, together with the cast-iron machine bed, a strong, rigid and stable structure for heavy-duty use, and the shelf and compartment in the cabinet for tools, tooling and parts help keep the operator's workplace organised;

• coolant system integrated into the stand cabinet; coolant supply to the cutting zone lowers the cutting temperature, reduces tool wear, extends tool life and improves surface finish;

the BF45VH drilling and milling machine is intended for repair shops, small businesses and small companies in one-off and small-batch production, and as auxiliary equipment for industrial and pilot production.

  Specifications:

Parameter	Value
Model	BF45VH
Max. face mill diameter, mm	32
Max. side mill diameter, mm	80
Max. drilling diameter, mm	45
Spindle taper	MT4
Spindle quill travel, mm	128
Spindle speed, rpm	50-4500
Number of spindle speeds	3
Spindle head tilt range, deg	±90
Table size (L*W), mm	1000*240
T-slot, mm	3x14
Table cross travel, mm	220
Table longitudinal travel, mm	700
Spindle head travel, mm	330
Max. spindle to table distance, mm	415
Spindle to column distance, mm	270
Motor power, kW	2,2
Motor voltage / frequency, V / Hz	220 / 50
Noise level at idle, dB	≤72
Overall dimensions (L*W*H), mm	1135*890*1900
Packaging size (L*W*H), mm	1500x940x1430 + cabinet
Net / gross weight, kg	380 / 425
