Drilling and milling machine FDB Maschinen BF 30B

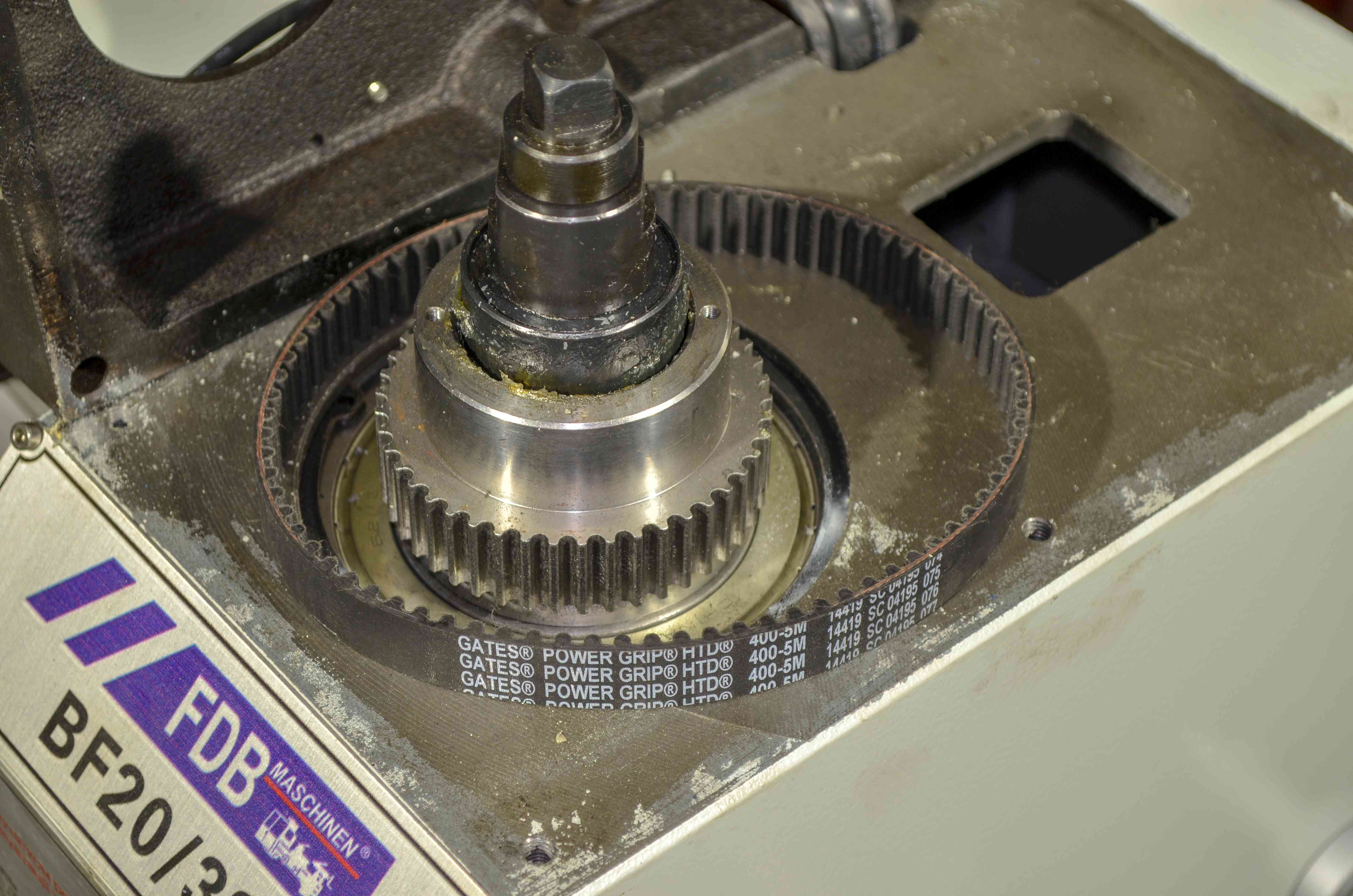

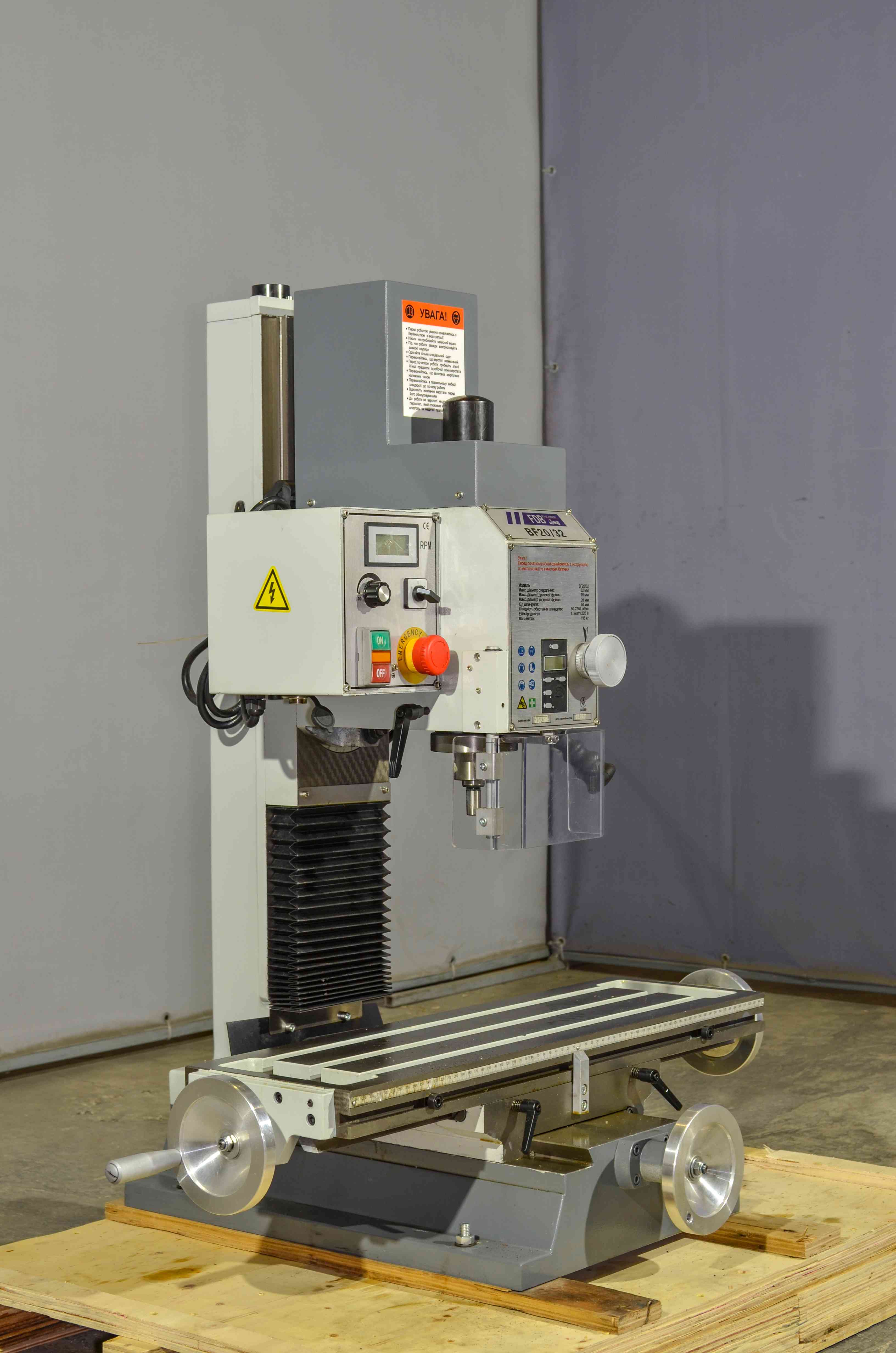

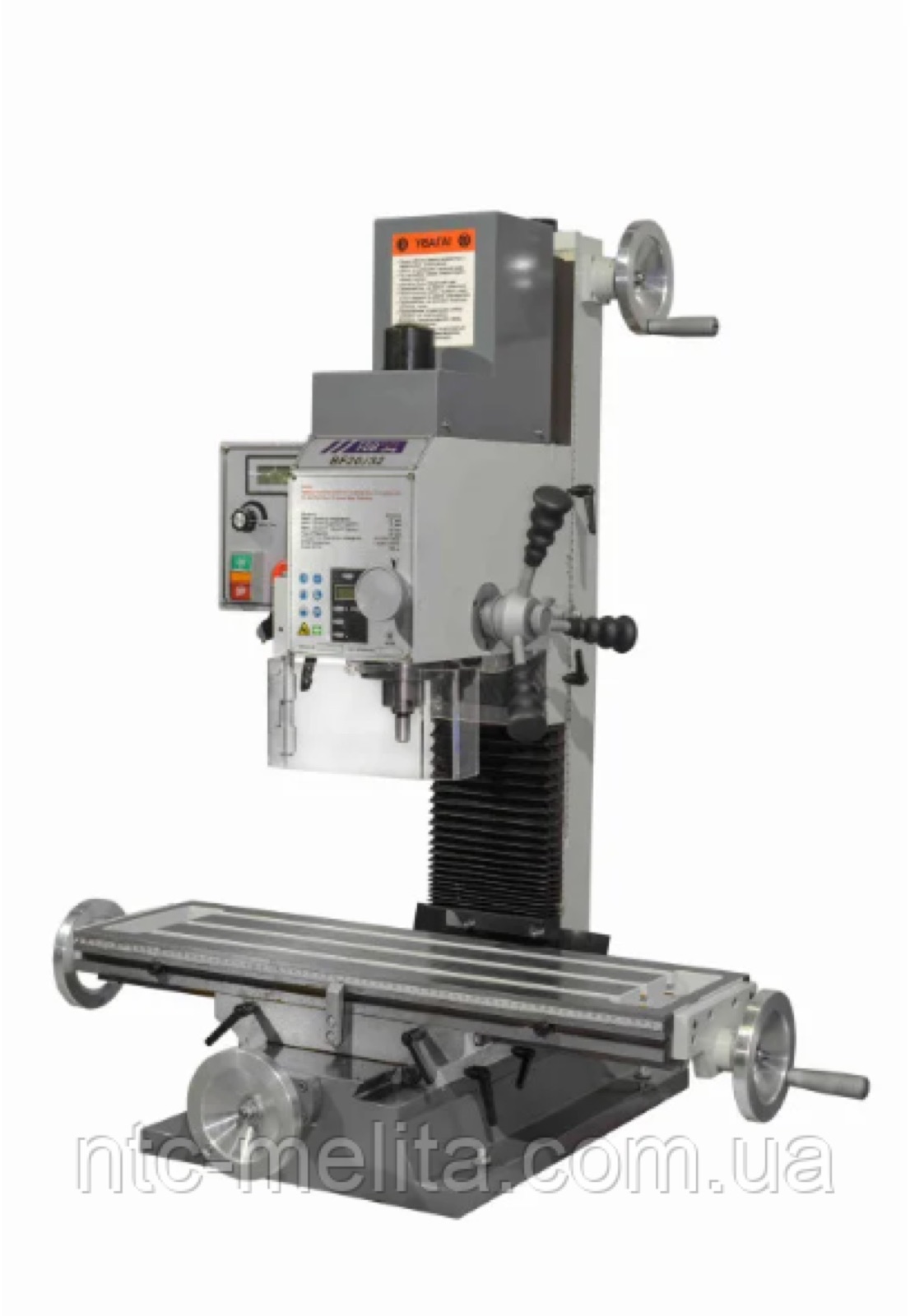

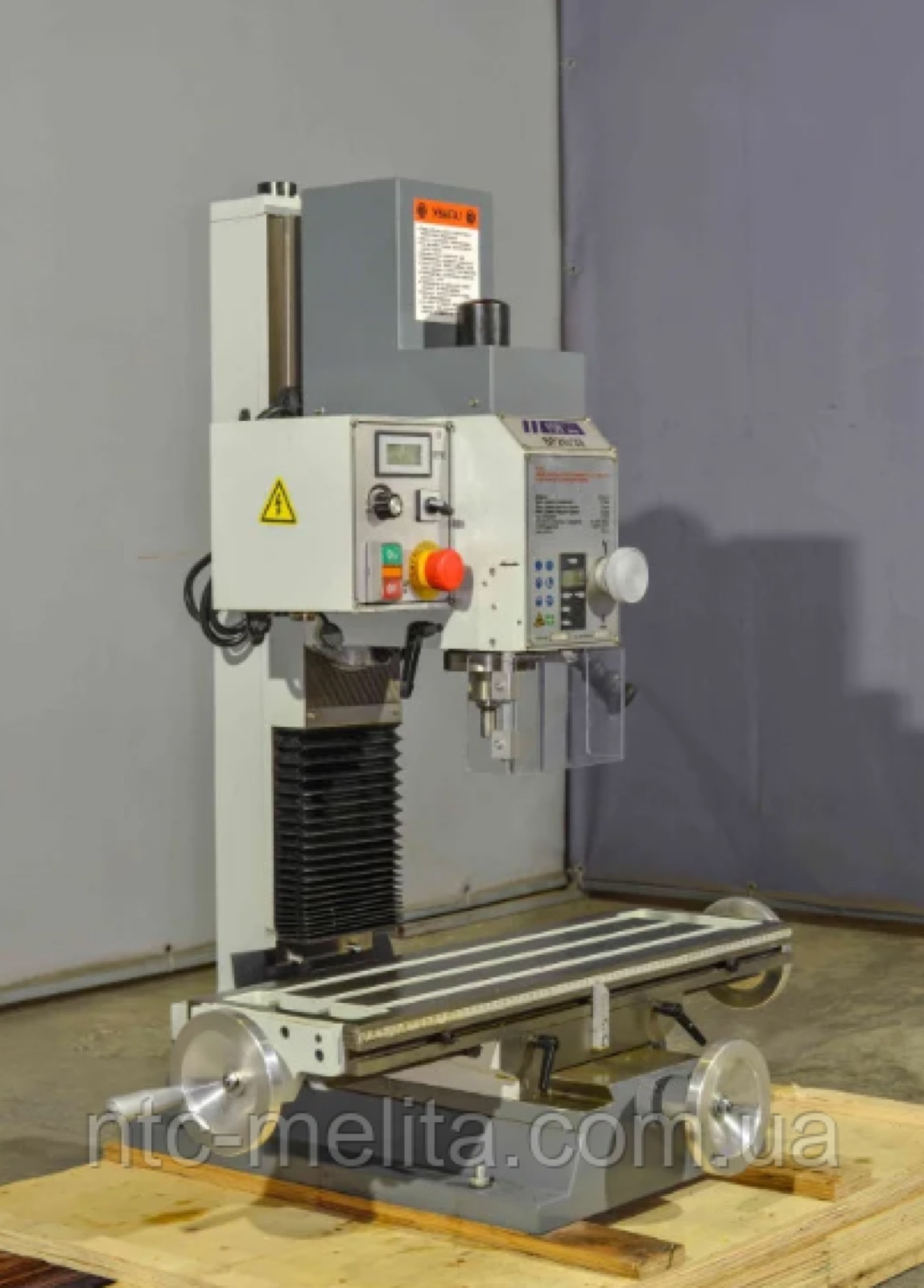

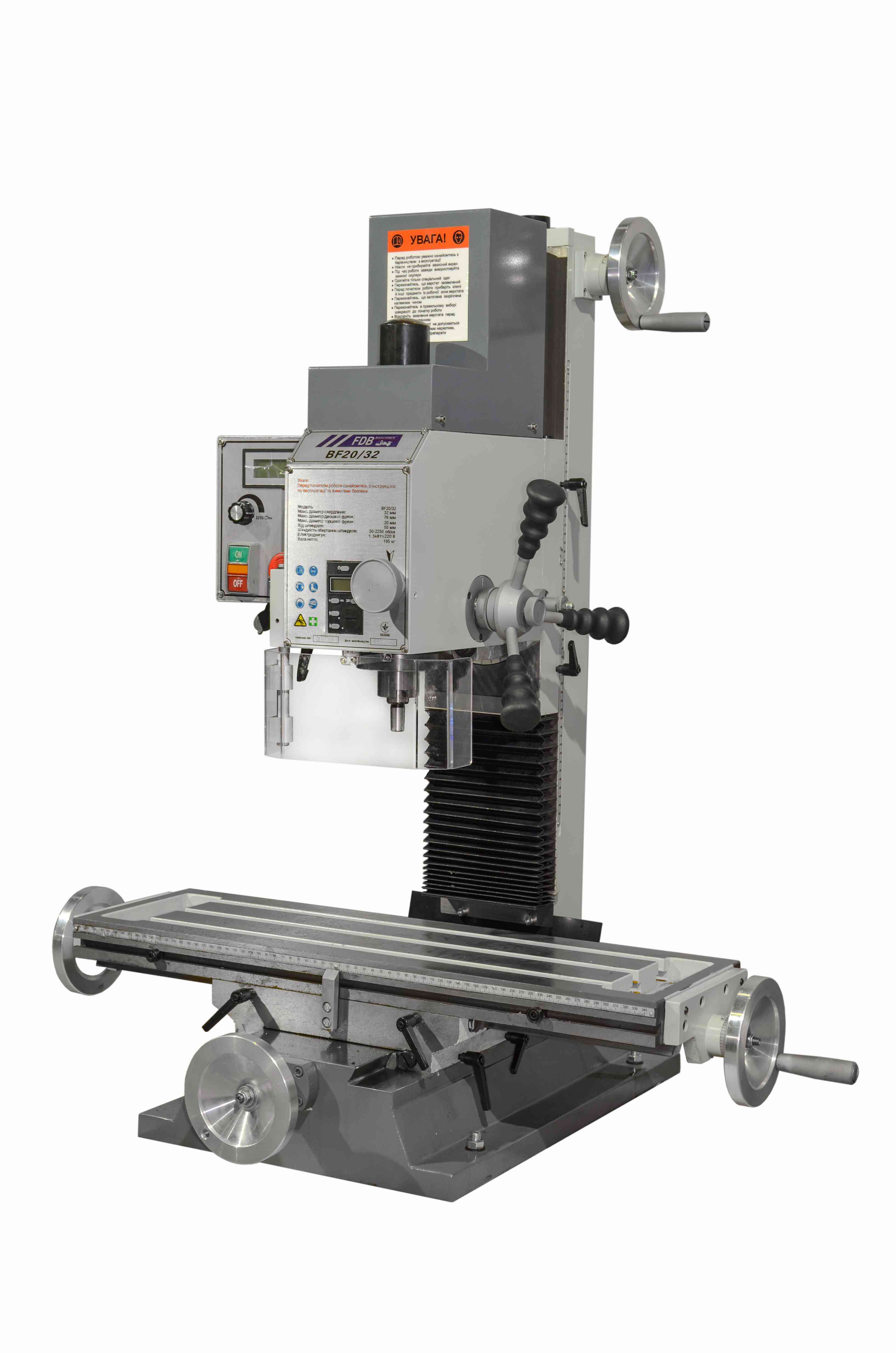

Drilling and milling machine FDB Maschinen BF 30B with belt-driven spindle (direct belt drive from the motor to the spindle (no gear train, no intermediate shaft) is designed for milling, drilling and tapping of workpieces made of non-ferrous and ferrous metals and their alloys in one-off production.

Combining milling and drilling reduces the cost of buying additional machines and saves floor space. The BF 30 B is designed for one-off and small-batch production at low-load plants, in repair shops, tool rooms, etc. The machine is easy to learn and operate, highly reliable and simple to maintain.

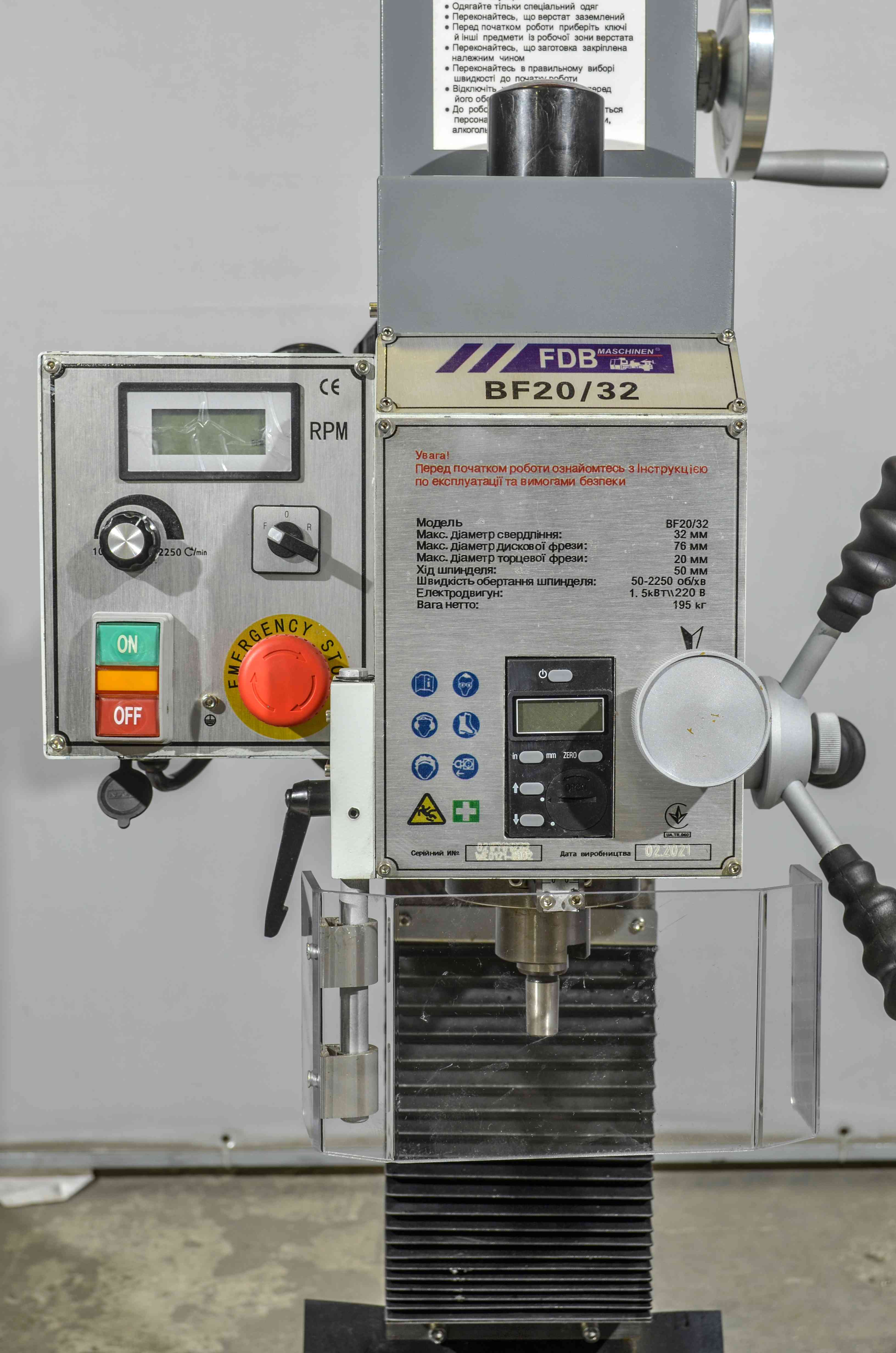

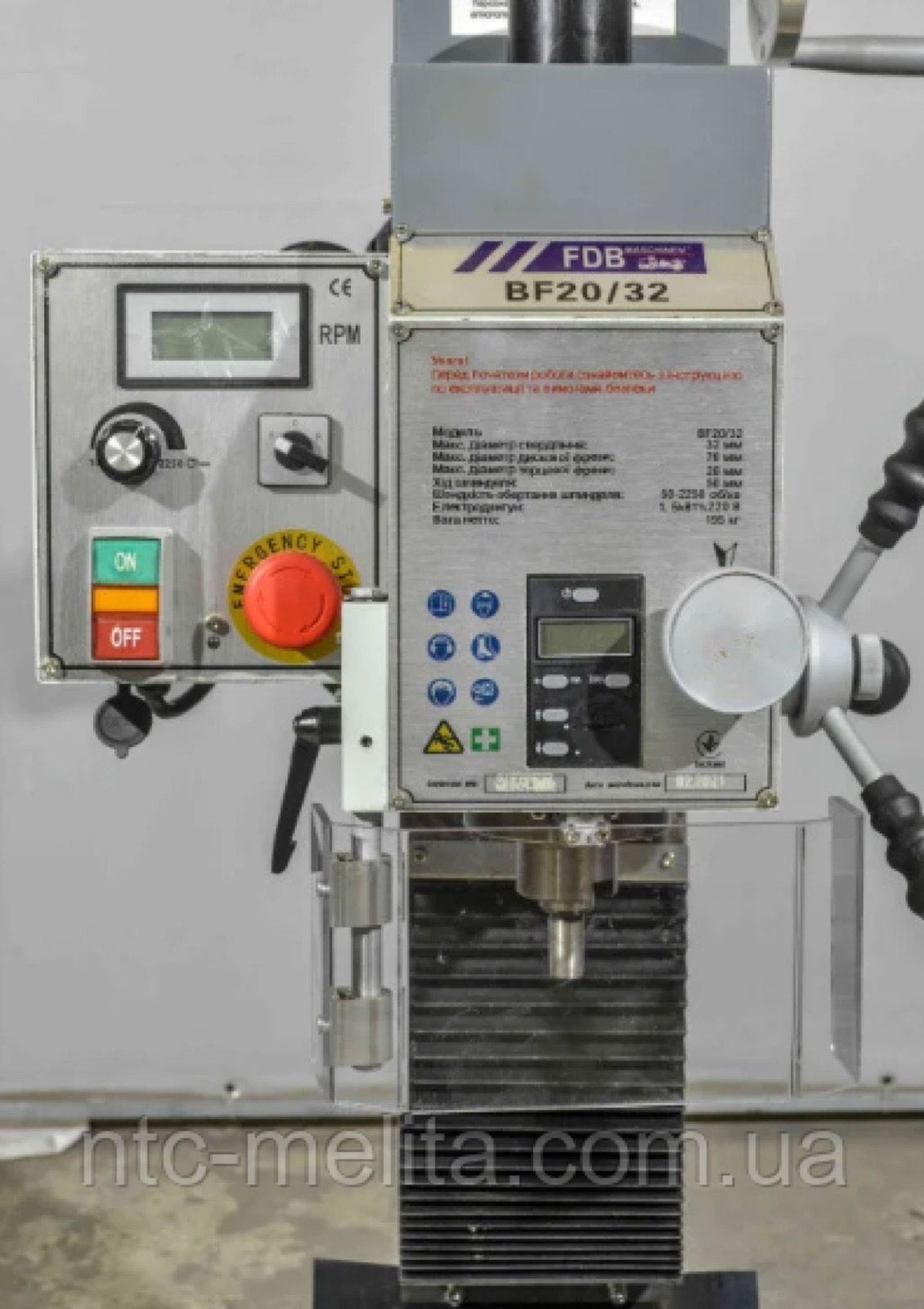

FDB Maschinen BF 30 B features:

• Convenient control panel;
• Spindle rotation right/left;
• Milling head guideway protected by a cover;
• Short kinematic chain;
• Powerful motor;

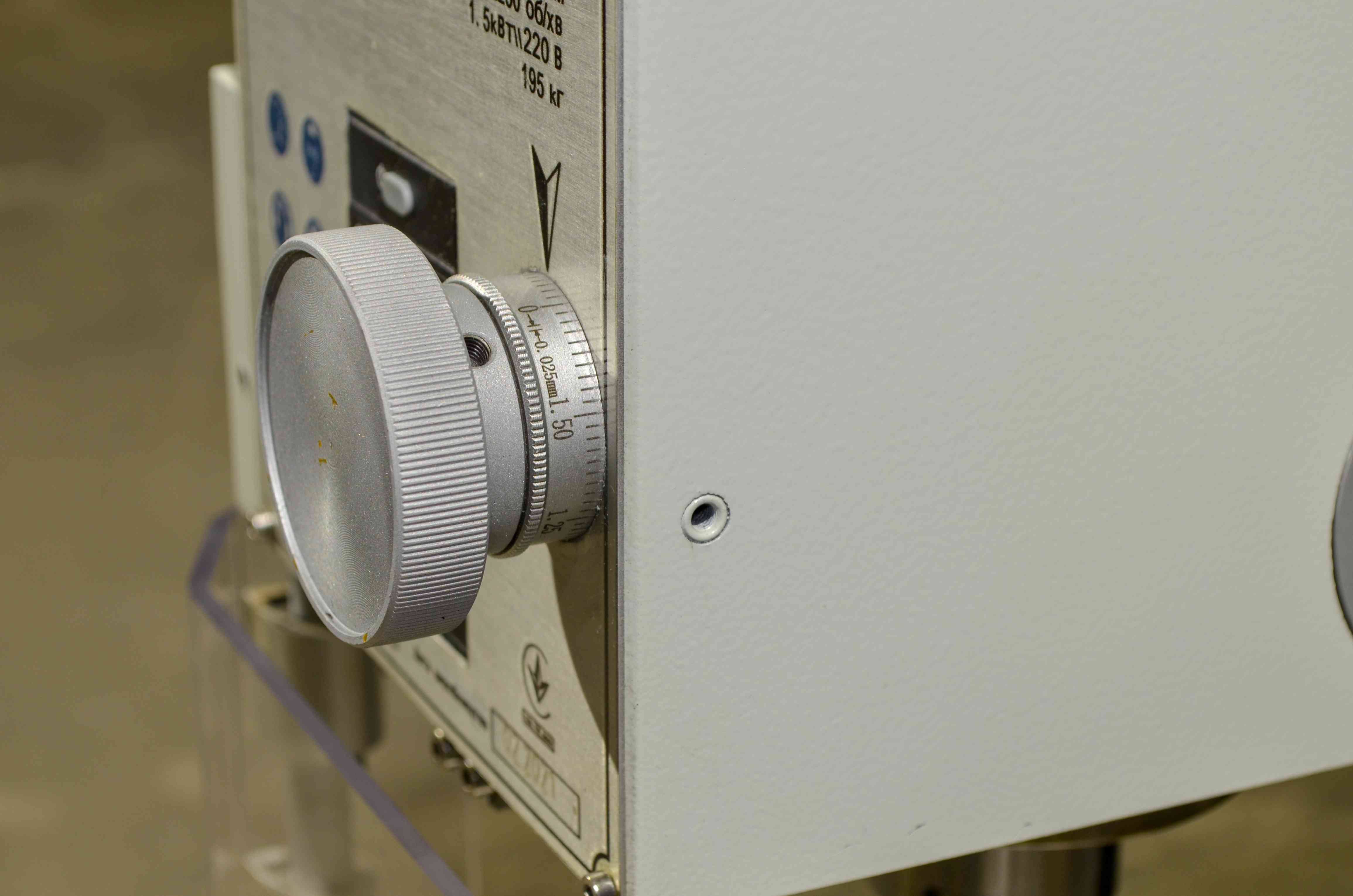

• Fine feed for milling;
• Lever feed for drilling;
• Adjustable table travel stop.

Specifications:

Model	BF 30B
Power supply
Spindle motor voltage, V	220 V ~50 Hz
Spindle motor power, kW	1.5
Spindle motor type	asynchronous
Tool parameters
Max. drilling diameter (steel), mm	32
Max. face milling diameter, mm	76
Max. end milling diameter, mm	20
The spindle
Number of steps	1
Speed control	stepless
Spindle speed, rpm	50 - 2250
Spindle speed change method	Variator
Spindle rotation direction	right \ left
Spindle taper	MK 3
Spindle drawbar thread	M 12
Quill travel, mm	75
Max. distance from spindle centre to column, mm	185
Max. distance from spindle to table, mm	480
Milling head
Spindle head swivel (tilt) range, deg	± 90°
Spindle head travel (Z), mm	355
Raising/lowering	manual
Compound table
Table size (LxW), mm	730x210
Table longitudinal travel (X), mm	450
Table cross travel (Y), mm	205
T-slot size, mm	12
Number of slots	3
Slot spacing, mm	63
Max. table load, kg	n/a
Drilling depth adjustment	+
Tapping function	-
Fine quill feed	+
Work area lighting	-
Machine stand	-
Assembled machine dimensions
Length, mm	890
Width, mm	710
Height, mm	1120
Machine weight, kg	197
