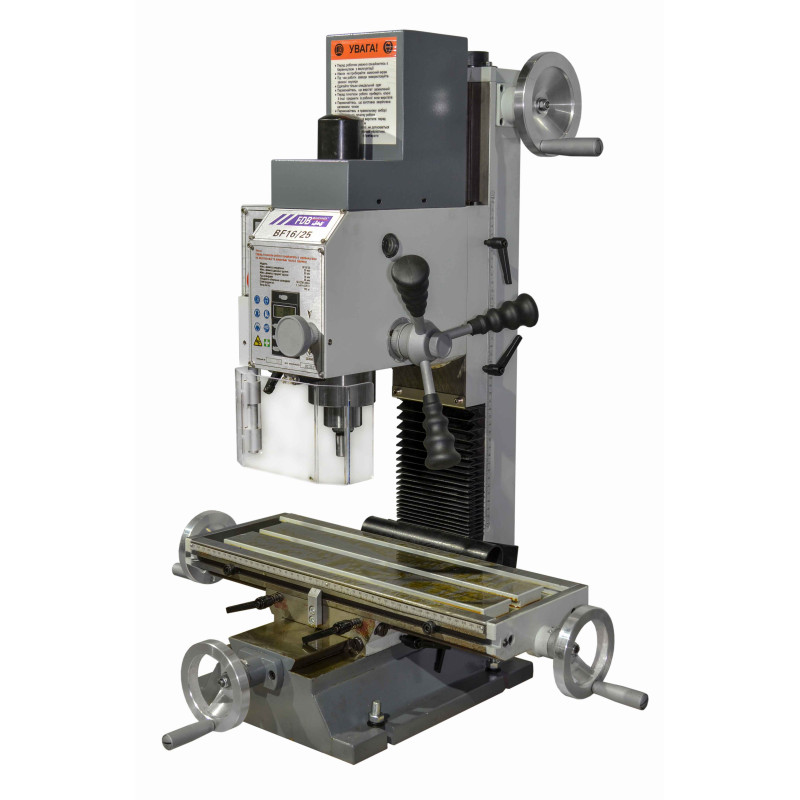

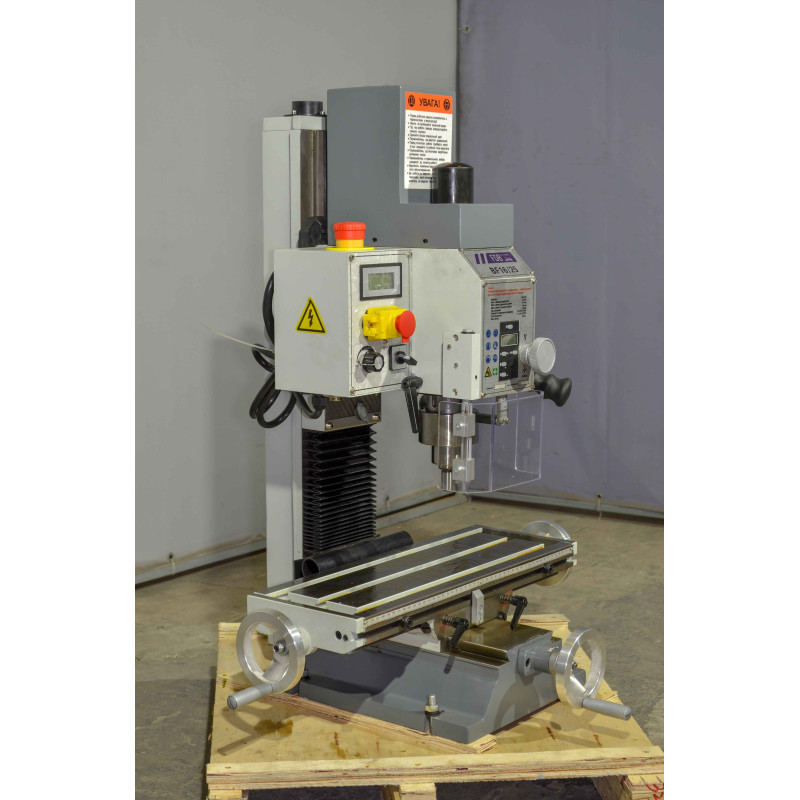

The FDB Maschinen BF 20BL drilling and milling machine
● In stockFDB Maschinen

The FDB Maschinen BF 20BL drilling and milling machine

92 000 ₴incl. VAT
76 666,67 ₴ excl. VAT · invoice for companies and sole proprietors
Get an invoice or a quote
CallViberTelegram
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree

Specifications

Specifications
Distance between slots, mm63
Spindle head swivel (tilt) range, degrees± 90°
Number of slots, pcs3
Number of steps1
Max. distance from spindle center to column, mm160
Max. distance from spindle to table, mm330
Max. table load, kgn/a
Max. vertical milling diameter, mm20
Max. face (disc) milling diameter, mm63
Spindle rotation directionright / left
Raising/loweringManual
Work area lighting-
Quill travel, mm50
Spindle head travel (Z), mm270
Longitudinal table travel (X), mm480
Cross table travel (Y), mm140
Coolant pump motor power, W-
Power, kW1.1
DRO (digital readout)Optional
Clamping rod threadM12
Drilling depth adjustment+
Coolant systemOptional
Spindle speed change methodVariator
Spindle motor typeAsynchronous
Fine quill feed+
Machine stand-
Tapping function-
Spindle speed, rpm50 - 2250
Weight (kg)120
Table size (mm)700x180
Spindle taperMT 3
Voltage (V)220 V ~50 Hz
Overall dimensions (mm)940x550x920
Speed controlStepless adjustment
T-slot size, mm12
Max. drilling diameter, mm25

Description

The FDB Maschinen BF 20BL is a drill-milling machine with a direct belt drive to the spindle, built for milling, drilling and tapping ferrous and non-ferrous metals. Combining both operations in one machine saves money on separate equipment and floor space. It is designed for one-off production, repair shops and toolrooms.

Motor 1.1 kW on 220 V, stepless speed control 50-2250 rpm, MT3 spindle taper. The 700x180 mm table travels 480 mm in X and 140 mm in Y, and the head swivels 90 degrees each way. Drilling up to 25 mm, end mills up to 20 mm, face mills up to 63 mm. Weight 120 kg.

The FDB Maschinen BF 20BL drilling and milling machine with belt-driven spindle (direct belt drive from motor to spindle (no gear train, no intermediate shaft) is designed for milling, drilling and tapping of ferrous and non-ferrous metals and their alloys in one-off production.

Combining milling and drilling reduces the cost of buying extra machines and saves floor space. The BF 20BL is designed for one-off and small-batch production at low-load facilities, repair workshops, tool rooms, etc. It is easy to learn and operate, highly reliable and simple to maintain.

Features of FDB Maschinen BF 20BL:

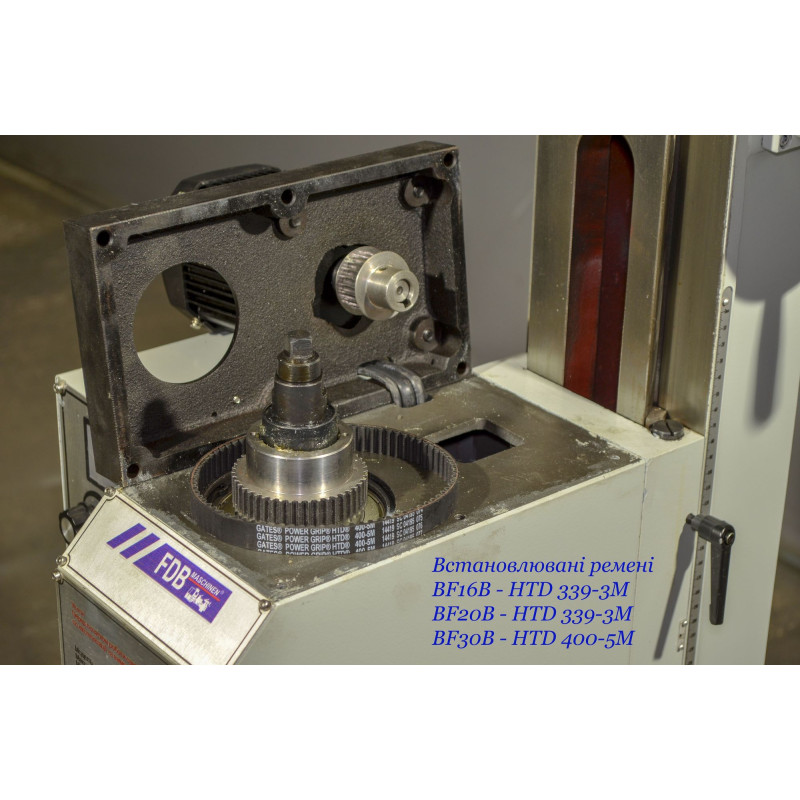

  • Belt drive from motor to spindle;

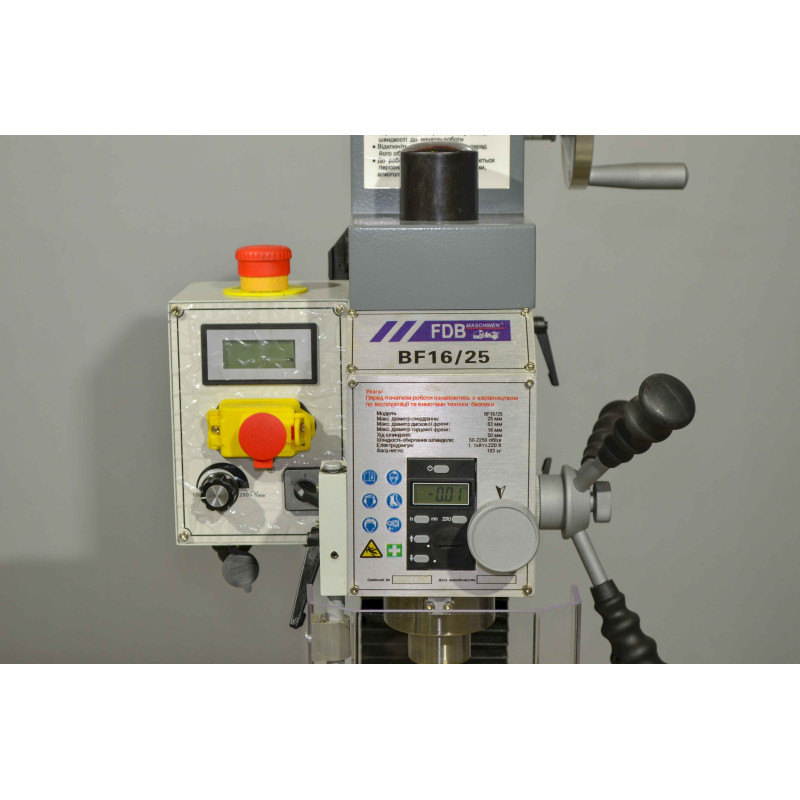

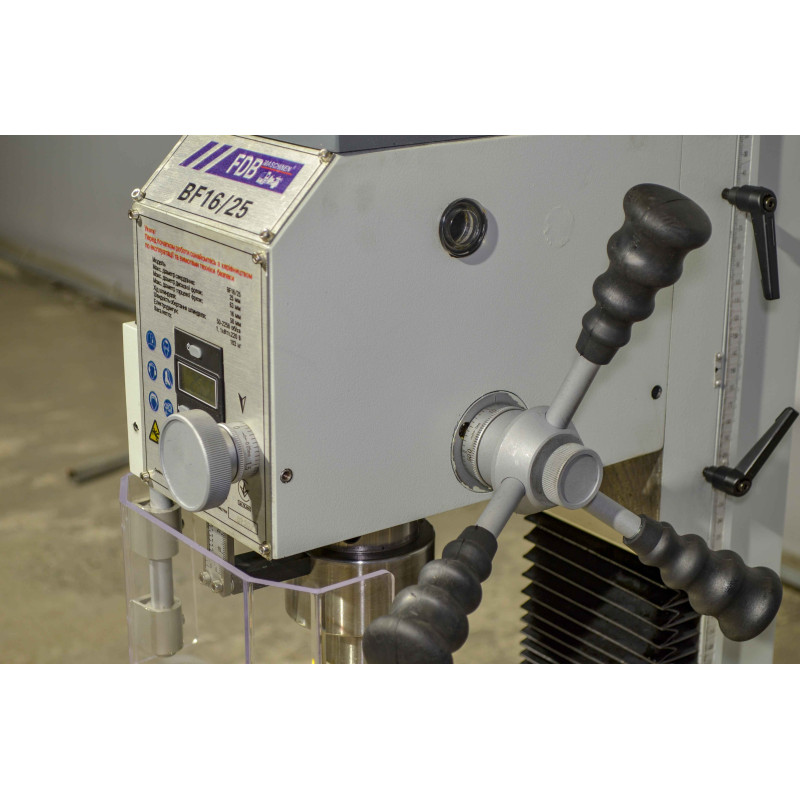

  • Convenient control panel;
  • Forward/reverse spindle rotation;
  • Milling head guideway protected by a cover;
  • Short kinematic chain;
  • Powerful motor;
  • Fine feed for milling;
  • Lever feed for drilling;
  • Adjustable table travel stop.


Specifications:

Model BF20BL
Power supply
Spindle motor voltage, V 220 V ~50 Hz
Spindle motor power, kW 1,1
Spindle motor type asynchronous
Tool parameters
Maximum drilling diameter (steel), mm 25
Maximum face milling diameter, mm 63
Maximum end milling diameter, mm 16
Spindle
Number of steps 1
Speed control stepless control
Spindle speed, rpm 50 - 2250
Spindle speed change method Variable speed drive
Spindle rotation direction forward \ reverse
Spindle taper MK 3
Spindle drawbar thread M 12
Quill travel, mm 50
Maximum distance from spindle centre to column, mm 160
Maximum distance from spindle to table, mm 330
Milling head
Spindle head swivel (tilt) range, deg ± 90°
Spindle head travel (Z), mm 270
Raising/lowering manual
Cross table
Table size (LxW), mm 700x180
Longitudinal table travel (X), mm 480
Cross table travel (Y), mm 175
T-slot size, mm 12
Number of slots, pcs 3
Slot spacing, mm 63
Maximum table load, kg n/a
Drilling depth adjustment +
Tapping function -
Fine quill feed Yes
Work area lighting -
Machine stand -
Overall dimensions of assembled machine
Length, mm 940
Width, mm 550
Height, mm 920
Machine weight, kg 120
