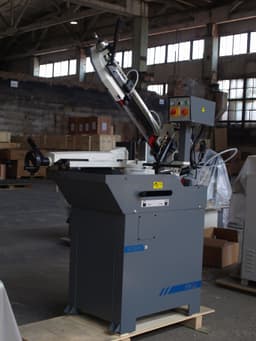

Metal-cutting band saw FDB Maschinen SG 220 HD
118 000 ₴incl. VAT
98 333,33 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Main | |
|---|---|
| Manufacturer | FDB Maschinen |
| Saw blade size, mm | 2460x27x0,9 |
| Cutting angle adjustment | saw head swivel |
| Weight (kg) | 220 |
| Cutting speed (m/min) | 36/72 |
| Max. rectangular stock cut at 90° (mm) | 260x150 |
| Max. rectangular stock cut at 45° (mm) | 150x145 |
| Voltage (V) | 380 |
| Max. round stock cut at 45° (mm) | 150 |
| Cutting angle (deg) | 90/45/60 |
| Overall dimensions (mm) | 880x1720x1810 |
| Power (kW) | 1,1/0,59 |
| Frequency (Hz) | 50 |
| Max. round stock cut at 90° (mm) | 220 |
Description
The FDB Maschinen SG 220 HD is a metal band saw for one-off and small-batch cutting of round bar, pipe, profiles and solid workpieces in steel and non-ferrous metals. A hydraulic cylinder controls how the frame lowers and coolant is fed into the cut, so this band saw machine suits work in a stock-cutting area.
At 90° it cuts 220 mm round or 260 x 210 mm rectangular stock, 150 mm at 45° and 90 mm at 60°. The 600/1100 W motor runs on 380 V at 36/72 m/min, the blade is 2460 x 27 x 0.9 mm, it has a swivel quick-clamp vise and weighs 260 kg. It is built for machine shops, stock-cutting areas and metal depots doing one-off and small-batch cutting.
The FDB Maschinen SG 220 HD band saw uses a blade welded into a loop to cut metal workpieces. Such machines are divided into cantilever and gantry types depending on the saw head design. The SG 220 HD is a cantilever band saw for one-off and small-batch production. The machine features a rigid design, high reliability and cutting accuracy, and is easy to learn and maintain.
FDB Maschinen SG 220 HD band saw features:
Extra-rigid cast frame;
High cutting accuracy;
Coolant supply to the cutting zone;
Automatic downfeed via a hydraulic cylinder;
Stepless downfeed adjustment via a back-pressure hydraulic cylinder;
Automatic limit switch;
Five roller blade guides;
Swivelling quick-clamping vise included;
Quiet operation.
Specifications:
| Model | SG 220HD |
| Voltage (50 Hz), V | 380 |
| Motor power, W | 600/1100 |
| Coolant pump, W | 25 |
| Coolant tank capacity, l | 15 |
| Mitre angle adjustment method | swivelling saw head |
| Max. cutting diameter, round stock, 90°, mm | 220 |
| Max. cutting size, rectangular stock, 90°, mm | 260x210 |
| Max. cutting diameter, round stock, +45°, mm | 150 |
| Max. cutting size, rectangular stock, +45°, mm | 145x145 |
| Max. cutting diameter, round stock, - 45°, mm | - |
| Max. cutting size, rectangular stock, - 45°, mm | - |
| Max. cutting diameter, round stock, + 60°, mm | 90 |
| Max. cutting size, rectangular stock, + 60°, mm | 85x85 |
| Saw blade size, mm | 2460x27x0.9 |
| Cutting speed, m/min | 36/72 |
| Work table height, mm | TBC |
| Overall dimensions (LxWxH), mm | 1450x570x1040 |
| Machine weight, kg | 260 |
