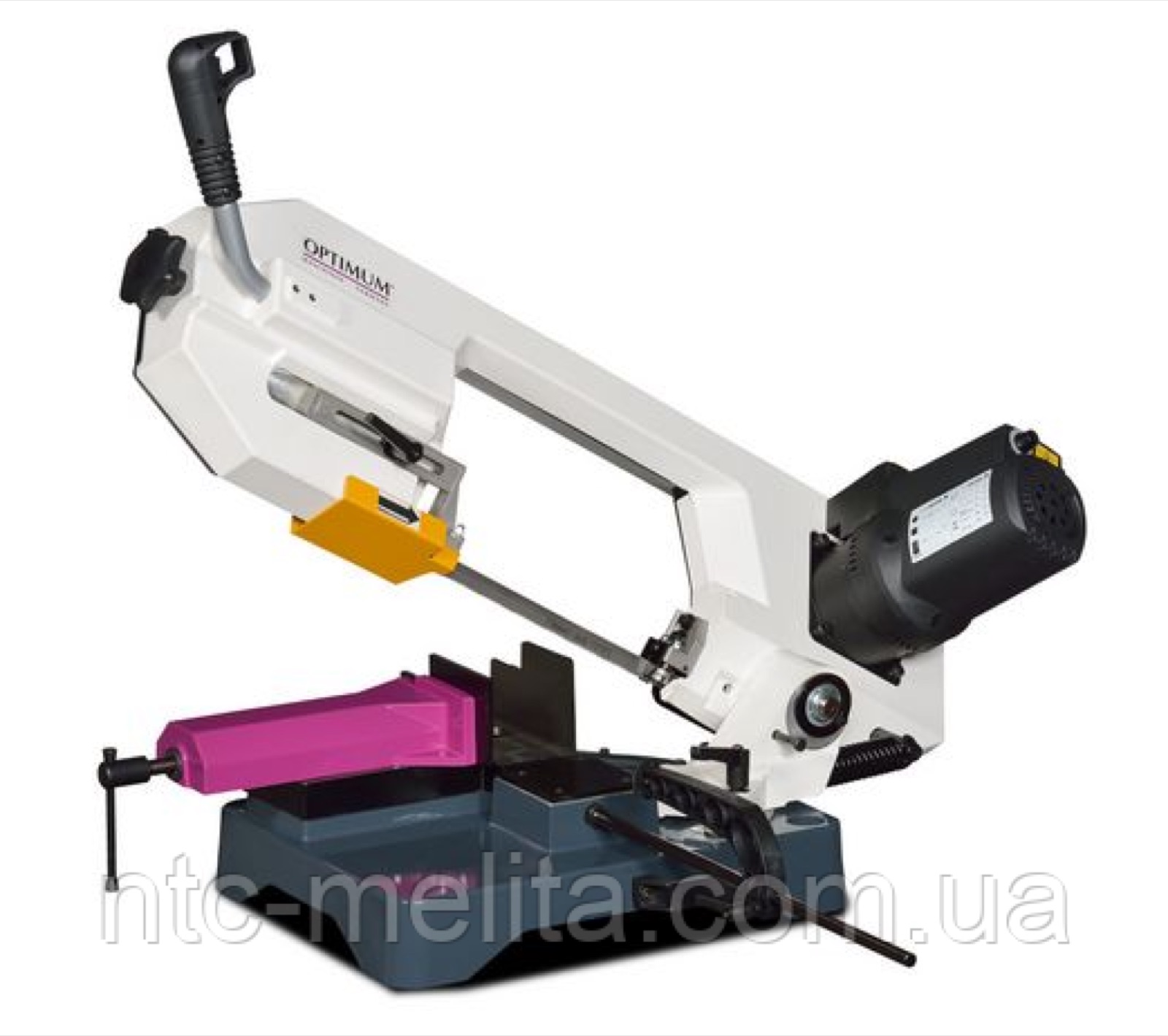

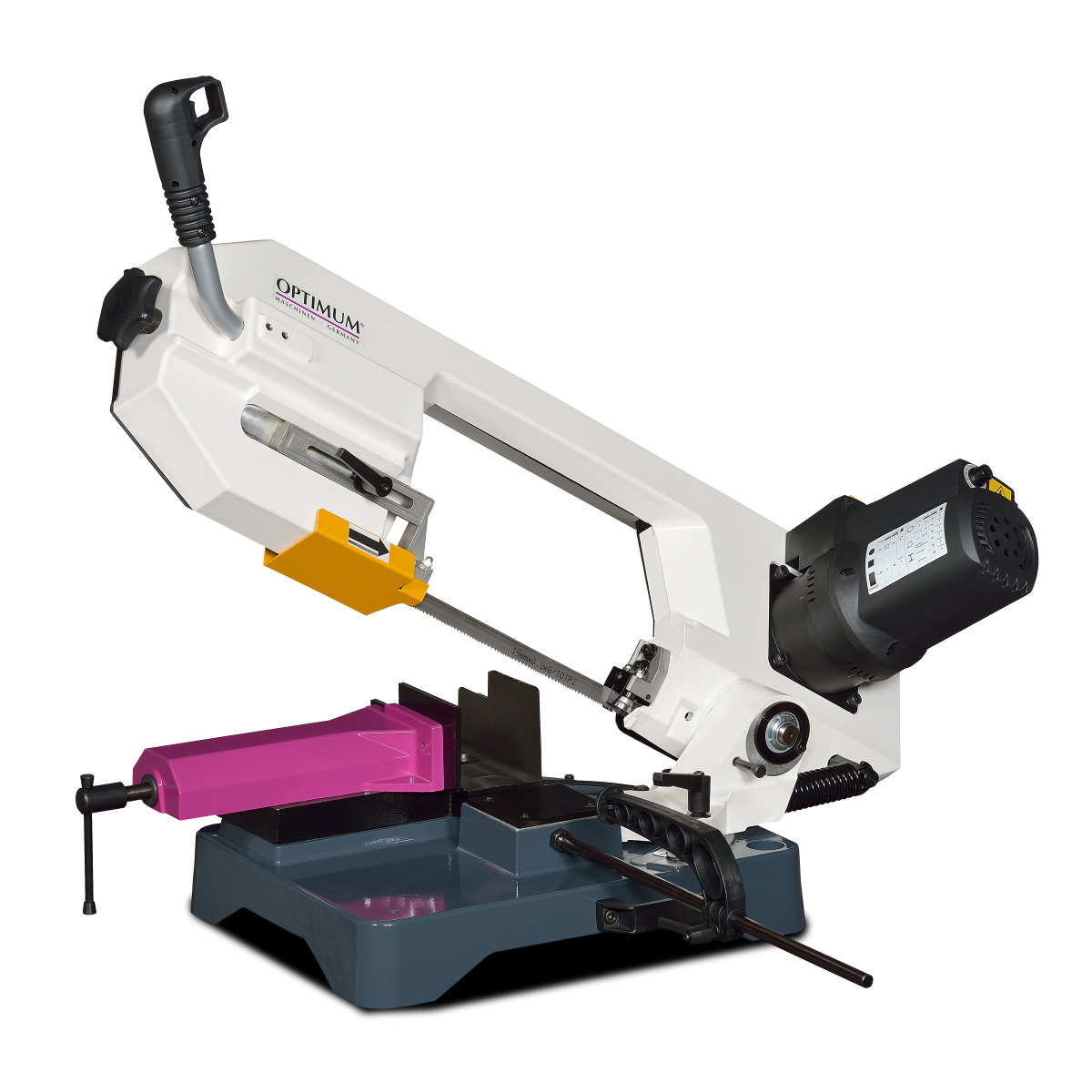

Metal Band Saw OPTIsaw SP 17V
power1.65 kWvoltage230 Vweight36 kg
56 280 ₴incl. VAT
46 900 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Main attributes | |
|---|---|
| Manufacturer | Optimum |
| Dimensions and weight | |
| Length | 1040 mm |
| Width | 480 mm |
| Height | 470 mm |
| Weight | 36 kg |
| Electrical | |
| Motor power | 1.65 kW |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Sawing | |
| Band speed | 30 - 80 m/min |
| Saw blade length | 2030 mm |
| Saw band width | 20 mm |
| Saw band thickness | 0.9 mm |
| Cutting angle | 0 - 60° |
| Cutting | |
| Round 0° | 170 mm |
| Square 0° | 140 mm |
| Rectangle 0° | 166 x 166 mm |
| Round 45° | 130 mm |
| Square 45° | 130 mm |
| Rectangle 45° | 130 x 130 mm |
| Round 60° | 75 mm |
| Square 60° | 75 mm |
| Rectangle 60° | 75 x 75 mm |
Description
The OPTIsaw SP 17V is a metal band saw for cutting pipe, angle, profiles and solid bar in steel, aluminium and non-ferrous metals. This compact band saw machine fits a fitter's workshop, a stock-cutting area or an installation site, and it also makes angled cuts.
At 0° it cuts 170 mm round and 140 mm square stock, 130 mm at 45° and 75 mm at 60°. The 1.65 kW Vario motor runs on 230 V at 30-80 m/min, the blade is 2030 x 20 x 0.9 mm and the saw weighs 36 kg. It suits fitters' and repair workshops, small production sites and installation crews.
Technical description:
- Metal band saw OPTIsaw SP 17V is supplied as standard with a high-quality bimetal blade.
- The adjustable material stop is intended for serial work.
- For convenience, next to the start button on the lever of the band saw there is a control for the blade speed variator.
- The base plate with non-slip feet holds the band saw securely on the surface.
- Low vibration and wear thanks to a special gear drive with two hardened steel gears.

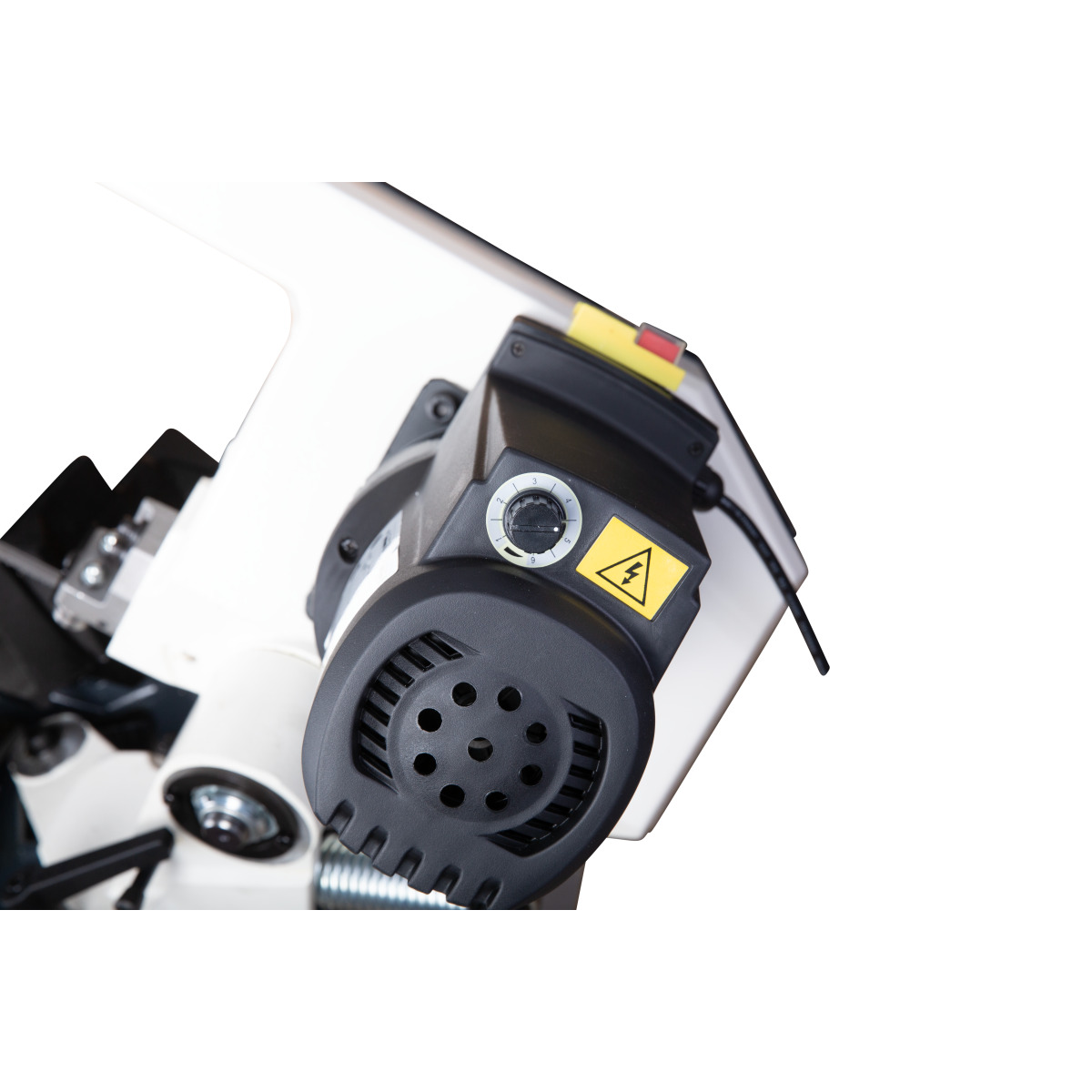

- The OPTIsaw SP 17V metal band saw has a Vario drive motor with low rotational speed and carbon brushes for longer service life.
- The saw frame can be swiveled from 0° to +60°, which allows angled cuts.
Specifications:
| Metal band saw | OPTIsaw SP 17V |
| Art. No. | 3300085 |
| Dimensions and weight | |
| Length | 1040 mm |
| Width/depth | 480 mm |
| Height | 470 mm |
| Weight | 36 kg |
| Electrical specifications | |
| Output power (motor power) | 1.65 kW |
| Mains voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine data | |
| Saw blade speed | 30 – 80 m/min |
| Saw blade length | 2030 mm |
| Saw blade width | 20 mm |
| Saw blade thickness | 0.9 mm |
| Cutting angle from to | from 0 to 60 ° |
| Cutting capacities | |
| 0° round (solid material) | 170 mm |
| 0° square (solid material) | 140 mm |
| 0° rectangular horizontal (solid material) | 166 x 166 mm |
| (+45°) round (solid material) | 130 mm |
| (+45°) square (solid material) | 130 mm |
| (+45°) rectangular horizontal (solid material) | 130 x 130 mm |
| (+60°) round (solid material) | 75 mm |
| (+60°) square (solid material) | 75 mm |
| (+60°) rectangular horizontal (solid material) | 75 x 75 mm |
Delivery set:
- Adjustable stop.
- High-quality bimetal saw blade.
Packaging parameters:
- Length - 446 mm.
- Width - 724 mm.
- Height - 375 mm.
- Gross weight - 41 kg.
