Quantum SQ-V10 portable metal-cutting band saw
power1.1 kWvoltage230 Vweight6.6 kg
8 760 ₴incl. VAT
7 300 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Main attributes | |
|---|---|
| Manufacturer | Quantum |
| Country of origin | Germany |
| Dimensions and weight | |
| Length | 465 mm |
| Width | 280 mm |
| Height | 165 mm |
| Weight | 6.6 kg |
| Electrical | |
| Motor power | 1.1 kW |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Main | |
| Blade speed | 42 - 144 m/min |
| Band saw blade length | 1140 mm |
| Band saw blade width | 13 mm |
| Band saw blade thickness | 0.65 mm |
| Max. cutting size | 127 x 80 mm |
| Cutting | |
| Cutting 0°, round | 127 mm |
| Cutting 0°, square | 127 mm |
| Cutting 0°, rectangle, flat | 127 x 127 mm |
| Cutting 45°, round | 40 mm |
| Cutting 45°, square | 40 mm |
| Cutting 45°, rectangle, flat | 40 x 120 mm |
Description

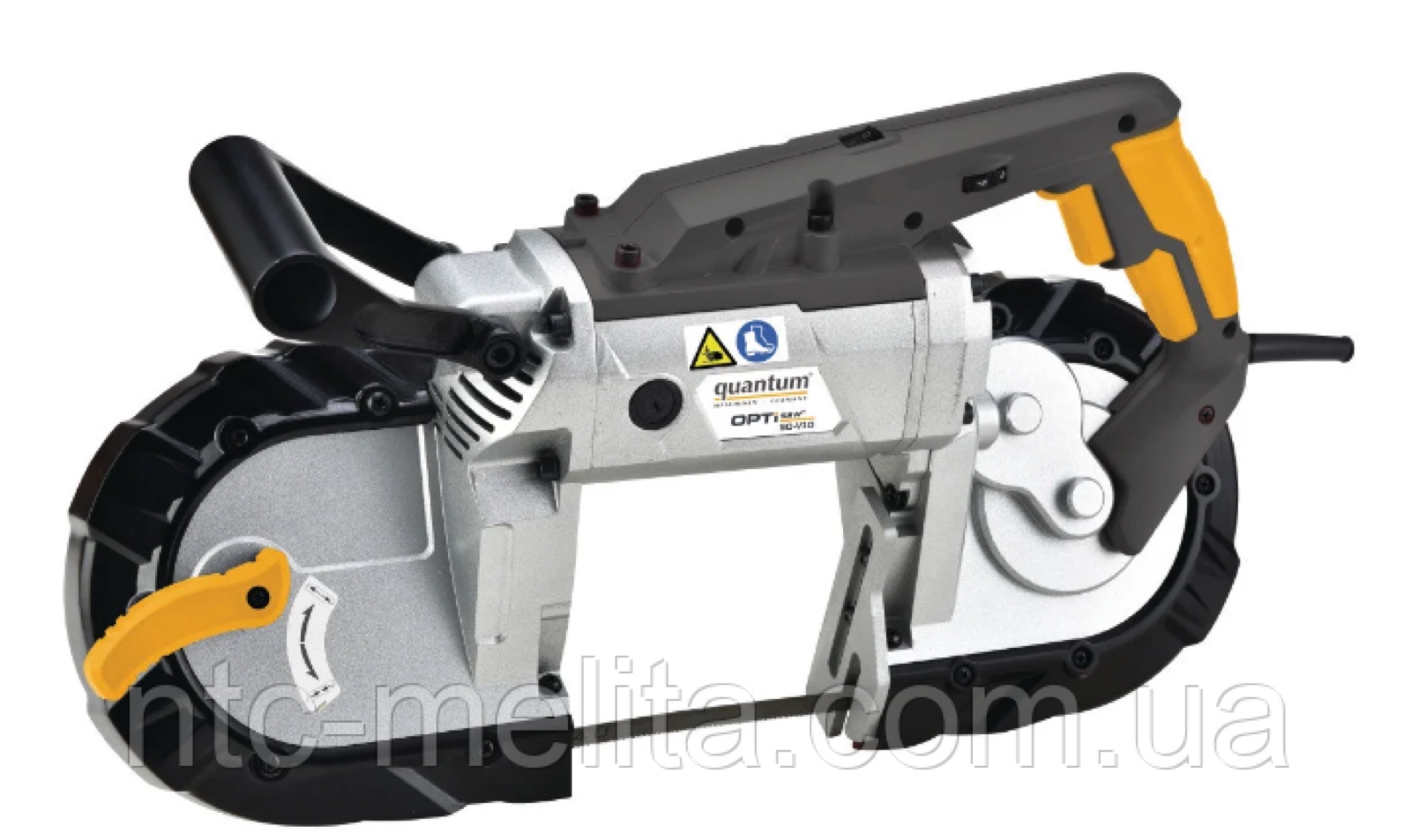

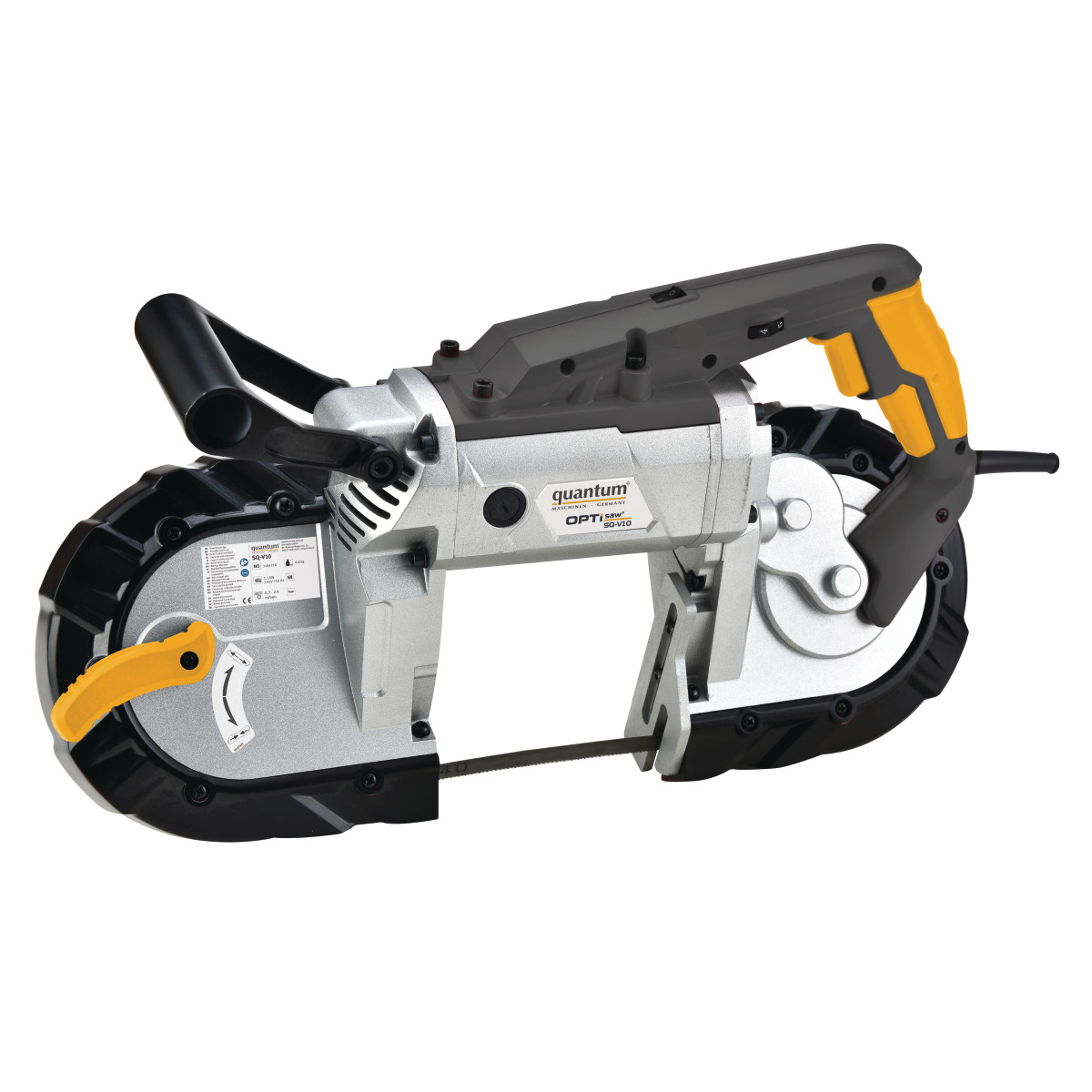

The Quantum SQ-V10 is a handheld metal band saw that you take to the workpiece rather than the other way round. It cuts pipe, profiles and angle in steel, aluminium and non-ferrous metals, as well as wood and plastic, without sparks and without coolant. It is a mobile alternative to a stationary metal band saw for installation, repair and on-site work, and a built-in LED lights the cutting area.
Maximum cut at 90° is 127 x 80 mm, pipe up to 80 mm. The 1.1 kW motor runs on 230 V, blade speed is adjustable from 0.7 to 2.4 m/s, the blade is 1140 x 12.5 x 0.6 mm, the saw weighs 6.6 kg and comes in a carry case with a bimetal blade. It suits installers, maintenance teams and workshops that need a saw for work on site.
- The portable band saw Quantum SQ-V10 has no stand and is designed for mobile use at home or in production.
- The Quantum SQ-V10 band saw is fitted with a 1.1 kW motor.
- Maximum cutting capacity - 90 ° - 127 x 80 mm, pipe - 80 mm.
- The saw is ideal for cutting hard steel materials with low tensile strength. The Quantum SQ-V10 metal-cutting band saw is recommended for cutting pipes and profiles made of steel, aluminum and non-ferrous metals. The Quantum SQ-V10 is also suitable for cutting wood, plastic and other thin non-ferrous metals.
- The Quantum SQ-V10 metal-cutting band saw has a sturdy aluminum housing and a solid, comfortable handle for carrying and holding it while cutting.

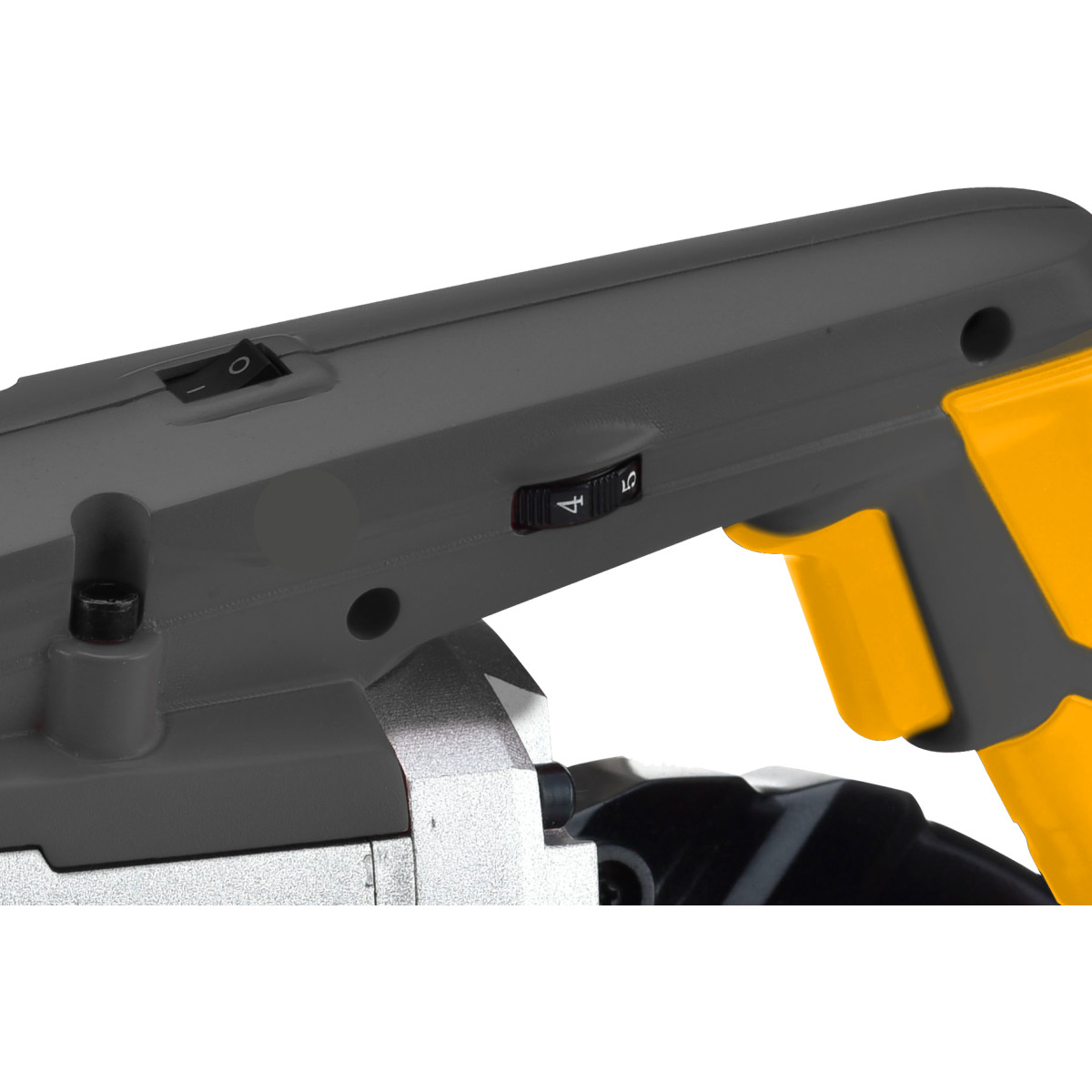

- Blade speed is adjustable within 0.7 - 2.4 m/s, which is convenient when working with different materials.

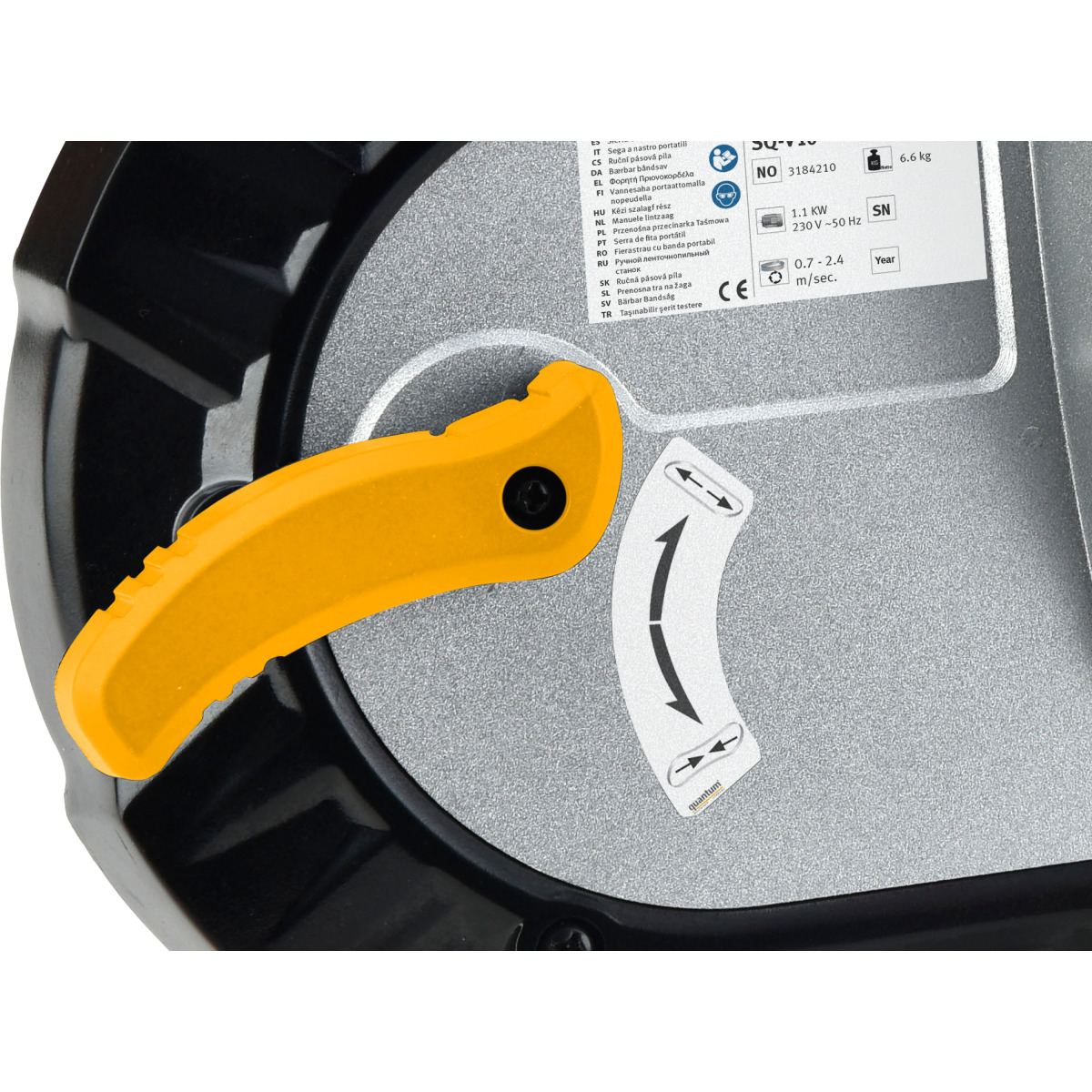

- Users note the convenient design of the blade tensioning lever.

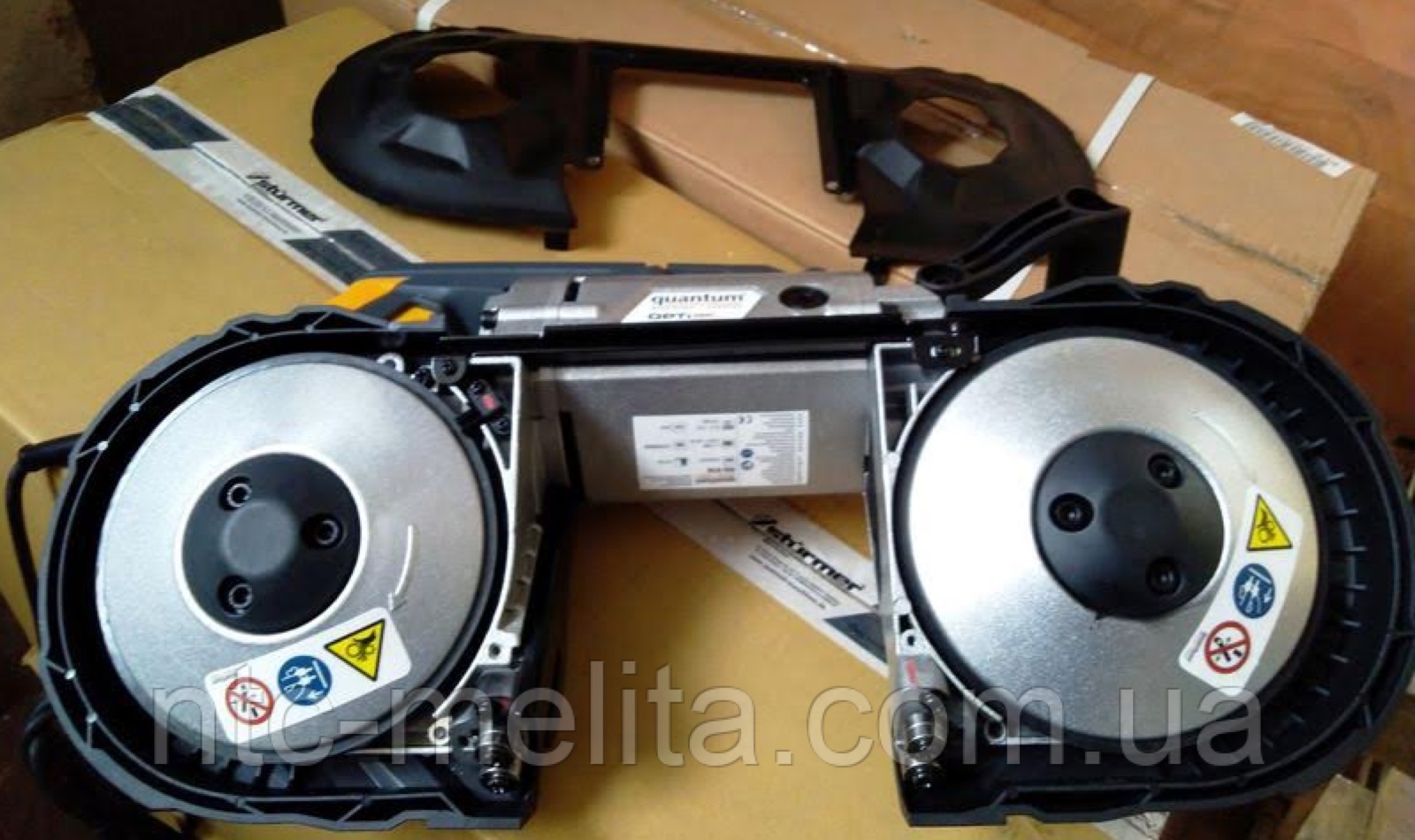

- The blade guides and reliable adjusting screws ensure constant, accurate blade travel.
- The Quantum SQ-V10 metal-cutting band saw cuts metal workpieces easily, with practically no sparks and no need for coolant.

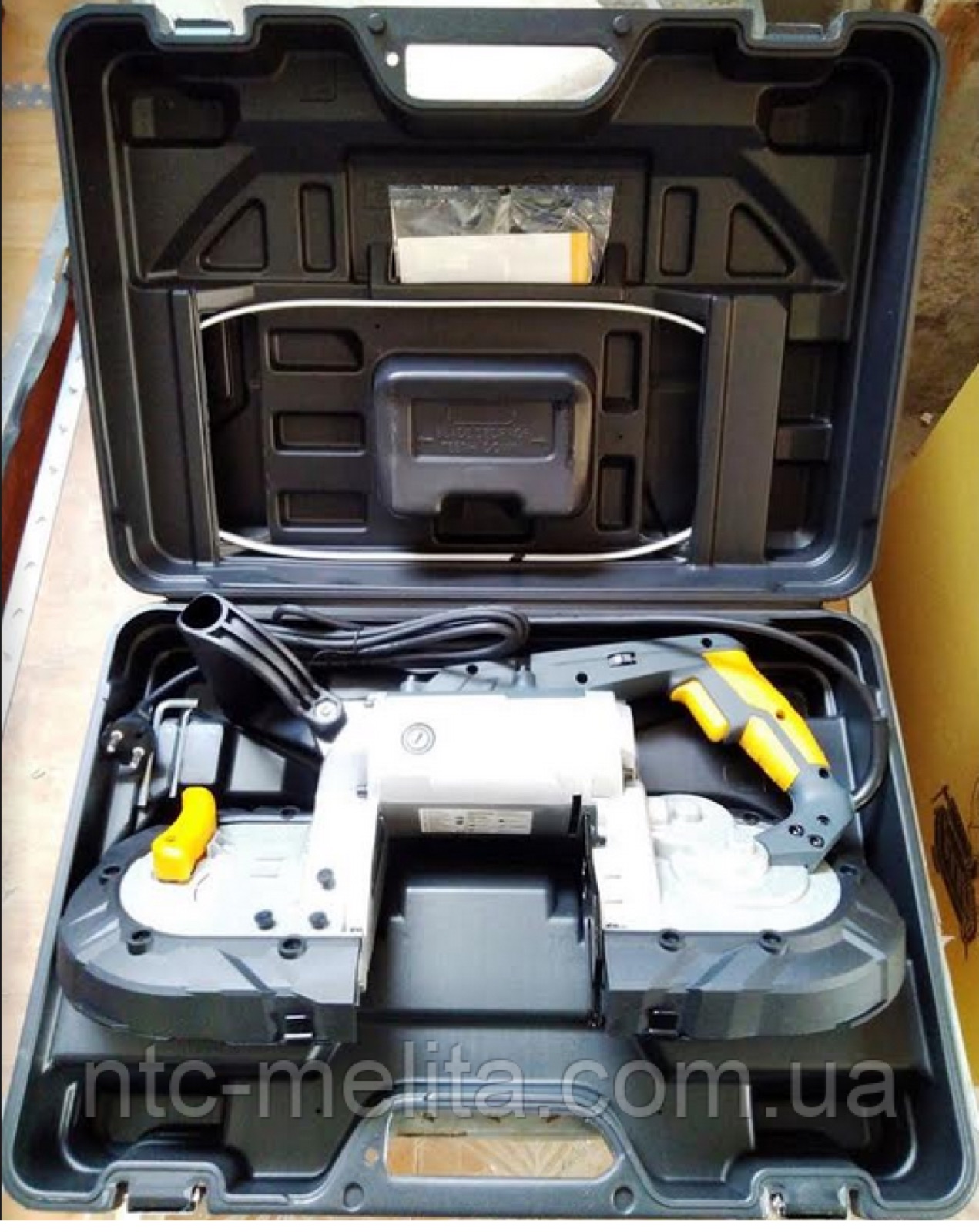

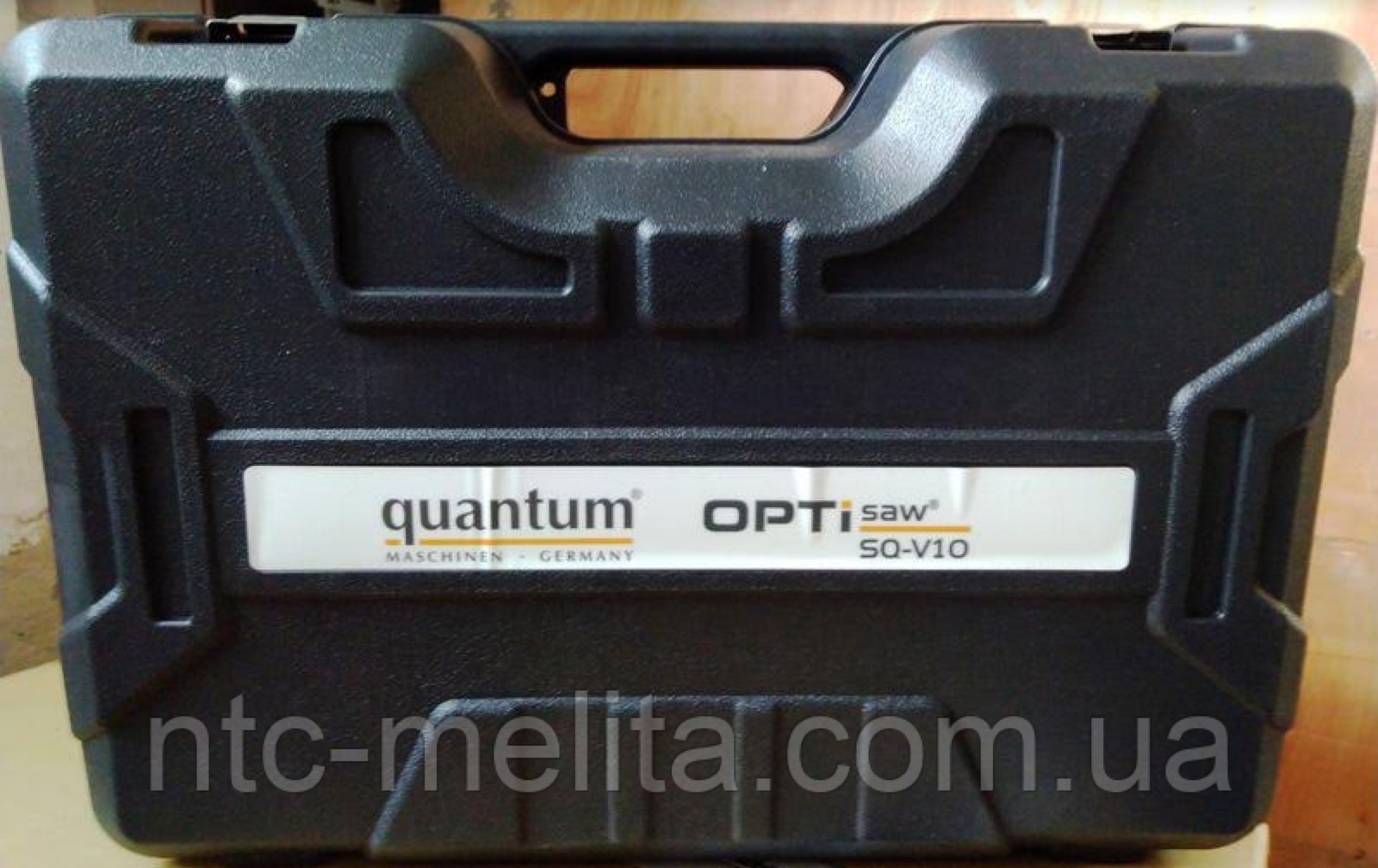

- The Quantum SQ-V10 is supplied in a carrying case.

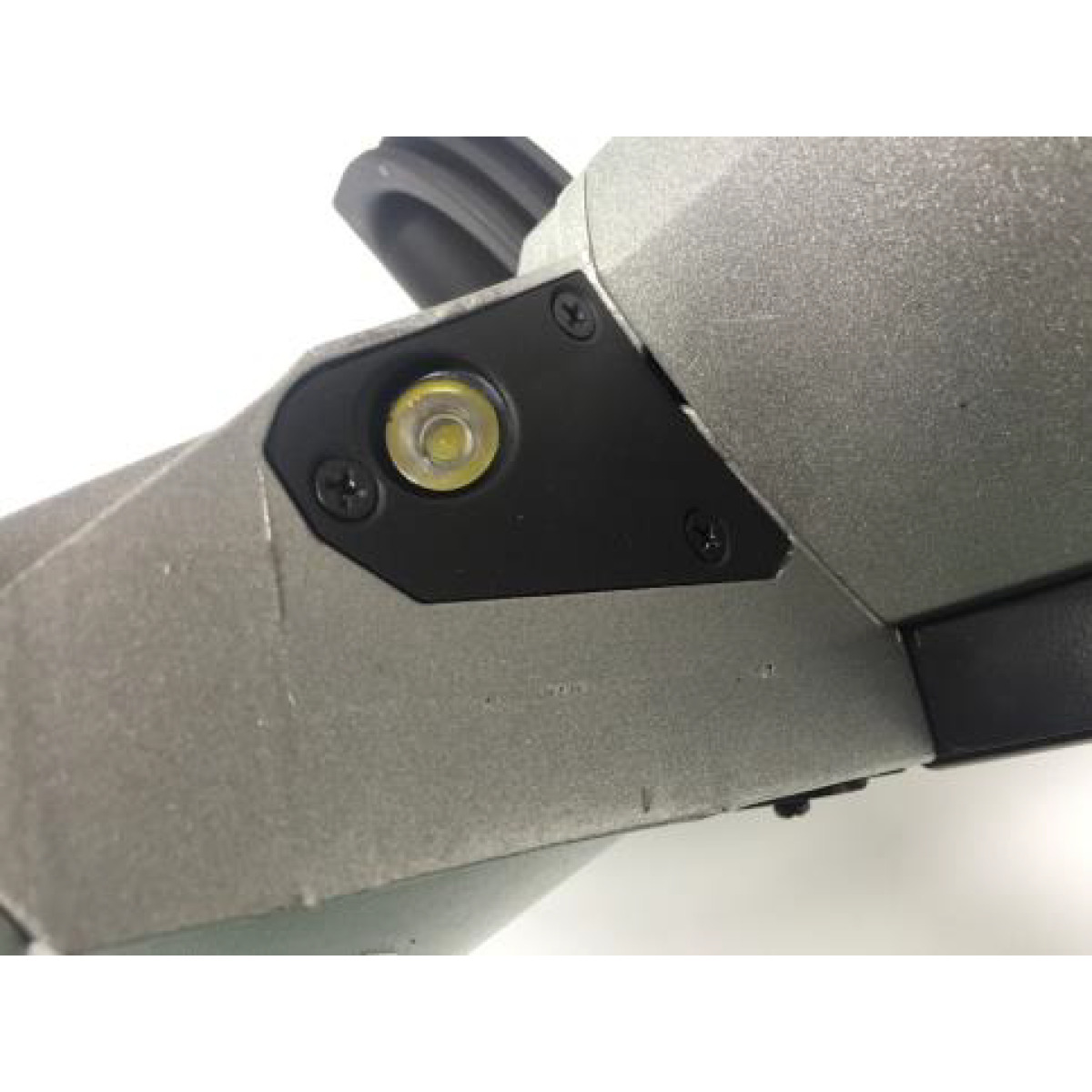

- An LED work light illuminates the cutting zone
Specifications:
| Metal-cutting band saw model | Quantum SQ-V10 |
| Art. | 3184210 |
| Voltage | 230 V |
| Mains frequency | 50 Hz |
| Motor power (kW) | 1.1 |
| Blade speed (m/s) | 0.7 - 2.4 |
| Blade dimensions (mm) | 1140 x 12.5 x 0.6 |
| Weight (kg) | 6.6 |
| Dimensions (mm) | 590 x 205 x 415 |
Scope of delivery:
- Quantum SQ-V10 portable band saw.
- Carrying case for the portable band saw.
- Bimetal saw blade 10-14 ZpZ M42.
