Crane scale VMIK ZEUS III-10000

Crane scales (hanging scales) are designed for weighing loads during crane loading or unloading. Hanging scales significantly speed up the receipt and dispatch of raw materials and finished products.

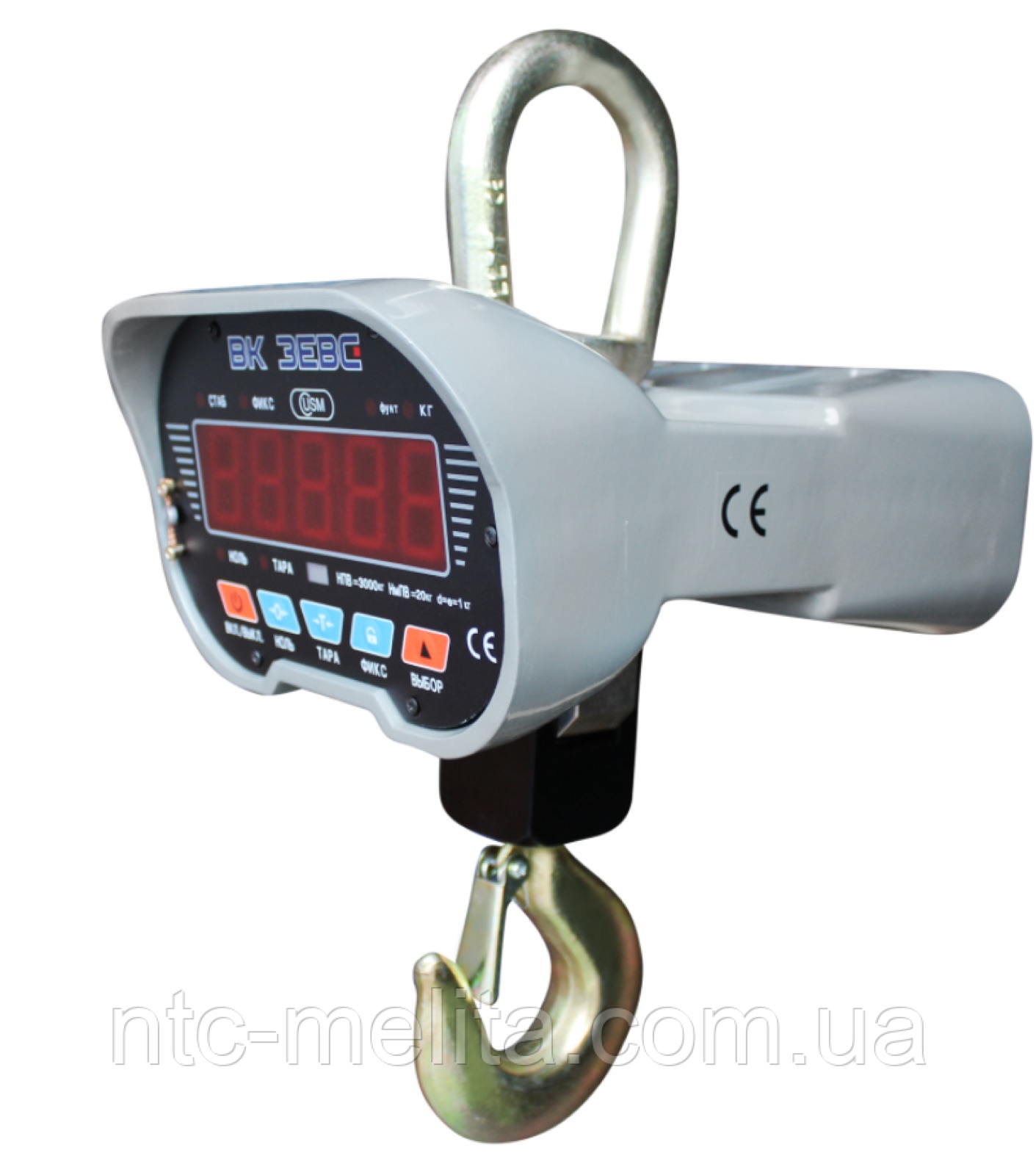

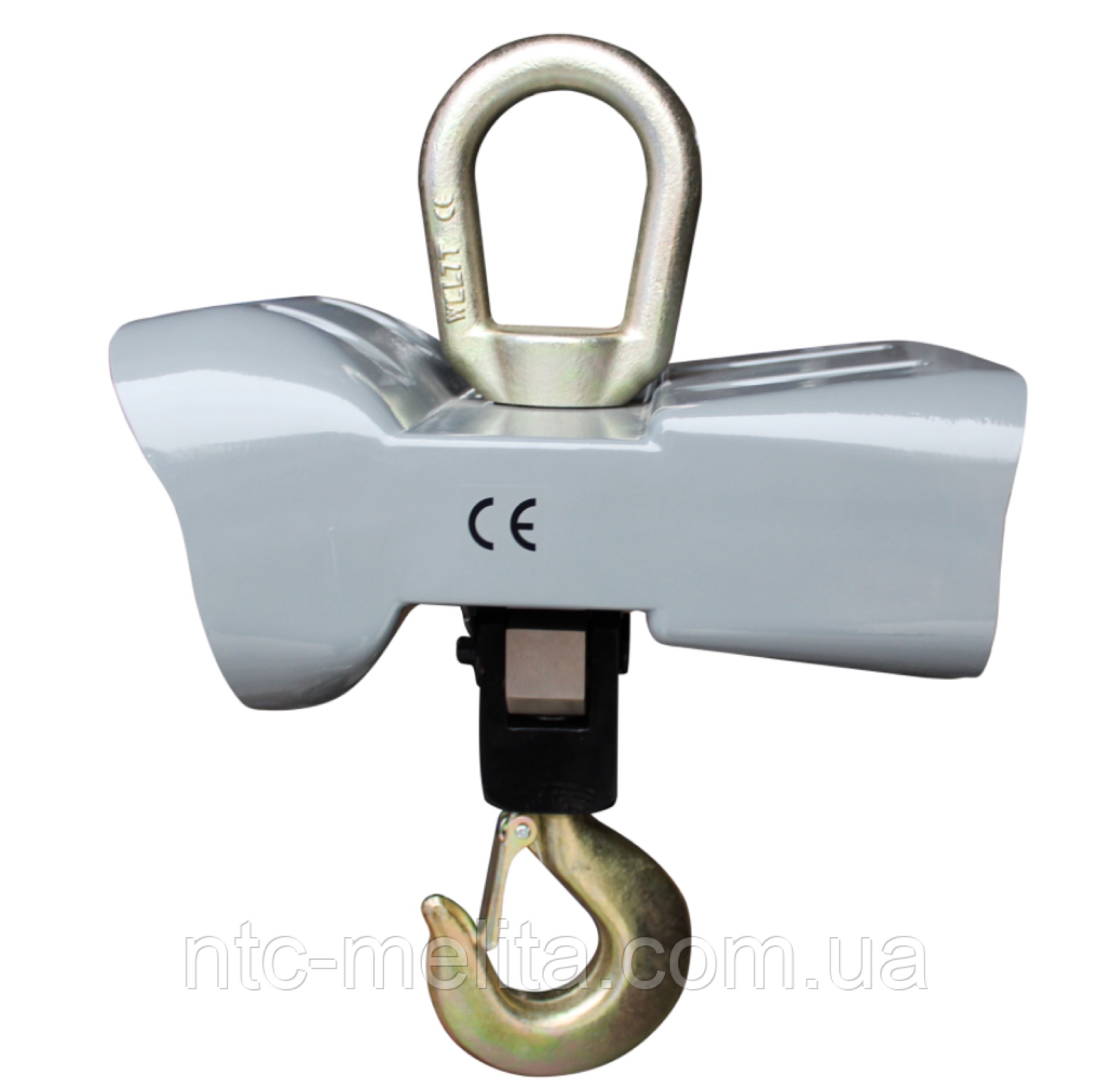

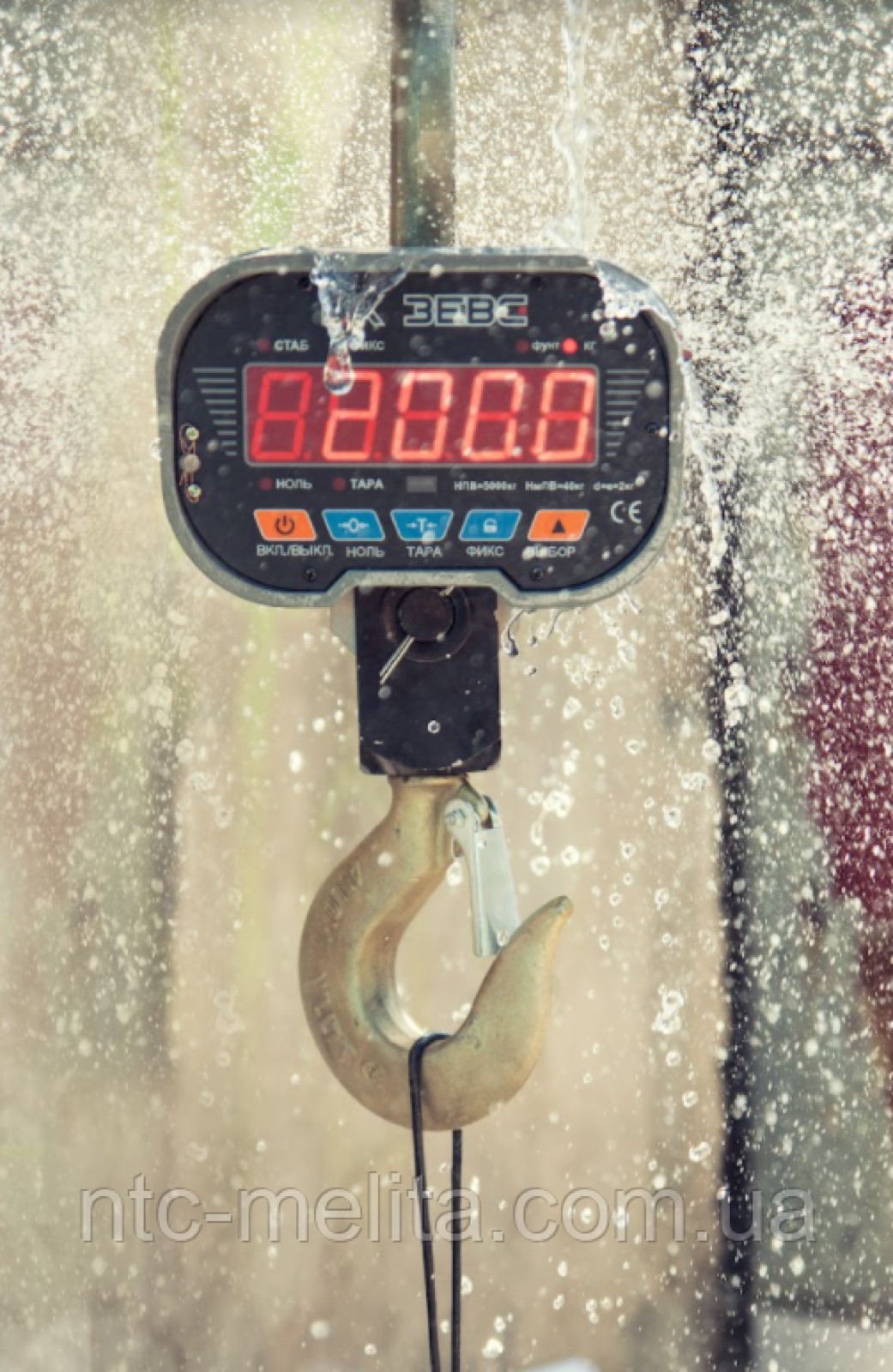

VK ZEUS III scales are built to operate in harsh conditions. The housing of this model is made of high-strength aluminum alloy and reliably protects the electronics from mechanical damage. The scales are fitted with a strain gauge load cell with a safety margin 1.5 times the rated weighing limit. IP65 dust and moisture protection and guaranteed accuracy across an operating temperature range of -20 °C to +40 °C allow the scales to be used outdoors in various weather conditions. For convenience, the 3 and 5 ton models have a swivel hook that lets the load be turned 360 degrees, and an automatic safety latch on the hook prevents the sling from slipping off.

At industrial enterprises such scales are used not only as process equipment but also for commercial purposes.

The scales are intuitive to operate and require no special skills. The scales provide the following functions:

• weight averaging (HOLD function);

• selectable Gross/Net display;

• weight accumulation (totaling the results of several weighings);

• tare;

• holding the reading after the load is removed;

• peak load memory.

For long battery operation the scales have power-saving functions.

Specifications of VK ZEUS III crane (hanging) scales

VK ZEUS III	3000	5000	10000
1. Accuracy class	Medium (III) DSTU EN 45501:2007
2. Max, kg	3000	5000	10000
3. Min, kg	20	40	100
4. Division, kg	1	2	5
5. Safe overload (ultimate)	125% (400%) Max
6. Operating temperature range	-20°C ... + 40 °C
7. Protection rating	IP 65
8. Housing	High-strength aluminum alloy
9. Swivel hook (360°)	yes	yes	no

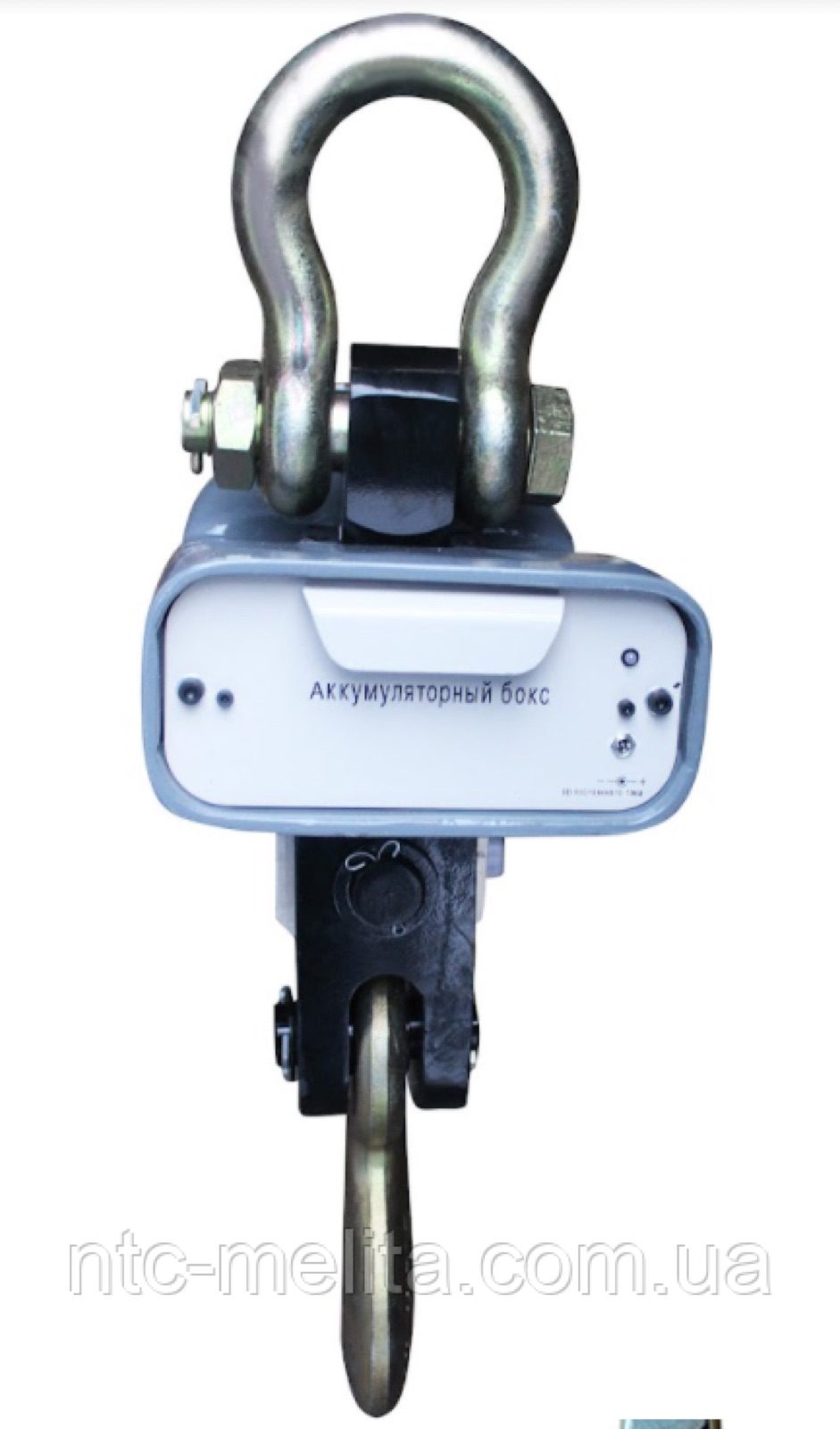

10. Power supply	Battery operation up to 100 h, built-in rechargeable battery 6V/10Ah

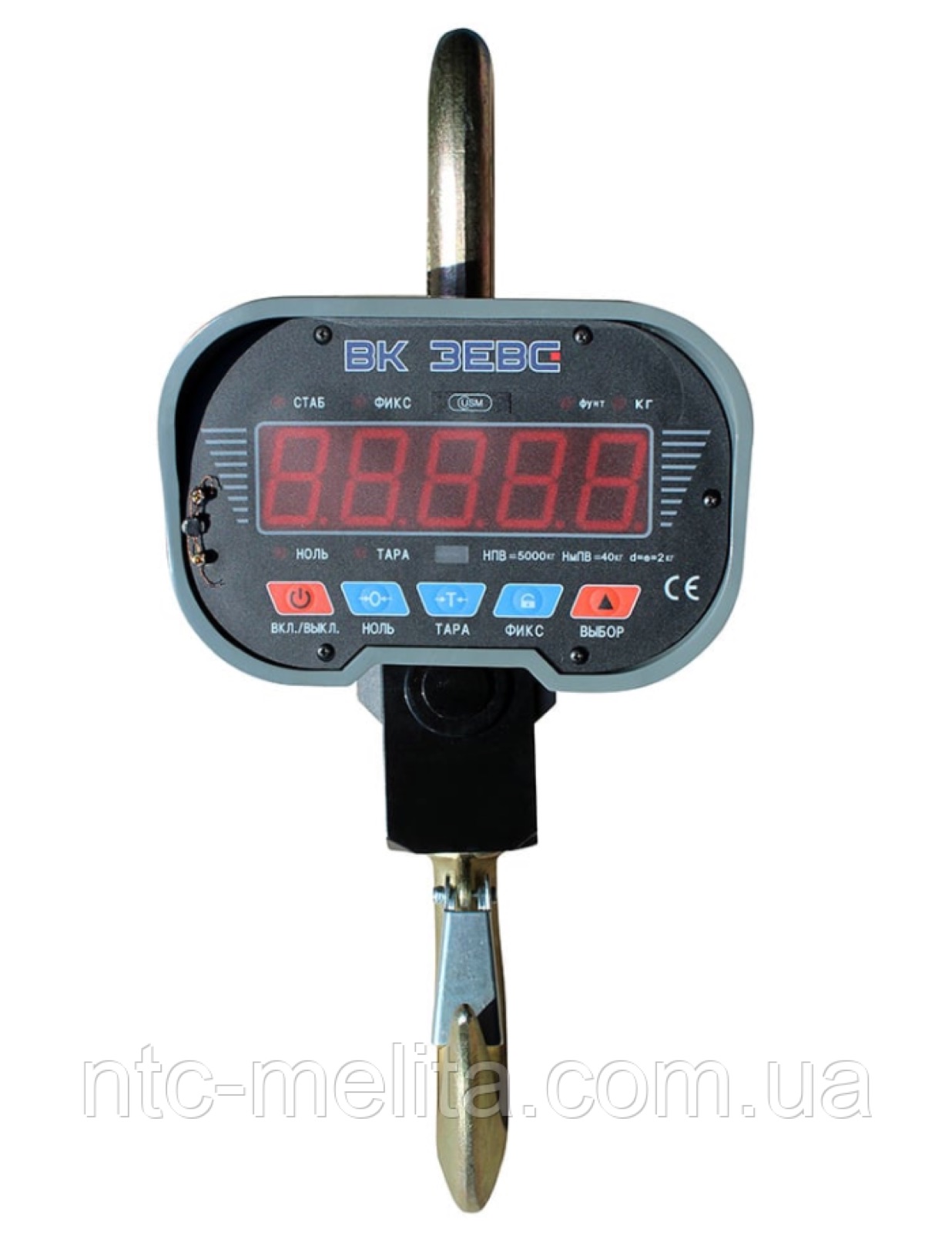

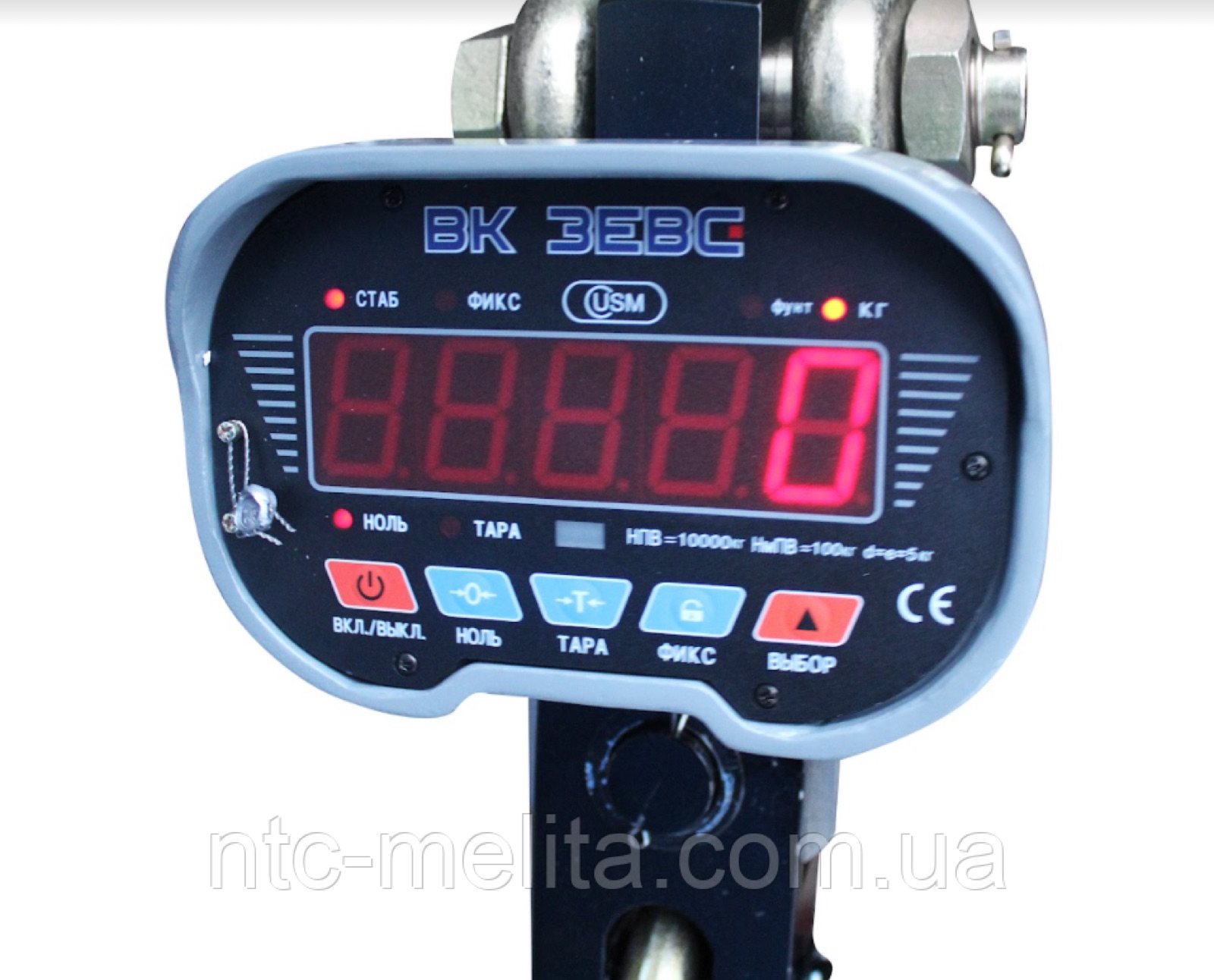

11. Display type	LED, 5-digit (character height 38 mm)
13. IR remote control (up to 10 m)	yes
14. RF remote control (up to 250 m)	optional
15. Remote display (character height 76 mm), built-in RS-232 interface	optional
16. PC data cable (5 m)	optional
17. Spare battery 6V/10Ah and charger	optional

The price of the scales includes metrological verification.

Figure No. 1. Dimensions of VK ZEUS III scales for 3 and 5 tons (swivel hook)

Figure No. 2. Dimensions of VK ZEUS III scales for 10 tons

Name	A, mm	B, mm	C, mm	L, mm	Weight, kg
VK ZEUS III 3000	70	93	35	395	12
VK ZEUS III 5000	85	113	40	490	17
VK ZEUS III 10000	94	112	60	770	43

Warranty on VK ZEUS III scales - 36 MONTHS from the date of purchase.
