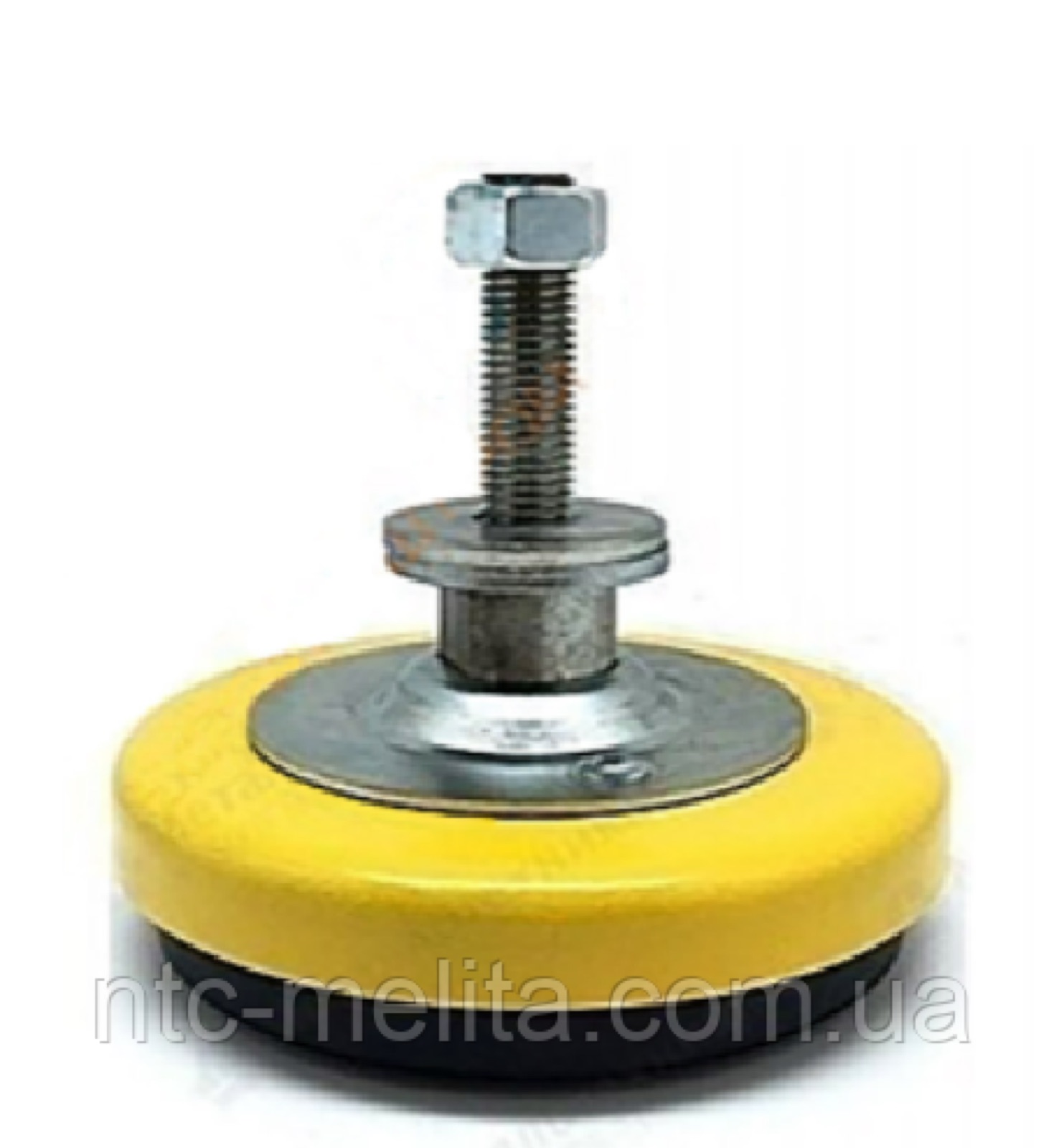

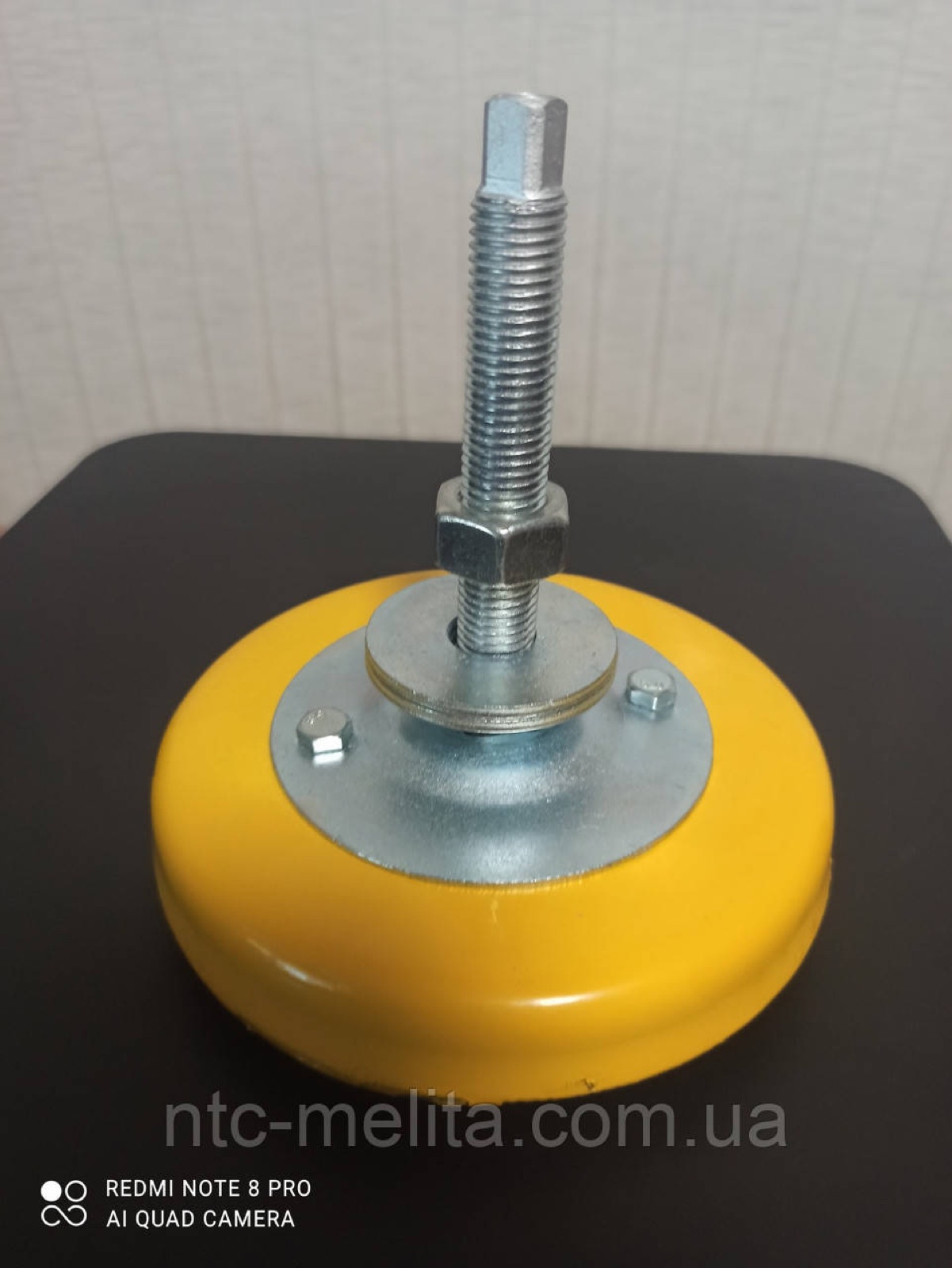

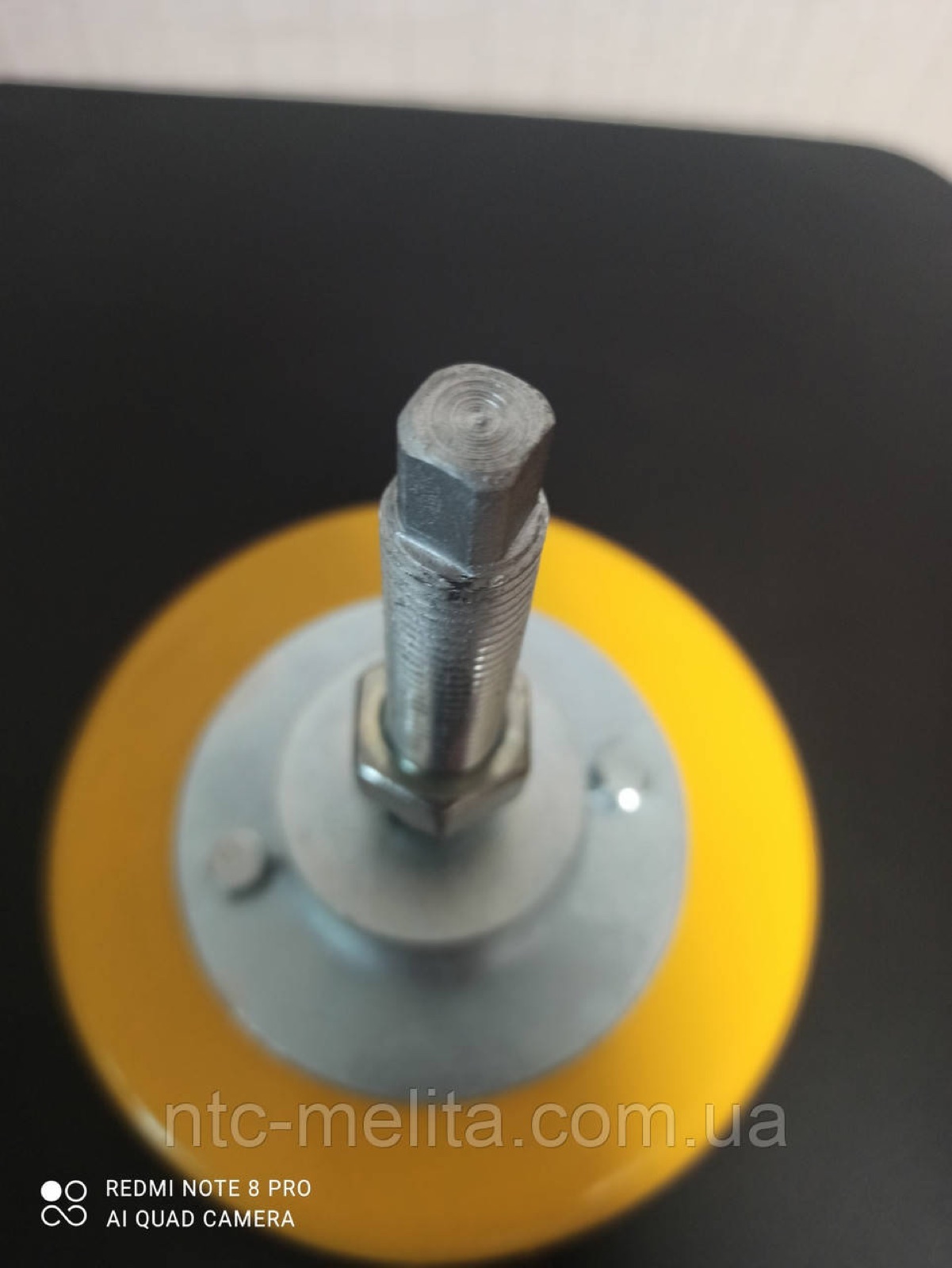

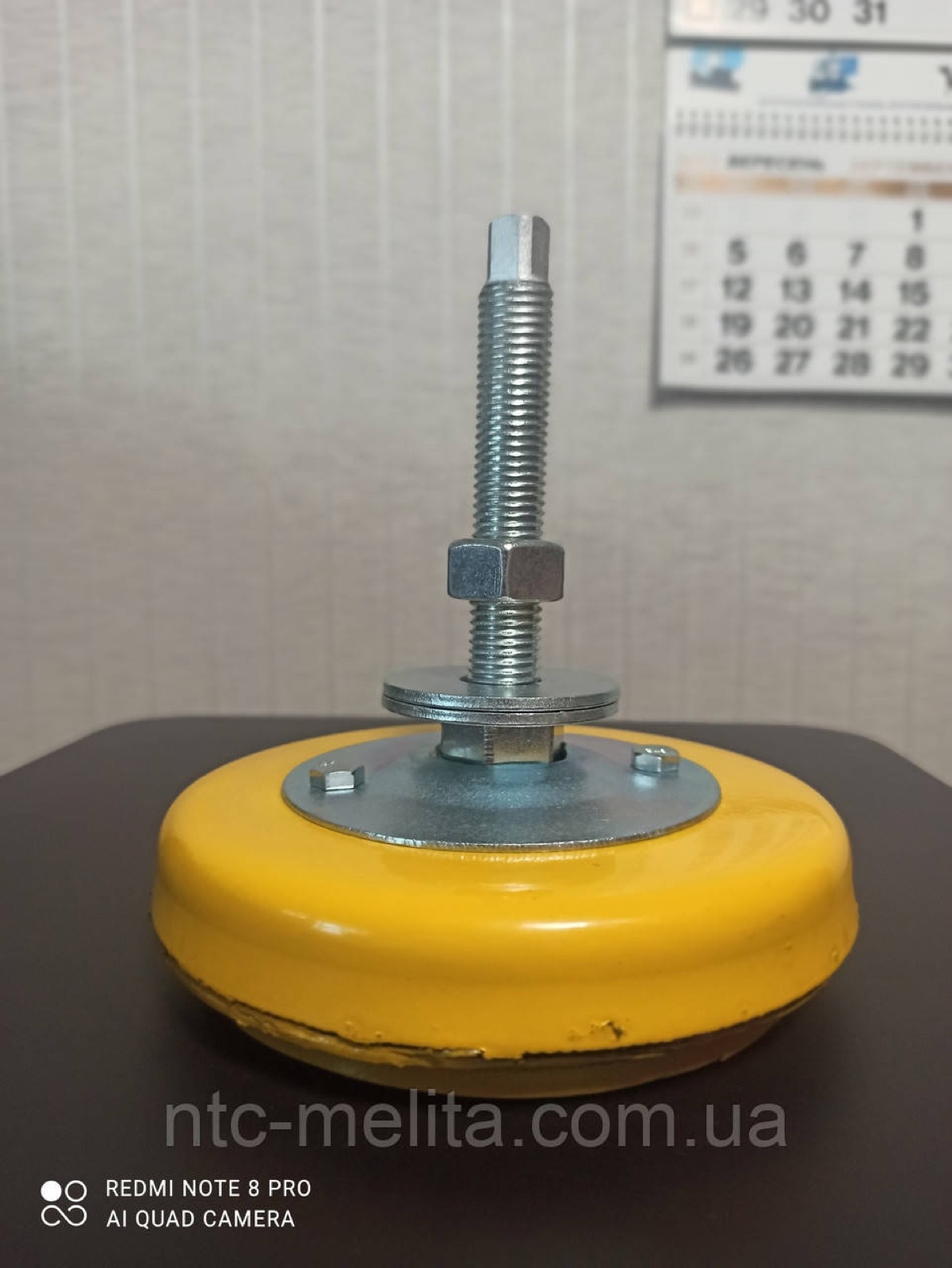

Anti-vibration mount OV-31M

The OV-31m anti-vibration mount is designed for passive and active vibration isolation of medium-sized machines of high and normal accuracy with rigid frames under stationary and random vibrations, as well as for height adjustment when leveling machines.

Besides protecting against vibration, the mounts allow equipment to be installed without a foundation.

Specifications

Climatic version	UHL4
Minimum working load, not less than	250 kg
Maximum working load, not more than	4500 kg
Height adjustment range	12 mm
Average vertical frequency	20 Hz
Stud	M16
Pad diameter	140 mm
Pad height	60 mm
Overall height	132 mm
Weight	1.5 kg

What are anti-vibration mounts for?

Machine anti-vibration mounts OV-31m are designed for passive and active vibration isolation of lathes, milling and grinding machines, presses and other medium-sized equipment of high and normal accuracy with rigid frames under stationary and random vibrations.

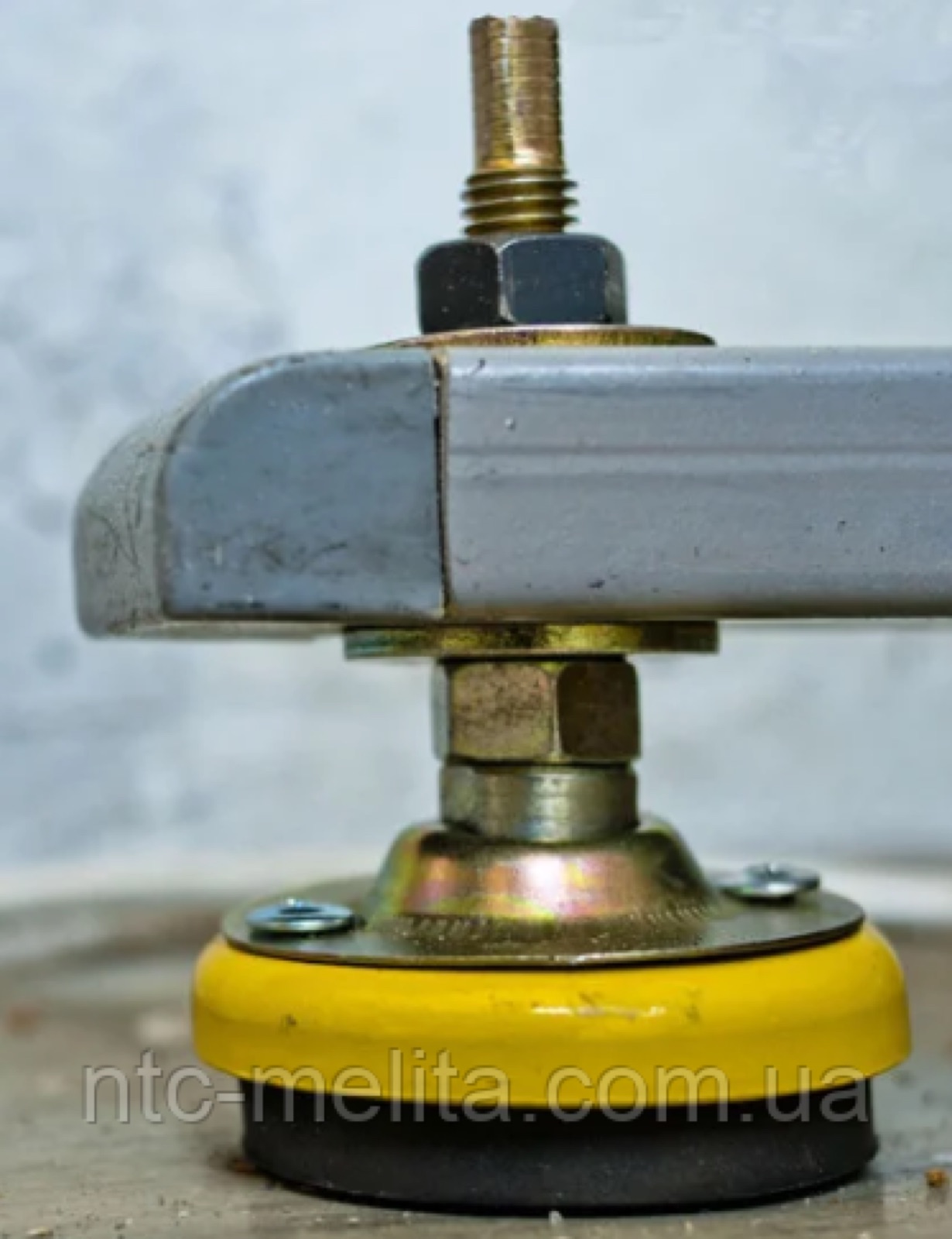

These mounts are height-adjustable for leveling machines, which makes it easier to install equipment on a flat surface.

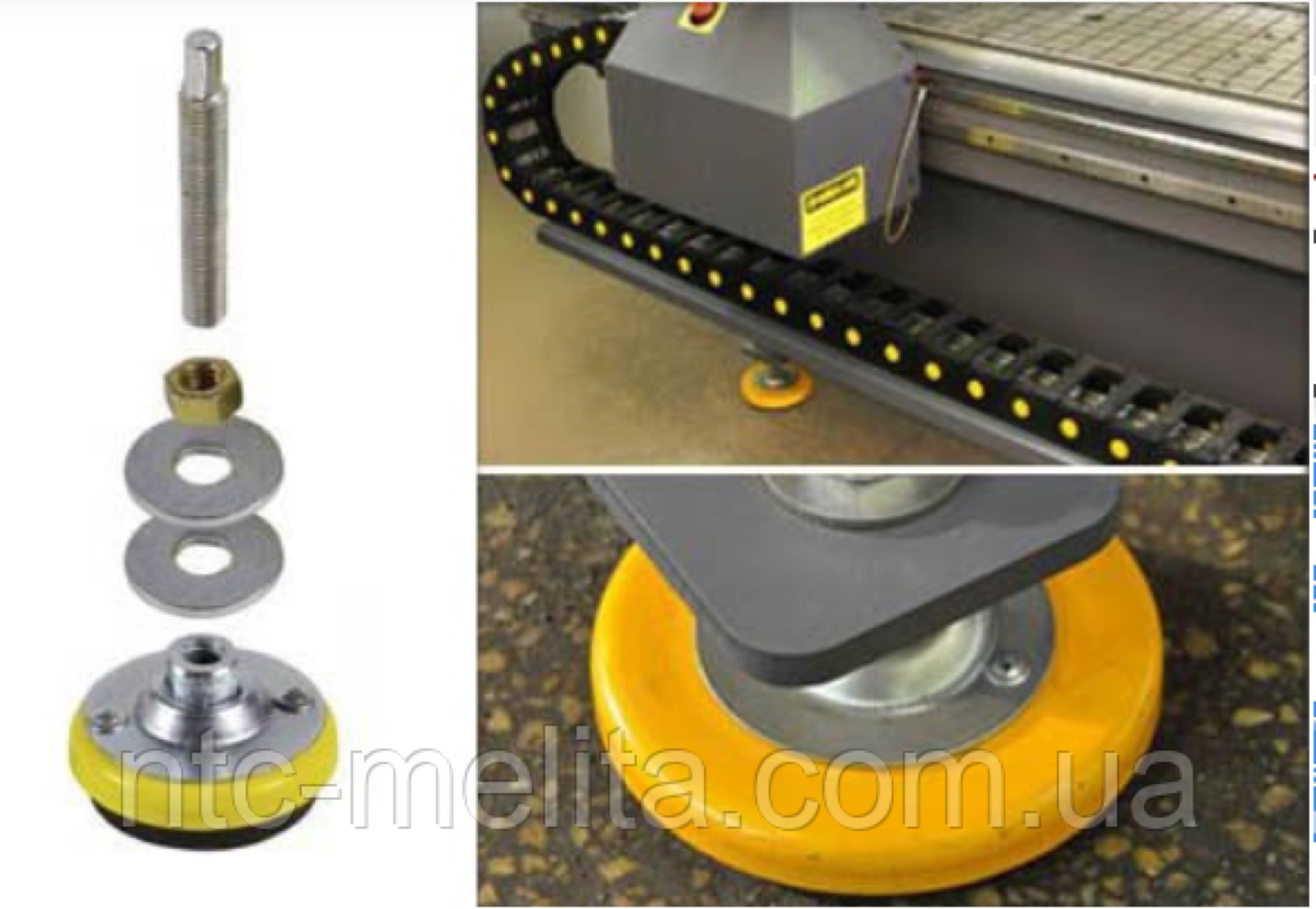

OV-31m anti-vibration mounts are used for foundation-free installation of most types of metal-cutting machines (lathes, milling, drilling, grinding machines, etc.), crank presses, as well as other machines, instruments and various factory equipment (pumps, compressors, fans...).

Exceptions may be machines and industrial equipment that the manufacturer does not recommend installing on anti-vibration mounts. For specific installation requirements, alignment methods and fastening requirements, see the operating manual of the particular equipment.

OV-31m anti-vibration mounts make it possible to:

1. install equipment without building a foundation;
2. level machines;
3. reduce vibration;
4. improve machining accuracy;
5. reduce noise.

The anti-vibration mounts we supply require no maintenance and keep stable characteristics throughout their service life. Each mount is rated for a load of 250 kg to 4500 kg and is designed for use in a Central European climate.

OV-31m machine anti-vibration mounts comply with specifications TU2-024-5997-87.
