● In stockWood spindle moulder FDB Maschinen MX50F 400V with two spindles
68 000 ₴incl. VAT · 56 666,67 ₴ excl. VAT
● In stockFDB Maschinen
Wood spindle moulder FDB Maschinen MX50F
68 000 ₴incl. VAT
56 666,67 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Specifications | |
|---|---|
| Max. tool diameter above the fixed table, mm | 180 |
| Max. tool diameter below the fixed table, mm | 150 |
| Max. hole diameter in the fixed table, mm | 170 |
| Transmission type | Multi-groove belt |
| Weight (kg) | 103 |
| Voltage (V) | 220 |
| Table height, mm | 860 |
| Overall dimensions (mm) | 680x700x1040 |
| Power (kW) | 1.5 |
| Frequency (Hz) | 50 |
| Country of origin | China |
| Spindle speed, rpm | 8000 / 6000 / 4000 /1400 |
| Spindle diameter, mm | 32 |
| Spindle travel, mm | 105 |
| Tooling size, mm | 180 |
| Fixed table size, mm | 600x400 |
| Sliding table size, mm | 1000x218 |
| Sliding table travel, mm | 800 |
Description

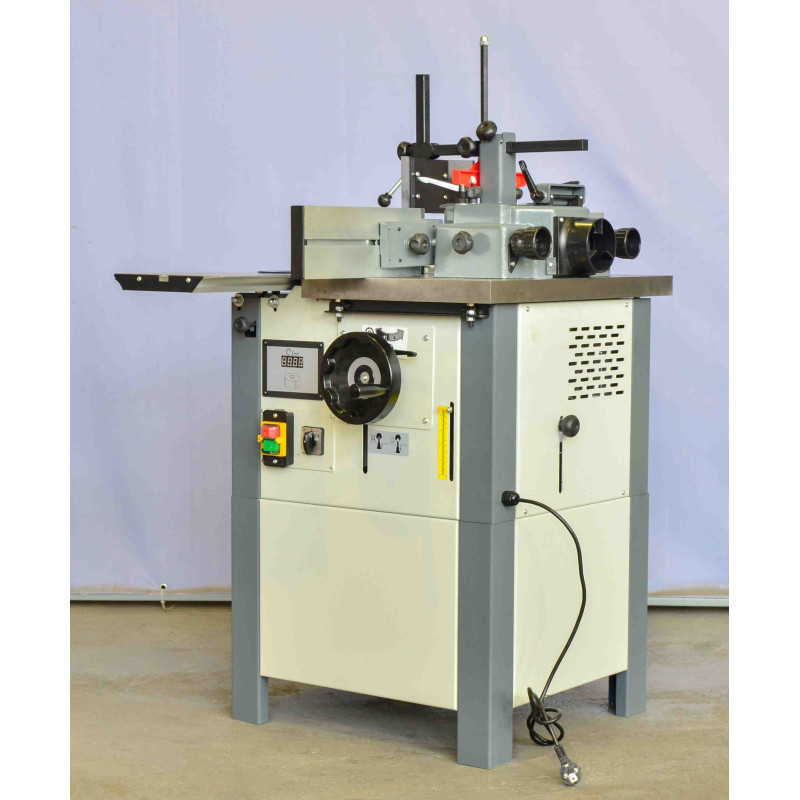

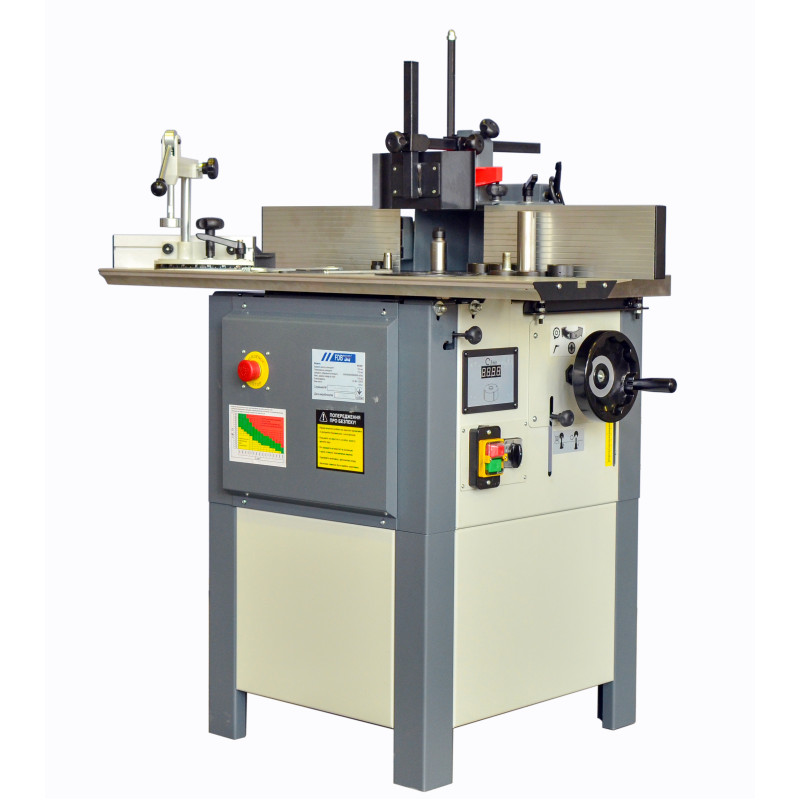

The FDB Maschinen MX50F is a light wood spindle moulder for one-off and small-batch production. It mills profiles and edges, cuts tenons and sands parts, and fits both joinery shops and furniture workshops.
It runs on 220 V with a 1.5 kW motor and a multi-rib belt drive. The spindle is 32 mm with 105 mm travel and speeds of 1400, 4000, 6000 and 8000 rpm. Maximum tool diameter is 180 mm above the table and 150 mm below it. The fixed table is 600x400 mm, the sliding table 1000x218 mm, and the machine weighs 103 kg.
The light woodworking spindle moulder MX50F 220V is intended for small-batch and one-off production.
FDB Maschinen MX 50F 220V wood spindle moulder:
- 220 V mains connection.

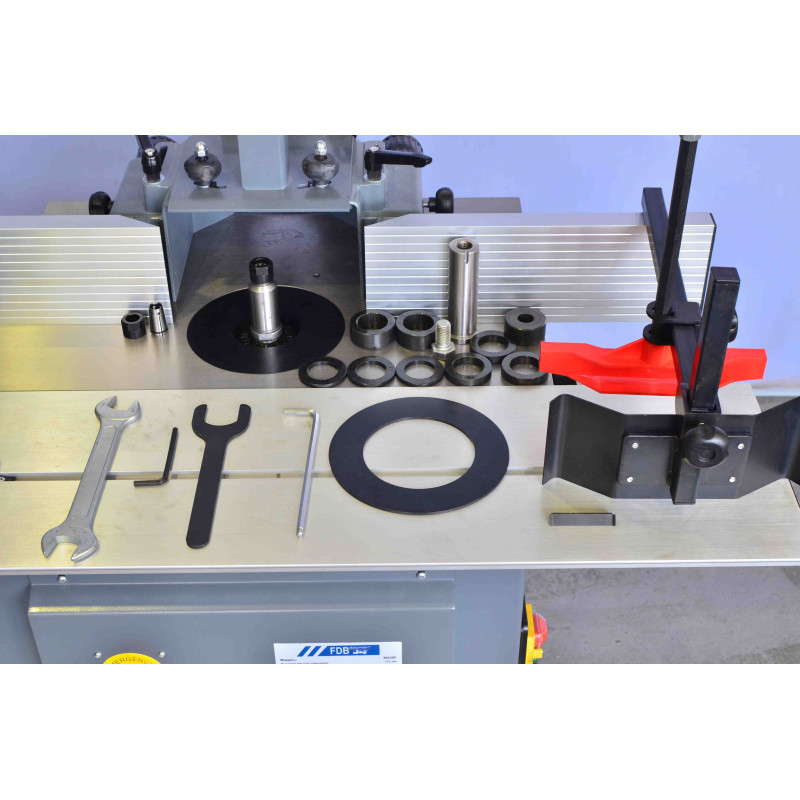

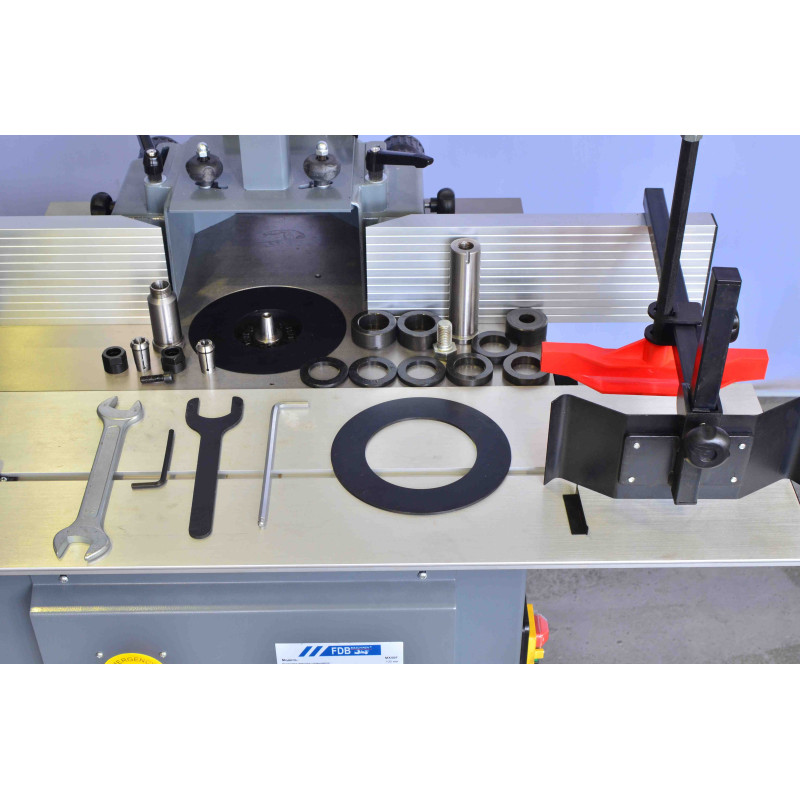

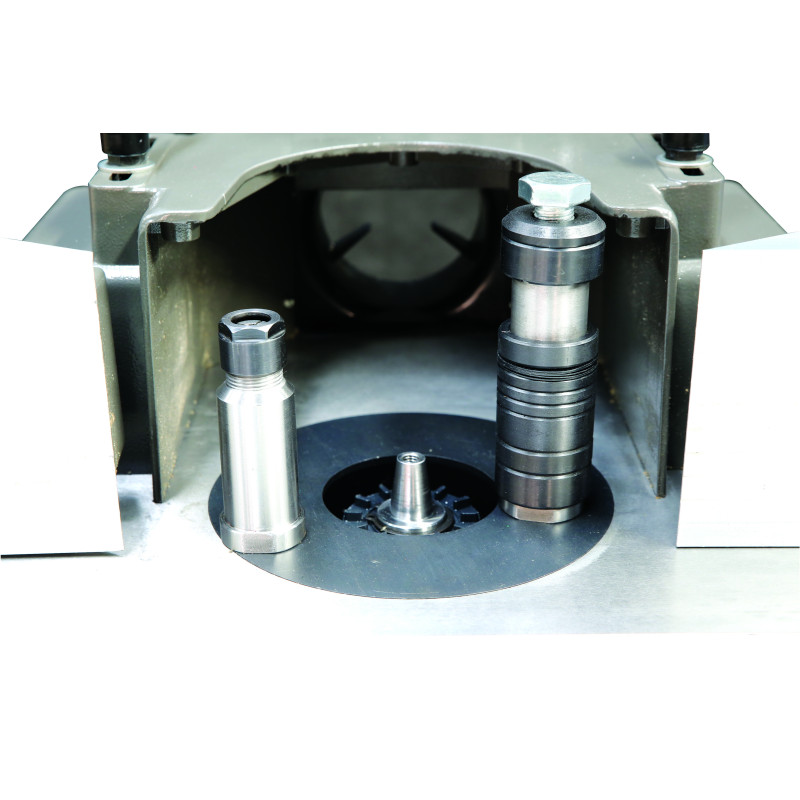

- Two removable spindles: Ø 32 mm and a collet spindle for 8 mm + 12 mm.

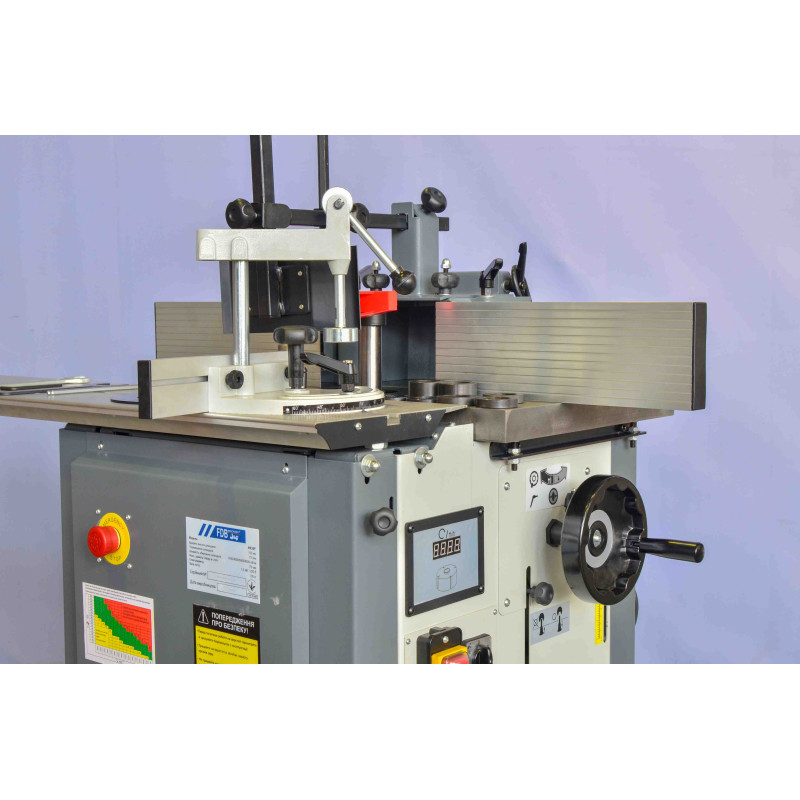

- Digital spindle speed display.
Features of the FDB Maschinen MX 50F 400V:
- Right and left spindle rotation.
- The machine features a simple design, high reliability and long service life.
- High build quality.
- Wide range of uses: milling, tenoning, sanding, etc.
- Simple, convenient spindle speed adjustment 1400/ 4000/ 6000/ 8000.
Specifications:
Model MX 50 F
Power consumption, kW (220 / 50 Hz) 1.5
Spindle speed, rpm 8000 / 6000 /4000 /1400
Spindle diameter, mm 32
Collet diameter, mm 8 and 12
Spindle stroke, mm 105
Spindle length, mm 100
Table opening diameter, mm 170
Maximum tool diameter below table, mm 150
Maximum tool diameter above table, mm 180
Table height, mm 860
Fixed table size, mm 600x400
Sliding table size, mm 1000x218
Stroke length, mm 800
Extraction port diameter, mm 100
Machine dimensions, mm 680x700x1040
Machine weight, kg 103
