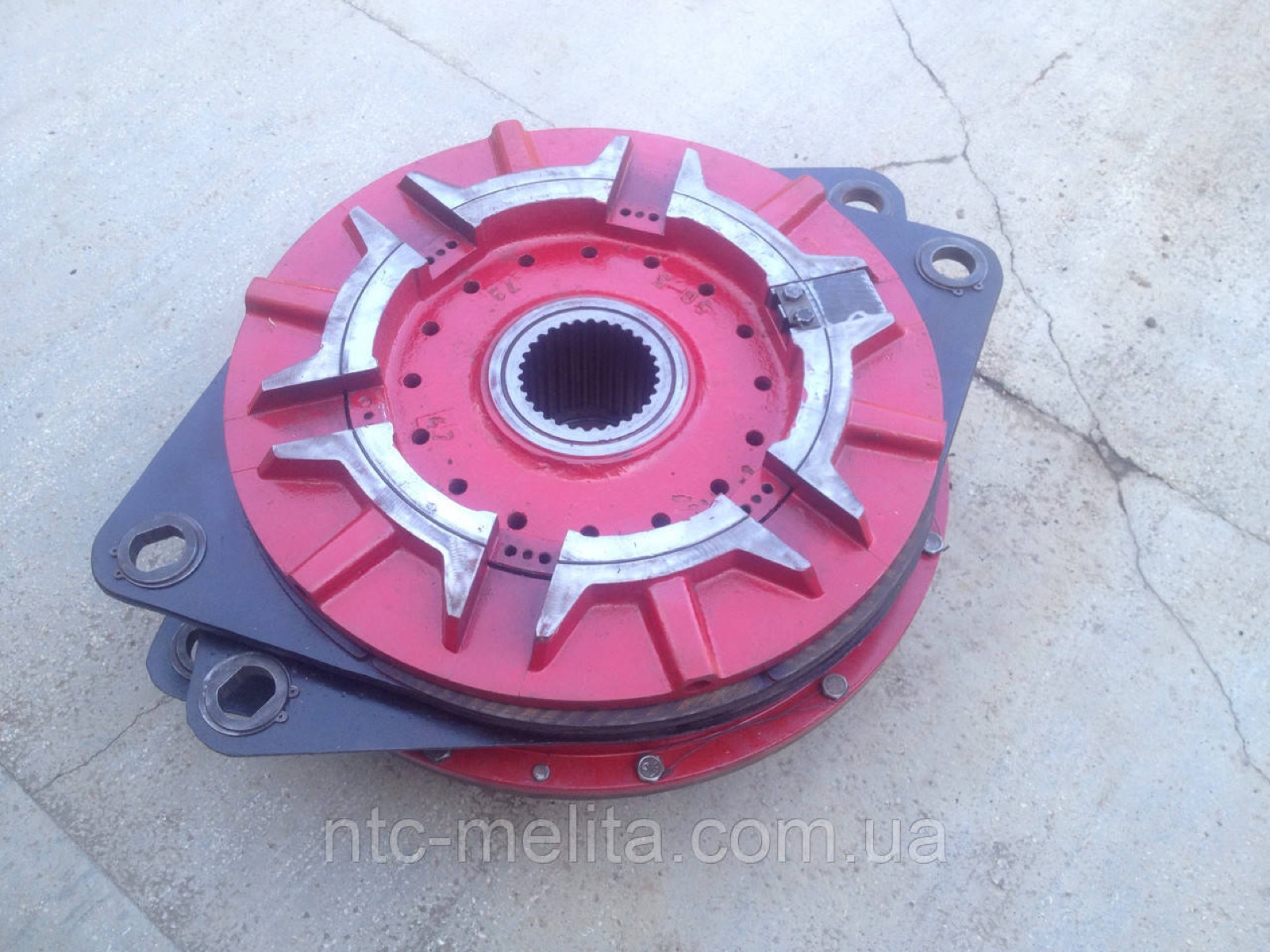

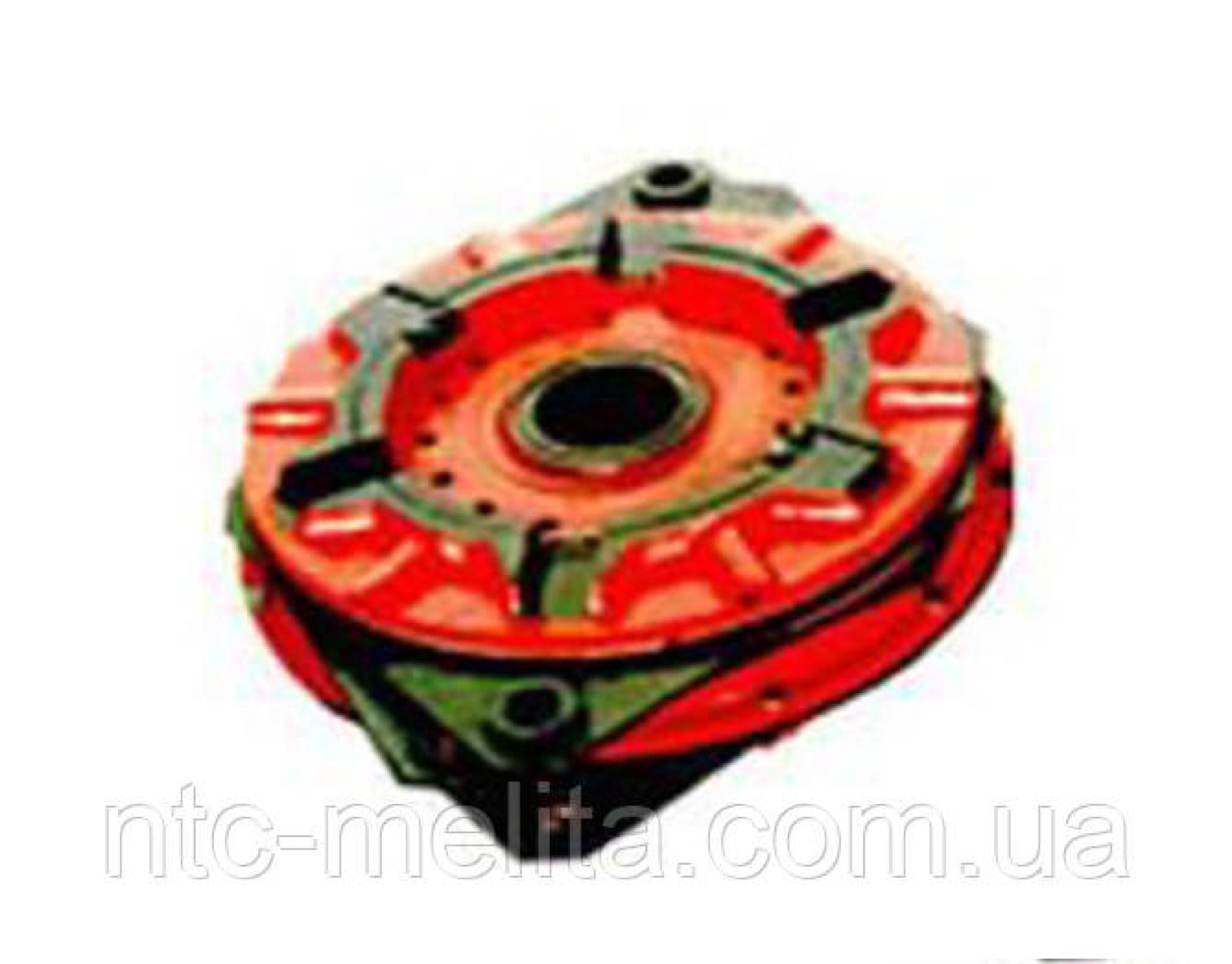

UV3138 clutch-brake
64 780,80 ₴incl. VAT
53 984 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Main | |
|---|---|
| Country of origin | North Macedonia |
| parameters | |
| torque | 630 kgf*m |
| braking torque | 100 kgf*m |
| weight | 75 kg |
Description
The UV3138 clutch-brake is a multi-disc clutch with pneumatic engagement for crank presses, guillotine shears and other forging and pressing machines. It periodically connects the drive shaft to the driven shaft and brakes it while the motor keeps running. This friction clutch is used in press repair.
Key selection data: torque 630 kgf·m, braking torque 100 kgf·m, weight 75 kg. Support discs are high-strength cast iron, bushings and pins are heat-treated steel. When ordering, specify the shaft fit: keyed or splined. Suited to plant maintenance teams and press shops.
The UV clutch-brake is installed on presses and other equipment to periodically engage the driving shafts of machine drives with the driven shafts, and to brake the latter while the motor runs continuously.
Pneumatically actuated multi-disc clutch-brakes UV3132, UV3135, UV3138, UV3141, UV3144, UV3146 are used on forging and pressing machines (mainly crank presses and guillotines).
When ordering a clutch, specify the fit: keyed or splined
UV clutch-brake design features:
-Rigid balanced block design.
-Cylinder stroke can be adjusted as the friction linings wear.
-Clutch cylinder stroke that prevents double-stroking of the machine.
-Driving and brake bushings and pins are made of heat-treated steel.
-Involute gearing between the clutch-brake hub and the eccentric shaft.
-Clutch and brake support discs are made of ductile iron.
In stock and to order:
-UV clutch-brakes;
-intermediate discs (toothed);
-brake discs
