● In stockFDB Maschinen

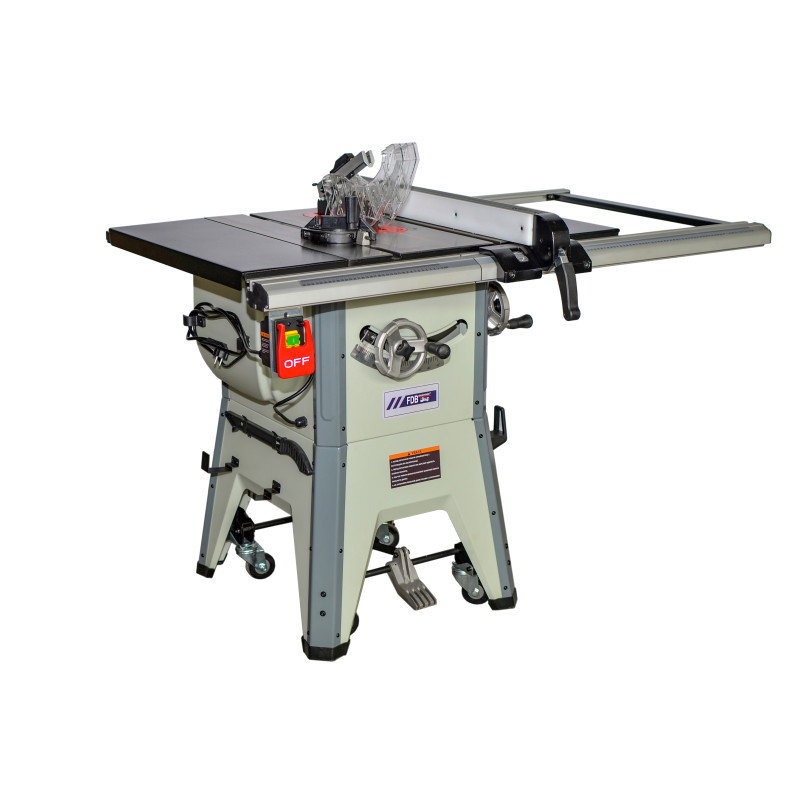

Table saw FDB Maschinen DB1800
53 000 ₴incl. VAT
44 166,67 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Specifications | |
|---|---|
| Weight (kg) | 120 |
| Voltage (V) | 220 |
| Main table size, mm | 685x512 |
| Power (kW) | 1.8 |
| Frequency (Hz) | 50 |
| Country of origin | China |
| Additional table size, mm | 685x250 |
Description

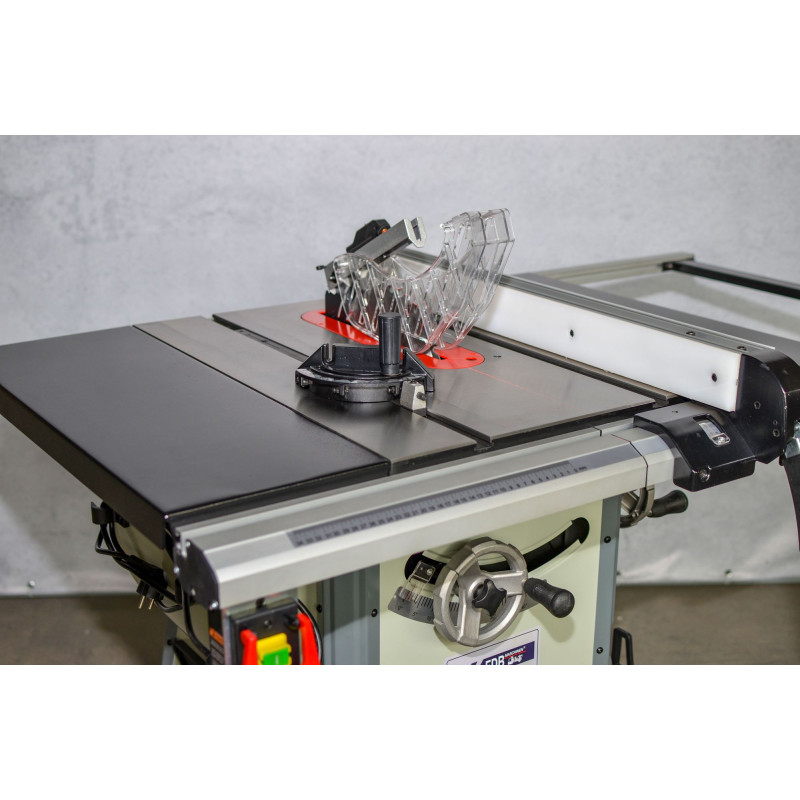

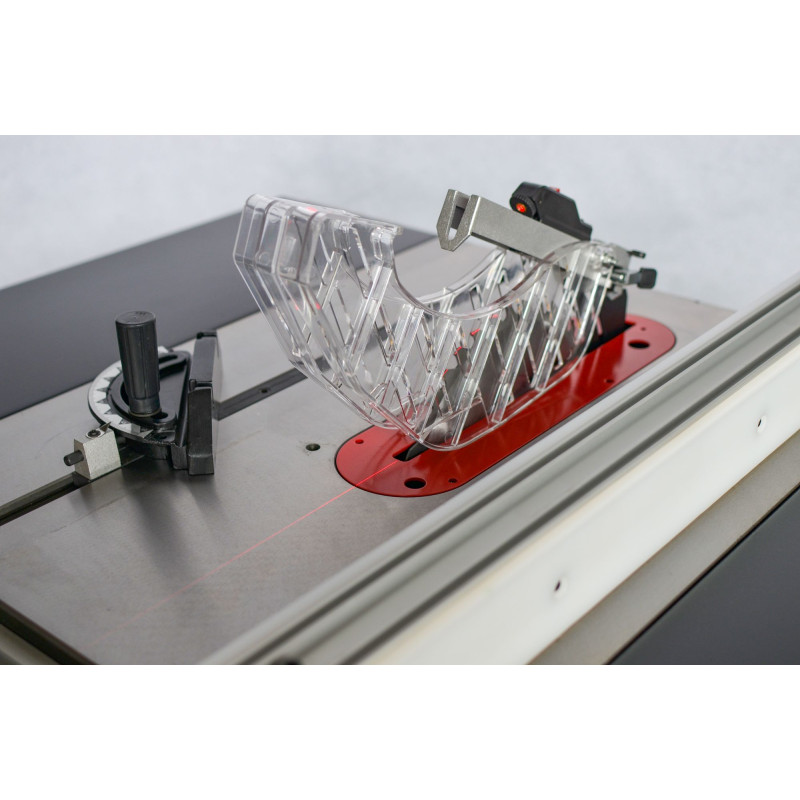

The FDB Maschinen DB1800 is a table saw with a cast iron saw module and a cast iron table for rip cuts, angled cuts and grooving. The blade tilts from 0 to 45°, cutting depth is adjustable and a removable anti-kickback stop is fitted. A Dado grooving blade can be fitted (the table insert for it is not included), and a spindle lock makes blade changes easier. Four retractable wheels with a foot-pedal lift let you move the machine around the shop.
For selection: 230 V supply, 1.8 kW, 2800 rpm, 254 mm blade, cutting depth 80 mm at 0° and 55 mm at 45°, 685 x 512 mm table with two extensions, 762 mm rip capacity to the right, weight 120 kg. A good choice for workshops without three-phase power.
Features FDB Maschinen DB1800:
- Can be fitted with a Dado groove blade (the table insert for the Dado blade is not included);
- Shaft lock for easier saw blade changes;
- Saw blade tilt adjustment;
- Cutting depth adjustment;

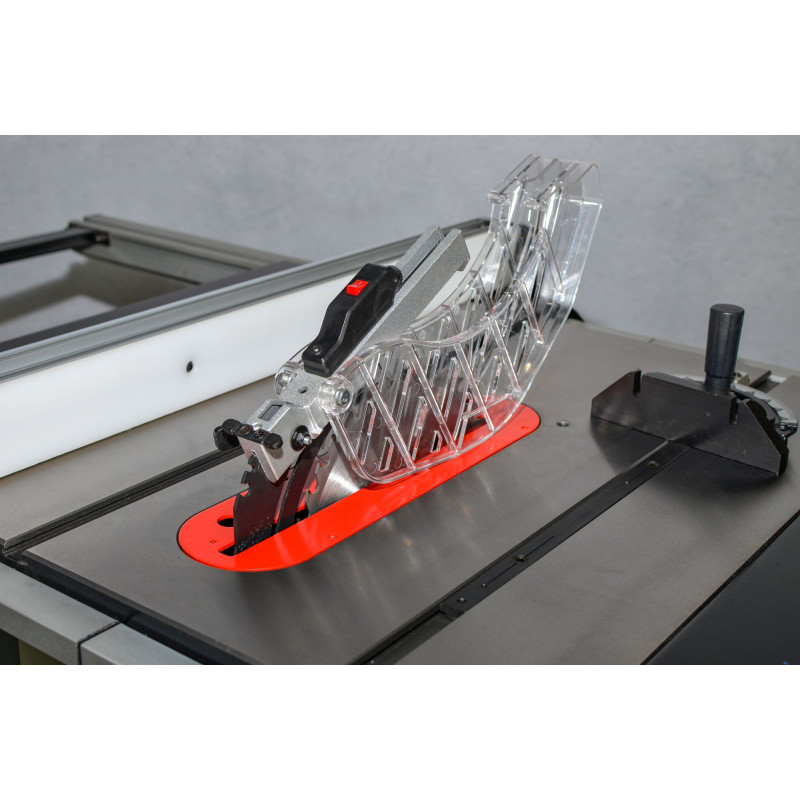

- Removable anti-kickback stop;
- Cast iron saw module;
- Cast iron work table;
- Removable sheet steel table extensions on the left and right;

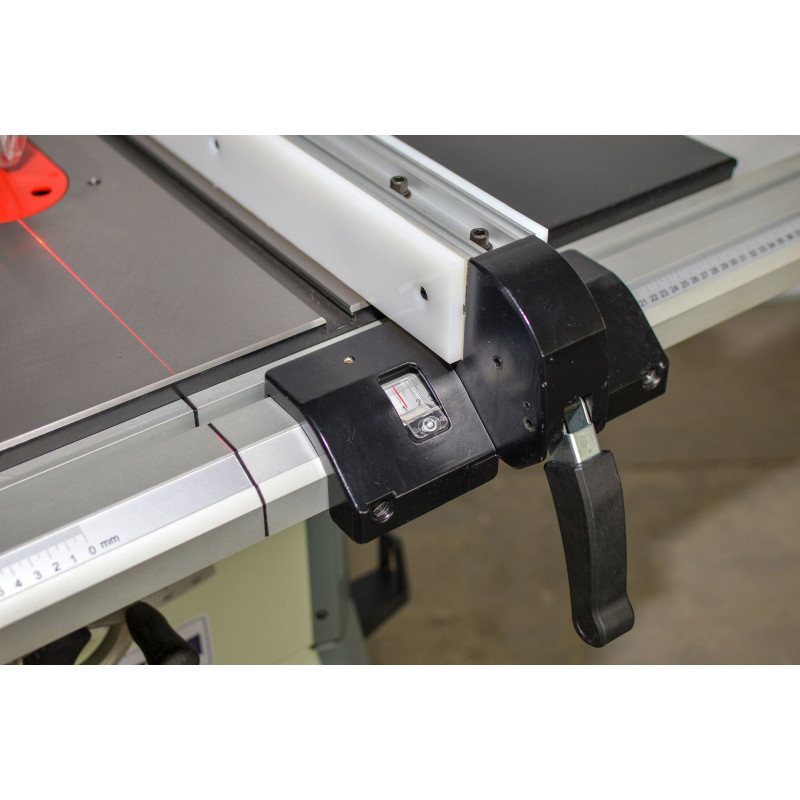

- Adjustable rip fence with eccentric clamp;

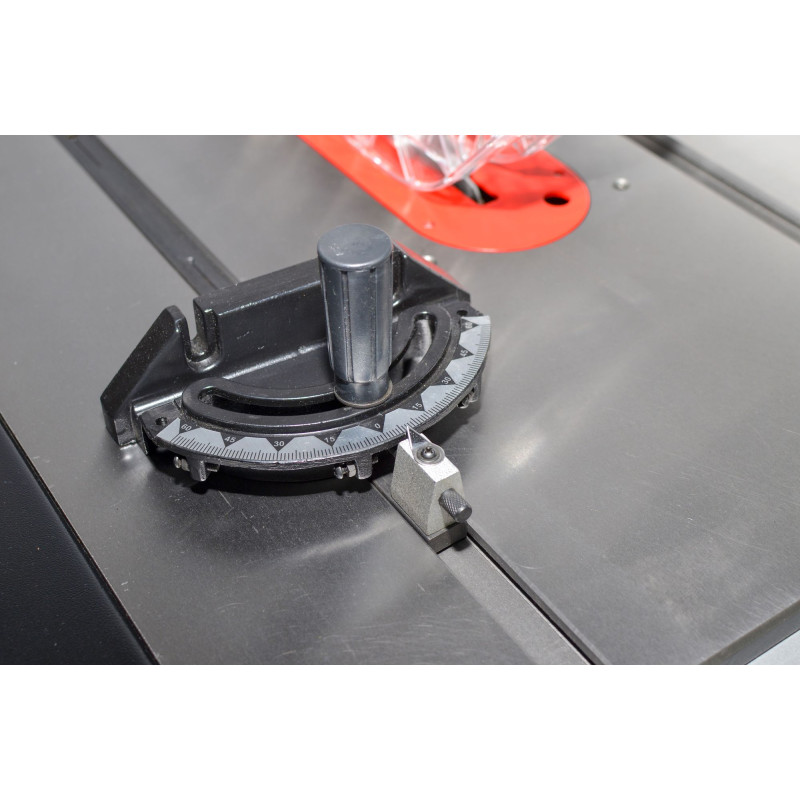

- Sliding mitre gauge guided in a T-slot;

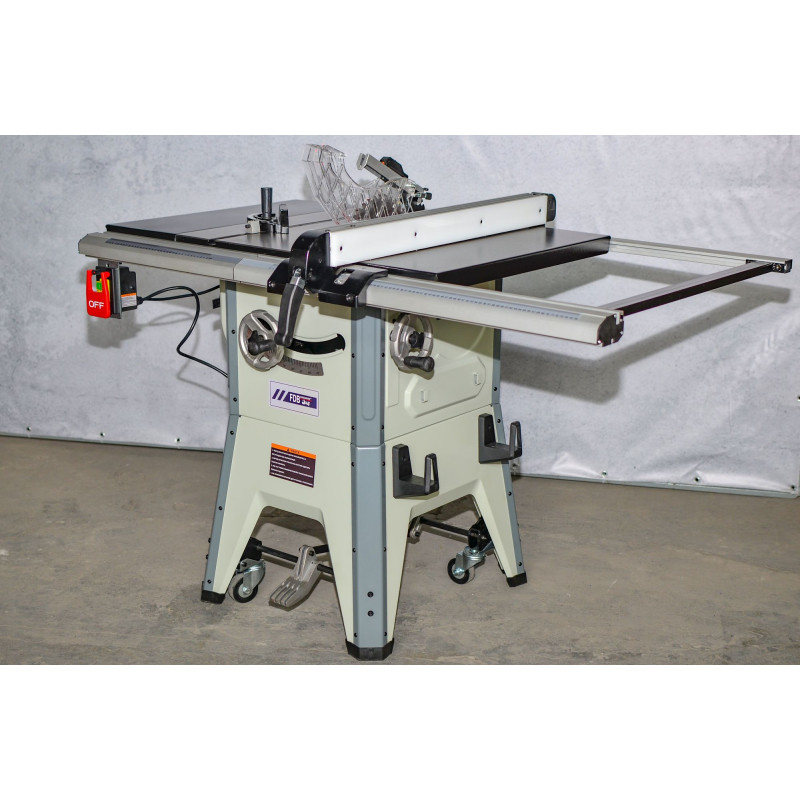

- Four retractable transport wheels with a pedal-operated lifting mechanism.
Specifications:
| Voltage, V | 230 |
| Power consumption, kW | 1.8 |
| No-load saw blade speed, rpm | 2800 |
| Saw blade outer (bore) diameter, mm | 254 (15.88 and 30) |
| Dado blade outer (bore) diameter, mm | 200 (15.88) |
| Saw blade tilt angle | 0-45° |
| Maximum cutting depth at 0° and 45°, mm | 80 and 55 |
| Work table size (LxW), mm | 685x512 |
| Right table extension (LxW), mm | 685x250 |
| Left table extension (LxW), mm | 685x250 |
| Maximum rip width with fence on the right, mm | 762 |
| Extraction port diameter, mm | 100 |
| Dado blade compatible | yes |
| Length, mm | 1440 |
| Width, mm | 1000 |
| Height, mm | 1050 |
| Weight, kg | 120 |
