FDB Maschinen Turner 500x1500KZX (DPA) screw-cutting lathe
1 100 000 ₴incl. VAT
916 666,67 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Main | |
|---|---|
| Manufacturer | FDB Maschinen |
| Country of origin | Germany |
| Max. workpiece length between centers, mm | 1500 |
| Max. swing over bed, mm | 500 |
| Max. swing over gap, mm | 720 |
| Max. swing over cross slide, mm | 320 |
| Bed way width, mm | 336 |
| Spindle bore taper | MT7 |
| Max. spindle bore diameter, mm | 80 |
| Spindle speed range, rpm | 25-1800 |
| Number of spindle speeds | 12 |
| Cross slide feed range, mm/rev | 0,03-1,23 |
| Carriage feed range, mm/rev | 0,04-2,46 |
| Metric thread range, mm | 0,5 - 20 |
| Inch thread range, TPI | 1-5/8 - 72 TPI |
| Max. longitudinal carriage travel, mm | 100 |
| Max. cross slide travel, mm | 280 |
| Max. tailstock quill travel, mm | 130 |
| Tailstock taper | MT5 |
| Spindle drive motor voltage, V | 380 |
| Spindle drive motor power, kW | 5,5 |
| Weight (kg) | 3000 |
| Overall dimensions (mm) | 2810x1120x1700 |
| Work light | Yes |
| Coolant system | Yes |
| Digital readout (DRO) | Yes |
Description
FDB Maschinen Turner 500x1500KZX-DPA is a heavy general-purpose screw-cutting lathe for large turned workpieces. This metal lathe handles external and internal turning of cylindrical and tapered surfaces, facing, drilling and thread cutting. The bed ways and gears are ground, and the machine runs quietly.
Key data: 500 mm swing over bed and 720 mm over gap, 1500 mm between centres, 80 mm spindle bore with MT7 taper, 12 speeds 25-1800 rpm, 5.5 kW motor on 380 V, 3000 kg. About 150 metric, inch, module and DP threads without changing gears, plus DRO, coolant and work light. For machine shops handling large shafts and tubes.
Description

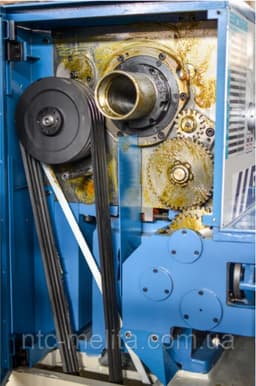

1. The bed guideway is carefully ground after super-audio frequency induction hardening and has a long service life. The gears are precision ground, and the noise level of the whole machine is low.
2. The spindle bore is 80 mm. The spindle system has high rigidity and accuracy.
3. No change gears are needed. The machine can cut about 150 types of metric, inch, module and D.P. threads.
Specifications
| Maximum workpiece length between centers, mm | 1500 |
|
Maximum swing over bed, mm Maximum swing over gap, mm |
500 720 |
|
Maximum swing over cross slide, mm Bed way width, mm |
320 336 |
| Spindle bore taper | MT7 |
| Maximum spindle through-bore diameter, mm | 80 |
| Spindle speed range, rpm | 25-1800 |
| Number of spindle speeds | 12 |
| Cross slide feed range, mm/rev | 0.03-1.23 |
| Saddle feed range, mm/rev | 0.04-2.46 |
| Metric thread range, mm | 0.5 - 20 |
| Inch thread range, threads per inch | 1-5/8 - 72 TPI |
| Maximum longitudinal carriage travel, mm | 100 |
| Maximum cross slide travel, mm | 280 |
| Maximum tailstock quill travel, mm | 130 |
| Tailstock taper | MT5 |
| Spindle motor voltage, V | 380 |
| Spindle motor power, kW | 5.5 |
| Machine net weight, kg | 3000 |
| Assembled machine dimensions (L*W*H), mm | 2810x1120x1700 |
| Work light | yes |
| Coolant system | yes |
| Digital readout (DRO) | yes |
