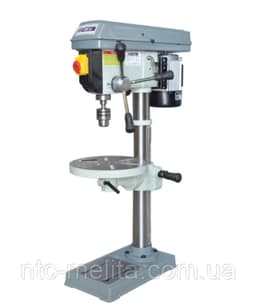

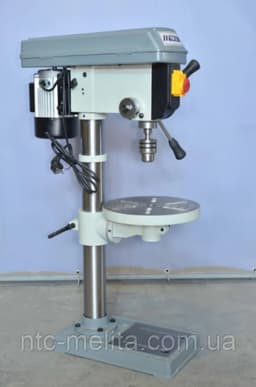

FDB Maschinen Drilling 16 B drill press

The FDB Maschinen Drilling 16B bench drill press is designed for drilling small holes up to 16 mm in diameter. It is used for relatively small workpieces in instrument making, repair shops and training workshops. The FDB Maschinen Drilling 16B drill press features a simple design that ensures high reliability, easy learning and maintenance, and a long service life.

FDB Maschinen Drilling 16B drill press features:

• Spindle mounted in high-precision ball bearings;
• Quick-change drill chuck included;
• Very smooth running thanks to ground aluminium pulleys;
• High-quality toothed drive belts prevent slipping and power loss;
• Belt guard limit switch;
• Precise work table with diagonal T-slots;
• Rack-and-pinion table height adjustment;
• Work table tilts ± 45° and rotates 360°;
• Massive large base with longitudinal slots and stiffening ribs;
• Convenient, ergonomic quill feed handle;
• Quiet and efficient electric motor;
• Rigid design.

Specifications:

Model	Drilling 16B
Operating voltage, V	220
Frequency, Hz	50
Motor power, W	375
Max. drilling diameter in steel, mm	16
Quill taper	MT 2
Spindle axis to column distance, mm	155
Quill stroke, mm	82
Spindle speed, rpm	220-2840
Number of speeds	16
Table size, mm	290
Table tilt angle, deg	±45°
Table swivel around the column, deg.	360
Base size, mm	420x250
Column diameter, mm	72
Overall dimensions of the assembled machine, mm	360x650x980
Machine weight, kg	39
