FDB Maschinen BF 16B drilling and milling machine

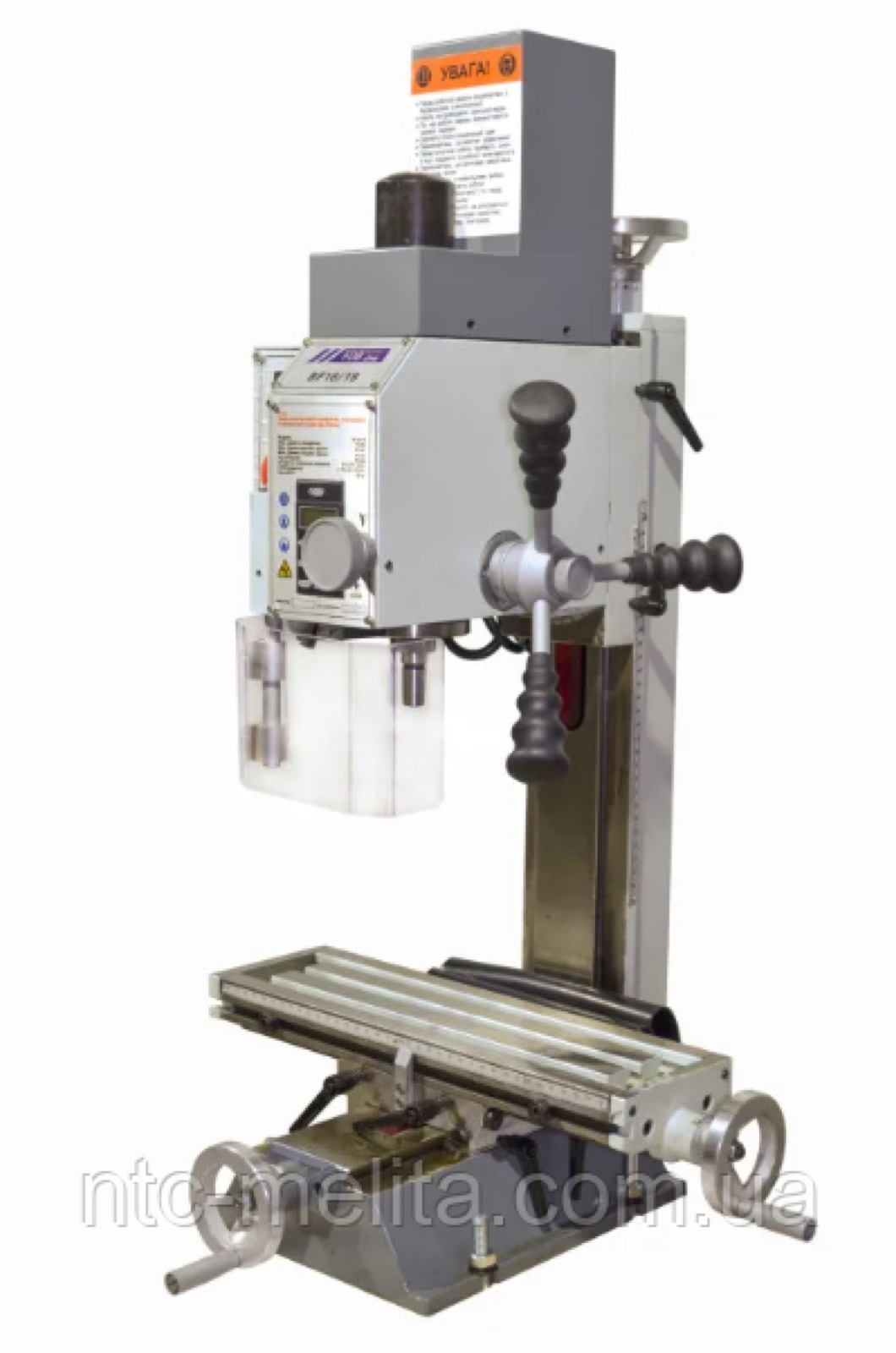

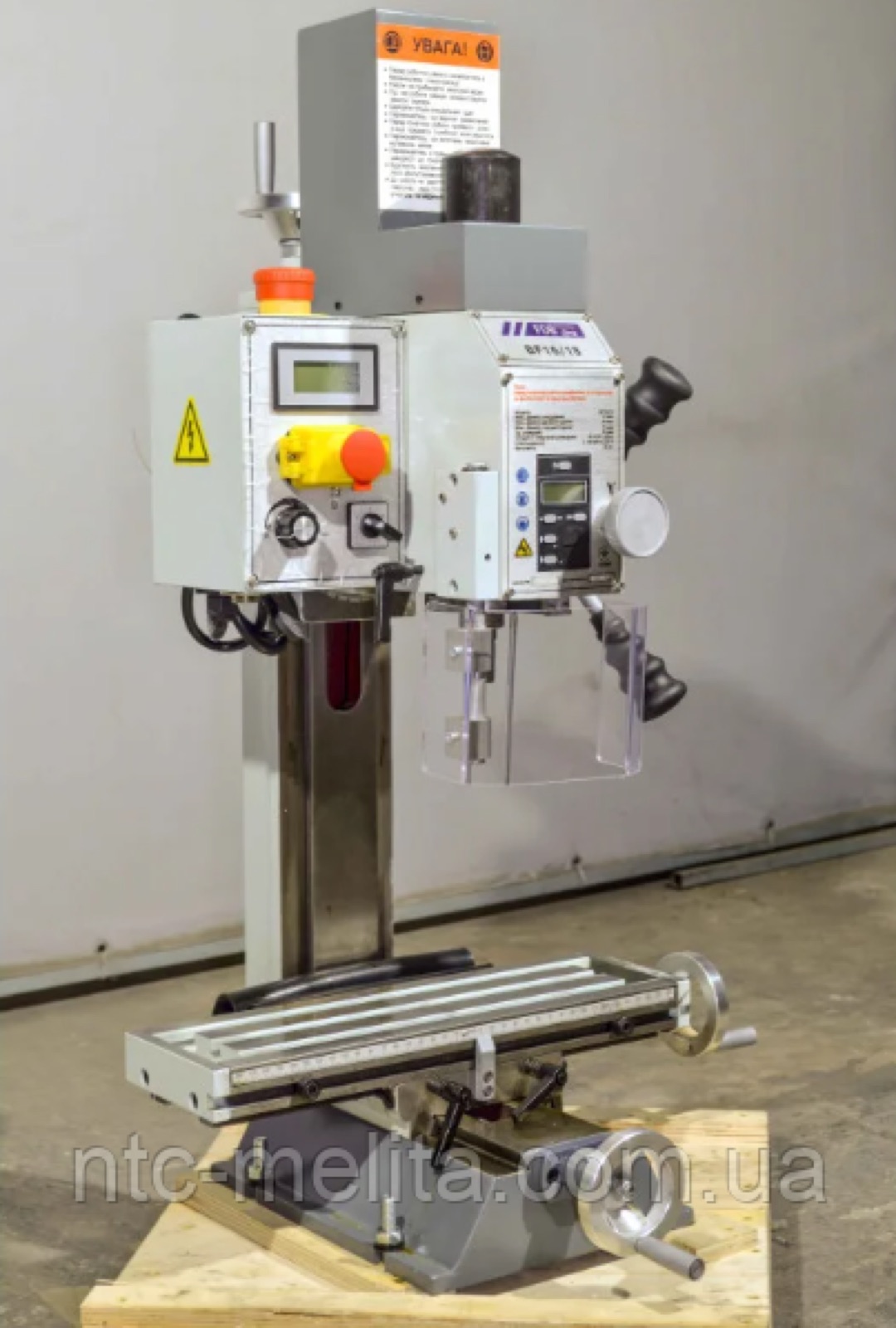

FDB Maschinen BF 16B drilling and milling machine with belt-driven spindle (model 16/18) (direct belt drive from the motor to the spindle, with no gears or intermediate shaft) is designed for milling, drilling and tapping metals and their alloys in one-off production at low-load workshops, repair shops, tool rooms and similar. Combining milling and drilling reduces the cost of buying additional machines and saves floor space. The machine is easy to learn and operate, highly reliable and simple to maintain.

FDB Maschinen BF 16 B universal drilling and milling machine features:

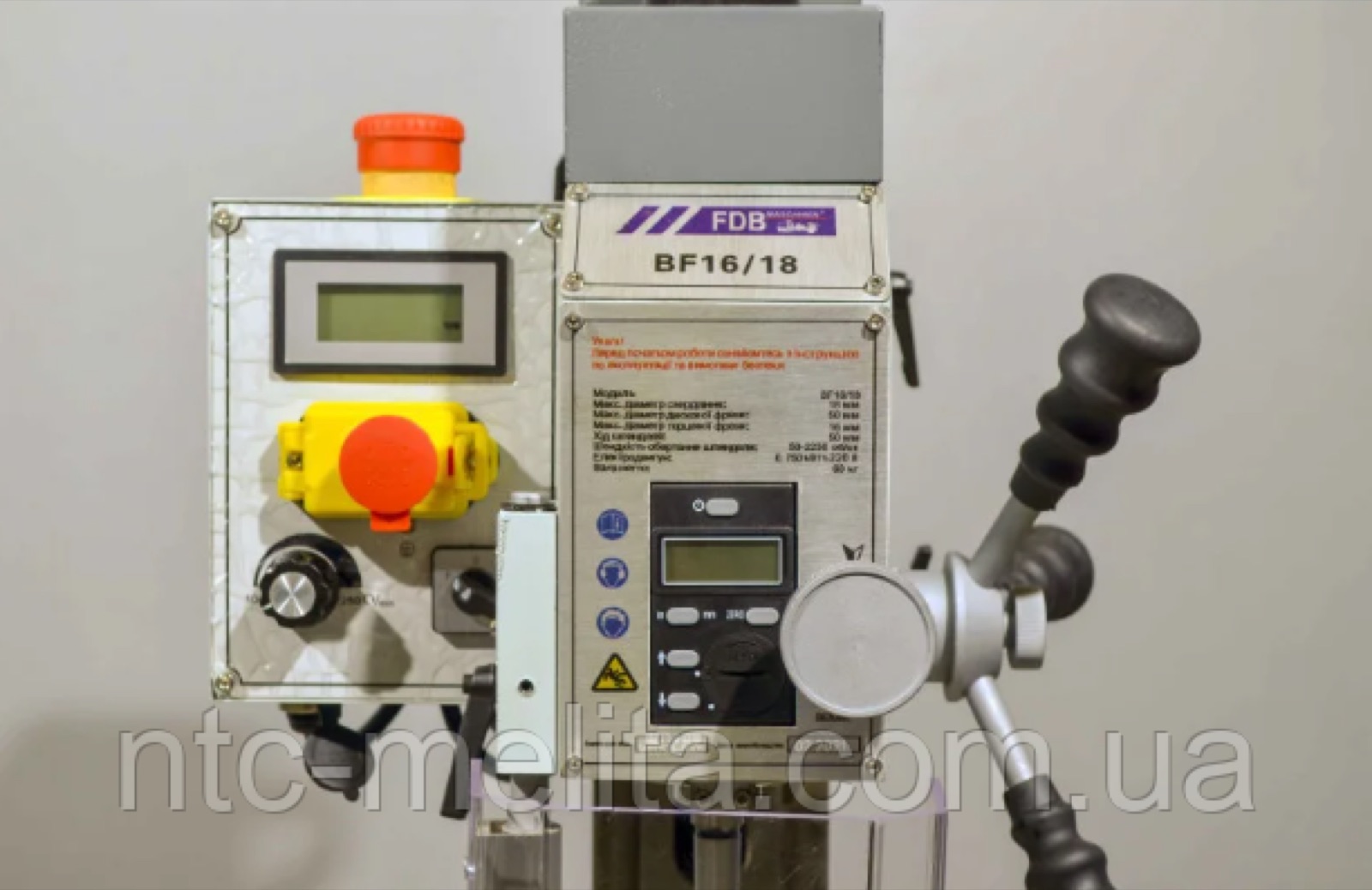

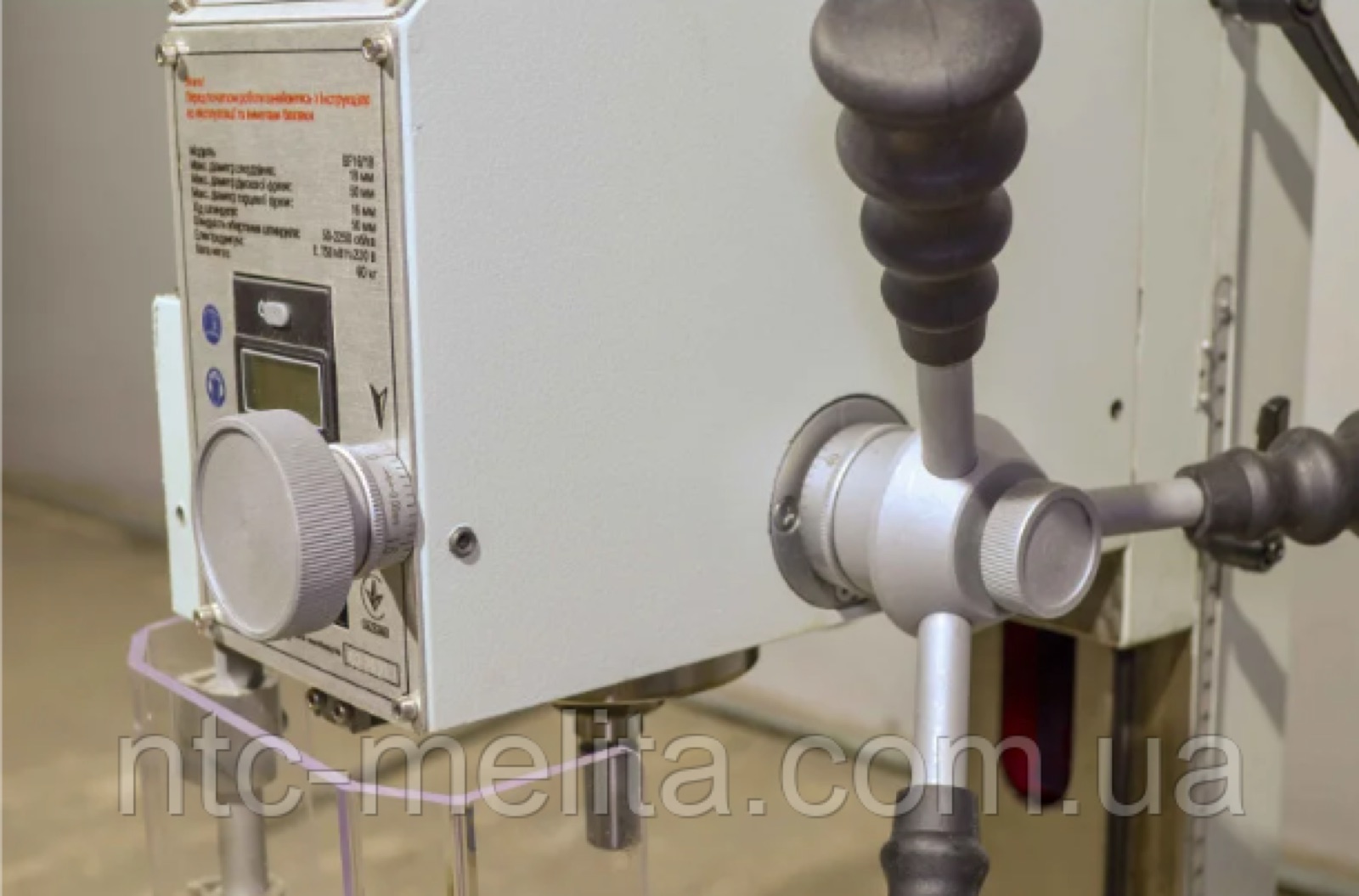

• Convenient control panel;
• Forward/reverse spindle rotation;
• Milling head guideways protected by a cover;

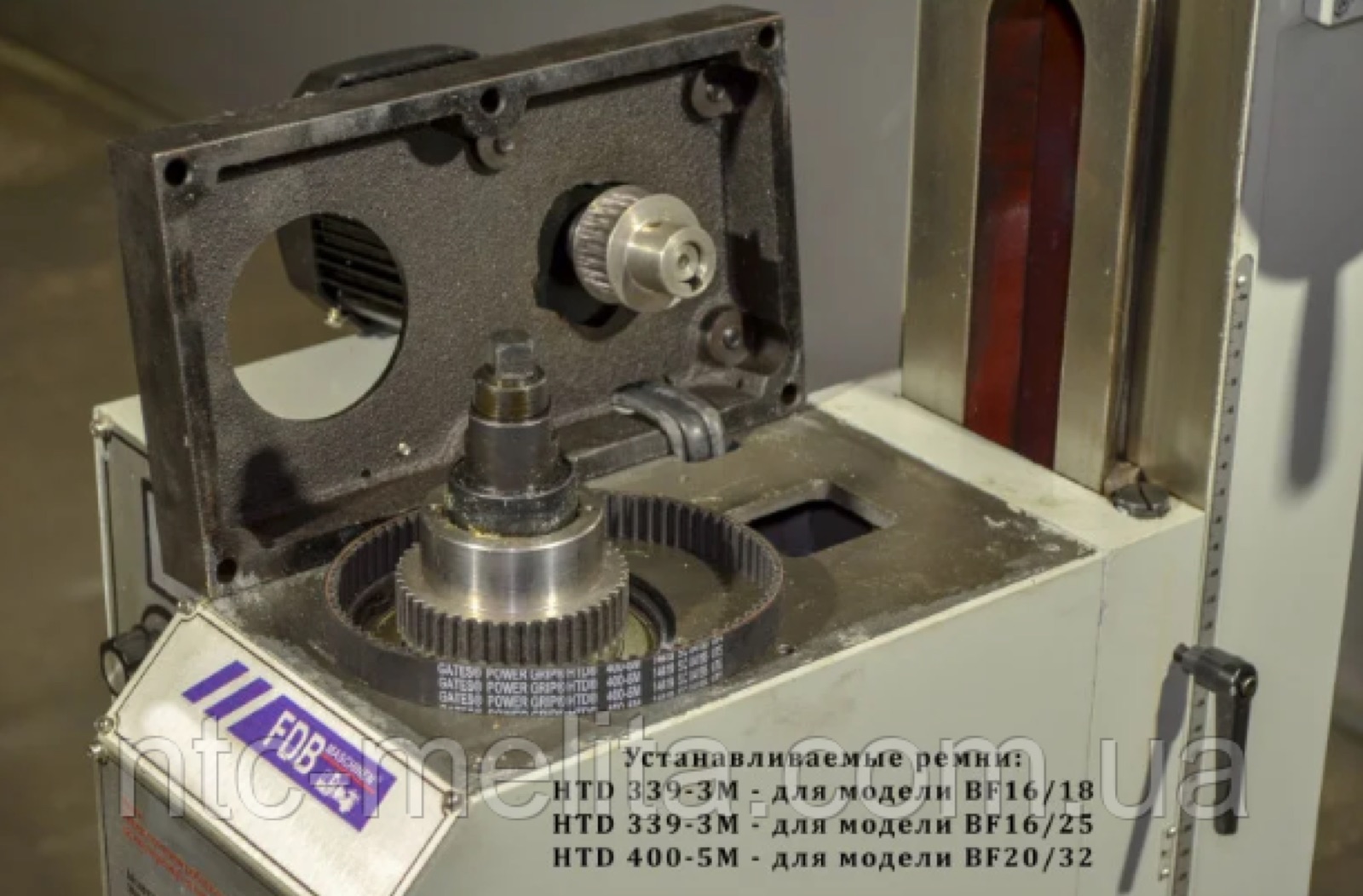

• Short kinematic chain;
• Powerful electric motor;
• Fine feed for milling;
• Lever feed for drilling;
• Adjustable table travel stop.

Specifications

Model	BF16B
Power supply
Spindle motor voltage, V	220 V ~50 Hz
Spindle motor power, kW	0,75
Spindle motor type	induction
Tool capacity
Max. drilling diameter (steel), mm	16
Max. face (side) milling diameter, mm	50
Max. end milling diameter, mm	16
Spindle
Number of steps	1
Speed adjustment	stepless
Spindle speed, rpm	50 - 2250
Spindle speed change method	Variator
Spindle rotation	forward/reverse
Spindle taper	MK 2 / M 10
Spindle drawbar thread	M 12
Quill stroke, mm	50
Max. spindle centre to column distance, mm	165
Max. spindle to table distance, mm	240
Milling head
Spindle head swivel (tilt) range, deg	± 90°
Spindle head travel (Z), mm	205
Raising/lowering	manual
Compound table
Table size (LxW), mm	400x120
Table longitudinal travel (X), mm	220
Table cross travel (Y), mm	160
T-slot size, mm	10
Number of slots, pcs	3
Slot spacing, mm	35
Max. table load, kg	n/a
Drilling depth adjustment	-
Tapping function	-
Fine quill feed	Yes
Work light	-
Machine stand	-
Overall dimensions of the assembled machine
Length, mm	510
Width, mm	460
Height, mm	845
