Jointer MB524F
153 000 ₴incl. VAT
127 500 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Specifications | |
|---|---|
| Weight (kg) | 400 |
| Voltage (V) | 380 |
| Overall dimensions (mm) | 2500×580×900 |
| Power (kW) | 3 |
| Frequency (Hz) | 50 |
| Country of origin | China |
| Max. planing width, mm | 410 |
| Max. planing depth, mm | 4 |
| Shaft speed, rpm | 5000 |
| Number of knives | 4 |
| Motor speed, rpm | 2840 |
| Cutterhead diameter, mm | 102 |
| Work table size, mm | 2500 x 410 |
Description

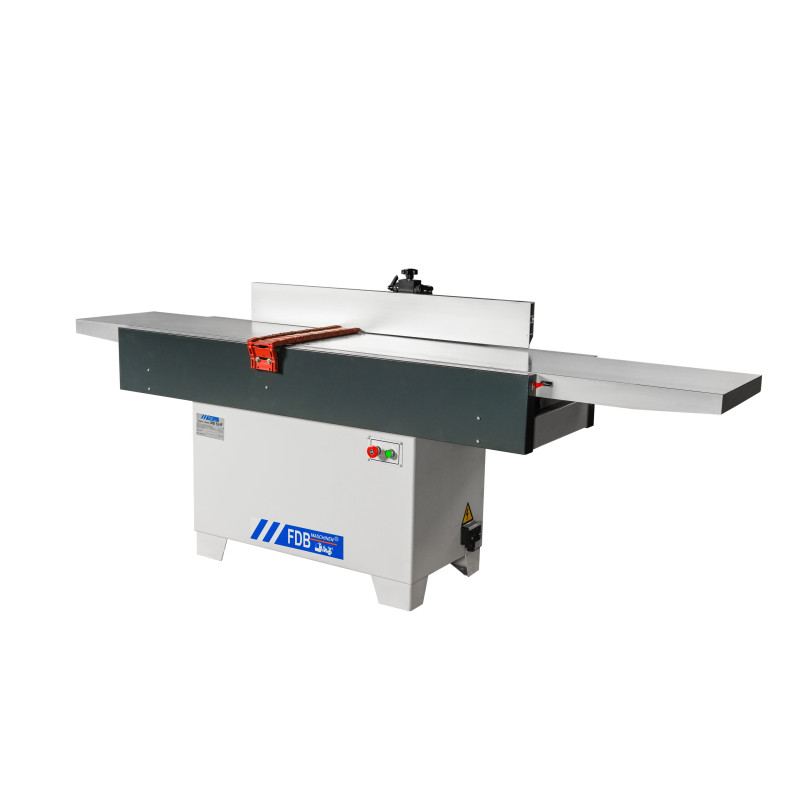

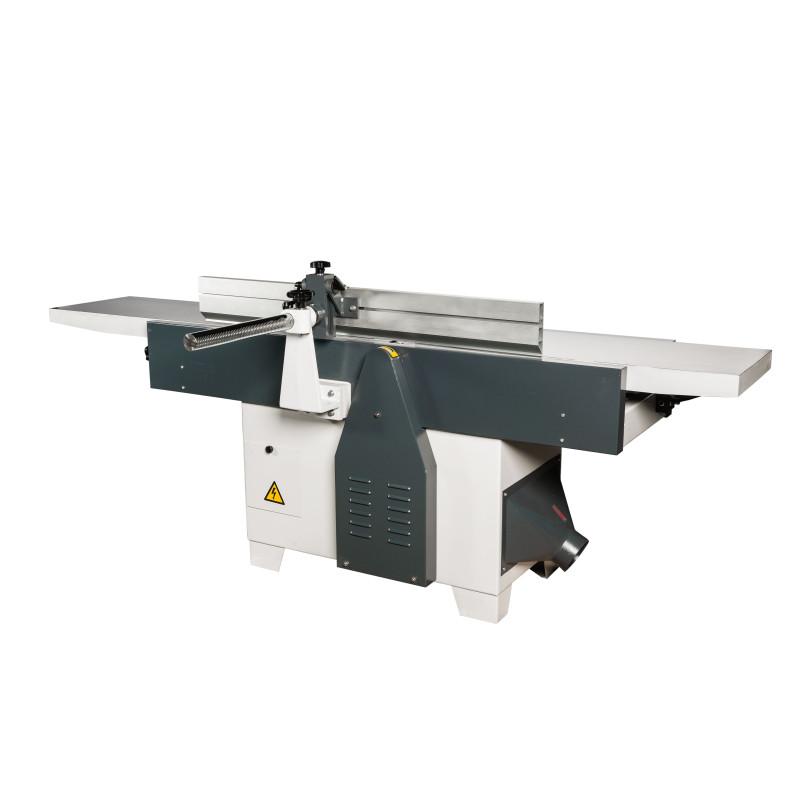

The FDB Maschinen MB524F jointer handles planing and jointing with manual or mechanical feed, on the flat and at angles up to 45 degrees. It is used for both preliminary and final surfacing of stock. The long ground table and a cutterhead set at an angle to the feed give a smooth, even cut, while the cast-iron base keeps the machine stable.
Maximum planing width is 410 mm and the work table measures 2500x410 mm. The 102 mm cutterhead with four knives runs at 5000 rpm, powered by a 3 kW 380 V motor. Weight is 400 kg. A machine of this size suits furniture production and joinery shops that work with long, wide stock.
The MB 524 F is designed for planing and jointing with manual or power feed, flat and at angles up to 45 degrees, and for rough and finish surfacing of workpieces.
Features of the FDB Maschinen MB 524 F:
- The machine has a long, precisely ground table;
- The cutterhead is set at an angle to the feed direction, giving a smooth cut and a high-quality finish on the workpiece/part;
- The four-knife cutterhead gives a high-quality finish on most wood species, without waviness or unevenness;
- The knives are set and adjusted with a special clamping fixture so that all four knives work together for a smooth cut;
- Build quality is very high; the machine is an excellent addition to any workshop where straightness of material is the main requirement;
- The massive cast iron construction ensures high reliability in prolonged use.
Specifications:
| Model | MB524F |
| Maximum planing width, mm | 410 |
| Maximum depth of cut, mm | 5 |
| Number of knives, pcs | 4 |
| Cutterhead diameter, mm | on request |
| Machine length (total jointer table length), mm | 2500 |
| Shaft speed, rpm | 5000 |
| Motor 380 V, 50 Hz, kW | 3 |
| Extraction connection diameter, mm | 100 |
| Assembled machine overall dimensions (LxWxH), mm | 2550×580×900 |
| Weight, kg | 400 |
