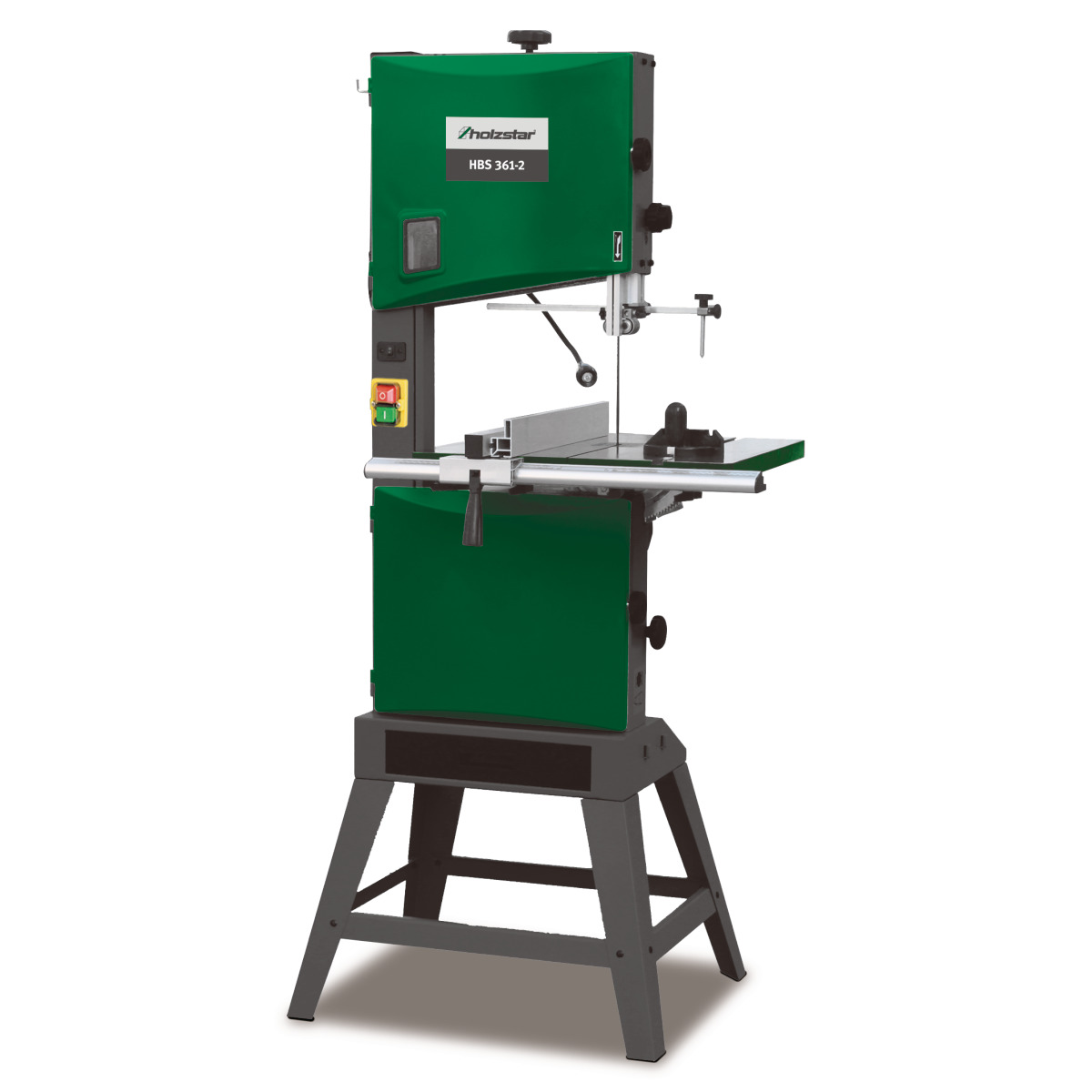

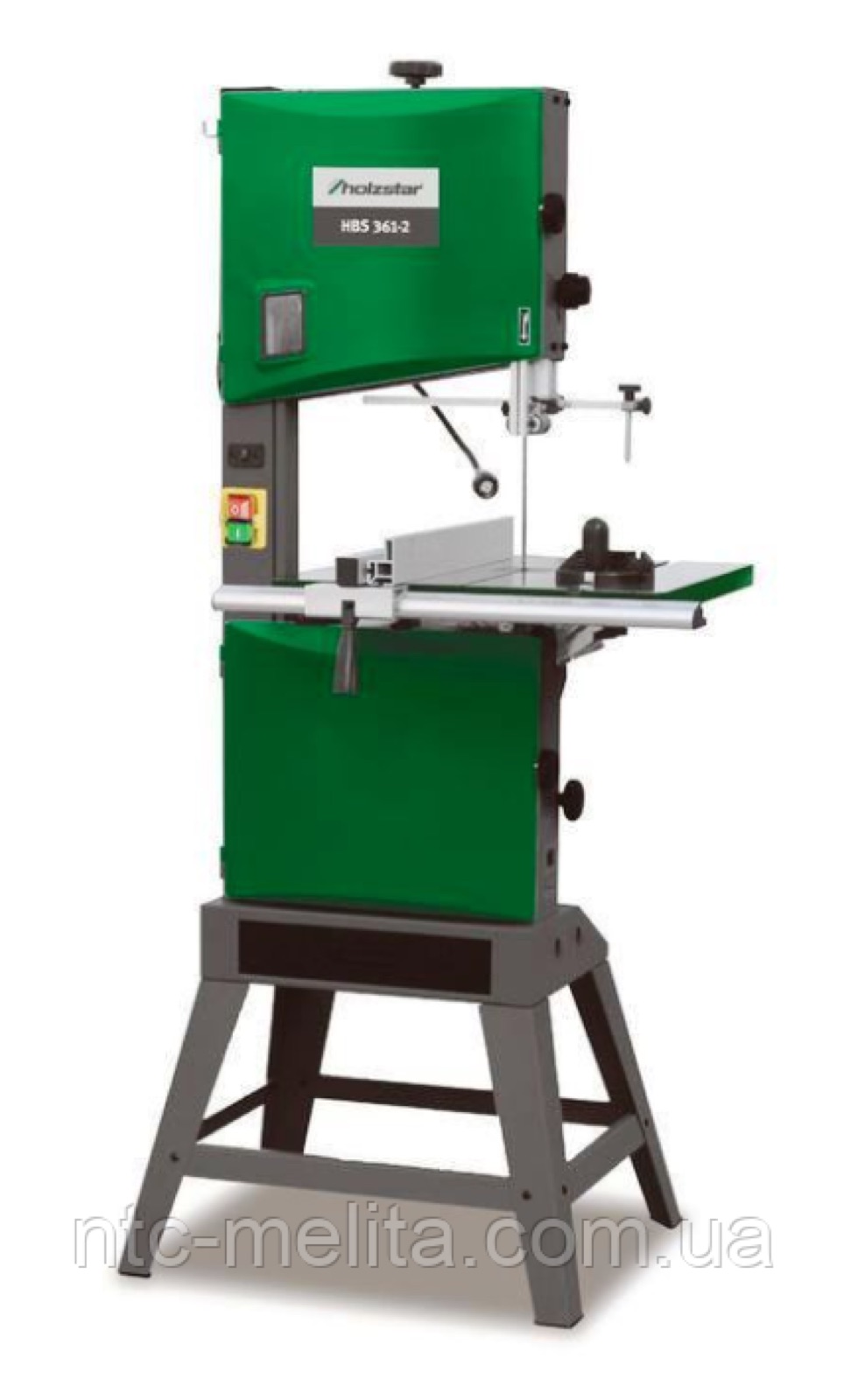

Wood band saw Holzstar HBS 361-2

New for 2019 in the Holzstar woodworking range — the HBS 361-2 wood band saw (item 5902436).

Technical description:

The vertical wood band saw Holzstar HBS 361-2 belongs to the hobby class of woodworking machines and is an optimal choice for a household, a school or a vocational training institution. With a sensible approach, however, thanks to its reliable design and functionality, the Holzstar HBS 361-2 can also be used at production companies. The Holzstar wood band saw HBS 361-2easily cuts workpieces of wood, plastic and particle board, and with a suitable blade fitted it can cut aluminium or other non-ferrous metals.

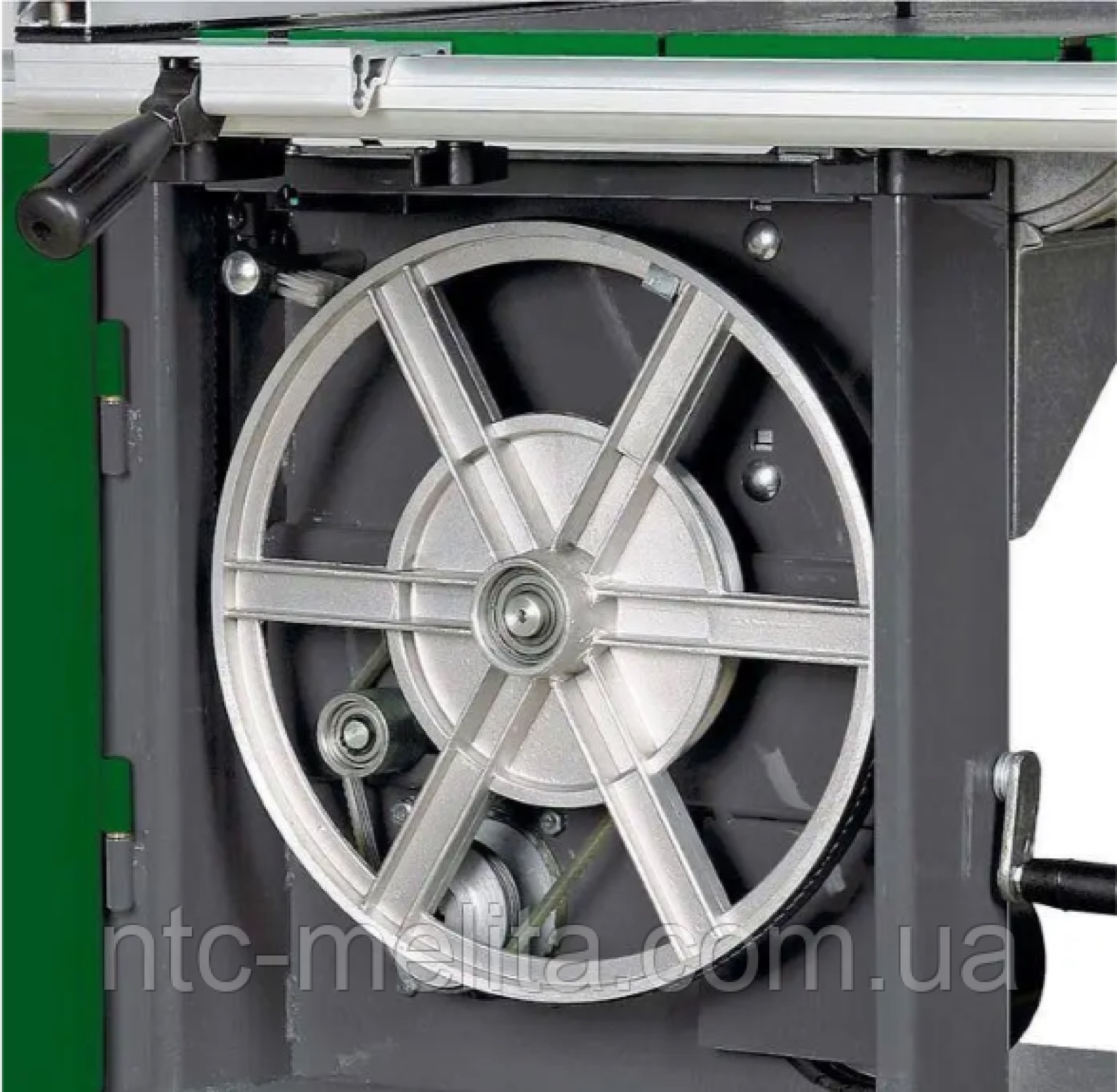

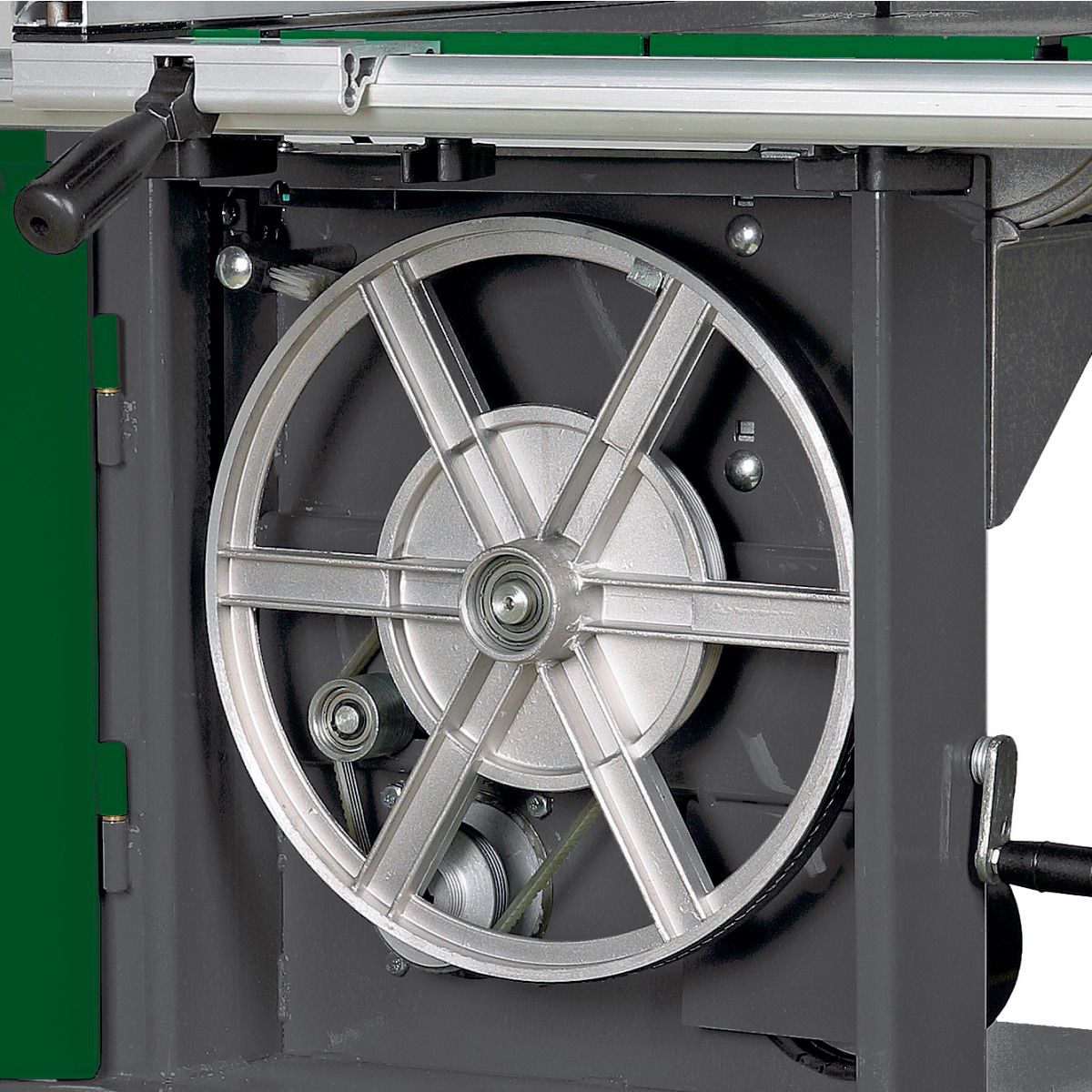

• The blade of the Holzstar HBS 361-2 wood band saw is a loop tensioned over the drive pulleys. The pulleys are precision-cast aluminium with a protective coating on the working surfaces that prevents damage to the blade.

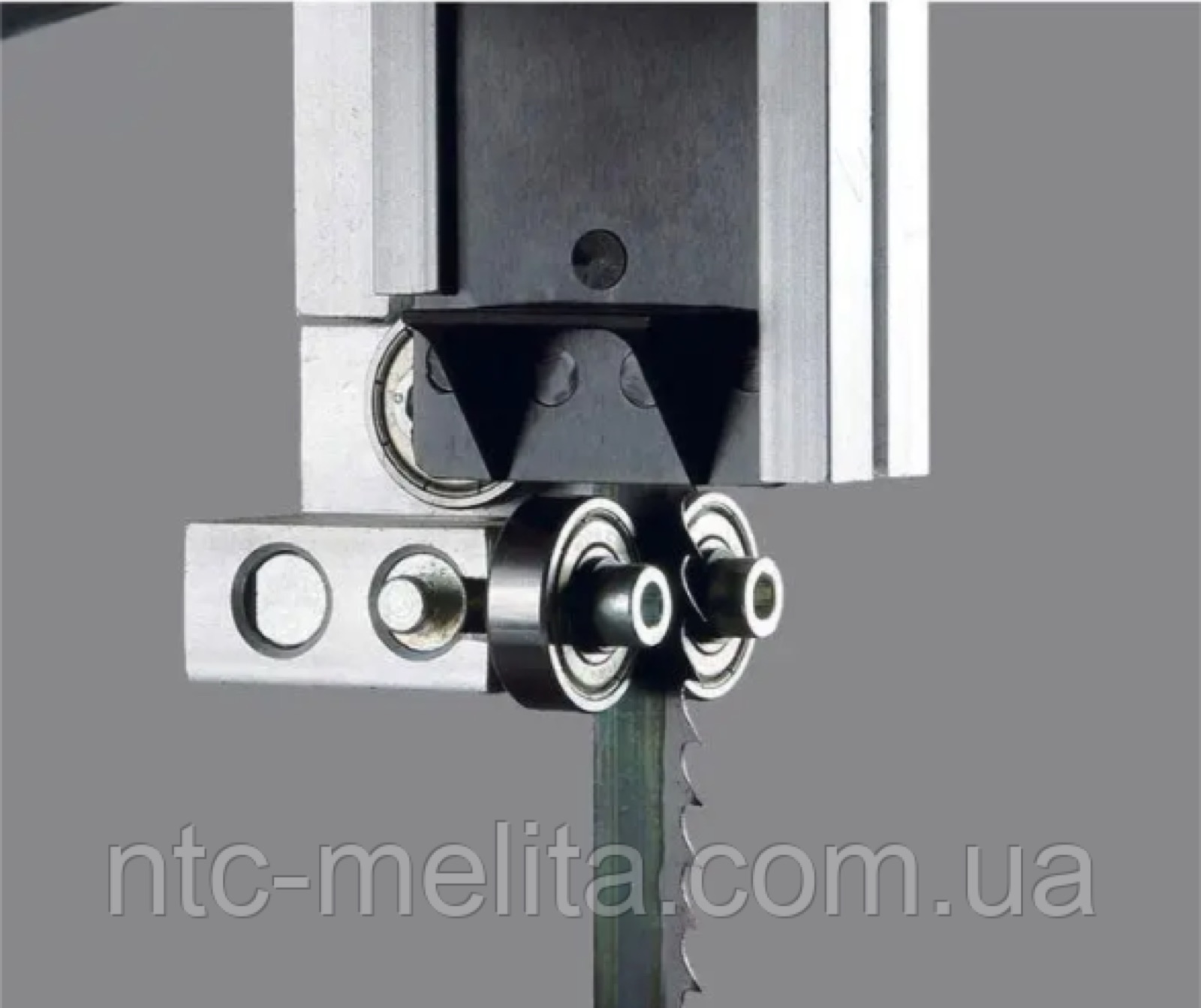

• High cutting quality is ensured by the guides, which hold the blade and prevent the cut line from drifting or wandering. The guide assembly includes support bearings above and below the work table. Adjusting the gap between the blade and the bearings controls the blade oscillation and determines the quality and accuracy of the cut.
• The work table of the of the Holzstar HBS 361-2 wood band saw is made of grey cast iron and has a ground surface that allows the workpiece to be fed smoothly into the cutting zone. For bevel cuts, the work table has a tilt mechanism up to 45°. A T-slot in the work table is provided for the miter gauge. By combining the table tilt and the miter gauge position, you can produce a part of the required shape.

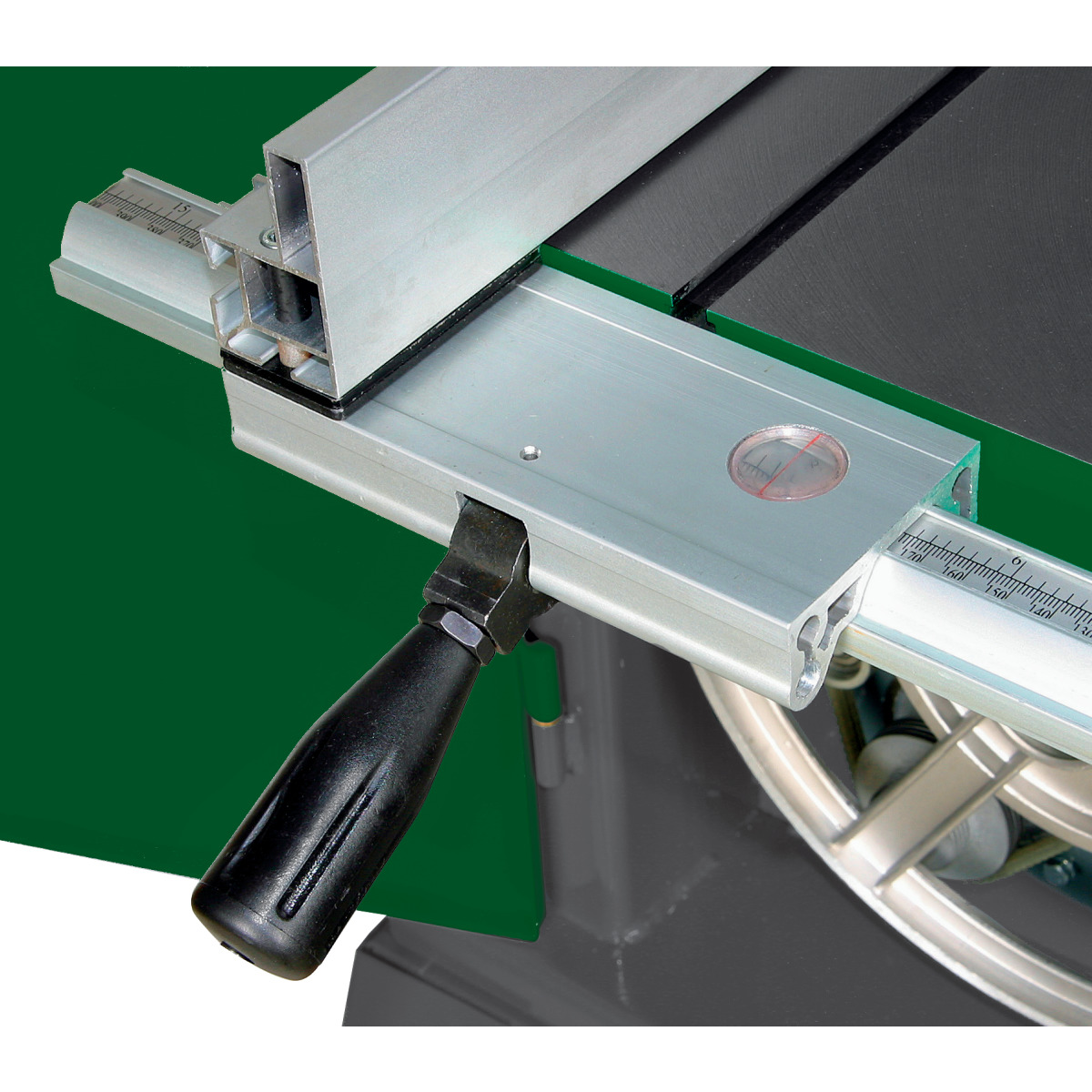

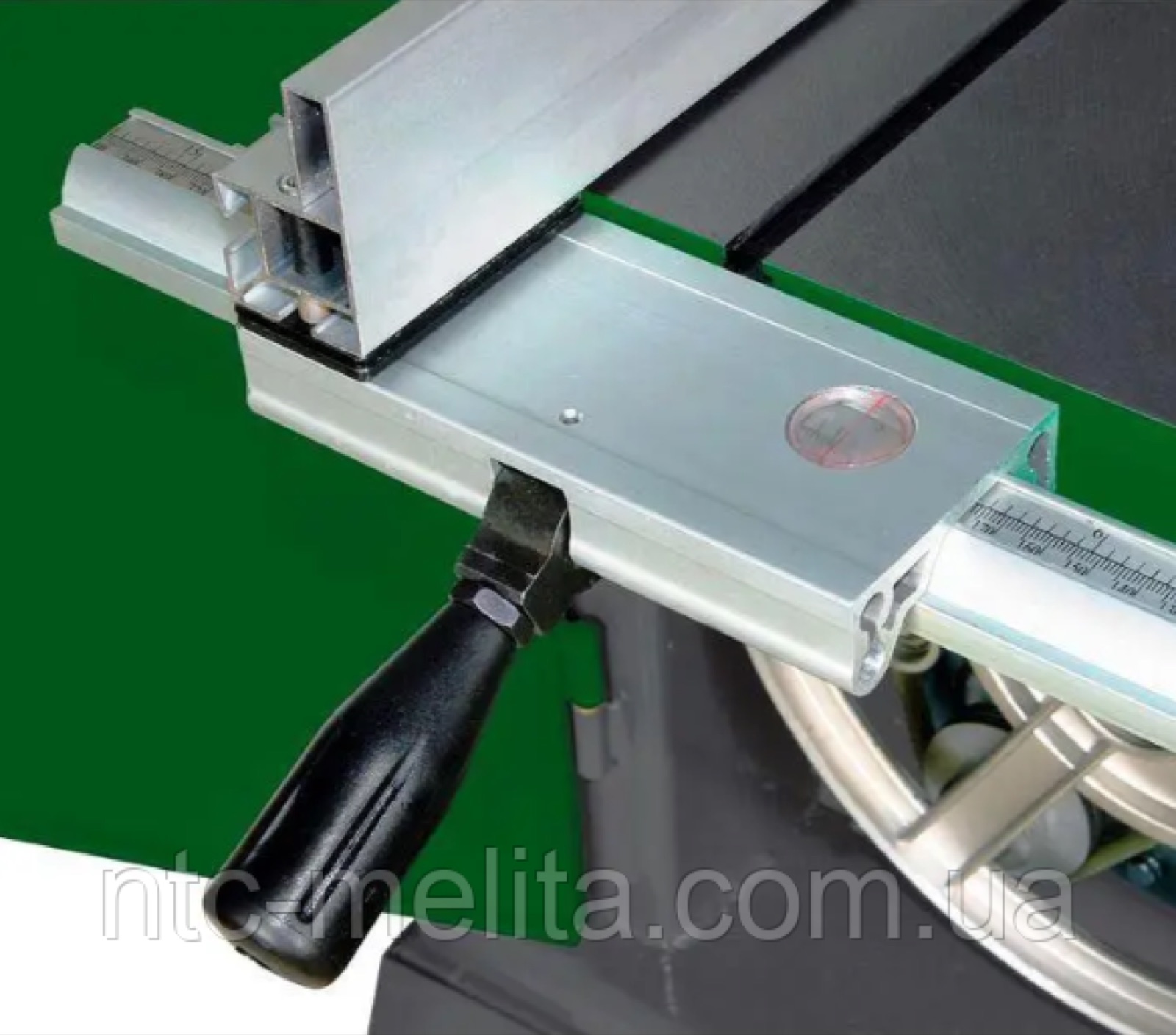

• Thanks to the rip fence with a magnifier over the scale and a quick-release handle, the saw makes quality rip and angle cuts, and with a special jig also radial cuts.
• The work area is lit by a built-in machine lamp.

Specifications:

Wood band saw Holzstar	HBS 361-2
item	5902436
Overall dimensions	870 x 690 x 1715 mm
Motor power	1.1 kW
Mains supply	220 V / ~50 Hz
Weight (net) approx.	76 kg
The work table of the	545 x 515 mm
Table height	1020 mm
Table tilt angle	0 — 45°
Cutting height 90°, max.	225 mm
Cutting height 45°, max.	145 mm
Cutting width with fence, max.	225 mm
Cutting width without fence, max.	340 mm
Blade speed	370/800 m/min
Blade length	2560 mm
Blade width	6 — 25 mm
Blade thickness	0.5 mm
Dust extraction port diameter	100 mm
Noise level	68 — 73 dB (A)

Scope of delivery:

• Band saw.
• Saw blade.
• Rip fence with magnifier.
• Rip fence rail.
• Miter gauge.
• Machine lamp.
• Floor stand.

Packaging dimensions:

• Length — 1350 mm.
• Width — 575 mm.
• Height — 440 mm.
• Weight — 75 kg.
