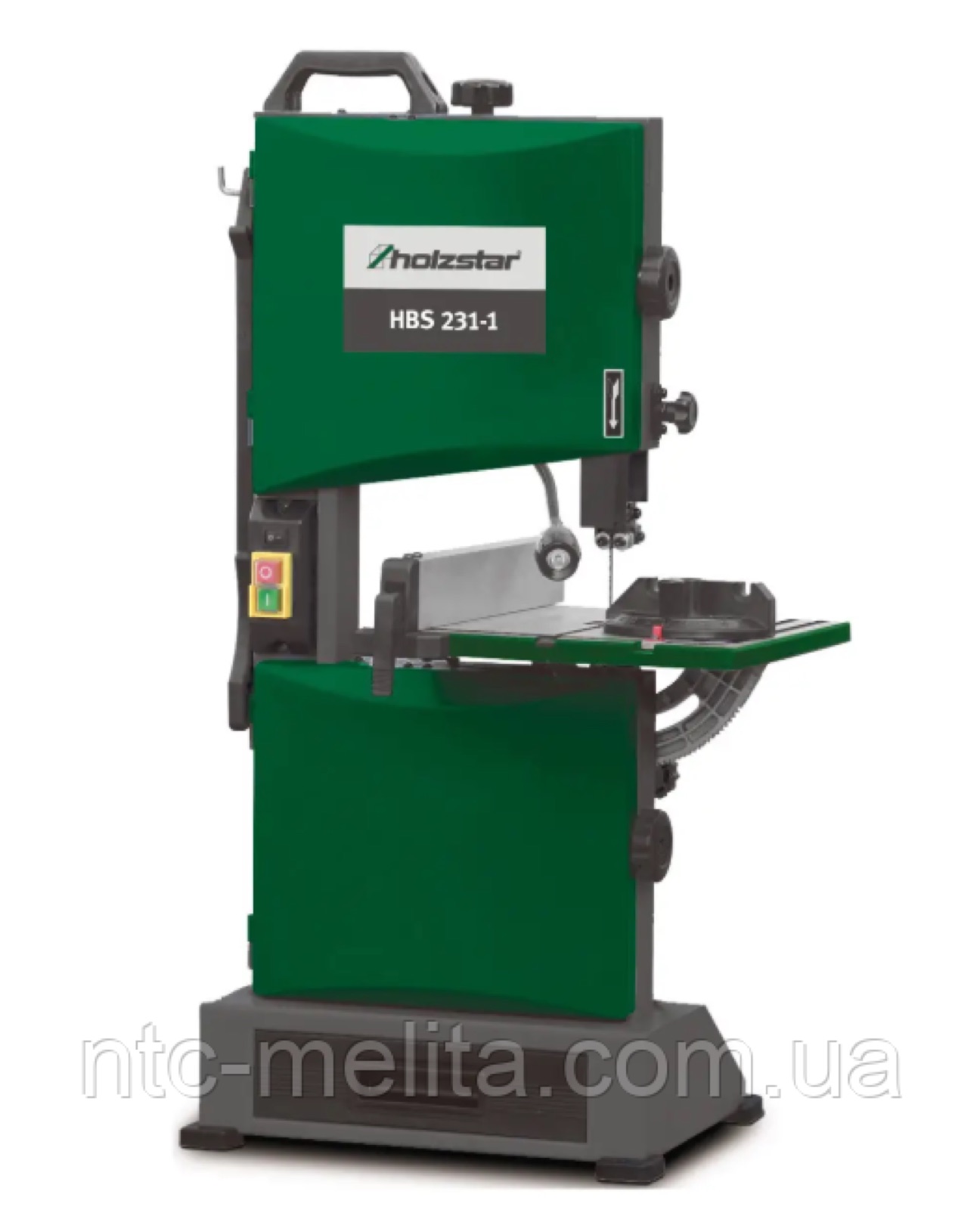

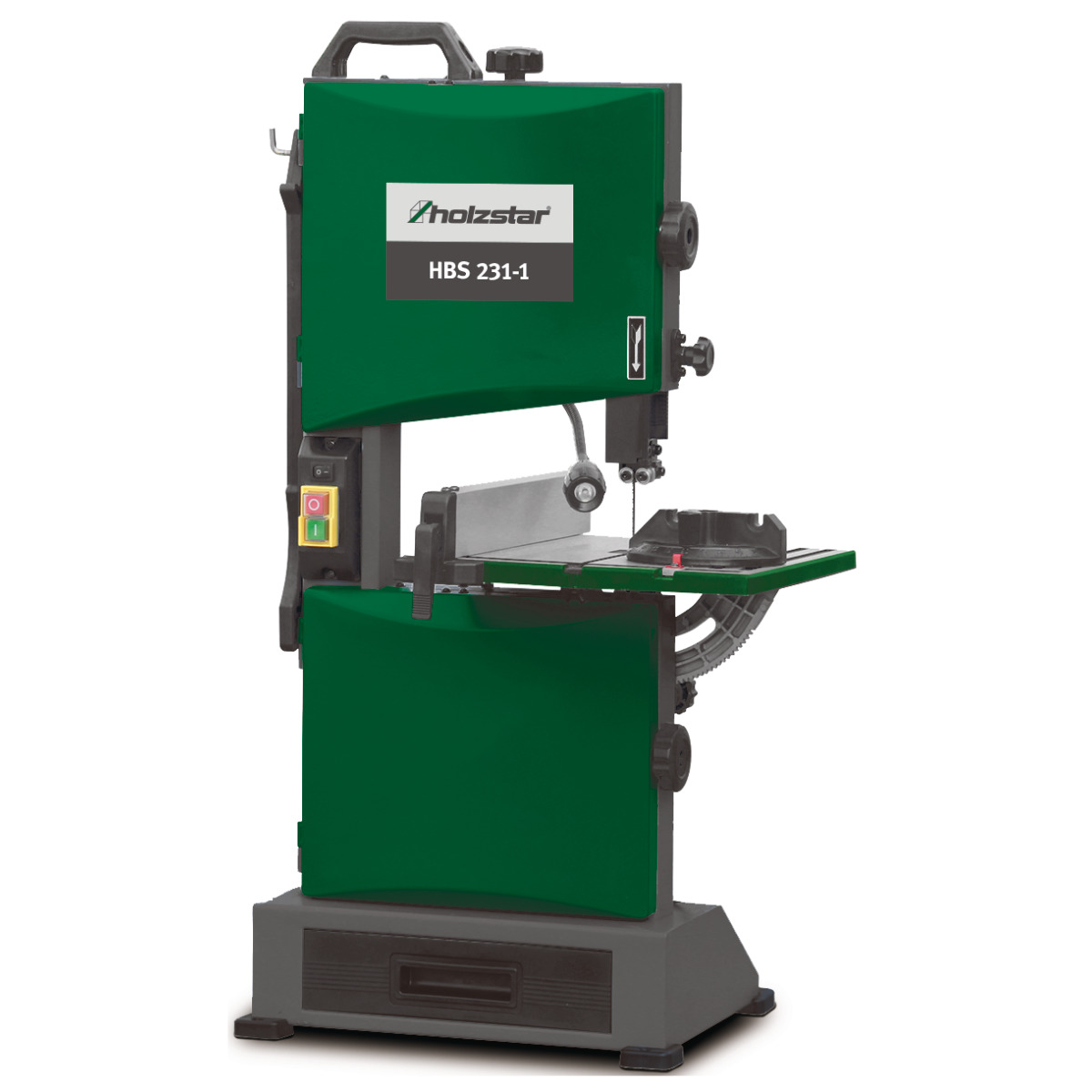

Wood band saw Holzstar HBS 231-1
power0.17 kWvoltage230 Vweight20 kg
9 870 ₴incl. VAT
8 225 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Warranty12 months
Specifications
| Main | |
|---|---|
| Manufacturer | Holzstar |
| Country of origin | Germany |
| Dimensions and weight | |
| Length | 490 mm |
| Width | 420 mm |
| Height | 835 mm |
| Weight | 20 kg |
| Dust extraction | |
| Dust port diameter | 53 mm |
| Table | |
| Table length | 300 mm |
| Table width | 300 mm |
| Table height | 405 mm |
| Table tilt angle | 0 - 45° |
| Electrical | |
| Motor power | 0.17 kW |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Saw band | |
| Band speed | 635 m/min |
| Saw blade length | 1575 mm |
| Saw band width | 6.35 mm |
| Saw band thickness | 0.35 mm |
| Cutting | |
| Max. cutting height 90° | 90 mm |
| Max. cutting height 45° | 50 mm |
| Max. cutting width with fence | 125 mm |
| Max. cutting width without fence | 228 mm |
Description
The Holzstar HBS 231-1 is a compact benchtop band saw for wood, made for small parts in a joinery workshop or furniture shop. A narrow 6-10 mm blade allows curved cuts as well as straight ones. The cast iron table tilts to 45 deg, and there is a rip fence, a mitre gauge and a built-in work light.
Key specs: cutting height 90 mm at 90 deg and 50 mm at 45 deg, 228 mm cutting width without fence, 300 x 300 mm table, 1575 mm blade, 300 W motor, 220 V, about 20 kg. A carrying handle makes this woodworking band saw easy to move, so it also suits a home workshop.
Vertical wood band saw Holzstar HBS 231-1 (item 5902423).
Technical description:
The compact benchtop Wood band saw Holzstar HBS 231-1 belongs to the group of low-output joinery band saws and is best suited for making small one-off parts in a joinery workshop or furniture shop. For home DIYers, the band saw Holzstar HBS 231-1 is also a good fit, primarily due to its optimal price/quality ratio.
- The blade is driven by two die-cast aluminium pulleys. To prevent damage to the blade teeth, the pulleys have a protective coating on the working surface.

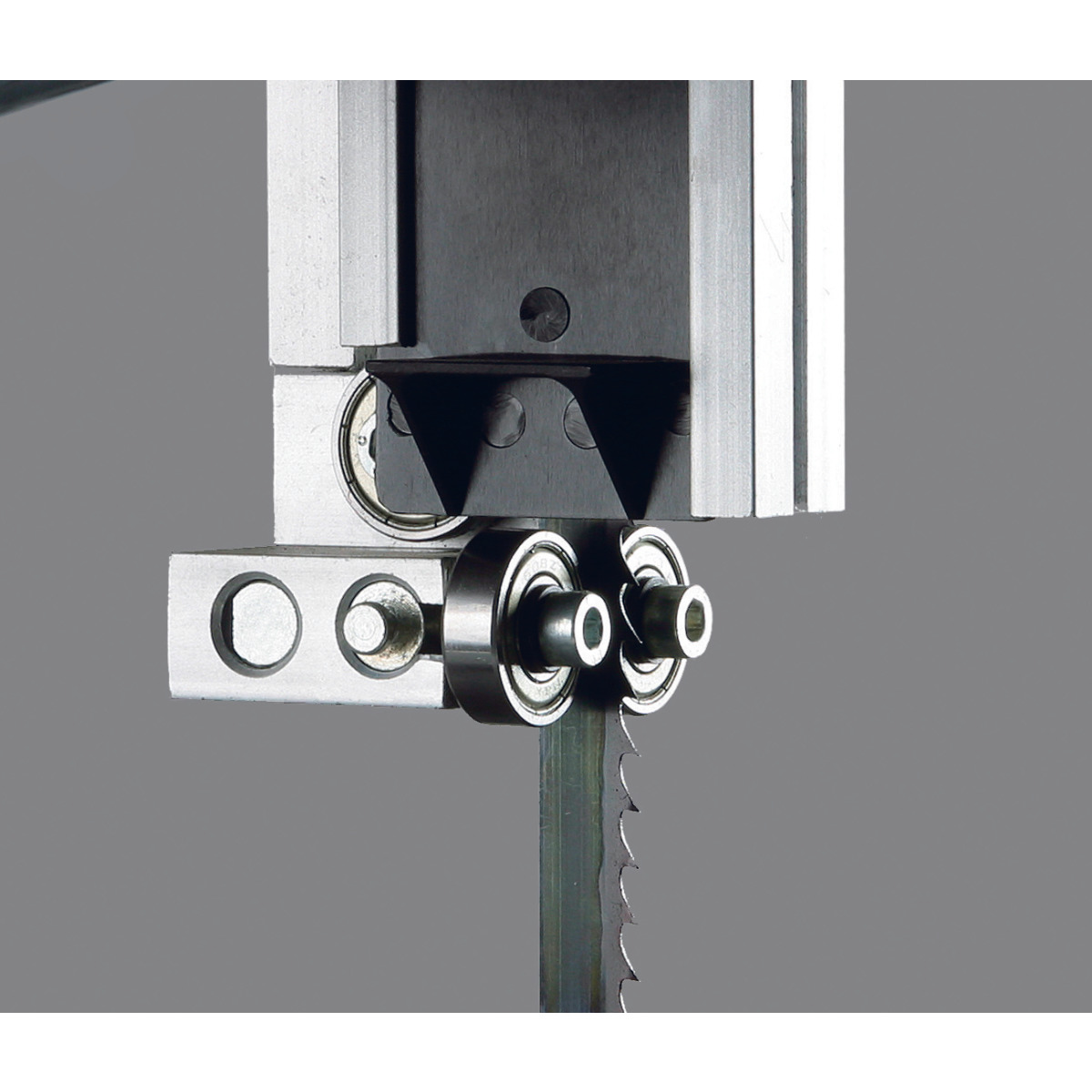

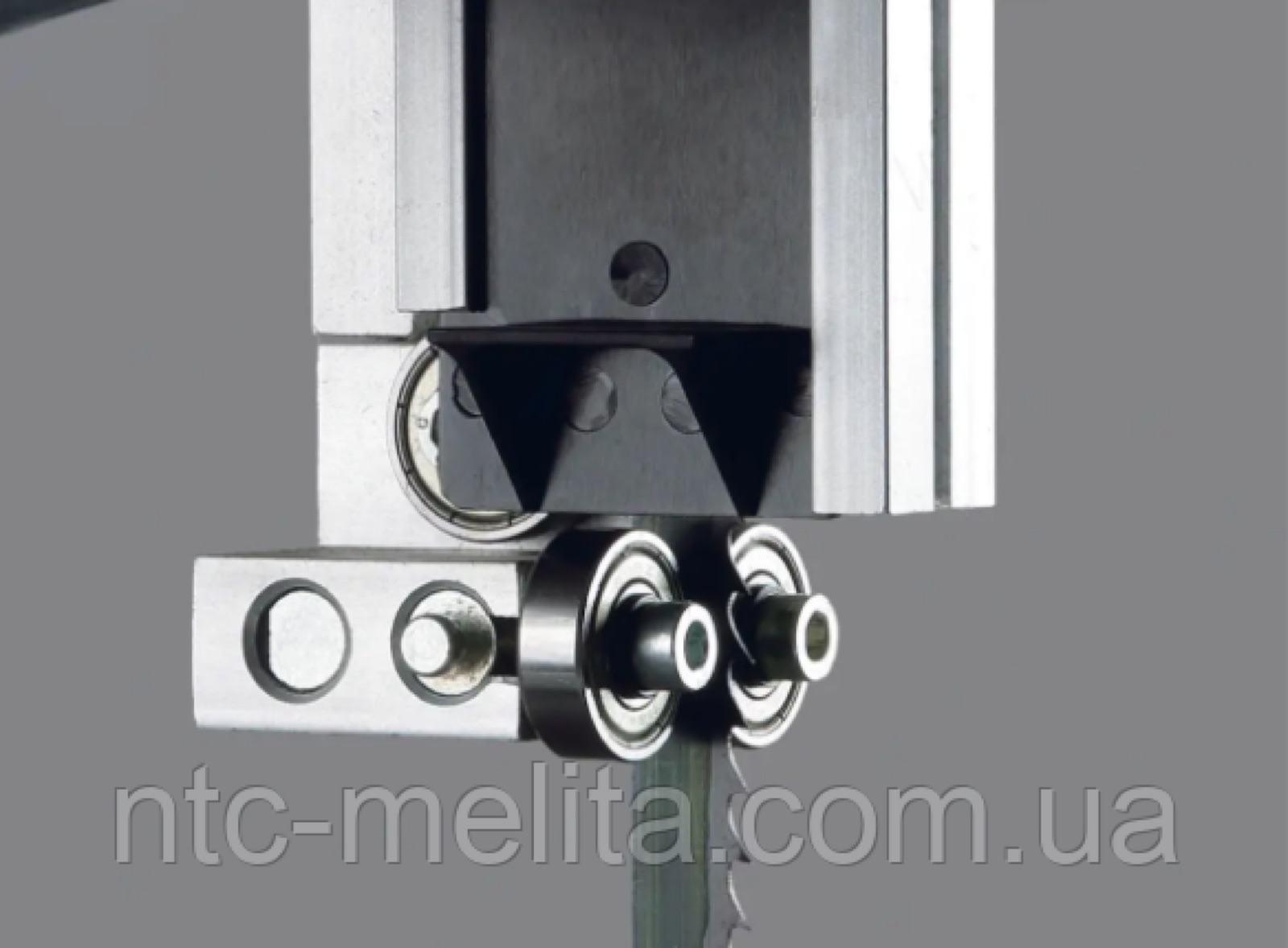

- The guides control the blade movement, keeping it within the cutting zone. The blade tensioning system allows the cutting mode to be set for optimal cut quality and prevents damage to the blade.
- The band saw work table is made of cast iron, has a ground surface and is fitted with a rip fence for ripping workpieces. For angle cuts, a miter gauge can be fitted and the work table tilted up to 45°.
- As the Holzstar HBS 231-1 blade is 6-10 mm wide, it can make not only radial cuts but also more complex curved cuts.
- The work area of the table is lit by a built-in machine lamp.
- The compact size of the Holzstar HBS 231-1 wood band saw, low weight and convenient carrying handle make it easy to move the saw and set it up wherever it is most convenient to work.
Specifications:
| Wood band saw Holzstar | HBS 231-1 |
| item | 5902423 |
| Overall dimensions | 490 x 420 x 835 mm |
| Motor power | 300 W |
| Mains supply | 220 V / ~50 Hz |
| Weight (net) approx. | 20 kg |
| The work table of the | 300 x 300 mm |
| Table height | 405 mm |
| Table tilt angle | 0 — 45° |
| Cutting height 90°, max. | 90 mm |
| Cutting height 45°, max. | 50 mm |
| Cutting width with fence, max. | 125 mm |
| Cutting width without fence, max. | 228 mm |
| Cutting speed | 635 m/min |
| Blade length | 1575 mm |
| Blade width | 6.35 — 10 mm |
| Blade thickness | 0.35 mm |
| Dust extraction port diameter | 53 mm |
| Noise level | 65 — 70 dB (A) |
Scope of delivery:
- Rip fence with magnifier.
- Miter gauge.
- Push stick.
- Lamp.
Packaging dimensions:
- Length — 885 mm.
- Width — 455 mm.
- Height — 335 mm.
- Weight — 23 kg.
