Bench drill press B-1316B/400
power600 Wvoltage400 Vweight50 kg
25 500 ₴incl. VAT
21 250 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Main | |
|---|---|
| Manufacturer | Proma |
| Country of origin | Czechia |
| Motor power | 600 W |
| Max. drilling diameter | 16 mm |
| Supply voltage | 400 V |
| Chuck | 3 - 16 mm |
| Spindle reach | 165 mm |
| Spindle travel | 80 mm |
| Max. spindle to table distance | 415 mm |
| Max. spindle to base distance | 615 mm |
| Base size | 420 x 245 mm |
| Column diameter | 70 mm |
| Number of speeds | 12 |
| Spindle speed range | 180 - 2 740 rpm |
| T-slot size | 14 |
| Dimensions and weight | |
| Overall height | 960 mm |
| Weight with packaging | 55 kg |
| Weight | 50 kg |
Description

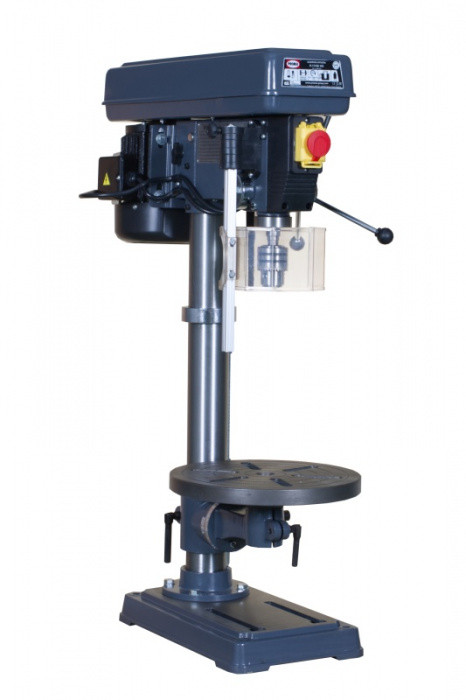

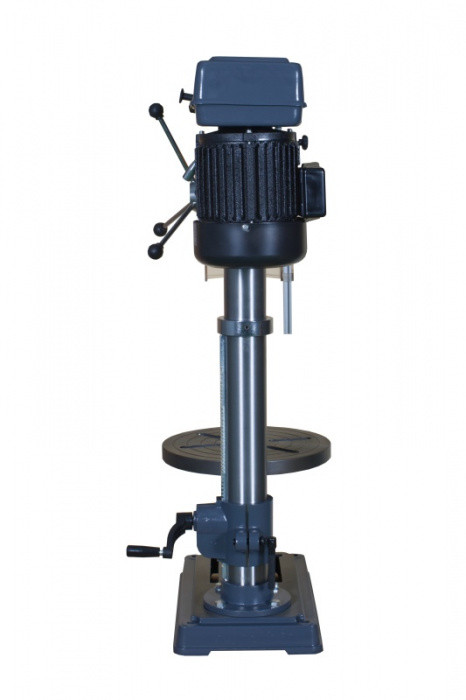

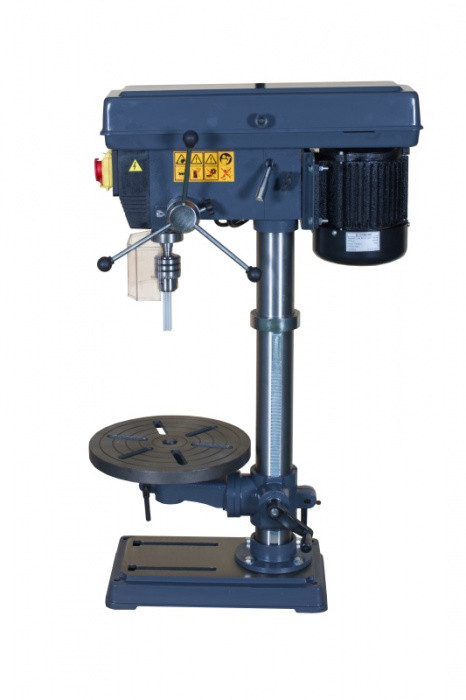

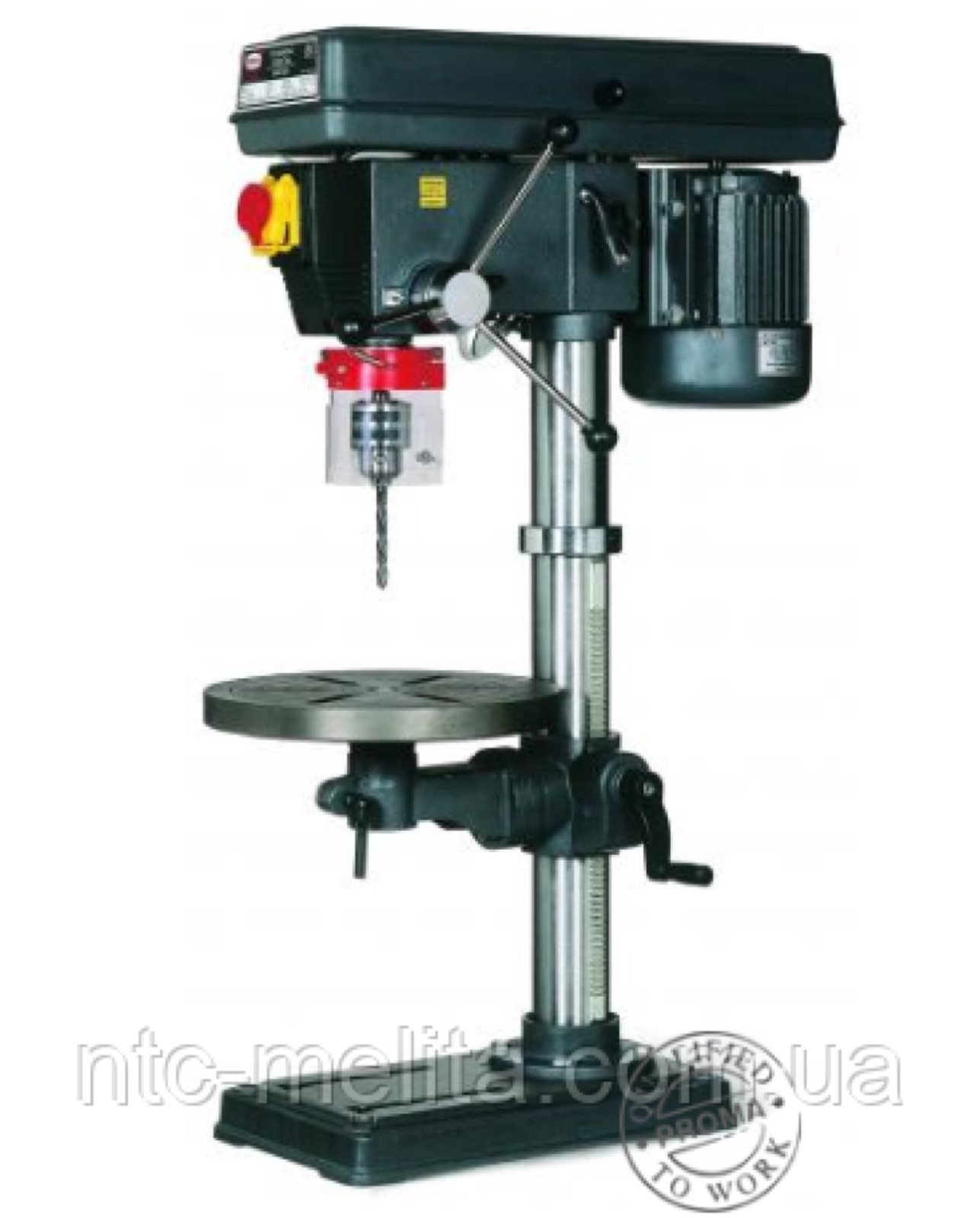

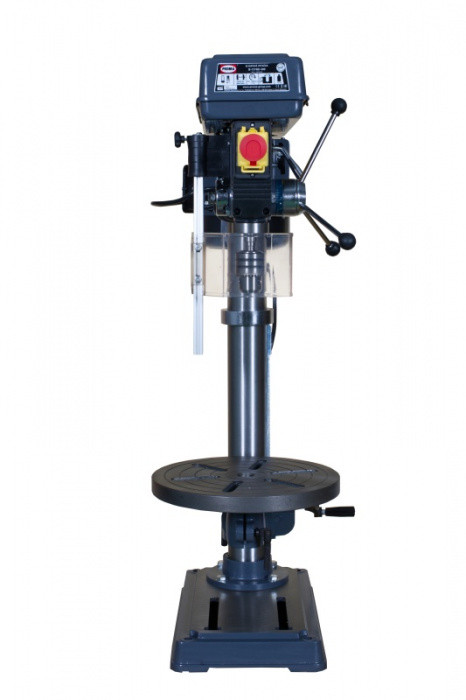

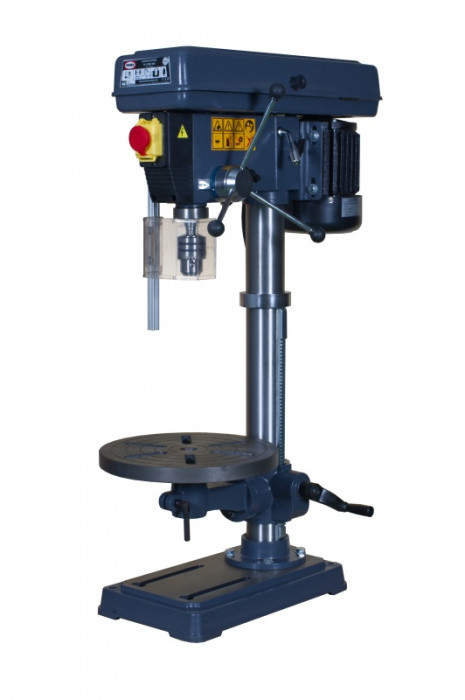

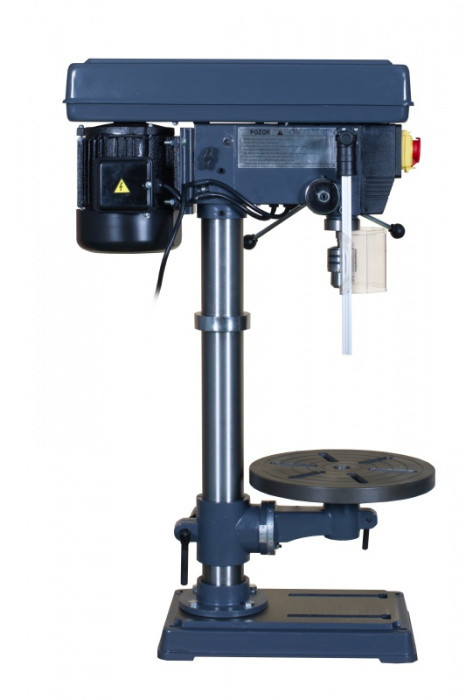

The Proma B-1316B/400 is a column-mounted benchtop drill press for drilling holes in metal, plastics, wood and other materials. It runs on a three-phase supply, is compact and is used in small, medium and large batch production.
Key specs: 550 W power, holes up to 16 mm, 3-16 mm chuck, MT2 taper, 12 speeds from 180 to 2740 rpm and 80 mm spindle travel. The round 310 mm table swivels and tilts 45°, the machine has a work light and a protective screen, weight 53 kg. A fit for shops with a three-phase supply.
The bench drill press B-1316B/400 is designed for drilling holes in metal, plastic, wood and other materials. In small-, medium-batch and large-scale production, the B-1316B/400 bench drill press is widely used thanks to its versatility, power and high productivity. The machine can be used in almost any conditions — it runs on a three-phase supply, is compact and has low power consumption. Table swivel and tilt extend its capabilities. For convenience, the machine has good work area lighting. In addition, the bench drill press has a guard screen that provides extra protection without blocking the view.
Main specifications:
Voltage 400 V
Power consumption 550 W
Chuck 3-16 mm
Max. drilling diameter 16 mm
Spindle taper MT II
Spindle throat (X) 165 mm
Spindle travel 80 mm
Max. spindle-to-table distance (h) 415 mm
Max. spindle-to-base distance (H) 615 mm
Table size (a x b) dia. 310 mm
Base size (A x B) 420x245 mm
Column diameter (D) 70 mm
Number of speeds 12
Speed range:
180/ 250 min-1
300/400 min-1
480/580 min-1
970/1280 min-1
1410/1540 min-1
2270/2740 min-1
T-slot 14
Overall height (V) 960 mm
Net/gross weight 53 kg
Packaging (L x W x H) 770x490x260 mm
order No. 25401303
Main assemblies and parts
1. Belt drive cover.
2. Emergency stop switch.
3. Guard screen.
4. Table.
5. Table swivel clamp.
6. Belt tension lever.
7. Motor.
8. Spindle quill feed shaft.
9. Spindle feed handle.
10. Table bracket.
11. Table elevation handle.
12. Table elevation rack.
13. Base.
14. Swivel trunnion.
15. Table elevation clamp.
Additional features:
- spindle drawbar
- drilling depth adjustment
- table swivel
- table tilt +/- 45 deg.
- radial bearings
