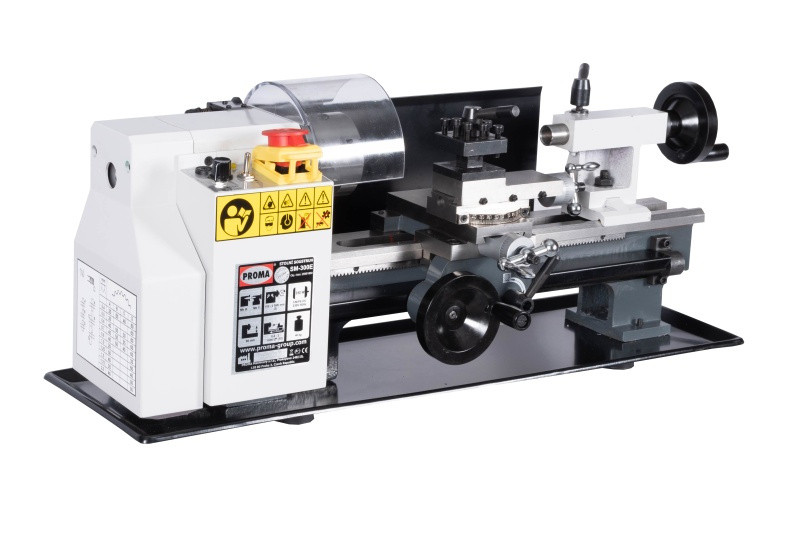

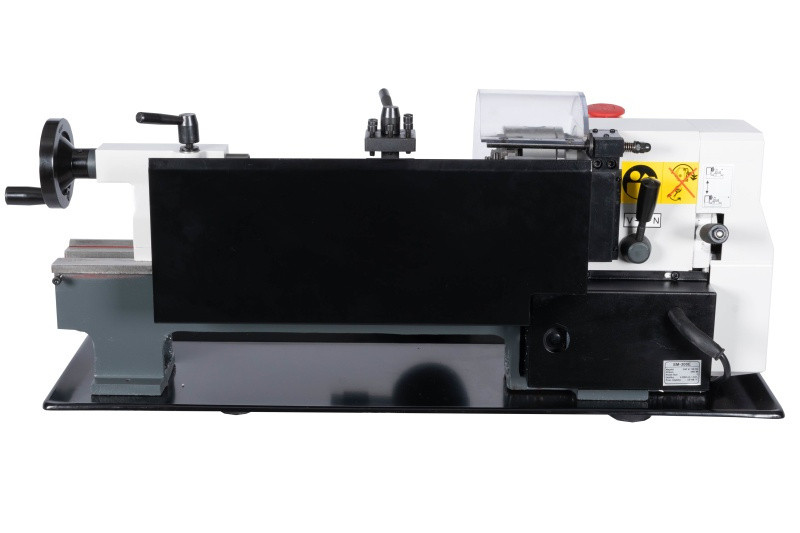

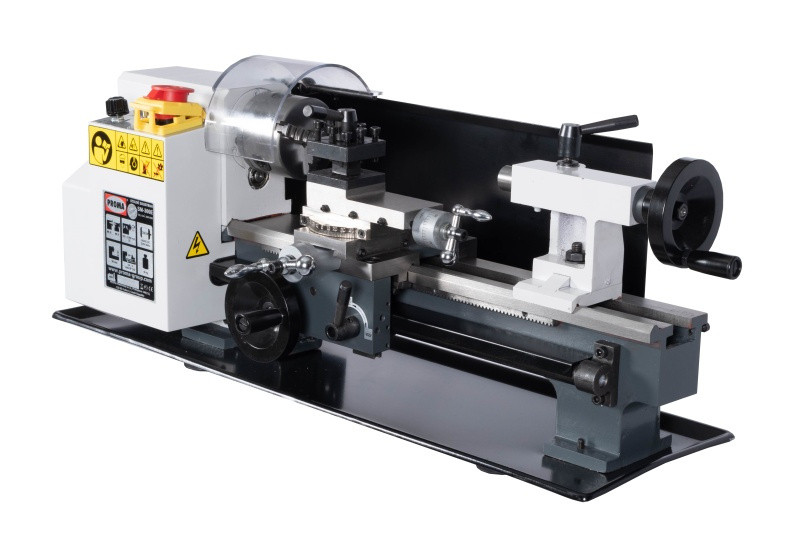

Mini metal lathe SM-300E
voltage230 Vweight36 kg
47 400 ₴incl. VAT
39 500 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Warranty12 months
Specifications
| Main | |
|---|---|
| Manufacturer | Proma |
| Country of origin | Czechia |
| Motor power (S1 100%) | 300 W |
| Supply voltage | 230 V |
| Distance between centers | 300 mm |
| Max. swing over bed | 180 mm |
| Max. swing over carriage | 110 mm |
| Chuck diameter | 80 mm |
| Spindle bore | 20 mm |
| Chuck through-hole | 15 mm |
| Quill travel | 40 mm |
| Spindle speed range | 100 - 2500 rpm (stepless) |
| Number of speed ranges | 2 |
| Metric threads - range | 0.4 - 2 mm |
| Metric threads - number of pitches | 10 |
| Automatic longitudinal feed - range | 0.4 - 2 mm/rev |
| Automatic longitudinal feed - number of steps | 10 |
| Tool post to machining axis distance | 9 mm |
| Top slide travel | 55 mm |
| Cross slide travel | 65 mm |
| Longitudinal slide travel | 300 mm |
| Dimensions and weight | |
| Machine dimensions (L x W x H) | 770 x 330 x 330 mm |
| Weight with packaging | 43 kg |
| Weight | 36 kg |
Description
The Proma SM-300E is a compact lathe for metal and all kinds of plastics. It does cylindrical, tapered and shaped turning, facing, drilling, boring, chamfering and metric thread cutting. Fixed and travelling steadies support longer workpieces, and a faceplate allows off-centre turning.
Main data: 180 mm swing over bed, 110 mm over the carriage, 300 mm turning length, 20 mm spindle bore, 100-2500 rpm in two ranges, 300 W input power, 230 V, weight 40 kg. An 80 mm three-jaw chuck is included. Suits repair shops and small-part work.
The SM-300E mini metal lathe is designed for turning workpieces made of metal and all types of plastic.
The lathe can perform the following turning operations: cylindrical, profile and taper turning, facing, metric threading, drilling, boring, chamfering and filleting.
For long workpieces, a traveling steady and a fixed steady rest can be installed. With a faceplate fitted, turning can be performed off the center of rotation.
A wide range of spindle speed and longitudinal feed rate adjustment extends the range of cutting tools that can be used.
Main specifications:
Swing over bed 180 mm
Swing over cross slide 110 mm
Turning length 300 mm
Spindle bore 20 mm
Spindle taper MT III
Quill taper MT II
Speed range 100-2500 rpm (2 steps )
Speed gearbox yes
Variable speed control yes
Metric threads 0.4-2 mm (10 steps )
Inch threads 12-52 TPI (18 steps )
Max. top slide travel 55 mm
Max. cross slide travel 65 mm
Max. longitudinal carriage travel 300 mm
Automatic longitudinal feed yes
Adjustable cross feed yes
Operating voltage 230 V
Power consumption 300 W
Dimensions (L x W x H) 730x330x330 mm
Weight 40 kg
Order No. 25951830
Standard equipment (included in the price of the machine):
— 3-jaw universal chuck dia. 80 mm;
— dead center, set of change gears;

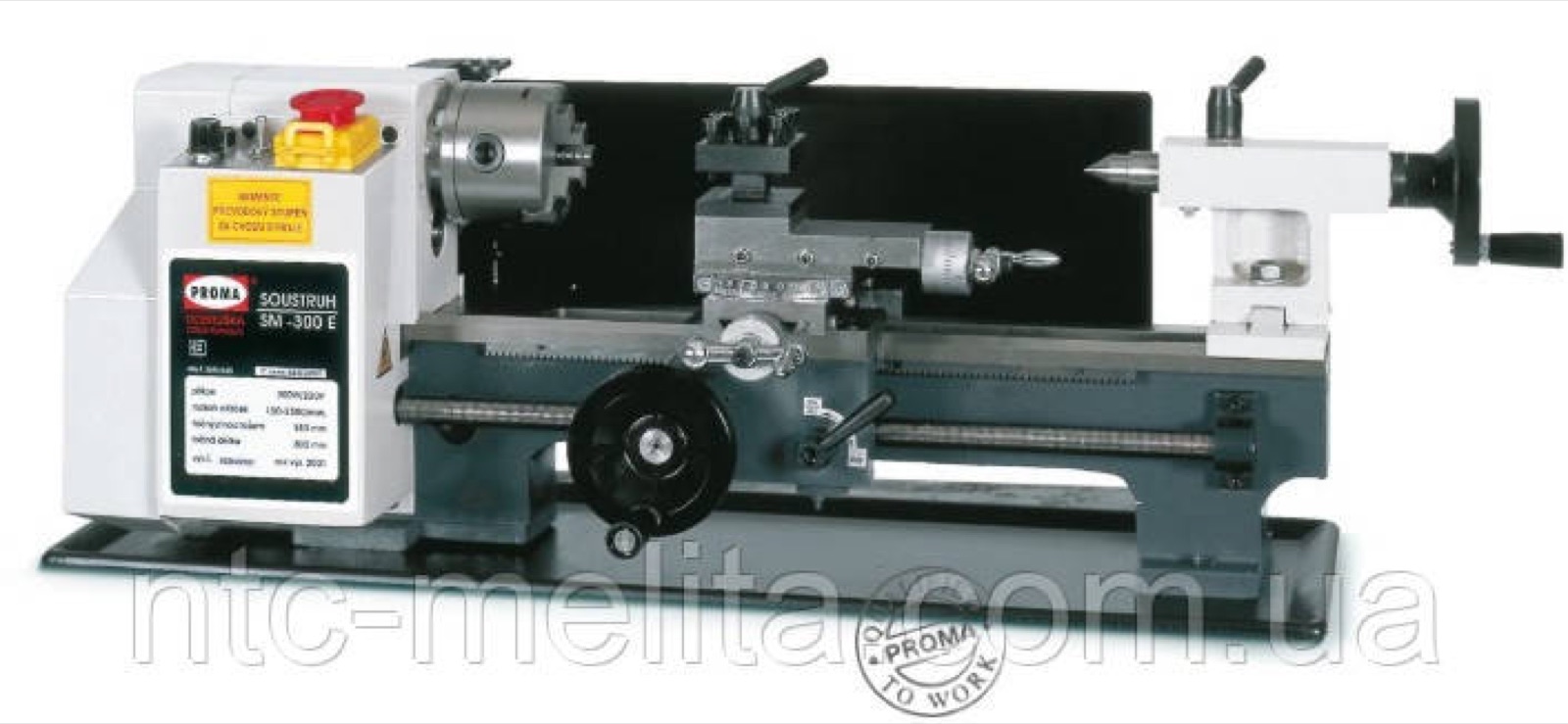

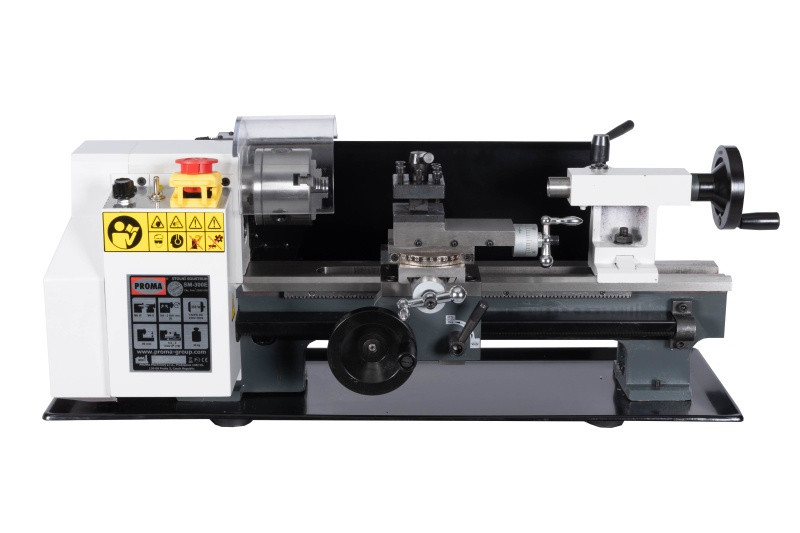

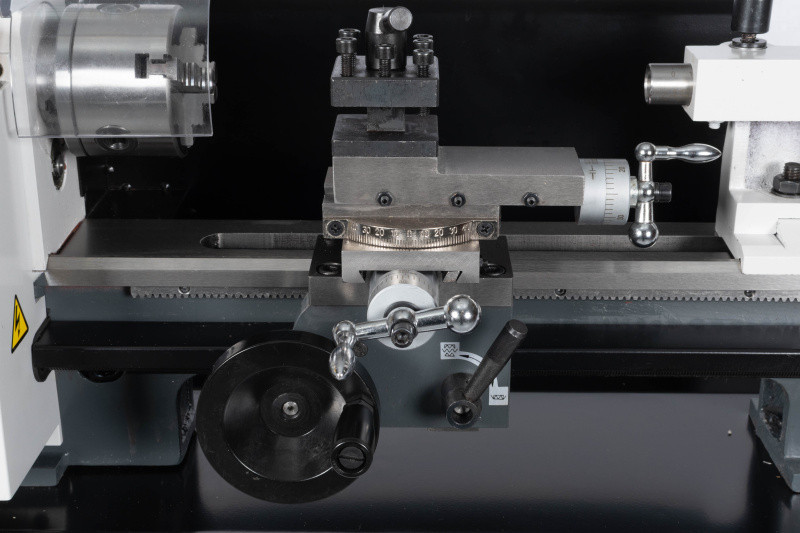

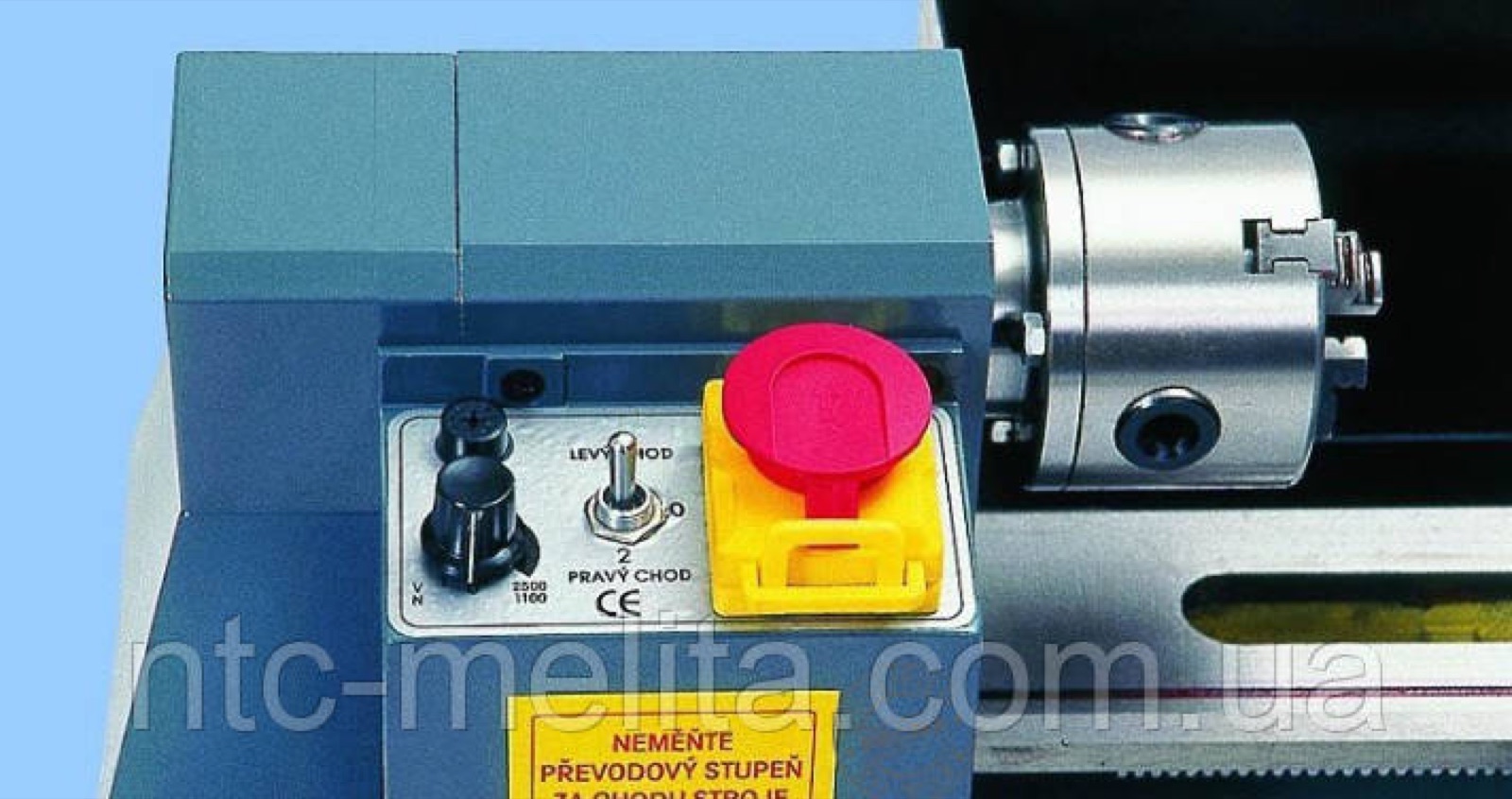

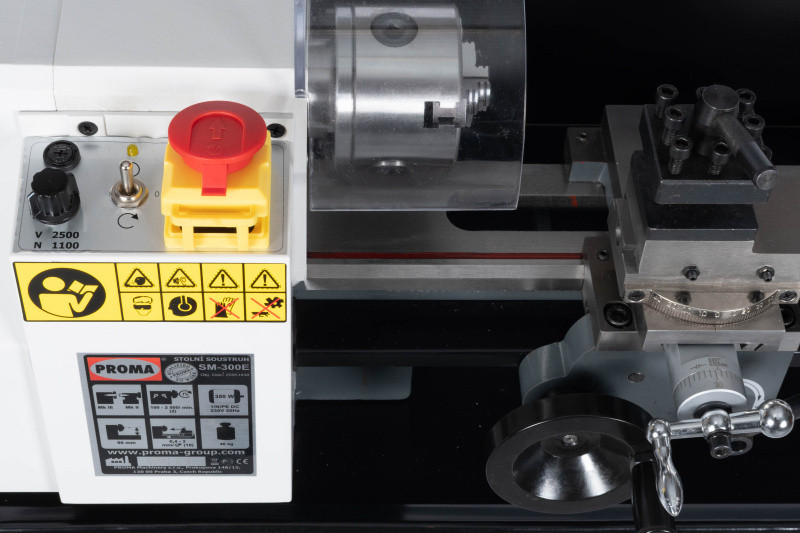

The bench lathe consists of the following units and elements:
| 1. Headstock 3. Chuck guard 5. Tool post 7. Tailstock 9. Lead screw 11. Chip tray 13. Lead screw direction change |
2. Electrical control unit 4. Chuck 6. Top slide 8. Bed with guideways 10. Cross slide 12. Speed step selector |
Special accessories (not included in the price of the machine):
— 4-jaw eccentric chuck dia. 80 mm, Order No. 25330982;
— faceplate, Order No. 25330978;
— fixed steady rest dia. 30 mm, Order No. 25330973;
— traveling steady dia. 30 mm, Order No. 25330974;
— inch threading kit, Order No. 25330984;
— thread dial indicator, Order No. 25330988;
— live center Mk II, Order No. 25220250;
— collet chuck, Order No. 60404102;
— collets dia. 3, 4, 6, 8, 10, 12 mm, Order No. 60330030;
— drill chuck 13/16B, Order No. 25160113;
— milling attachment, Order No. 25010061;
— arbor B16/Mk II, Order No. 25220192;
— tool bit set SK 8 x 8 (11 pcs. ), Order No. 25330808;
— flange for 3-jaw chuck, Order No. 25000031
