Swivel vise SO-200
jaws200 mmopening150 mmweight38 kg
14 520 ₴incl. VAT
12 100 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Warranty12 months
Specifications
| Main | |
|---|---|
| Manufacturer | Proma |
| Country of origin | Czechia |
| Vise type | machine |
| Jaw width | 200 mm |
| Jaw height | 63 mm |
| Max. vise opening | 150 mm |
| Overall dimensions | |
| Length | 480 mm |
| Width | 270 mm |
| Height | 190 mm |
| Weight | 38 kg |
| Main attributes | |
| rotation angle | 360 deg |
| article number | |
| article number | 25042010 |
Description

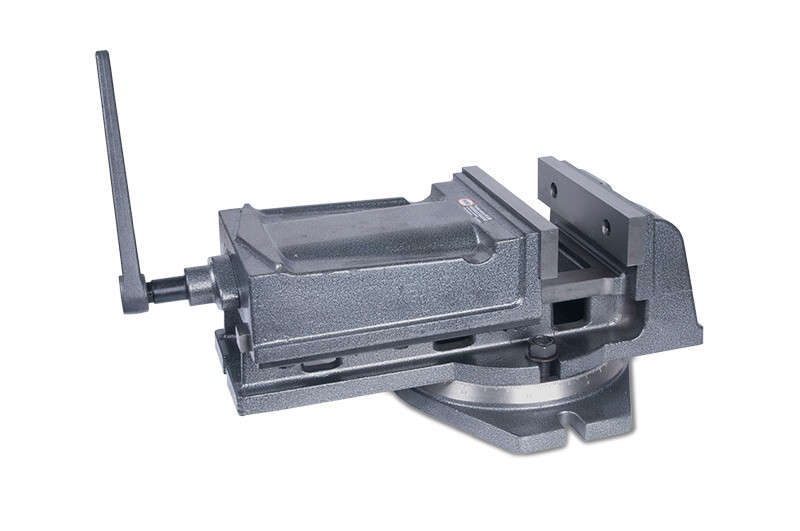

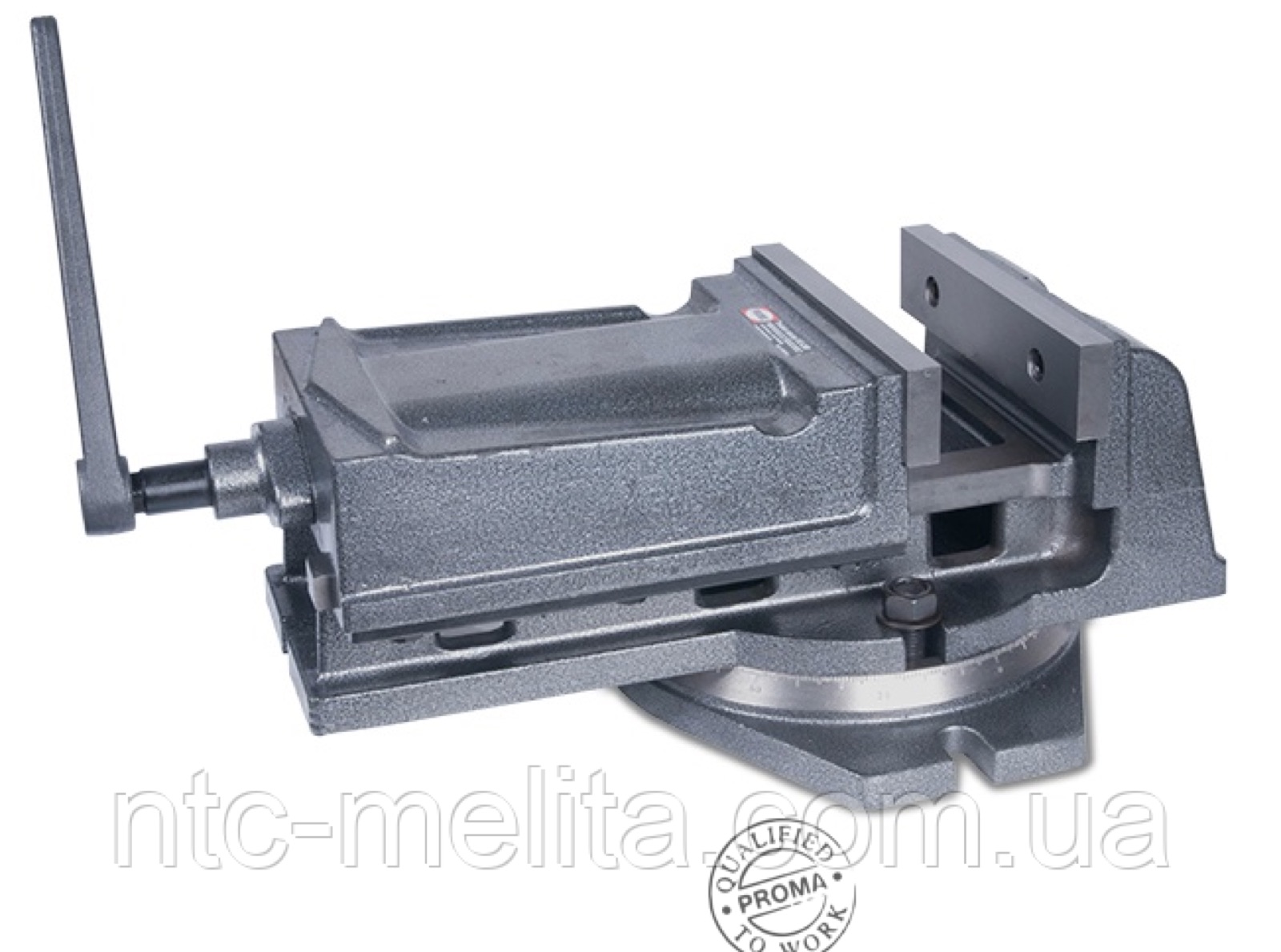

The Proma SO-200 is a mechanical swivel machine vise for mounting on a drilling or milling machine. Its base turns through 360 degrees and has a scale for setting the angle, so several milling operations can be done in one set-up. When not needed, the swivel base can be removed and the vise used on its own.
Jaw width 200 mm, jaw height 63 mm, maximum opening 150 mm, weight 38 kg. Rectangular slots on both sides are used to fix the vise to the machine table. This vise from the Czech brand Proma suits work on milling and drilling machines in production.
Swivel mechanical vise SO-200 is designed for mounting on a drill press or milling machine.
A feature of this swivel vise model Proma SO-200is a 360° swivel mechanism. The swivel mechanism makes a number of milling operations more convenient and allows the workpiece to be turned through 360°. A swivel scale is provided for convenience.
If required, the swivel base can be detached and the vise used without it.
For fixing to the machine table, the vise has special rectangular slots on both sides.
