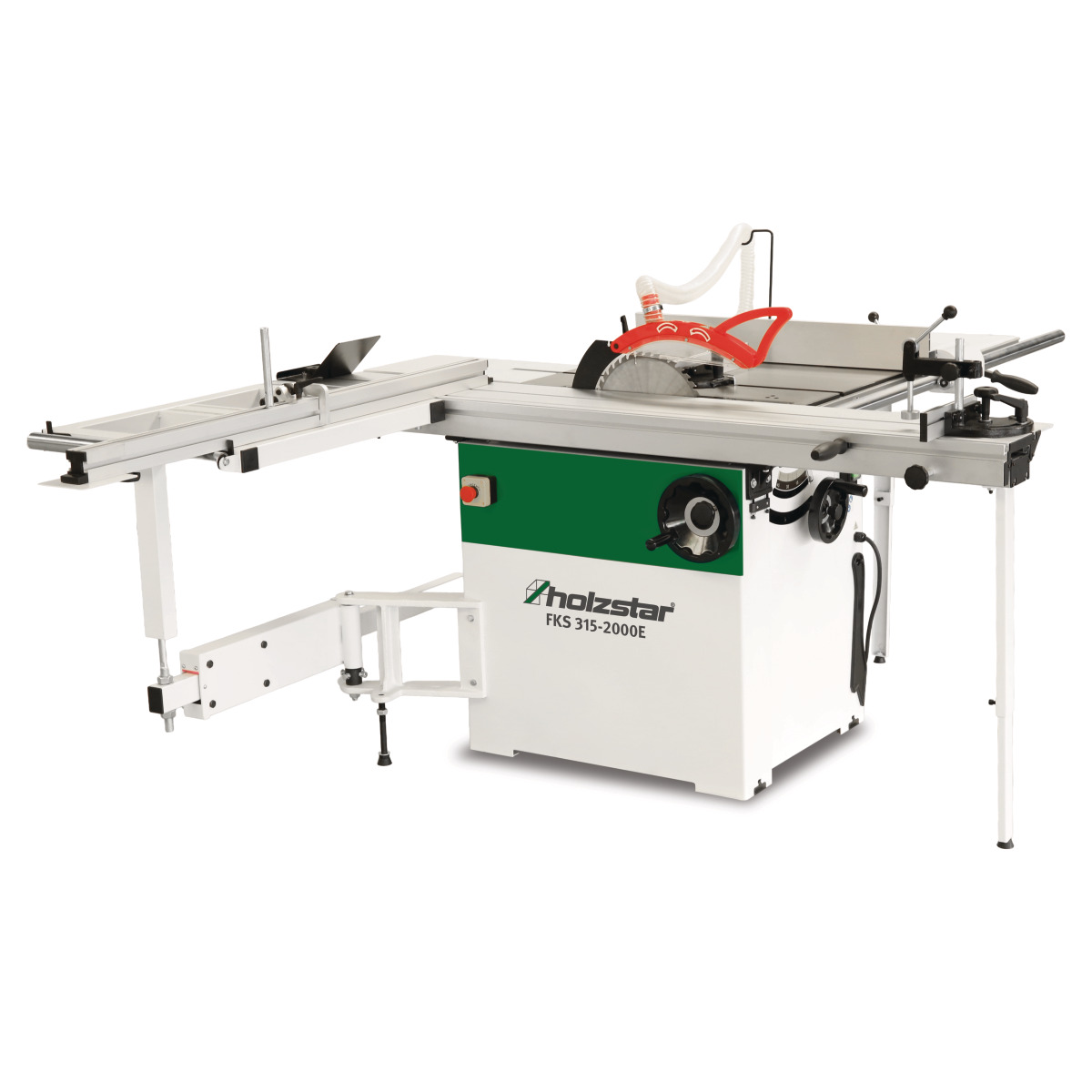

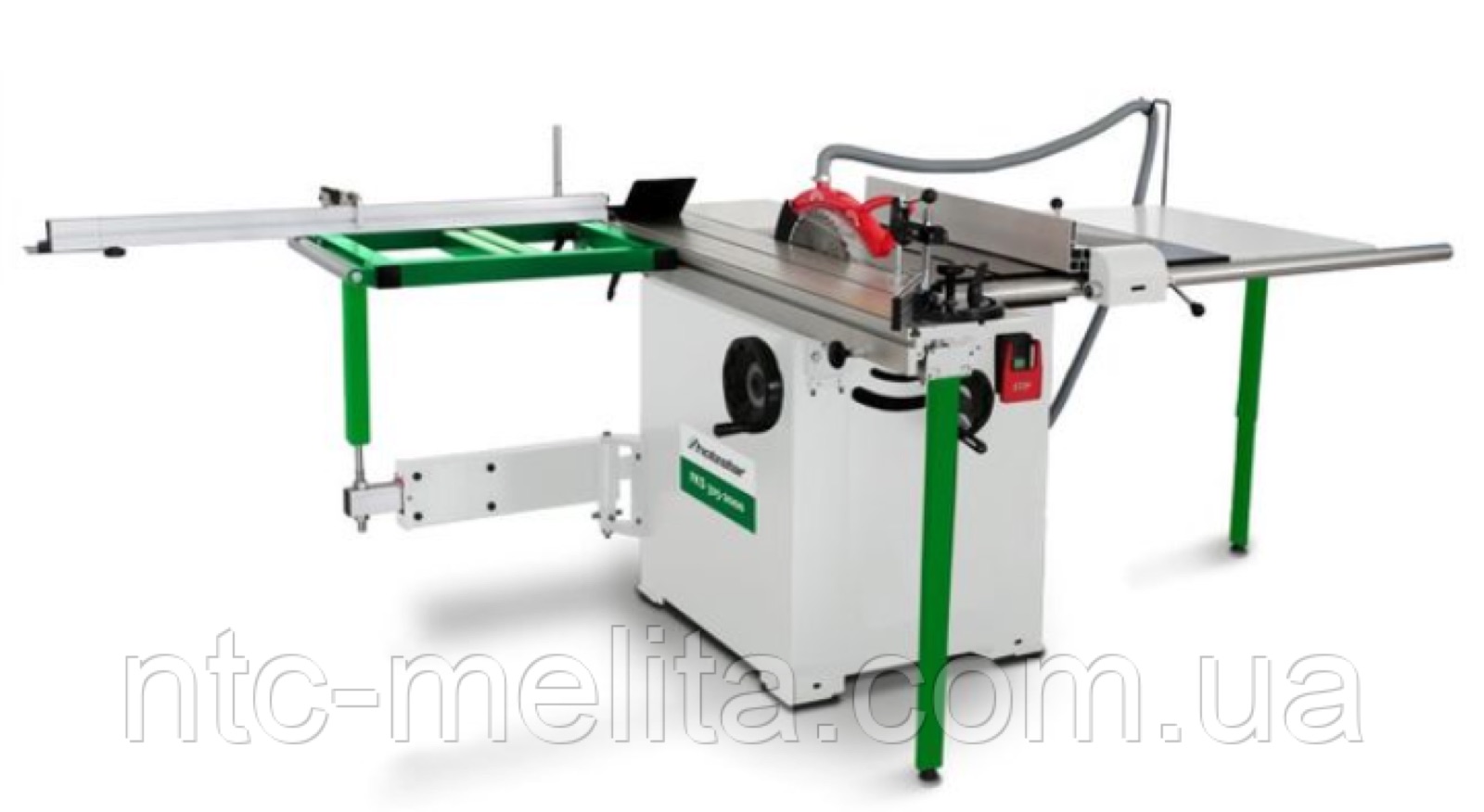

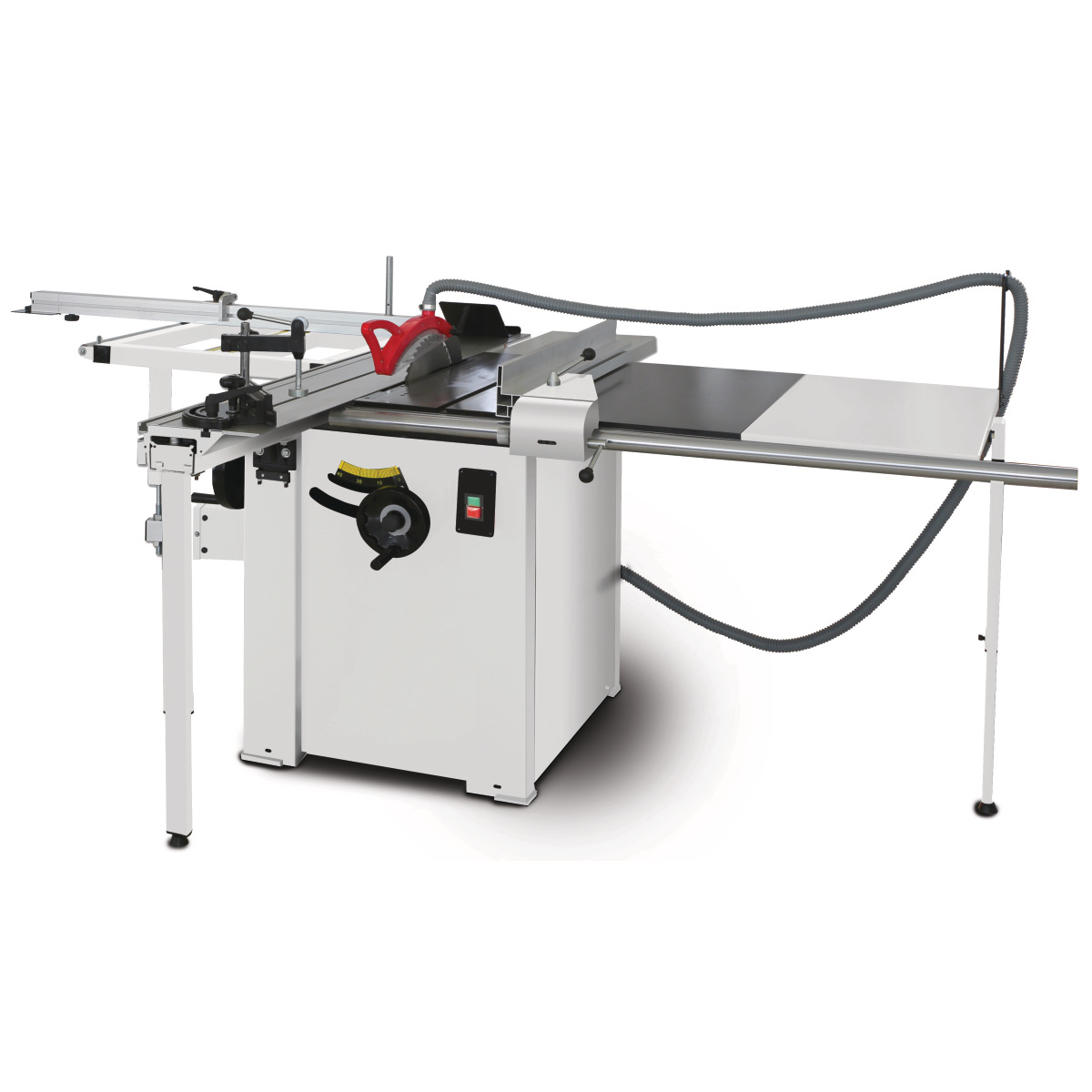

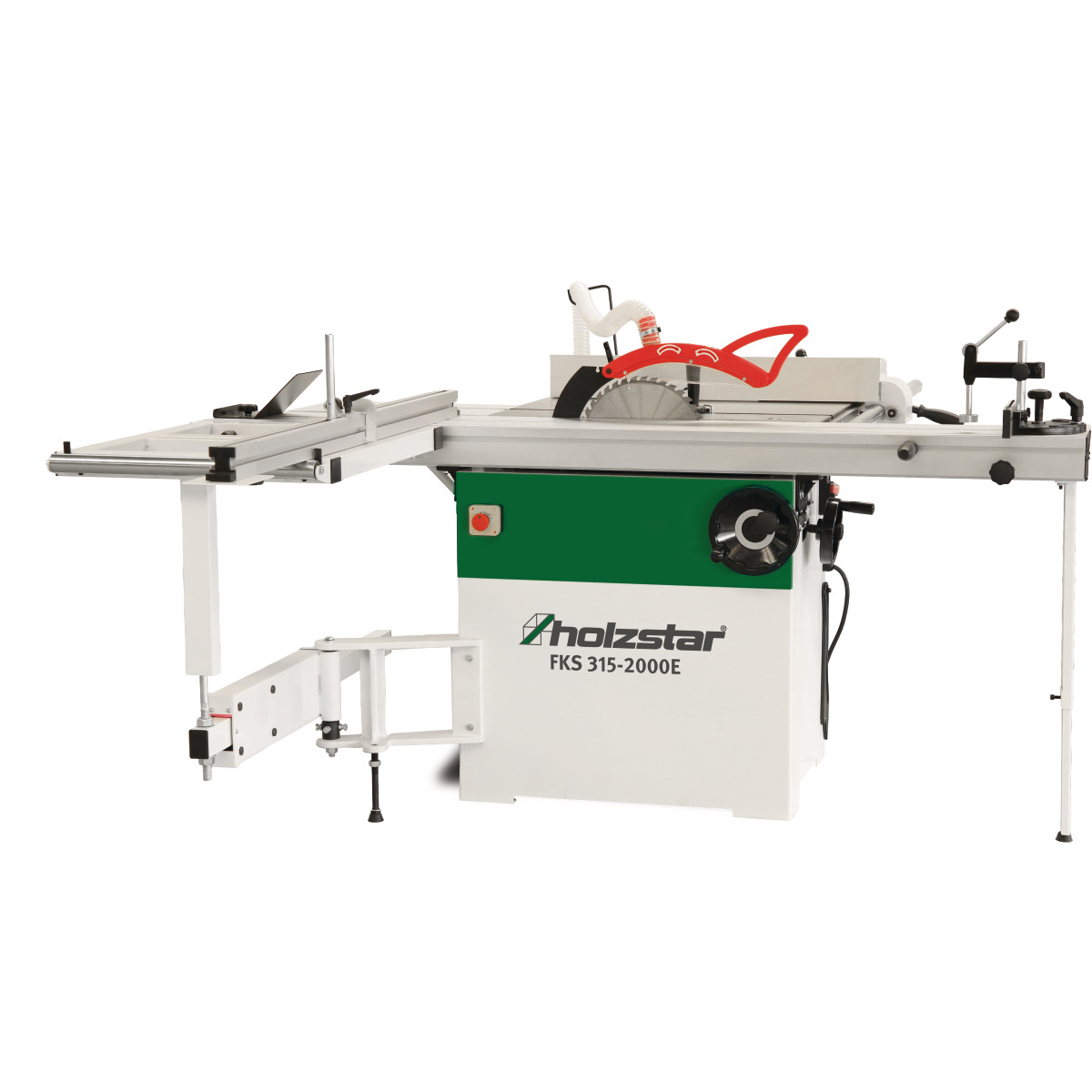

HOLZSTAR FKS 315-2000E panel saw
power4 kWvoltage400 Vweight260 kg
173 400 ₴incl. VAT
144 500 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Main | |
|---|---|
| Manufacturer | Holzstar |
| Tilt angle | 45 deg |
| Power consumption | 4 kW |
| No-load speed | 4000 rpm |
| Max. blade diameter | 315 mm |
| Bore diameter | 30 mm |
| Carriage travel | 2000 mm |
| Mains parameters | |
| Voltage | 400 V |
| Frequency | 50 Hz |
| General parameters | |
| Weight | 260 kg |
| Additional parameters | |
| Table length | 1270 mm |
| Table width | 800 mm |
| Floor to feed table distance | 860 mm |
| Max. cutting depth | 100 mm |
Description
The Holzstar FKS 315-2000E is a sliding table panel saw with a cast iron table and a scoring blade for chip-free cutting of boards. It handles solid wood and various boards in rip, cross and angled cuts. The telescopic mitre fence swivels from -45° to +45°, blade height is set by a front handwheel and the 0-45° tilt by a handwheel with a scale.
Key data: 4.0 kW motor at 380 V, 315 mm main blade, 90 mm scoring blade, cutting depth 100 mm at 90° and 80 mm at 45°, 1220 mm cutting width, 2000 x 270 mm carriage, weight 260 kg. A good fit for joinery workshops and small furniture production.
NOTE: 20% VAT MUST BE ADDED TO THE PRICE
HOLZSTAR FKS 315-2000E - panel saw with scoring blade (art. 5900317).Technical description:
- A reliable and precise HOLZSTAR FKS 315-2000E with a sliding carriage, cast-iron table, parallel and telescopic swivel fences and a scoring blade.
- Precise, rigid design with a high-quality sliding carriage built for heavy loads.
- The panel saw is equipped with a scoring blade for chip-free cutting of material edges.
- Telescopic fence swivelling from -45° to +45°, with a fine-adjustment flip stop.
- The massive grey cast-iron table ensures no vibration and a high cut quality.
- On the model HOLZSTAR FKS 315-2000E the saw blade height is adjusted by a handwheel on the front panel.
- Precise blade tilt from 0° to 45° is set with a handwheel and scale.
- The HOLZSTAR FKS 315-2000E has a massive saw unit with a cast-iron housing.
- Reliable cross-cut table with an extending telescopic support.
- The mitre fence and the clamp can be moved along the entire sliding carriage.
- A powerful motor keeps the cutting speed constant at any cutting height.
- The large work table and table extension give a cutting width of 1220 mm.
Specifications:
|
Scope of delivery:
- Telescopic fence.
- Parallel fence.
- Table extension.
- Cross-cut table.
Recommended accessories:
- Ripping saw blade Ø 315 mm, Z28 for rip and cross cutting of solid wood and various boards. (Art. No. 5263128).
- Finishing saw blade Ø 315 mm, Z48 for finish cutting of solid wood and other materials. (Art. No. 5263148).
- Finishing saw blade Ø 315 mm, Z60 for finish cutting of solid wood and other materials. (Art. No. 5263168).
