Metal lathe FDB Maschinen Turner 360X1000WM

The metalworking screw-cutting lathe FDB Maschinen Turner 360x1000WM is designed for small-batch and series production.

The FDB Maschinen Turner 360x1000WM screw-cutting lathe offers an affordable price and high build quality of its assemblies and the machine as a whole.

Rigid bed providing high machining accuracy and overall structural strength.

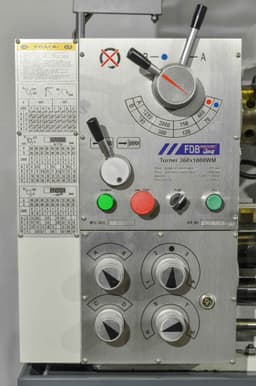

Conveniently placed lathe controls minimise the time staff need to get used to the machine in production.

FDB Maschinen Turner 360x1000WM features:

• DRO (digital readout);
• Work light;
• Coolant system;
• High-precision hardened bed guideways;
• Hardened spindle of high-strength alloy steel mounted in precision roller bearings;
• Quick and convenient speed and feed selection;
• Spindle brake;
• Lead screw overload clutch;
• High-quality electronics.

Specifications:

Model	Turner 360x1000WM
Max. workpiece length between centres, mm	1000
Max. swing over bed, mm	360
Max. swing over cross slide, mm	220
Max. swing in gap, mm	460
Gap length, mm	190
Bed width, mm	180
Spindle bore taper	MT5
Spindle through-bore diameter, mm	38
Spindle speed range, rpm	70-2000
Number of spindle speeds	8
Cross feed range, mm/rev	0.009-0.253
Longitudinal feed range, mm/rev	0.052-1.392
Metric thread pitch range, mm	0.4-7
Inch thread range, TPI	4-56
Max. longitudinal carriage travel, mm	95
Max. longitudinal slide travel, mm	980
Max. cross slide travel, mm	140
Max. tailstock quill travel, mm	120
Tailstock taper	MT3
Max. tool shank size, mm	16
Motor voltage, V	380
Motor power, kW	1.5
Digital readout (DRO)	Fitted
Coolant system	Fitted
Work light	Fitted
Assembled machine dimensions (L*W*H), mm	1900*800*1320
Net machine weight, kg	650
