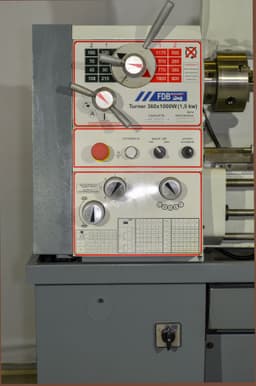

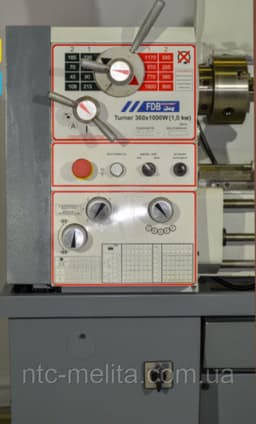

Metal lathe FDB Maschinen Turner 360x1000W( 2.2 kW)-DPA

The metalworking screw-cutting lathe FDB Maschinen Turner 360x1000W (2,2 kW) is designed for small-batch and one-off production.

The FDB Maschinen Turner 360x1000W (2.2 kW) screw-cutting lathe offers an affordable price and high build quality of its assemblies and the machine as a whole.

The rigid bed ensures high machining accuracy and overall structural strength. Conveniently located controls of the lathe ensure the shortest time for staff to adapt to the equipment in production.

Features of the FDB Maschinen Turner 360x1000W (2.2 kW):

• Work light;
• Coolant system;
• High-precision hardened bed guideways;
• Hardened spindle made of high-strength alloy steel, mounted on precision roller bearings;
• Quick and convenient speed and feed change;
• Spindle brake;
• Lead screw overload clutch;
• High-quality electronics.

Specifications:

Model	Turner 360x1000W(2.2kW)
Maximum workpiece length between centers, mm	1000
Maximum swing over bed, mm	360
Maximum swing over cross slide, mm	220
Maximum swing in gap, mm	506
Gap length, mm	238
Bed width, mm	203
Spindle bore taper	MT5
Spindle bore diameter, mm	38
Spindle speed range, rpm	45-1800
Number of spindle speeds	8
Cross feed range, mm/rev	0,015-0,22
Longitudinal feed range, mm/rev	0,043-0,653
Metric thread pitch range, mm	0,4-7
Inch thread range, TPI	4,56
Maximum longitudinal travel of the carriage, mm	90
Maximum longitudinal travel of the top slide, mm	946
Maximum cross slide travel, mm	152
Maximum tailstock quill travel, mm	120
Tailstock taper	MT4
Maximum tool holder shank size, mm	16
Motor voltage, V	380
Motor power, kW	2,2
Digital readout (DRO)	Yes
Coolant system	Yes
Work light	Yes
Assembled machine dimensions (L*W*H), mm	1822x787x1260
Net machine weight, kg	800
