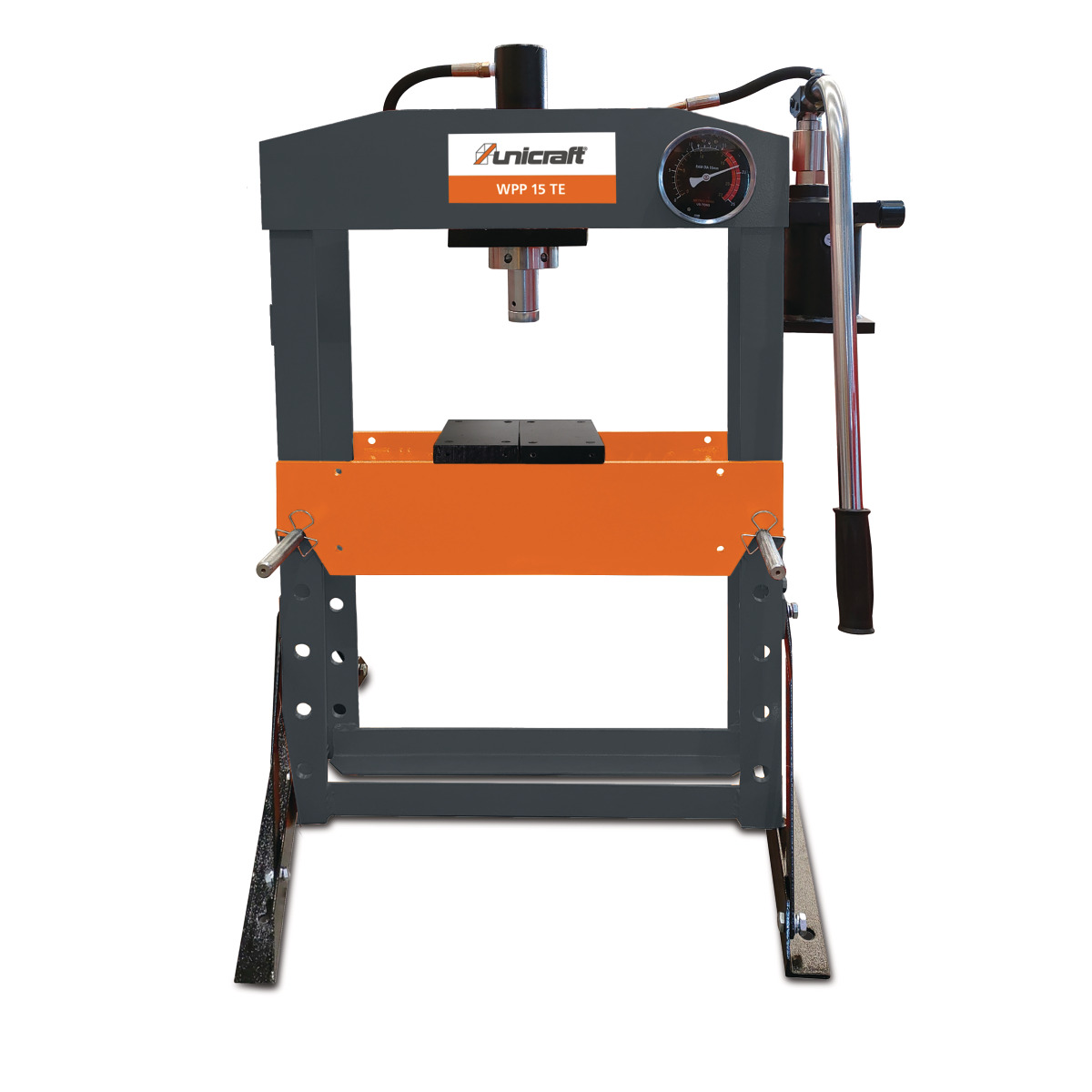

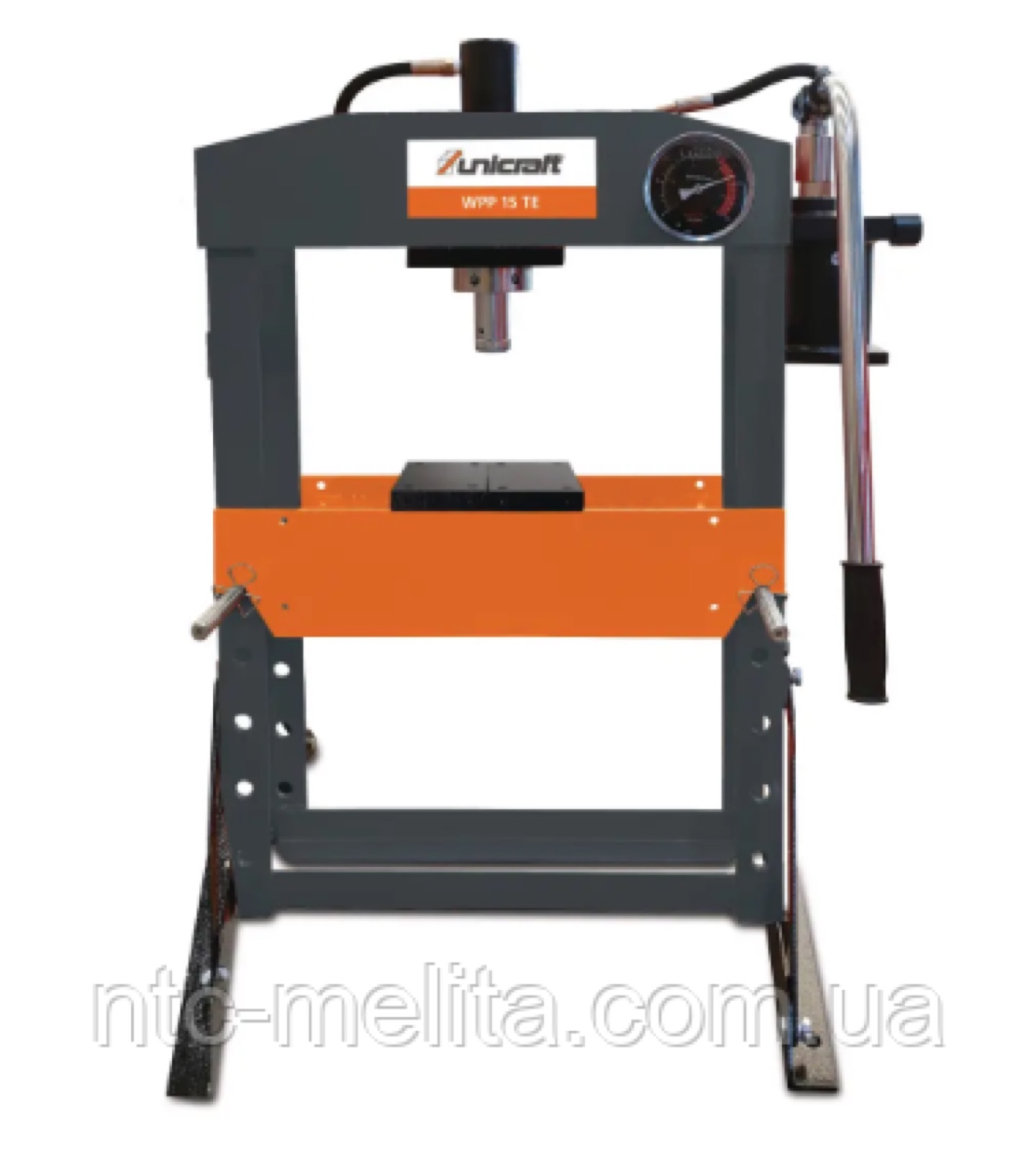

Hydraulic press Unicraft WPP 15 TE 15 t
weight75.5 kg
24 240 ₴incl. VAT
20 200 ₴ excl. VAT · invoice for companies and sole proprietorsGet an invoice or a quote
Nova Poshta, Meestat the carrier's rate
Freight carrierat the carrier's rate
Pickup, Dniprofree
Specifications
| Main attributes | |
|---|---|
| Manufacturer | Unicraft |
| Country of origin | Germany |
| Main | |
| Pressing force | 15 t |
| Ram stroke | 160 mm |
| Ram travel | 169 mm |
| Ram stroke per lever stroke | 7.39 mm |
| Dimensions and weight | |
| Support width | 560 mm |
| Frame depth | 120 mm |
| Table height adjustment hole pitch | 75 mm |
| Max. working height | 457 mm |
| Min. working height | 157 mm |
| Working space width | 500 mm |
| Ram diameter | 43 mm |
| Length | 700 mm |
| Width | 540 mm |
| Height | 965 mm |
| Weight | 75.5 kg |
| Hydraulics | |
| Hydraulic oil volume | 0.6 l |
Description
The Unicraft WPP 15 TE is a 15 t hydraulic press for training workshops, garages, car service stations, farms and production. It presses bearings and bushes in and out and straightens parts. The piston is driven by a separate hand-operated hydraulic pump, and the cylinder has a built-in return spring.
Key data: 15 t force, 43 mm piston, 160 mm stroke, working height 157 to 457 mm, inner width 500 mm, base 560x700 mm, height 965 mm, weight 75.5 kg. The table moves to three heights, and a gauge shows the pressure. A fit for a workshop that needs more force and a wider working space.
The Unicraft WPP 15 TE bench hydraulic press is ideal for general use in training workshops, garages, agriculture, etc.
The hydraulic press can also be used in car service stations and for industrial purposes.
- The rational design of the series ensures an optimal price-quality ratio.
- Hydraulic cylinder with built-in return spring.
- Working pressure is shown on the pressure gauge.
- The work table is height-adjustable in three positions and is secured with calibrated shafts and locking pins.
- The piston is moved by a manual hydraulic pump.
Specifications:
| Maximum force | 15 t |
| Piston diameter | 43 mm |
| Base size | 560 x 700mm |
| Height | 965 mm |
| Inside width | 500 mm |
| Working height | 157 to 457 mm |
| Piston stroke | 160 mm |
| Weight | 75.5 kg |
