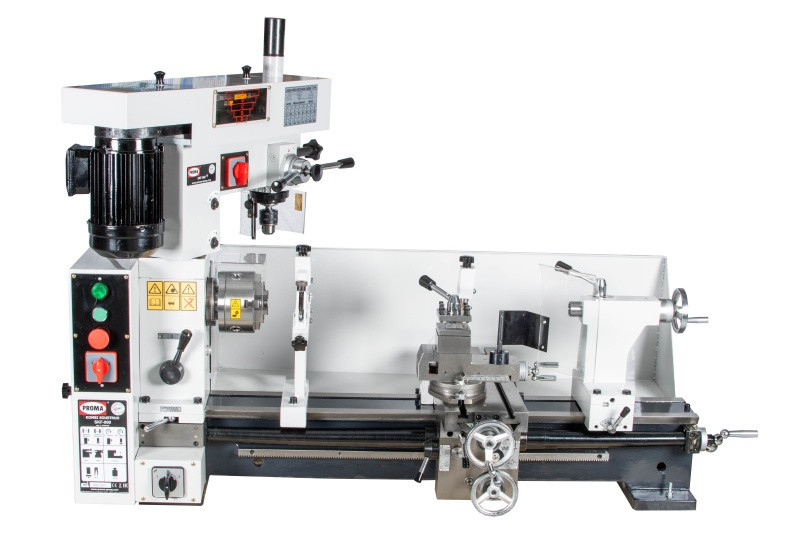

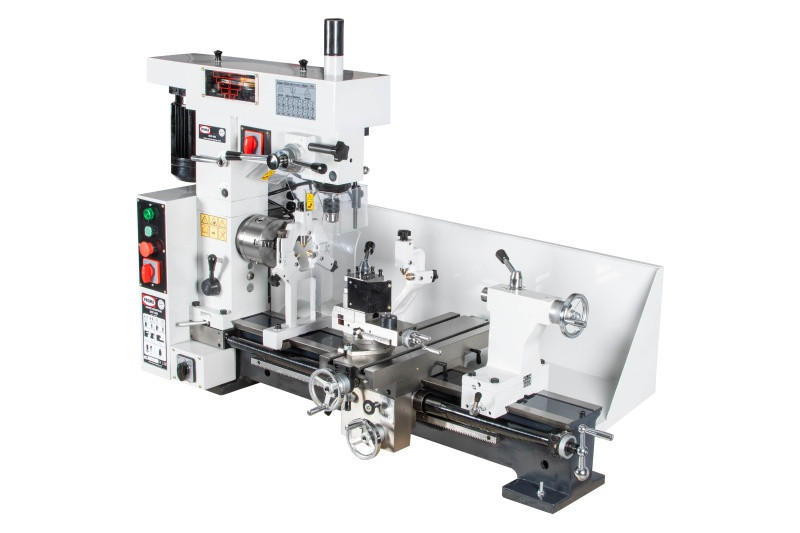

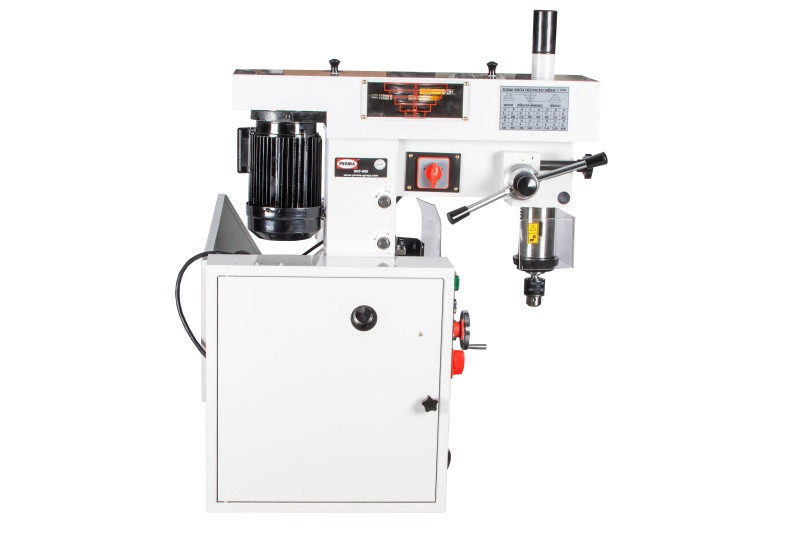

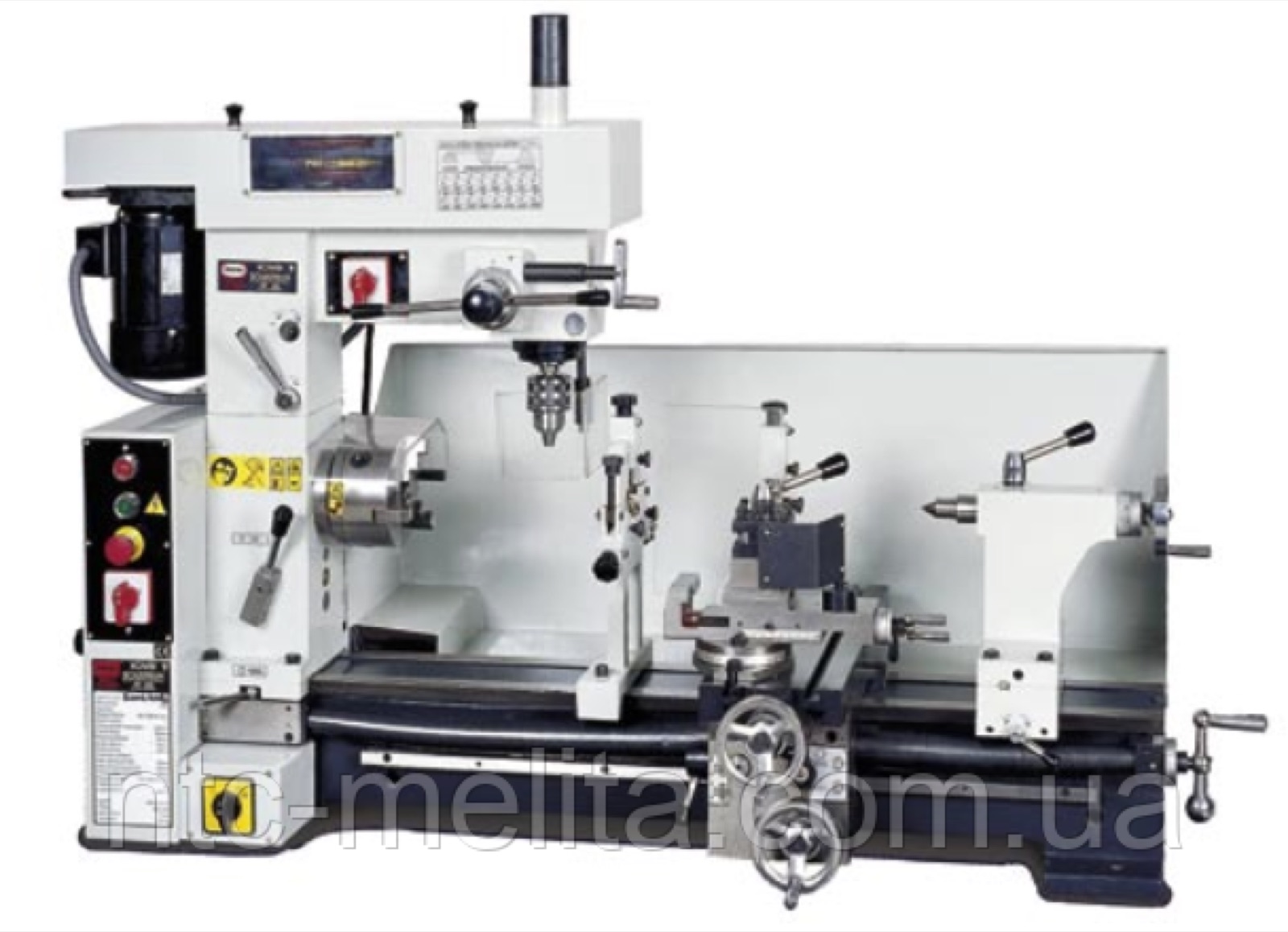

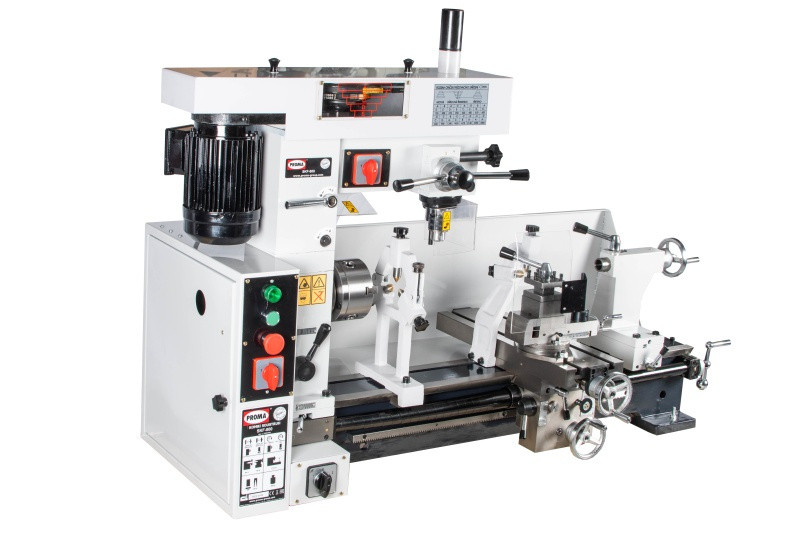

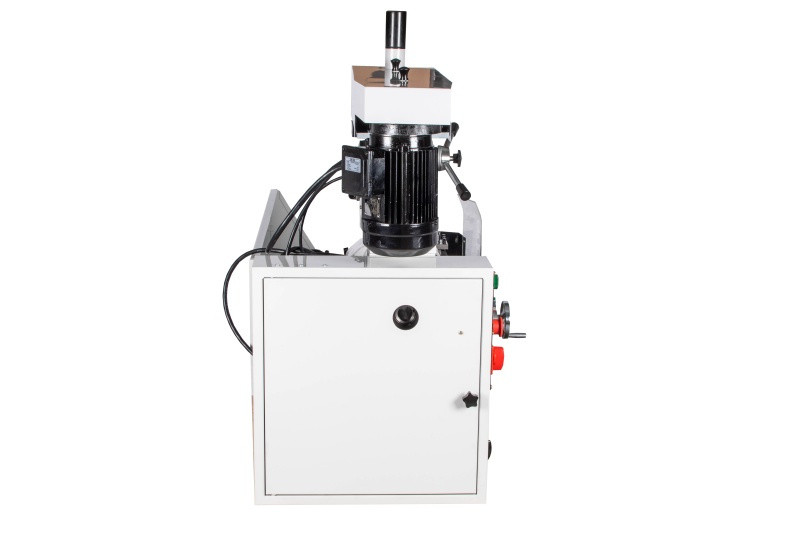

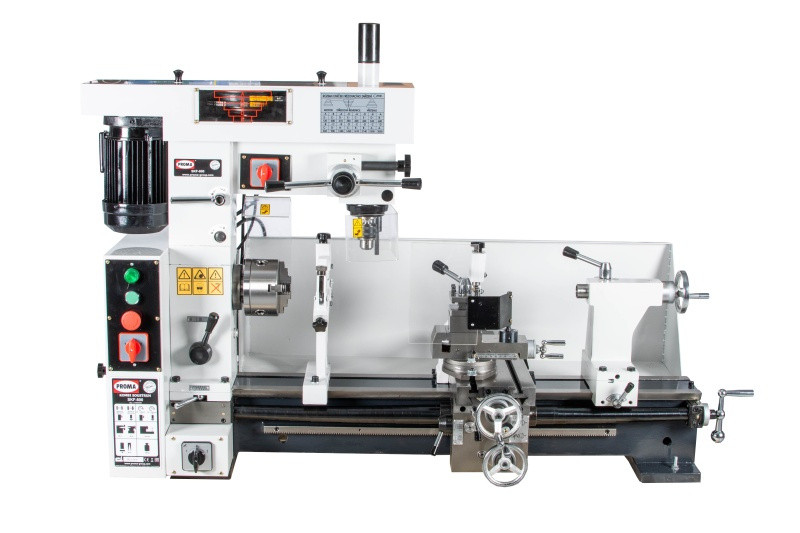

Combination lathe-mill SKF-800

Universal industrial machine

Combination machines belong to a fairly broad group of multifunctional equipment. They combine several specialised machines in one, which significantly extends their capabilities.

If a production facility or a large workshop needs to do a wide range of work (turning, milling, drilling, etc.), the SKF-800 combination lathe is one of the most suitable options.

Main specifications:

Turning length (X) 800 mm
Swing over bed (L) 420 mm
Swing over cross slide (S) 290 mm
Spindle bore 28 mm
Spindle taper MT IV
Quill taper MT III
Quill travel 70 mm
Speed range 160-1360 rpm (7 steps )
Metric threads 0.2-6 mm (22 steps )
Inch threads 4-120 TPI (34 steps )
Automatic longitudinal feed 0.05-0.35 mm/rev (12 steps )
Adjustable cross feed 0.05-0.35 mm/rev
Adjustable spindle clearance yes
Operating voltage 400 V
Power consumption 550 W
Dimensions (l x w x h) 1450 x 660 x 1000 mm
Weight 249 kg

Standard equipment:

— fixed steady dia. 50 mm, travelling steady dia. 40 mm;
— dead centres MT III and MT II, set of change gears;
— set of wrenches, V-belt;
— drill chuck 1-16 mm;
— 3-jaw chuck, 130 mm diameter

Milling unit:

Operating voltage 400 V
Power consumption 550 W
Speed range 120-3000 rpm (16 steps )
Spindle taper MT III
Table size 475x160 mm
Spindle reach 285 mm
Spindle feed 110 mm
Max. distance between spindle and table 215 mm
Max. drilling diameter 22 mm
Max. milling diameter 28 mm
Fine spindle feed yes
